Batliboi Ltd. Chickpet, Bangalore, Maharashtra

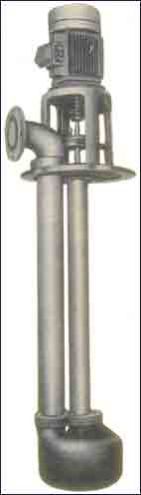

Vertical wet pit type with pump submerged and motor at the top coupled by extended shaft. Choke less, screen less and glandless pump with Non-clog Impeller. Available in SS, CI, Cast Steel and Rubber lined constructions. Available for column length up to 3 Meters. Also available in polypropylene construction for corrosive applications. Ideal for handling liquid at high temperature or which are corrosive or inflammable. Head Range - Up to 48 Meters.

For centuries 80 mm bore wells are being operated by hand pumps. Single phase electric supply has reached almost all places, there was need to have submersible pump to pump out water from 80 mm bore wells. BATLIBOI introduces V-3 submersible pump suitable for 80 mm bore. This is unieuq in design and different in construction. You can depend on its performance for longer period.

Openwell Submersible Pumpset Horizontal Vertical - 1 Ph3Ph • Self Priming Mini Monoblock Pumps • Centrifugal Pumps • Monoblock Pumps • Submersible Dewatering Pumpsets • Jet Pumps - Vertical Horizontal • 80 100 mm ( 3" 4" ) V-6 V-8 V-10 Borewell Submersible Pumpsets • V-3 Submersible Pumps • Self Priming Mud Sewage Pumps • Domestic Series Submersible Dewatering Pump • Domestic Series Submersible Effluent Pump • Submersible Effluent Pump (BSE Series)

No screens to clog. Dual Mechanical Seal for extra protection. Combination of Cast Iron & Stainless Steel for light weight, durability and anticorrosion operation as compared to other solid handling pumps. Stainless Steel Hardware for easy maintenance. Motor - 50 Cycle, 1400 rpm, oil filled.

Batliboi submersible dewatering pumpset is ideal for handling heavily contaminated water with sand, gravel and sludge matter. Ideal for construction sites, mines, thermal plants, pits, quarries, narrow coffer dams, or deep excavations. Drainage of contaminated water from any place is made easier with Batliboi Submersible Dewatering Pumpset.

ubmersible Dewatering Pumps are recommended for Dewatering of Mines, quarries, Pits, Construction sites, Thermal Plants, Deep Excavations, etc. Can handle heavily contaminated water with sand gravel and sludge matter. Portable & Self-priming with bottom suction which enables the pump to dewater up to the lowest level. Up to 10 HP - The entire pump and motor body made up of Aluminum Alloy, hence light weight and portable. Dual Mechanical Seal for extra protection. Pump size Seal Tc Vs Tc. Motor is jacketed hence cooling takes place faster. Motor - 2800 rpm suitable for 415 V AC, 30, 50 Hz, power supply. Minimum level of submergence - 50 mm. Head Range - Up to 60 Meters.

Combination of Cast Iron & Stainless Steel for lightweight, durability and anticorrosion operation. Motor - 50 Cycle, 2800 rpm, oil filled. Minimum level of submergence - 90 mm. Head Range - 0 to 18 Meters. Maximum Discharge Capacity - 280 LPM.

Specification Type: Single cylinder, vertical compression ignition, four stroke cycle, air cooled, cold starting diesel engine. Combustion: Direct fuel injection in open type combustion chamber provided in an aluminium piston crown in combination with long stem Multihole nozzle results low fuel consumption and easy starting. Crankshaft: It is designed with integrated balance weights to avoid bolting and is fitted with taper roller bearings for long life. Cylinder head: Finned High grade cast iron carring smooth air & exhaust ports passages. Cylinder Liner Block: Deep Finned, high grade iron casting having wear resistant properties.

Polluted liquids, Muddy Water, effluent or fresh water, can also be used for Sewage. Dewatering Basements, Trenches, Swimming Pools, Construction Sites. Chemicals, Diesel, Petrol, Ash Water. Any application where priming is to be avoided.

Salient Features: Double seated ball bearings, Robust construction,Capacitor is of start & run, No centrifugal switch, Mechanical seal fitted, Light weight extruded aluminium body, Pressure die cast rotor, Thermal overload protector provided.

Easy to install: Pumpset ress at the bottom of open well and installation does not require foundation. No suction problem: Pumpset works under water and hence suction problems do not arise. No water level guard required: Due to horizontal construction, the pumpset will always remain submerged in water and therefore the pumps will never run dry, which is unique feature only in this pumpset. Hence no water level guard is required. Motor rating: Voltage range of motor is as per IS 7538. Motor is also designed to withstand overload due to maximum fluctuating water levels. Earthing: Earthing terminal is provided on motor near cable entry for better safety.

For centuries 80 mm bore wells are being operated by hand pumps. Single phase electric supply has reached almost all places, there was need to have submersible pump to pump out water from 80 mm bore wells. BATLIBOI introduces V-3 submersible pump suitable for 80 mm bore. This is unieuq in design and different in construction. You can depend on its performance for longer period.

Operating Range:Range - 0.5 HP to 2 HP,Single phase,Single stage Multistage,Suitable for 3" Bore and above Openwells Domestic, Industries, Hotels, Gardens, etc.

Specification Type: Single cylinder, vertical compression ignition, four stroke cycle, air cooled, cold starting diesel engine. Combustion: Direct fuel injection in open type combustion chamber provided in an aluminium piston crown in combination with long stem Multihole nozzle results low fuel consumption and easy starting. Crankshaft: It is designed with integrated balance weights to avoid bolting and is fitted with taper roller bearings for long life. Cylinder head: Finned High grade cast iron carring smooth air & exhaust ports passages. Cylinder Liner Block: Deep Finned, high grade iron casting having wear resistant properties. Fuel System: High speed diesel oil is supplied to the fuel pump by gravity feed through wiremesh filter in fuel tank and an efficient cloth type element filter before pump. There is one more filter (inbuilt) also in injector inlet. Lubrication: Force feed lubrication by plunger type pump incorporating full flow filter, to large end bearing. Main bearings being taper roller type need no seperate supply. Other moving parts are splash lubricated. Cooling: By fly wheel mounted radial fan cooling through a stream lined cowling. Starting: Engine is designed f

Operating Range:Pump size: 2" x 2" to 6" x 6".Single Fast Pulley Loose Fast Pulley.Direct Couple Pumps available.Side Centre Delivery & High Head.

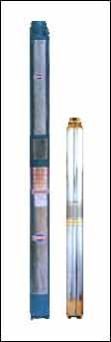

80100 mm (3"4") V-6 V-8 V-10 submersible pumpsets are manufactured as per latest technology and most modern design. Rewindable, water cooled, water lubricated motors using winding wires of international quality. Total dependable bearing of international quality. Motors suitable for single phase 0.5 hp to 2 hp (0.37 kw to 1.5 kw) and 3 phase 0.5 hp to 5 hp (0.37 kw to 3.7 kw). Motors are suitable for wide voltage fluctuations. Suitable for total heads upto 160 mtrs (525 ft) and discharge upto 180 lpm. Corrosion and abrasion resistant high grade engineering polymers, stainless steel and special alloy pump components.
