Bossman Instruments Technology Seshadripuram, Bangalore, Karnataka

PP wound cartridges are manufactured from a durable polypropylene cord that is wound around a rigid polypropylene core. They are an economical solution to reduce fine sediment, including sand, silt, rust and scale particles. cartridges are suitable for a wide variety of sediment filtration applications, including municipal and well water as well as many industrial fluids.

Water Cooled After Cooler is a Shell and Tube type Heat Exchanger which reduces the temperature of compressed Air and as a result Moisture from the Compressed Air is Separated. Cooling is done by circulating water from the opposite side of the Compressed Air inlet in Aftercooler. The Aftercooler is designed in such a way that the Cooling Water passes through the Shell in turbulent flow, resulting maximum heat dissipation from the Compressed Air and hence more quantity of Moisture is separated in Moisture Separator.

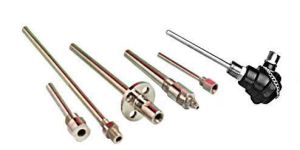

Thermocouples & Sensors are specially designed and calibrated for heavy duty industrial applications.These sensors obtain long term accuracy and ability with fast response and high insulance resistance.A wide range of sheath diameter in metal and ceramic are available.Bossman also manufacturer a comprehensive range of rugged Barstoke and thermowells which easily withstand high pressure and corrosion

Output: 230V 3A1 C relay output or voltage and current outputs (on request). Control Type:Programmable with auto tune facility. Input: K, J, R, E, T; S, N & RTD PT - 100

Used primarily for new pipeline start-up or where solid loading is minimal.Available in conical, basket and plate configurations.Available flat faced, raised face or RTJ with or without face serrations. All 304 SS construction is standard. Construction in other materials is available

Suction strainers Reusable SS 100 mesh 149 micron std, Alumininum die cast nut, Steel cap support tube, Continuous epoxy bond. Suitable for hydraulicmineral oil.

Steam is commonly used for cleaning, sterilizing, heating , as a power source and as a feedstock in chemical reactions. Un all these cases the steam supply should be fine filtered to remove the significant amount of scale and debris produced by the boiler and distribution system pipe work. When the steam is used for heating food or beverage productsby direct injection - for example in the continuous sterilization of dairy products by uperisation - then the steam is known as culinary steam and will be subject to a range of purity requirements.

Material : S.S. 316 or S.S.316L

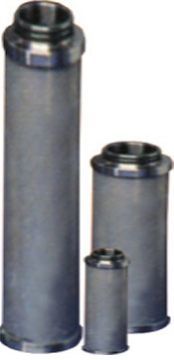

Steam filter elements specialy made in regenerable weldless stainless filter tubes.The retention rate extend from 1 micron to 25 micron. It ensures the retension of coarse solid and liquid particles.Filter elements will be assembled in electropolised SS grade filter Housings Boss-SS Series filters elements retains particles,abrasion of valves and sealings as well as rust contaminated in the process steam.

Stainless Steel Cartridges, capable of withstanding differential pressures up to 5 bar and temperatures range of -75°C up to 220 �C, are compatible with most chemicals and can be cleaned and reused. Stainless Steel Filter Cartridges are designed to overcome the temperature and chemical compatibility limitations of fabric or synthetic fiber media.

Length : 10",20, 30"

SSM Filter Elements The Bossmanfilter Boss-SSML series filter elements specialy made in Stainless steel mesh, with outer guard supports.The retention rate extends from 5 micron to 300 micron level.Thease filter elements having used especially economical pre filteration and after filteration and the stainless mesh can be regenerated by process of backflush and ultrosonic bath cleaning process.

The water flow through the cylindrical filter element inside-out,creating minimum pressure loss. During accumulation of filtration cake on inner surface of the screen,pressure loss is created accordingly. When the pressure drop between the inlet and outlet of the filter reached 0.5 bar,cleaning of the filtration cylinder is operated automatically.This operation consists of opening an exhaust valve located on the housing lid and starting the electric motor which revolving brushes and flushed out through the open exhaust valve.The cleaning duration is around 15 seconds.The service flow of the filtered water is continuous during the cleaning cycle.

The water flow through the cylindrical filter element inside-out,creating minimum pressure loss. During accumulation of filtration cake on inner surface of the screen,pressure loss is created accordingly. When the pressure drop between the inlet and outlet of the filter reached 0.5 bar,cleaning of the filtration cylinder is operated automatically.This operation consists of opening an exhaust valve located on the housing lid and starting the electric motor which revolving brushes and flushed out through the open exhaust valve.The cleaning duration is around 15 seconds.The service flow of the filtered water is continuous during the cleaning cycle.

Replacement Filter Bag are the key elements that determine the dust collection efficiency and working temperature. The change-out of bags is the major cost in maintaining baghouse. The service life of bags is the main factor affecting the cost and working condition of baghouse. Proper use of bags can achieve of excellent performance!

Refrigeration dryers employ two heat exchangers, one for air-to-air and one for air-to-refrigeration. However, there is also a single Trisab heat exchanger that combines both functions. The compressors used in this type of dryer are usually of the hermetic type and the most common gas used is R-134a. The goal of having two heat exchangers is that the cold outgoing air cools down the hot incoming air and reduces the size of compressor required. At the same time the increase in the temperature of outgoing air prevents re-condensation. Most manufacturers produce "cycling dryers". These store a cold mass that cools the air when the compressor is OFF. When the refrigeration compressor runs, the large mass takes much longer to cool, so the compressor runs longer, and stays OFF longer. These units operate at lower dew points, typically in the 35–40 °F range. When selected with the optional "cold coalescing filter", these units can deliver compressed air with lower dew points.

Refrigerated air Dryer Secure operation by performance regulation. Secure operation with implemented performance control, All components requiring maintenance can easily be accessed from one side, Control panel,designed in a proper way,thus giving a better access to the control elements and to the displays, Basic version with power control facility.

Capacity : 15 to 2800 m3/Hr

Bossmanfilter manufacturers a wide range of filter bags to many applications. Highly controlled manufacturing procedures ensure consistent quality and no contamination. The unique bag designs provide added strength and avoids risk of bypass. Our filter bags will fit all industry-standard bag housings. Nomex filter bags, PPS filter bags, P84 filter bags, Fiberglass filter bags, Normal polyester filter bags, Anti-static filter bags, Wateroil proof filter bags, PTFE filter bags, Arcylic filter bags.

Pressure Transmitter Electronic pressue transducer for hydraulic applications, Compact and rugged stainless steel construction,For higher demands,High shock- and vibration stability,

Bossman manufacturers High performance reliable,heavy duty pressure sensorstransducer from 1 bar to 600 bar pressure ranges.The output may be 0-5VDC ,4 to 20mA and 0-100mA. Electrical Connections: 9.4 mm Mini DIN connector with mating connector, Twist-lock connector . Mating connector available in Option.

PP wound cartridges are manufactured from a durable polypropylene cord that is wound around a rigid polypropylene core. They are an economical solution to reduce fine sediment, including sand, silt, rust and scale particles. cartridges are suitable for a wide variety of sediment filtration applications, including municipal and well water as well as many industrial fluids.

These filters are normally-rated polypropylene depth filter and extremely robust and compatible with a wide range of chemicals and cleaning agents.The filter is free of surfacaunts , Lubricants , resign binders , adhesives ,antistatics or release agents and other additives. These filters can be used for clarifications, polishing and prefiltration in the pharmaceutical and biological, food and beverage,water purification and chemical industries.

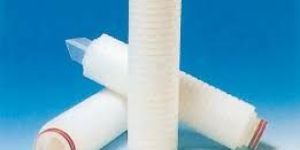

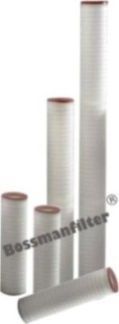

Polypropylene filter cartridges are precisely manufactured for use in critical filtration applications within food, pharmaceuticals, biotech, dairy, beverages, brewing, semiconductor, water treatment and other demanding process industries. These PP pleated filter cartridges is a high efficiency,long life,pleated filter made entirely of chemical resistant polypropylene.Its advanced design construction has resulted in a economical ,high filtration efficiency,superior flow rates,high dirt holding capacity.Its all - polypropylene thermally bonded construction and its extremely low extractables,make effictive in a wide range of fluids and applications.

Outer Diameter : 69 mm

Inner Diameter : 28 mm

PP Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths. These housings are available with with 34", 1" or 1�" BSP inlet and outlet ports. The 1�" internal port allows a greater volume of liquid to pass through the housing cap more rapidly.

These filters are normally-rated polypropylene depth filter and extremely robust and compatible with a wide range of chemicals and cleaning agents.The filter is free of surfacaunts Lubricants , resign binders , adhesives, antistatics or release agents and other additives. High strength and pressure resistance, These filters can be used for clarifications, polishing and prefiltration in the pharmaceutical and biological, food and beverage,water purification and chemical industrie. 100 % Polypropylene for wide chemical compatibility, High dirt holding capacity gives long service life, Wide chemical compatibility allows for versality in application and cleaning maintenance, Gradient density media provides high flow rates, Rigit support core enables use at high flow rates and differential pressure, High flow rates with reduced pressure loss,, Wide range of lengths and connections retrofits existing housings.

Diameter : 2.5" ( 60 mm )

Polypropylene filter cartridges are precisely manufactured for use in critical filtration applications within food, pharmaceuticals, biotech, dairy, beverages, brewing, semiconductor, water treatment and other demanding process industries.
