Double Shielded Twisted Pair Cable Dealers in Bangalore

• Color: Black
• Model No: J-RRK15
• ProductType: UAC I/O Cable
• Specification:: Input output cable
• Manufacture:: Honeywell
• Usage: :Industrial
• Warranty:: 1Year

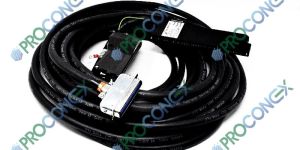

 ProductType :UAC Input /output  Cable Model/Part :-  J-RRK15Brand :- Honeywell   Origin : United States Of America   Usage  :Industrial Automation   Warranty: 1Year       Condion : Good in working condition

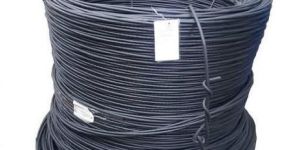

• Length: 100 Meter Also Available Upto 1000 Meter
• Color: Black
• Material: PVC
• Size: 6 mm Also Available Upto 25 mm
• Number Of Cores: 3
• Conductor Material: Copper

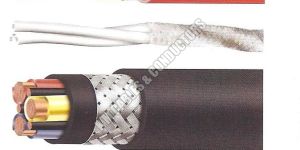

Single core to 100 core Instrumentation Cable We have expertise in manufacturing high quality Screened Shielded Instrumentation cables. These cables are generally manufactured with conductor sizes 0.25/0.5/0.75/1.0/1.5/2.5/4.0 sq. mm, conforming to BS: 5308 - I & II, IEC-189, IS: 1554 - I: 88, VDE 0815. Core: From Single core/ single pair to 100core or 50 pair. Applications: Screen shielded instrumentation cables are used in data acquisition systems, computer networking, PA systems, digital control/measuring & communication systems. Specially designed to transmit signals without any external interferenceRange:Conductor: Solid / Stranded / Flexible copper (bare / tinned)Insulation: PVC – HR; PE, LSZHShielding: individual & overall or overall screen only by Al-mylar tape / copper tape / copper wire braidInner sheath: PVC – HR / FR / FRLS; PE, LSZHArmour (for armoured cables): Galvanized steel round wire / stripOuter sheath: PVC – HR / FR / FRLS; PE, LSZH

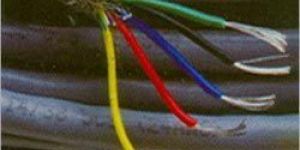

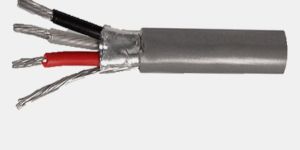

Shielded Cables are used in security system as it provides protection from power frequency and radio frequency interference, thus , reducing the number of false alarms being generated. For the optimum use is necessary to keep the data or signal cables physically separated by at least 3 inches (75 mm) from heavy power circuits which are in parallel. Construction Conductor:Annealed copper wires according to class 1, 2 or 5 of BS EN 60228 Insulation :PVC Type TI 51 according to BS EN 50290 – 2 – 21. Pairs :TwistedIdentification Pairs :Blue & white. Blue cores indicate pair identification. Assembly :Concentric Layers. Overall Screen :Aluminium / Polyester tape 0.024mm in electrical contact with tinned aluminium copper wires of total section of 0.5 mm square Polyester tape 0.05 mm thick bonded. Outer Sheath :PVC Type TM 51 according to BS EN 50290 – 2- 22 Application :PAS 5308 – 2 Design Guidelines. Standards :IEC 60332 – 1 Flame retardant.

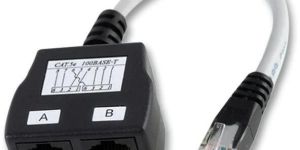

• Brand Name: TUK
• Cable Length - Metric: 150mm
• Connector Type B: RJ45 Jack x 2
• Jacket Colour: Grey
• Connector Type A: RJ45 Plug
• Cable Length - Imperial: 5.9"
• Part Number: ADF

• Type: Shielded Cable
