Clarifier Dealers in Bangalore

Coagulation and Flocculation by controlled Turbulence The PFR pipe Flocculator is a plug flow reactor in which process such as coagulation, flocculation, demulsification, precipitation and pH control can take place under highly controlled and well defined conditions. The above mentioned processes take place under turbulent flow conditions. At the chemical injection points the pipe diameter is adapted to ensure instantaneous mixing of chemicals and wastewater. Through the crosssection of a pipe the mixing intensity is virtually homogeneous. Reaction time is determined by the pipe length and flow rate and based on the exact requirements, no excess is required . In the plug flow reactor the process can be influenced at any time as opposed to tank reactors, where only condition per tank can be maintained. Generally speaking a pipe flocculator is used where a coagulant, a flatulent and optionally a chemical for pH correction are dosed in sequence for the remove all of turbidity and / or COD or precipitants. The use of a pipe flocculator in combination with a flotation system can give COD removals of up to 95%. K-pack Systems has a wide experience in chemical treatment, particularly in the use and selection of coagulants and flocculantsin combination with a PFR pipe flocculator. The PFR pipe flocculator is exceptionally suitable for our latest developments in the non-toxic biodegradable coagulants and flocculants range. Specific details and characteristics High quality and durable materials like HDPE, PVS, MS pipes. No short-circuiting and hardly any back mixing. No retention time distribution. Homogeneous mixing throughout the cross section. Completely predictable and controlled mixing environment. No moving parts. No additional energy source. All required process conditions and chemical additions in a single unit. Uniform floc growth. Small space requirements. Exchangeable mixing pieces. K-Pack Systems engineers can preform onsite tests to determine Process parameters for coagulation. Flocculation - separation. Chemical and additive requirements. Maximum achievable reductions in pollution load. Available models Standards units are available upto a flow of 400 m3 / hr. Customized units for special applications.

Major features available from VMix Packed Bed Clarifiers The Flocculent blanket removes light solids from large volume flows. Reduces loading prior to conventional multi-media filtration. Continuous operation. High clarity. High underflow solids. Complete automized with fledged instrumentation Hi torque drive mechanism ensures browmin moment. Full load easy rake lifting mechanism. Instrumentised to monitor water clarity, load, Torque and high density through put. High water recovery. Vmix Waste Water and Effluent Treatment Plants under technology collaboration with Benenv company. Jingsu Benenv Enviromental Technologies Co., Ltd. It is the subsidiary and china factory of Benenv Japan A Company with over 40 years of experience in the design, engineering, supply and installation of domestic and international commercial water, waste water and sewage treatment systems.

The design features of the solids contact type clarifier provide the three zones necessary for proper clarification: Rapid mix zone, where raw water, recirculated precipitates and fresh reagents are rapidly mixed together. Slow mix zone,where gentle mixing permits floc formation and brings the floc into intimate contact with the suspended impurities.

JAR TEST     The choice and dosage of the chemical coagulant to be adopted for removing suspended solids from waste-water are established based on an evaluation of the results obtained from the Jar Test. Multiple stirrers with reproducible stirring speeds ensure repeatable and reliable results.     LEACHING TEST     This is a test on solid wastes to be sent to the dump that uses diluted acetic acid or carbon dioxide-saturated water to detect the presence of toxic heavy metals.     JLT 4 AND JLT 6 – JAR & LEACHING TESTS     The JLT 4 and JLT 6 are multiple stirrers with reproducible stirring speeds allowing standard conditions to be met during analysis, a basic requirement in order to obtain reliable and repeatable results. The highly versatile stainless steel stirring shafts offer height adjustment and are fitted with a self-locking device with clutch. The sample can be backlit for easier reading. The instrument has an ergonomic design and the control panel is sloped to facilitate parameter settings and readings. The rotation speed can be set from 10 to 300 rpm, with 1 rpm intervals, the time remaining can be set in hours or minutes.     FP4 – PORTABLE FLOCCULATOR     The FP4 is the portable Flocculator that can be connected to a battery or a car cigarette lighter socket. The anti-skid base ensures stability whilst the highly versatile stainless steel stirring shafts offer height adjustment and are fitted with a self-locking device with clutch. The FP4 is particularly suitable for carrying out on-site Jar Tests.     FC4S / FC6S - FLOCCULATORS     The FC4S and FC6S are highly resistant to chemical and mechanical aggression and corrosion. The highly versatile stainless steel stirring shafts offer height adjustment and are fitted with a self-locking device with clutch. The sample can be backlit for easier reading. Motion is transmitted by four (in the case of the FC4S) or six (in the case of the FC6S) direct current gear motors in order to ensure optimum performance and reproducibility even at low speeds. With 9 different speed settings for each position the instrument is totally flexible; the stirring speed can be set using the selectors on the front panel (10-15-30-45-60-90-120-150-200 rpm). On demand version can reach 300 rpm.

A lamella clarifier (also lamella separator, lamella thickener) is used to separate sedimentable solid (sedimentation particles) from liquids. In general, particles larger than approx. 50µm (and of higher density than the liquid) can be separated by sedimentation. Particles of smaller size can be separated using coagulation aids. Our lamella clarifier can be manufactured from laboratory size to industrial dimensions. The casing is typically made of coated or stainless steel and the lamellas are made of propylene.

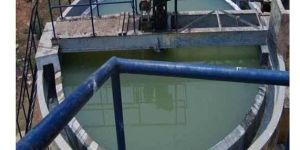

The function of the clarifier is to settle out particles. This can be done by properly recognizing that small turbulence levels can bring particles together to help them settle more easily and that the effect of shear and strong turbulence levels will break particles leading to an increase in turbidity.

Effluent treatment plants are used for treating effluent water, water with biological impurities or that containing colors, harmful chemicals, baggage and distillery effluents. The effluent treatment plants we manufacture are in strict compliance with the international quality standards. These plants are effective in reducing the bad and cold content of effluent water and make it recyclable for further usage. Clients can avail the effluent treatment plants from us at industry leading prices

• Type: Mining benefit teams
• Input Size: 0.3m³/min

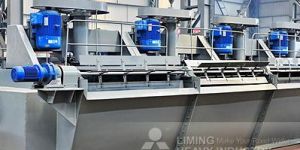

The flotation cell is driven by a motor triangular substituting transmission when impeller rotates,on the one hand, suction sufficient air is mixed with the slurry, on the other hand, stir the slurry mixed with the drug while refinement of the foam, make the mineral adhesive above of the foam. To adjust the height of the gate and to control of the liquid level are the useful ways for foam scraper by being scraped off. Features 1. High inhalation, low power.2. Each chute can inhale gas, sink magma, separate.3. There is no need of accessory equipments horizontal equipment, it is easy to change the flow chart.4. The cycling way of magma is very reasonable, it can reduce the impurities to a great extent.5. There is automatic equipment on the magma surface, it is easy to adjust.6. The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward. Working Principle The flotation cell is driven by a motor triangular substituting transmission when impeller rotates,on the one hand, suction sufficient air is mixed with the slurry, on the other hand, stir the slurry mixed with the drug while refinement of the foam, make the mineral adhesive above of the foam. To adjust the height of the gate and to control of the liquid level are the useful ways for foam scraper by being scraped off. Processed Materials : Flotation machinery can separate colored and ferrous metal mineral, and those non-metals such as fluorite, talc can also be processed by this machine. Flotation machinery takes advantages of outstanding performance, easy adjusting and good stability. Applications : The machine can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine

• Automatic Grade: Automatic
• Power: 5-7kw
• Driven Type: Electric
• Warrenty: 1 Year
• Frequency: 50-60 Hz
• Automation Grade: Automatic

We are offering flotation machine. Features large air-absorption capacity and low energy consumption optimistic structure design & excellent performance reasonable circulation of mineral slurry automatic control easy to adjust.

dissolved air flotation unit, dissolved air floatation units, Design Services

Dissolved Air Flotation Units, Tequatic Plus Filters, pfr pipe flocculator

Lamella Clarifier, Mixed Bed Deionization Plant

Water Treatment Clariflocculator, Activated Sludge Treatment Plant

flash mixers

Clarifiers, Agitators, flotation cells, grinding mills, vacuum built filter

Water Clarifiers, Aqua Grand Water Purifier, Domestic Ro Water Purifiers

High Rate Solid Contact Clarifier, Membrane Bio Reactor, MBBR Media

Ghee Clarifier

pfr pipe flocculator, api oil water separator, Coconut Shell Charcoal

Pipe Flocculator, Corrugated Plate Packs, Aquatic Plus Fine Particle Filter
