CNC Grinders Dealers in Bangalore

• Type: CNC Center-less Grinding machine
• Condition: New
• Brand Name: Micromatic Grinding Solutions
• After-sales Service Provided: Yes- Best In Industry

We are offering Jaguar CLG60205020 meets the criteria for High Productivity center-less grinding. The machine is suitable for both in-feed and Thru-Feed Grinding of small to medium sized parts. The large wheel size of �610mm with improved wheel utilization reduces number of setups and on the CLG6020 model improves the cycle time. The machine can be tooled up for various components with automation. Ideal for grinding components like Engine Valves, torsion bar, UJ Cross, Compressor shaft etc.

• Brand Name: Vollmer Germany
• Material: Steel Plus Concrete
• Color: Grey
• Condition: New
• Application: For Grinding Carbide Tools
• Feature: Sharp Edge, Accuracy
• Country of Origin: Germany

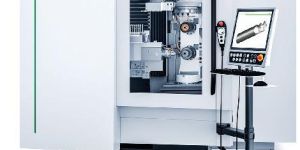

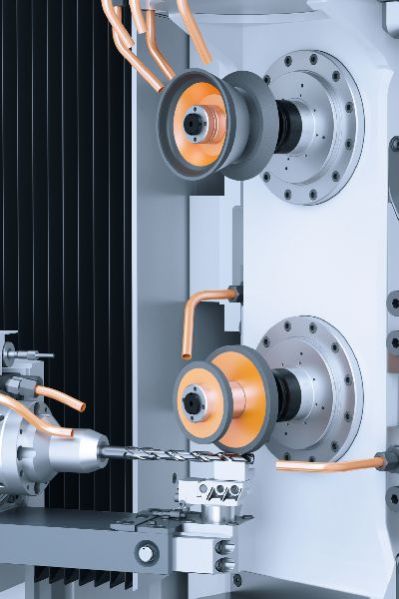

CNC 5 axes tool & cutter grinding machines. Visit www.vollmer-group.com for more details.

We use CNC Angular Wheel Head Grinder for Finish grinding of Diameters & shoulders on Shaft type gears. We focus on dimensional & geometrical accuracies such as roundness, squareness, flatness & surface finish. Our machine is ideally suited for grinding of Pump gears where Diameter & gear width is controlled precisely using in process gauges.Make Micromatic GrindingModel eGrind 200 CNCSwing Diameter 200mmAdmit Between Centers 250mmWheel Speed 45M/sWheel Dia x Length 500 x 50mmSpecial Features Angular wheel head to suit shoulder grinding   In process gauging for precise control of outside diameters   Lateral flagging device for precise control of linear dimensions

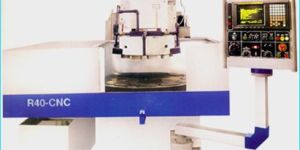

ROTARY SURFACE GRINDER WITH VERTICAL SPINDLE (RR) Description This series is designed for flat grinding of one side of the job at a time for each table load. Rotary work table operates on large, circular ways- well lubricated by means of an oil sump. It carries an electro magnetic chuck with circular poles. Access to work table is unique, in that a greater proportion of the work table is opened for easier and safer work handling. Being a fixed centre table, the initial accuracies are maintained for the entire life of the machine. Wheel Spindle Head is of extremely rigid construction, with precision bearing duly preloaded. Segmented wheel is directly mounted at lower end. Column has oversize vertical vee and flat ways fully protected from grinding dust and coolant by sliding steel guards. Wheel feed can be applied by hand or power. Precision Screw gives positive down feed on the head for accurately controlling small increments of feed. CONTROLS as Optional: Automatic electronic gauging can be provided. It gives continuous measurement of work during grinding cycle and visual indication that work is approaching size. When work reaches a preset dimension grinding stops, the machines sparks out and the Head retracts. Since the job is directly probed, wheel wear is directly compensated.CNC controls for Vertical axis with servo drives via precision ball screw is also available as optional equipment.

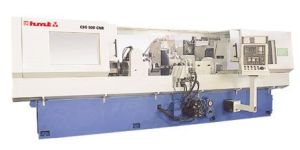

We deals in CNC Crankshaft Disc Grinding Machine Salient Features : » High precision 5-axes Crankshaft Grinding Machine that offers economic solution for grinding of crank pins and journals of crankshafts in automatic cycle. » Inprocess two jaw steady rest and gauge controls the finished size » Only loadingunloading and indexing for next pin set-up to be done manually. » Directly driven ball screws with AC servomotor for infeed axes. » Both ends fixed and pre-stretched precision ball screws driven by AC servomotors for reliability of positions. » Profile dressing along with end radius. » Infinitely variable speed for work head. » Rigid structure. » Wheel spindle runs in special high precision tilting pad type hydrodynamic bearing with independent continuous lubrication system. » Dual table with aerostatic lifting arrangement enable precise and easy taper setting (CSG 500 CNC). » Counter balancing device and chucking device mounted on work spindle. Work drive motor is de-energised for balancing of crankshaft easily.

• Type: Cnc Grinders
• Certification: ISO 9001:2008 Certified
• Weight: 4000-5000kg
• Voltage: 440V
• Condition: New
• Automatic Grade: Fully Automatic
• Power: 20 KW
• Driven Type: Electric
• Warranty: 1year
• Country of Origin: EUROPE

cnc cutting grinder, Ball Screw Bearings, Farm Machinery

cnc gear shaving cutter grinder, Cnc Wire Cut Edm Machine

5 axis configuration for high accuracy and stable axes movements. Rotary axis with backlash free worm gear drive. Direct coupled drives for all CNC axes to achieve sensitive, precise movements. (No belts)

CNC Tungsten Carbide Roll Grinder, CNC Cylindrical Grinding Machine

Cnc Grinders, Double Column Machining Centers
