CNC Router Dealers in Bangalore

We offer CNC Router. Performance and Features of LX 1212 CNC Router . 25 MM Linear Guidways for high positional accuracy and long life with high motion accuracy. . Original Italian spindle gives you very stable, trouble-free, maintenance-free performance for long period of time. . Fast speed and high accuracy ensured by gear transmission equipped on CNC Router. . High accuracy and heavy workload ensured by imported square rail.

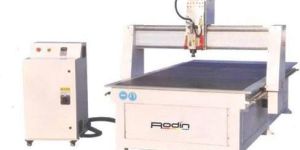

• Brand Name: RODIN
• Rated Power: 7.5KW
• Features: Approved quality, High strength, Low maintenance
• Model Name/Number: RR-1325
• Material: WOOD
• Job Material: Acrylic
• Spindle Power: 3KW / 4.5KW
• Automation Grade: Automatic
• Controller: DSP
• Working Area: 8X4 Feet

• Spindle Speed: 18000rpm
• Work Table: 1280 x 2440 x 150mm
• Working table material: PVC/higher level
• Table Design: Vacuum (6) and T-slot (4)
• Tolerance: ±0.1mm

Features Cast Steel structure give our routers more stability High-quality components: Taiwanese linear rails, and Taiwan ball screw, high speed air-cooling spindle, and high precision bearing with low noise Strong drive : 6504A stepper motor Ergonomic: Separate Controlling cabinet allows a more convenient operation Compatible Software: type3/ARTCAM/CASTMATE/WENTAI and other code produced by CAD and design software.

• Weight: 3000 Kgs
• Table Size: 2650 x 1300 mm
• Warranty: 12 months
• Router Spindle Type: SK-30 Air- Cooled
• Stroke: X-Axis 2500mm,Y-Axis 1600mm,Z-Axis 200mm
• Pop Up Pin: 3
• Light Barrier: 3 Sets
• NC Controller: SYNTEC
• Line Boring Unit: 5 x 5 Vertical Drilling
• Shank Diameter: Max @ 25mm
• Router Spindle Power: 10 HP
• Router Spindle RPM: 1000 - 18000 RPM
• Model: SPECTRA - 48
• Length: 3600 mm
• Width: 2700 mm
• Height: 2500 mm

• Spindle Speed: 18000rpm
• Voltage: 420v/50c/3p

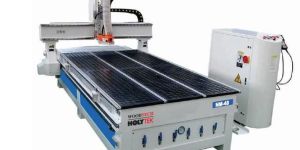

• Model: NM 48
• Work Table: 1280 x 2440 x 150mm
• Working table material: PVC/higher level
• Table Design: Vacuum (6) and T-slot (4)
• Repositioning Tolerance: ±0.1mm
• Tolerance: ±0.1mm
• Power of spindle: 3,4.5 & 6Kw / Air Cooling / HSD / Italy
• Max Speed: 35000 mm/min
• Max cutting speed: 25000 mm/min
• Bridge Clearance: 200mm
• Command Code: G Code
• Inverter/Power: Taiwan Delta/3.7, 5.5 & 7.5Kw
• Drive Motors: Stepper motor/(opt - servo) delta
• Control System: NC STUDIO/DSP
• Software: Router 8 / France
• X-Y Drive Reducer: Planetary type gear reducer
• Vacuum Pump: High Efficiency Vacuum pump 5.5Kw
• Linear guide rail: 25mm/Taiwan
• Pneumatic Rods: 3Nos. Adjustable (X:2 Y:1)
• Gross weight/net weight: 1500/1300kgs
• Machine Size (LxWxH): 3050 x 1800 x 1850

Configure it as an Electrode Miller or use it for cutting high precision Aerospace or Automobile components upto Five Axis. • Rigid, Stable, Reliable. • Tool craft CNC Mini Mills Centers are designed to step up your shop floor productivity. • Machine Structures are made from close grained Cast Iron, duly stress relieved and assembled with high precision LM guideways and C3 class ground Ball Screws. • Fully Digital or Analog, upto 5 Axis Simultaneous CNC Controller with advanced Machining features. • High Frequency Spindle with Vector Control, Liquid Cooled, and upto 50,000 RPM.
