Coil Winders Dealers in Bangalore

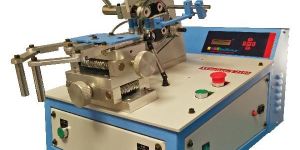

In order to ensure product compliance with stated quality norms, we conduct several tests at several stages. The raw materials that are used for the production of our finished products are acquired in minimally processed or unprocessed states; these are free from impurities as well. The offered product is available in a quality warranty of 12 months.   Trophy-T-1OO S/B (SIider/Belt Type) Finished ID - 12/8 mm Finished OD - 40 mm Finished HT - 20 mm Wire Dia - 0.08-0.30/0.30-0.60 mm Speed - 1500/1000 rpm Memoryn - 499 Programs Bifilar Winding - Yes Foot Switch - Yes Power off Data Backup - Yes Power - AC, 230V, 200W

Winding machines are designed for the production of different coils from various application, Machine models varies depending on the size and the Volume requirement from low, medium and high volume segments. Machine are equipped with powerful four axes driven by a Servo Motor with a programmable control system, these machines can wind and wrap automatically with the start and finish terminations. They are more flexible, user friendly, Machines can also be integrated directly, without shuttle, on Coil Production Lines for higher production volumes. These machines can be integrated with other accessories, finishing machines such as soldering and welding, production and assembly lines. Features : 4-axes AC servo Motor transmission system for precise position control and for higher speeds and torques. QCT tooling design 0o 90o 120o wrapping angle design. Equipped with quality tensioner controls for fine winding quality Automated wire assortment, leaving no residual wire. High level language instruction, with 6 touch panel program with user friendly. Password protected program to ensure authorization to operate the machine. Auto load/unload for enhanced productivity Optional : Auto load/unload bar, Turret load / Unload device. Twister, Air cutter, Bifilar winding, Wire break sensor.

• Type: Semi Automatic
• Weight: 40kg
• Warranty: One Year
• Brand Name: Seallence
• Application: Tranformer Coil Winding
• Model Number: winma L-100

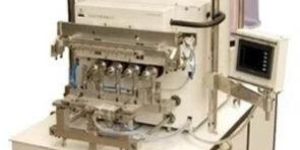

Seallence company manufacturing cnc coil windinding machine like linear and toroidal coil,serial marking machine model l 100 available in single and two spindle.

• Tang: Hook type commutator
• Shaft length: 45 – 280 mm
• Armature Dia: 20 – 90 mm
• Armature stack height: 20 – 75 mm
• Armature shaft dia: 4 – 14 mm
• Commutator dia: 15 – 40 mm
• Max. wire size: Dia 1.0 mm / 19 SWG
• Min. wire size: Dia 0.23 mm / 35 SWG
• Winding cycle time: Depends on armature type
• Air supply: 6 bars
• Electrical: 3 Phase 415V 50Hz

• Country of Origin: India
• Type: Automatic Motor Coil Winding Machine
• Certification: CE Certified, ISO 9001:2008
• Application: Blue
• Weight: 4000-5000kg
• Color: Blue
• Warranty: 1year

We offer automatic hv coil winding machine(tt-400). Standard machine specifications: coil diameter :400mm max. Coil winding length :400mm max. Coil length incl. End filler :470mm max. Coil weight :300kgs. Max. No of spindles : 1 spindle speed :0 to 400 rpm conductor (round wire) :0.5mm to 2.5mm conductor tension meter :closed loop with ac servo motor insulation strip width :15mm to 30mm strip thickness :0.05mm to 0.125mm strip tension control :closed loop ac servo motor full insulation width :460mm max. Full insulation thickness :0.07mm to 0.125mm

• Capacity: 10-50kg/h
• Finishing: Polished
• Width: 50mm
• Machine Weight: 100-1000kg, 1000-2000kg
• Power: 3-6kw
• Packaging Type: Carton Box
• Pressure: Medium Pressure
• Overall Length: 65mm
• Size (mm): 300mm
• Usage: Transformers Industry
• Specialities: High Performance
• Dimension (LxWxH): 375x290x275mm
• Type: Spm Machine
• Brand Name: TRANSWIND TECHNOLOGIES PVT LTD
• Material: Mild Steel
• Shape: Rectangular
• Certification: ISO 9001:2008 Certified
• Color: Blue
• Voltage: 110V
• Condition: New
• Driven Type: Electric
• Phase: Single Phase
• Warranty: 1 Year
• Country of Origin: India
• Operating Mode: Customised
• Machine Structure: Horizontal
• Reverse Rotation: Yes

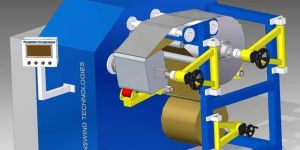

• Product: LV TFW-300 ASU
• Foil Thickness(AI): 0.2 to 2.2mm

• Material: M,S
• Automation Grade: Semi-Automatic
• Model: VLW-100S
• Voltage : 220 - 440 V
• Winding Speed: 8500 RPM Max.
• Machine Type: Semi-Automatic

• Input Power: 230V AC,50Hz ,350 Watts.
• LCD Display:: 40 Ch x 2 line with back ground illumination.

Wire Dia: up to 0.25mm Copper Wire, Machine Control: Microprocessor based advanced controller.Wire pitch Control: Fully automatic , continuously in synchronous with Head Drive.Dimensiones: Length: 600mm, width: 550mm, Height:450 mm

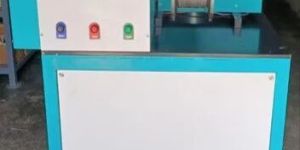

We offer coil winding machine.

• Model: as per requirement
• Capacity: as per requirement
• Design: Customized
• Layout: as per requirement
• Winding Motor Power: 1 HP
• Brand/Make: Jars Machines LLP

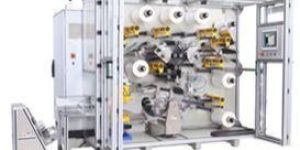

Automatic high voltage capacitor winding machine designed for winding elements (extended foil type) used in high voltage capacitors. The machine also facilitates automatic online testing and sorting of wound elements The optimum combination of mechanical, pneumatic and electronic systems incorporated in the machine provides high performance coupled with reliable operation and simplicity in maintenance The machine is controlled by PLC along with touch panel for ease of operation. Automatic foil cut & fold unit for both foils eliminates manual intervention during winding ensures winding consistency. Dual Mandrel (Indexing Type), results in shorter winding cycle time and thus leading to higher productivity. Dry-element tester with automatic transfer and sorting of wound elements eliminates manual handling of delicate elements ensuring better quality.

Transformer winding machine, SliderBelt type Toroidal Winding Semi-Automatic Machine Finished Inner Diameter (FID) : 20 mm Finished Outer Diameter (FOD) : 150 mmWinding Speed : 1000 TPM Memory : 499 Programs Display : 20 X 4 Lines LCD

• winding speed: 9500rpm
• winding width: 100 mm

CNC coil Winding Machines Manufacturer and Exporter of CNC coil Winding Machines such as, Turns accuracy : +- 0.1 turn, wire deiameter: 0.070mm to 1.00mm ( 45 SWG to 20 SWG), traverse : hydbrid step motor, brake : electro magnetic disc brake.

• Brand Name: TANAC
• Model Number: AX 1

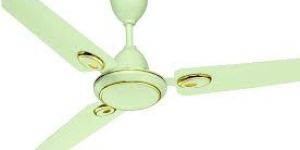

Polycab 16 Vesta Ceiling Fan White is sleek and stylish. Has a long lasting body with truely mesmerizing design. Brand :Polycab,Fan size(inches) :16, Max Current (Amps) :70.At Polycab, we constantly strive to bring greater happiness to our customers through best in class products and services. We at Polycab understand the importance of both aesthetics and performance. Polycab has crossed Rs. 5300 Crore turnover and is set to achieve newer benchmarks in the coming decade. In an on-going process to improve Customer satisfaction, Polycab offers a variety of services:

• Voltage: 420 V
• Type Of Power Source: AC
• Surface Finish: Colo Coated

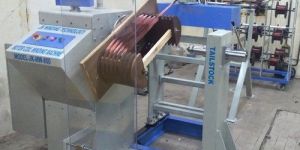

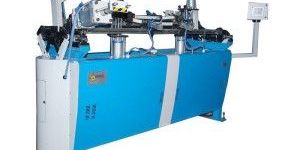

• Usage/Application: Stator Coil or high voltage coil generator coil alternetor coil Looping
• Height: 3.5 feet
• Phase: Three Phase
• Color: Blue
• Current: 32 Amp
• Speed: 200 RPM
• Linear Speed: 6 m/min
• Tape Pad Diameter: 100 mm
• Conductor Stack Size: 25 x 25 mm

• Type: Toroidal Core Winding Machine
• Color: Black, Brown, Grey, Light White
• Voltage: 220V, 440V
• Condition: New, Used
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Power: 1-3kw, 3-5kw
• Driven Type: Electric
• Warrenty: 1year

Transformer magnetic cores are produced of high quality silicon grain oriented electric steel with low and extra low specific loss including steel with laser treatment Electric steel length cutting is carried out on George automatic slitting lines. Core-plates are cut on GEORG (Germany) high-precision automatic CNC cross-cutting lines equipped with hard-alloy tools and V-dies. The sector of automatic line of cross cut electro steel cutting Georg with Pressing and packing of finished E-core is responsible for automated cutting and assembling of transformers' core. It is automatic core slitting and cutting machine and its core assembly lifting platform capacity 150 MT. Automatic core Slitting machine with de-burring attachment for burr-free laminations– from Georg GmbH, Germany Automatic core cutting machine with v-notch cutting, hole piercing, step-lap joints and stacking facilities - from Georg GmbH, Germany with dedicated 10 MT EOT Crane.

• high speeds: 1000 m/min

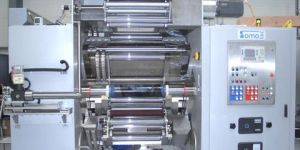

The company ATH Automatisierung und Anlagentechnik Hameln GmbH develops, among other products, control technology for winding machines used in the most varied sectors of the foil, paper and fleece industry. In a foil winder large reels of foil are wound up or down. During the winding of the foil mechanical movements must be tuned via the control technology of the drive motors. To capture the positions of existing linear and rotary axes, absolute encoders are used permitting the precise indexing of positions This precision is necessary for the high demands on the winding quality, especially with thin foils and high speeds 1000 mmin in order to be able to carry out the winding process and the coil reel change.

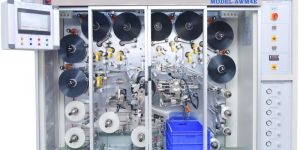

Automatic capacitor winding machine, Model AWM-4E is designed for the production high quality capacitors on plastic core for AC and power electronic applications. This machine has features like "Touch screen monitor" for setting winding parameters, with 200 pre-stored programs for fast change over of settings and push buttons. for frequent operation.
