Coiling Machine Dealers in Bangalore

• Country of Origin: India
• Certification: CE Certified
• Color: Blue
• Voltage: 220V
• Warrenty: 1 Year
• Type: Digital
• Application: Spring Testing

We are among the most renowned Manufacturers and Suppliers of Spring Testing Machine. Special testing machines for dealing with tension and Compression Springs of helical pattern are to be made use of the Spring Testing Machine. The Spring Testing Machine is designed to statically tests on springs which cannot be otherwise used for Compression and Tensile tests.

The above manual loading digital spring testing models are available with computer interface facility for both load and displacement and is provided with advanced software for real-time display of load and displacement with dynamic display of load - displacement curve.The advanced software is graphical menu driven software with display of load and displacement, plotting of load and displacement with time, plotting of load and displacement curve in real-time. The advanced menu driven software has built in data storage, archiving, retrieval, graphing with data zoom inzoom out, pan and other features. The software also provides data entry screen to enter test spring data and parameters. Report generation is provided to generate reports for saving and printout. The software can be customized with user’s requirements at request.

• capacity ranges: 100-200kN
• Size: 250*2400mm and 400*2400mm

Coil spring testing machine is designed to test springs and coil springs under compression and bending loads. They are available in various size like 250*2400, 400*2400 and so on. They have good load resolution from 5,10, and so on.Maximum load capacity ranges from 100-200kN;Total Size of machine available are 250*2400mm and 400*2400mm.

• Automatic Grade: Automatic
• Hole Diameter: 0-25 mm
• Cross Section: 60 *100
• Spool Diameter: 140 mm
•  :

Huge  springs of large wire diameter are the part of valve actuators spring cans.  Special Spring load testing machine was designed and developed for this kind of springs at OMTT. All the springs of this kind can be tested for load against deflection characterstics using this machine. Easy loading and un loading of springs is assured.

• Type: Nc Servo Feeder
• Application: Feeding Material
• Color: Brown, Grey, Light White, White
• Voltage: 110V, 220V, 380V
• Condition: New
• Function: Straighten And Feed Metal Sheet Strip, Uncoil
• Power Source: Electric
• Warranty: 1year
• Certificate: CE Certified, ISO 9001:2008

NC Servo feeder metal coil feeding machine

• Brand Name: Spoorthi
• Model Name/Number: SPI-ST-01
• Capacity: 1 N to 20kN
• Maximum Capacity: 20kN

• Features: Commendable functionality, User friendly, High speed

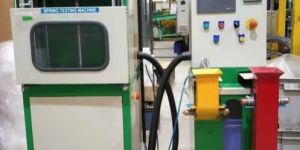

• plc controlled motorized operation • high-stiffness loading frame with precision alignment through linear bearings and two column design for more accurate results. • designed to reduce the induced variations during the testing process. It improves the consistency of results by reducing variations that will occur naturally between different operators and even the same operator at different times. • designed for application of load with minimum physical effort and enhance safety of the operator during the test and assuring more accurate results. • the system consists of a motorized loading frame with a provision to mount the load cell depending on the range of test, spring under test and the display unit. • control panel consists of startstop, inch-low, inch-fast, emergency stop, onoff push button switches. Ac drive unit and potentiometer to set first speed and second speed. • the following operations are controlled through computer. - high speed control to approach testing point and low speed near the testing point to ensure fast. Accurate and efficient test. - inching operation to set the position of the load cell and the test spring. - separate display to set the displacement value (say 98% of the target value) switchover from high speed to low speed for accurate measurement of target value. - variable speed adjustment of cross head with an accuracy of 1mmmin. - manual or automatic mode of operation. - facility to set sampling mode or cycling mode. - simultaneous display of load and displacement values using load cell and non contact optical scale. - digital control electronics provides high accuracy and fast response. - suitable for compression or tension springs either for performance or for production tests. - mechanical and electronic over load protection for all range of load cells. - all digital electronics for reliability, durability, and measurement accuracy.

Coiling Machine, anti twist laying machine, Cable winding machine, Tyre Rack

dye springs machine, Genset Engines, Tool Kits

spring coiling machine, spring forming machine

We provide coil spring testing machines. These machines are table mounted, digital and hand operated. These machines are known for their durability, reliability and accurate dimensions.

waterproofing spring machine

SmSpring testing machines, Tensometer

Wave Spring Machine, flat spiral springs, Constant Force Springs

Cnc Spring Coiling Machine Pcs-c208

Spring Load Testing Machines
