Concept Engineers BTM Layout, Bangalore, Karnataka

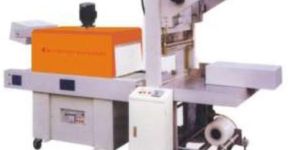

Sleeve wrapper with Shrink tunnel Sleeve wrapper with Shrink tunnel are used to pack heavy products. The film used in this application is LDPE or LLDPE shrink film . In this machine , two rolls of film are used and automation un-winding system is a special type of knife sealer, which seals and cuts the film with uniformity and consistently. Air cooling is used for cooling the seal . Sleeve wrappers are usually combined with heavy duty shrink tunnels for better ourtput and packaging results.

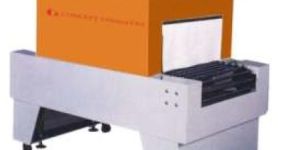

Shrink Tunnel These compact and user- friendly shrink tunnels are used to pack products using PVC/ POF/ LDPE Shrink films. The basic features of turnels are variable speed Drive to control the speed of the conveyor , High velocity air cutter blower or uniform airflow system , faster heater system , and variable temperature control. Some of the other optional feature which are available are silicon sleeves for the conveyor rods , full stainless steel construction , variable speed drive for the blower, in feed and out - feed extension conveyor , Mesh type conveyor , Roller type. Teflon belt conveyor etc..

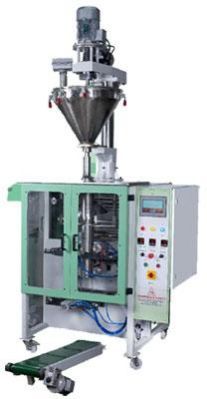

applications: for packaging various powders, masala pack , curry powder, coffee, tea, spices , detergent powder, pesticides seasoning , seeds , tablets, snuff powder, pan masala , gutka, dhana dal, mehendi powder, supari , salt , sugar, namkeen, bhujia , ors (rehydration), milk powder, hair dye powder, pepper, etc.,. features: machine equipped with photo electric control systems to adjust and correct the pouch length in the accuracy (in the eye mark). tailor made to suit specific requirements of each product. easy lubrication system. easy to operate with minimum manpower. all the gears and sprockets are properly heat treated. all the parts in contact with packaging products are made of stainless steel high quality pouch formation. programmable pouch counter & batch cutter as per specified counts. high quality perforations between pouches for easy tear. plc with touch screen for easy programing. optional feature: pneumatic high quality batch coding machine. air out cylinder to remove air from pouches. nitrogen flushing variable speed. one year warranty from the date of purchase. spare parts and service are available at one notice. .

Design registration is done mechanically with photo Control panel. Easy lubrication system. Feed Conveyor - 2 meter long for easy feeding of the products. One year Warranty from the date of purchase Spare parts and service are available at one notice. All the gear and sprockets are properly heat treated. All the parts in contact with packing products are made of stainless Steel

The filled pouch with the product is placed below the special nozzle provided in the machine . The pneumatically operated jaws closed the pouch first , removes the vacuum and flushes with nitrogen , All operations are timer controlled in this machine . Different sealing system like impulse and continuous sealing can be provided.

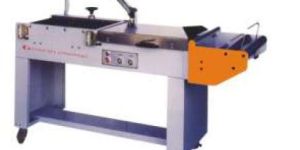

L-Sealer with tunnel is a packaging systems in which 2 machines are used or shrink packaging of products using POF / LDPE Shrink film , L-Sealer is combined with a shrink tunnel . the two machines are combined as one unit for maximum and faster productivity . The product to be wrapped is inserted into the film and sealing is done . After sealing , the product moves to the shrink tunnel , with the help of auto take - off system . The Film shrinks inside the tunnel ata set temperature and speed of travel.

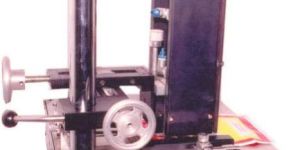

Rugged & Reliable coder, available in various models including Online & Table top units. For Online system, the print head is mounted on the parent machines & coding is done whenever the machine stops for sealing. In Table top model, the printing is done by manual feeding. Print Area: A: 25mm x 50mm B:50mmx100mm Application: Ideal for printing on pouches, cartons metals, Glass, Foils & labels.

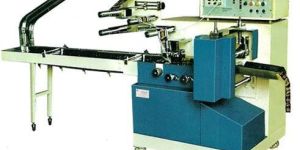

FEATURES : Design registration is done mechanically with photo Control panel. Easy lubrication system. Feed Conveyor - 2 meter long for easy feeding of the products. One year Warranty from the date of purchase Spare parts and service are available at one notice. All the gear and sprockets are properly heat treated. All the parts in contact with packing products are made of stainless Steel

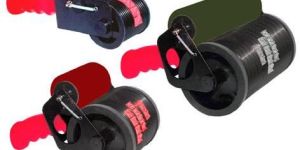

The offline, compact hand held coder that speed marks packaging materials. It is equipped with a tension spring that returns to its zero position after every stroke. The Printing matter can be composed & printed in no time. Print Area: A: 50mm x 195 mm B: 98mm x 355mm C: 195mmx 355mm Application: Easy marking on corrugated cartons, poly sacks, Jute bags, Leather & Ply Woods.

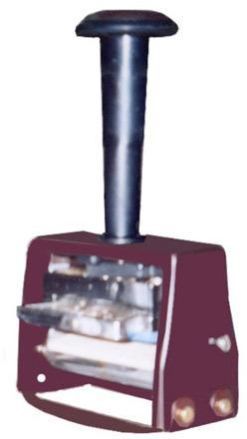

A Reliable & Handy machines specially designed for printing on metallic & nonmetallic, flat & round surfaces. Self-inking & easy to change types as & when required. Print Area: A: 21mmx13mm B: 55mmx22mm Application: Marking on cartons, Poly bags, Jute & HDPE bags, Plastic, Glass, Cosmetic, etc.

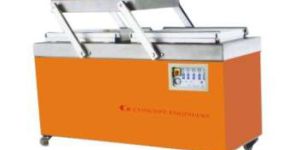

These model machines produce a higher output compared to the single chamber machine as the loading can be done in one chamber when the other chamber is in operation and the total system works with a single vacuum pump and power rating. The basic operations of product loading and packaging are similar to the single chamber machine. Optional features which are available are fully stainless steel construction , pneumatic sealing system or bellow type sealer, PLC based control panel , Brick type packaging moulds , caster wheels, deep vacuum chambers etc.,

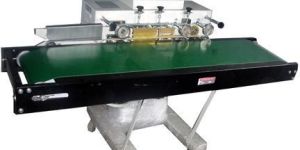

Continuous band sealer can seal plastic films made from various materials which is widely used in fields of food, medicine , chemicals , daily use & vegetables seeds, etc. It is ideal sealing equipment for packaging batch products in factories & shops . Both vertical and horizontal models are available with pack size from 50gms to 10kgs pouch weight.

For packaging various powders, Masala pack , Curry powder, Coffee, Tea, Spices , Detergent Powder, pesticides seasoning , seeds , Tablets, Snuff Powder, Pan Masala , Gutka, Dhana Dal, Mehendi Powder, Supari , Salt , Sugar, Namkeen, Bhujia , ORS (Rehydration), Milk Powder, Hair Dye Powder, Pepper, etc,. FEATURES: Machine equipped with photo electric Control systems to adjust and correct the pouch lenght in the accuracy (in the Eye Mark). Tailor made to suit specific requirements of each product. Easy Lubricatrion system. Easy to operate with minimum manpower. All the gears and sprockets are properly Heat treated. All the parts in contact with packaging products are made of stainless Steel High quality pouch Formation. Programmable pouch counter & Batch cutter as per Specified counts. OPTIONAL FEATURE: Pneumatic High quality Batch coding Machine. Air Out cylinder to remove air from pouches. Nitrogen Flushing Variable Speed. One year warranty from the date of purchase. Spare parts and service are available at one notice.

The product to be packed is filled in the nylon barrier or multilayer film based pouch and placed in the vacuum chamber. Once the lid is closed, the vacuum pump which is inbuilt in the machine starts the process of vacuuming the total chamber in which the pouch filled with the product also gets vacuumed. The machines are provided with two inbuilt Sealer for higher productivity. Options available in this machines are gas flushing, PLC based system, Fully stainless construction, bellow type sealing depending on moulds, castor wheels etc.,

CARTONS / LABEL CODER Automatic feeding , compact & high speed coder for accurate registered printing , Label / Cartons stack is fed automatically by slant magazine & picked up by rubber friction insert, fed to timing chain at variable speeds. Oscillating distributor roller spreads ink evenly on the ink roll for uniform printing. Print Area: A: 45mmx45mm B: 57mmx200mm

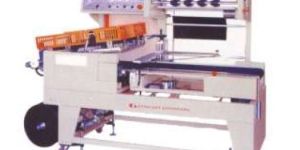

Automatic L-Sealer is a state of art machine with international safety features for high productivity and minimal labour involvement in the packaging . The products to be packed have to be placed on the in feed conveyor manually or can be connected to the production line . The film unwinding is a motorized system using fractional power geared motors . The Sealing system is hot knife type used for high quality sealing and cutting, latest of its kind. The machine is PLC controlled with 2 programs either photo eyes or timers to control length . The machine has a in built safety protection and alarm.

APPLICATIONS: For packaging various powder, Granules, Detergent Power, Seeds, Tea, tablets, Coffee, Spices, Snuff Powder, Pan Masala, Gutkha, Mehandhi Powder, Supari, Salt, Sugar, Masala pack, Curry Powder, Namkeen, Bhujiya, ORS (Rehydration), Milk Powder, Hair Dye Power etc.

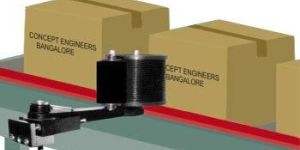

AUTO CODER An Online, Large Character Coder suitable for mounting on Conveyor & BOPP tapping machines. It is equipment with a tension spring that returns to its zero position after every stroke. Print Area: A: 50mm x 425mm B:50mmx100mm Application: Marking on corrugated Cartons & Paper bags on conveyors.
