Control Panels Dealers in Peenya Industrial Area, Bangalore

• Country of Origin: India
• Size: Multisizes
• Type: Power Control Panel
• Color: Brown, Grey, White
• Voltage: 110V, 220V
• Body Material: Mild Steel
• Power: 1-3kw, 3-6kw
• Power Source: Electric
• Phase: Double Phase, Single Phase
• Warrenty: 2 Years
• Autoamatic Grade: Manual
• Brand Name: ADITHYA
• Application: CONTROL PANEL
• Grounding: YES

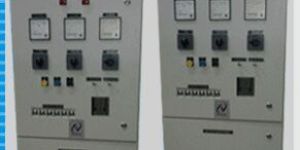

We manufacture control & relay panels (crps) used for the protection of electrical networks ranging from 11kv to 400kv. Our state of art facilities has the capacity to manufacture 600 panels per month.

    Power Control Center(PCC)    Motor Control Center(MCC)    Turbine Control Panel(TCP)    Generator Control Panel(GCP)    Remote Control Panel(RCP)    Synchronizing Panel(PCC)    Duration board    Solar panels     LT Bus Ducts(Indoor/Outdoor)    APFCR Panel    AHU Panel    Outdoor Panel    LT DG Control Panel    AMF Panel    HT Panels

The reliable ACDB/DCDB panels are manufactured with proper heat dissipation calculations and hence offer several years of service. The components used in these panels are form world class German manufactures ensuring the best possible quality.We have expertise in providing support / solution in the areas area of Solar which is applied in both KW& MW Solar projects and also we having expertise in ON Grid and OFF Grid Solar Project offering.

PLC panel houses a  programmable logic controller, PLC, or programmable controller which is a digital computer used for automation of typically industrial electromechanical processes, such as control of machinery. PLCs are used in many machines, in many industries.

The Type-A Excitation Control Panel is to provide controls and protection for the excitation control of Generators upto 30MW. The system is built around a heavy duty type Automatic Voltage Regulator and one Manual channel. AVR maintains generator voltage within close regulation limits on loading. The manual channel is built to provide excitation power upto 110% full load. The Manual channel will be useful especially during initial commissioning stages and to provide a simple alternative to the Auto channel when the Auto channel goes out of order. The VAr/PF Control Module of Sanelec is employed to provide a constant PF or constant VAr operation while operating in parallel with grid during Auto mode. This module will keep the Power Factor or VAr (depending on the mode selected) constant at the set value against normal grid voltage variation and MW load variation. The limiter used is UMVAr which protects the generator by quickly increasing the excitation when the generator Pf goes leading beyond limit. The protections are used in the event of Over Voltage, Under Voltage, Over Excitation, Under Excitation, Diode Failure and PT Fuse Failure. Indicators are provided for all operating status and fault status through µP based Facia cum Annunciator unit. The Excitation System includes features, which will enable the Generator to operate1. Solo 2. Parallel with other Generators3. Parallel with the EB grid MOUNTING PLATE Mounting Plate – A cost effective Analogue AVR cum APFC mounting plate for smaller range machines wherein the mounting plate can be fixed in Generator Control panels.

We manufacture and install industrial control panel as per your requirement

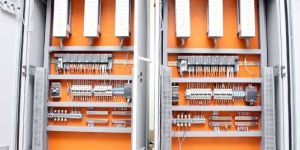

Vfd Panels, Panel Meter

• Phase: Single Phase
• IP Rating: Ip54
• Brand Name: Navago
• Usage/Application: Street Light Controller
• Voltage: 230 V
• Rated Frequency: 50 Hz

Our company offers technically advanced motor control panels that are available in regular as well as irregular sizes. Using superlative raw materials, we have developed motor control panels with high precision. These are highly durable, corrosion resistant and give flawless performance for a long time. We are the prominent manufacturers and exporters of indoor motor control panel in India.

• Driven Type: Electric
• Application: Indutrial Use

ACS355-03E-23A1-4

Our APFC Panels have the largest satisfied customer base. Dedicated to providing environment friendly quality solutions and commitment to delight customers with unique value propositions.

• Material: ABS, Mild Steel, PVC
• Frequency: 50 Hz
• Brand Name: Monarch Controls
• Warrenty: 2 Years
• Rated Voltage: 220 - 240 V
• Supply Phase: Single Phase

The Electrical Control System offered by us has a worm reduction gear box, motor and frequency converter, control panel and pendent. In plano milling mode there is a table to move from 30mm per minute to 400mm per minute in step less range. Its unit has all require cables, output fittings, chain and sprocket, etc. Our Electrical Control System has systemized controls for Forward /Rewind /Stop / Rapid Stop selectors for table feed and similar start/stop and forward /rewind selector for spindle motor is there. This Electrical Control System comprises of Spindle RPM and table feed rate can be easily changed by using the potentiometer given on the of the machine. There are also the calibrated voltmeters giving the spindle and table feed rate will be provided. The relevant interlocks and sensors / limit switches, etc. will be provided. It has interlocks by operation of planner motor at the time when clutch of Plano-milling is positively disengaged, Table stroke limits, Spindle rotation-table feed interlocks, etc. The necessary cabling material like cables, hoses and connector's for cabling from panel to pendent, motors, limit switches; clutch, etc. had to be provided. AC Motor and Gear box assembly : AC Motor and Gear box assembly has a AC induction motor of high quality, fit with external axial fan for forced conversion. It encourages proper heat dissipation, when the motor is running continuously at all RPMs. The AC Motor and Gear box assembly will drive the input shaft of a reduction gear box. There is a slip frees suitable timer for the belt drive. The Reduction gear box will be there to make like Elecon /Radicon/ Cyclo, etc.Complete control system : for the planomilling operations requires the given table. It includes controls for spindle, table feed and relevant inter locks. All the controls will be putted in a separate electrical cabinet on floor near to reduction drive unit. The elements used are MCBs, contactors, cables, etc. vital for the control system, of standard reputed makes easily available in India like Siemens/ L&T/ Technic/ Indo kopp, etc. Features of Electrical Control System Excellent durabilitySturdy constructionHigh performanceEasy installationEnergy efficient

To meet the diversified requirements of our prestigious clients, we are engaged in offering LTDB Panel that is available in a wide variety of specifications as per the exact requirements of clients. This panel is fabricated under the guidance of experienced professionals using supreme class components with the help of latest technology at par with international standards. The offered LTDB Panel is widely recognized for high performance, less maintenance, robust construction, corrosion resistance and reliability.

Electrical HT Panels are used for control and protection of power transformers, generator, capacitor banks and power distribution. Moreover customers are eased with the availability of the customised HT Panel Boards as per the specifications and drawings provided. ABM Energo Engineers - has a state of the art technology in manufacturing the HV switchgear panels and we have an expertise in HV panels for Power Generation and distribution sector, our products are type tested with Indian premium testing laboratory CPRI, and deployed in various places in INDIA and overseas. Our HV products are manufactured as per the National and International standards (IEC) as per the customer specific requirement.

The circuit is designed for AC DC supply including Anti Pumping contactor. The type tests conducted by us in CPRI Bangalore is as follows Lighting Impulse & Power Frequency Voltage Withstand Test (Dry) as per IS 34271997 RA IEC 62271-2003 LI 75kV (peak) & PF 28kV. Temperature Rise & Milli volt drops test on 1250A VCB as per IEC 62271-100-2003 . Short- time & peaks withstand current tests as per IEC 62271-100-2001 25 .61kA rms for 3 .07 secs and peak 69.42kA. Measurement of the resistance of the main circuit & Mechanical endurance test for 1000 operations

We offer PLC Based Process Control Panels that are PLC and AC / DC driven and is used for process control application in most demanding industry, with remote input, output units and communication bus to control hundreds of PLC inputs and outputs. Our clients can avail these at competitive prices and meet the demands of electric and electronic industry.

We manufacture and supply superior quality LT main control panel with incoming ACB or MCCB and outgoing MCCB.

• Features: High strength, Premium quality, Market leading prices

MPP Wall Mounting Enclosure( MWME ) Mono block floor Mounting enclosures are made from cold rolled sheet three folded with back plate welded on to a rear profile for higher protection. Standard Features Mounting plates (adjustable) Cable entry at top/bottom (double or single) Door opening 125 degree Plinth 100/200 Panel color RAL 7032 Mounting plate color RAL 2000 Neoprene gasket for high degree of protection Ingress protection up to IP 55 Optional Features Drawing pocket Partial or full glass doors Size: As per the customer specification

Features:   Accurate dimensions Easy to use Low maintenance

• Material: Mild Steel
• Voltage: 415V
• Features: Corrosion Resistance
• Phase Type: Three Phase
• Frequency: 50 - 60 Hz
• Mounting Type: Free Stand

Owing to our rich experience of several years, Conventional Control Panels are manufactured by us with extreme precision. The Conventional Control Panel manufactured by us provide flexibility and smooth working operations. The clients can avail the Conventional Control Panel from us in different models and specifications to cater to their diverse requirements. Features : Provides flexibility in finding error in systemAdvanced featuresEasily accessibleHigh efficiency

We are offering unmatched quality of electric penal boards, which are available in various specifications and can be customized as per the requirement of clients.our range is based on advanced technology and industry defined parameters. The wide array of products finds huge demand in the industry for its quality, sturdiness, performance shock proof and dimensional accurate characteristics.

We offer an excellent range of good quality electrical control panels. Our high quality & comprehensive Electrical Control Panels are rather prominent and popular, and are extensively used for supplying power to electrical motors and various other industrial equipments.   Standard and A.M.F.Panels are available from 5 KVA TO 750 KVA DG sets
