Current Transformers Dealers in Bangalore

• Usage: Outdoor, Industrial, Electricity Distribution
• Type: Current Transformers
• Brand Name: SUMAN CONTROLS
• Material: Copper
• Certification: ISO 9001 2015

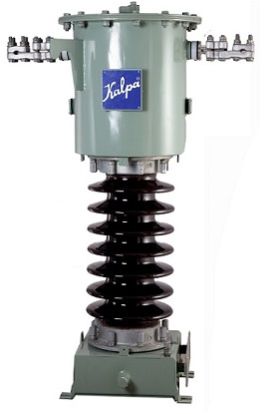

as high accuracy is required for measurement purpose and high operating values required for protection purpose, these two functions are met distinctly in a current transformer by providing metering core and protection cores separately with different functional properties. now a days in view of high cost production of electrical energy, utilities specify very high accuracy class such as 0.5s & 0.2s (as per established standards) which measure energy accurately at a value as low as 1% of the transmitted current.   we at suman controls manufacture the class of cores also.design we at suman, depending on customer specification, manufacture two type designs.live tank design & dead tank design.   we also meet the customer requirement of provision to select different ratios on different cores. the ratio of can be selected on primary side selection secondary side selection and a combination of the above two. construction of current transformer in addition to the above, a current transformer, being a series element has to withstand large dynamic forces and high thermal stresses during short circuit currents appearing in the lines at the incidence of a faults on the main lines to help clearing of such disturbance as early as possible. adequate short circuit tests have been conducted on our current transformers. we also under take to conduct these tests on specific request from buyers. insulation high voltage, impulse and partial discharge tests to determine the quality of insulation between primary and other parts have been specified by standards to ensure the quality of insulation between primary and other parts. high quality insulation paper is used for main insulation of the ct between primary winding and secondary winding. in case of ehv current transformers, the insulation will be segregated and sectionalised with introduction of semi conducting tape in between to see that the voltage distribution is uniform thus avoiding high level of electrical stresses. to eliminate dust settlement on the insulation during the process of manufacture endangering insulation, entire process of insulation is carried out in dust free chambers.

We are offering current transformers manufacturer, exporter and supplier of opening style current transformers. Our range of opening style current transformers is available with the following features and specifications:specifications of asc-0750, asc-1250 & asc-2000output of 0.333 volt at rated currentaccuracy: ± 1% from 10% to 130% of full scale rangephase angle < 2 º maximum at 50% rated current[for asc-1250 & asc-2000, phase angle

• Number Of Cores: 1-2-3-4-5
• Type: Wound Primary /Bar Primary/ Ring /Rectangular Type
• Casting: Epoxy Resin
• Highest Voltage for Equipment (kV): Up to 36 kV
• Rated Insulation Level (kV): Up to 36/70/170kVp
• Rated Frequency (Hz): 50-400Hz
• Rated Primary Current (A): Up to 10000A
• Rated Secondary Current(A): 5A or 1A
• Accuracy Class: 0.1, 0.2s, 0.2, 0.5s, 0.5, 1, 3, 5
• Instrument Safety Factor: <=5 (Depending on Accuracy Class)
• Rated Burden (VA): Up to 30VA (As Per Requirement)
• Accuracy Class of Protection Core: 5P to 15P
• Accuracy Limited Factor(ALF): 5 to 30
• Special Protection(PS/PX): VK=> ....v(As Per Requirement)
• Short Time Thermal Current (STC): Up to 40 kA at 0.5 sec, 1 sec or 3 sec
• Class of Insulation: Class B, F & H
• Applicable Standards: IS,IEC,ANSI,BS,etc.

• Material: Copper
• Core Type: Ring Core Type CT
• Brand Name: Navago
• Features: Safe packaging, Easier maintenance

• Mounting Type: PCB , secondary pins
• Product: AC Current transformer
• Primary conductor opening: Circular 7.00 mm

Current transformers , for Energy metering application. Nominal current rating 0.25 to 40 Amps  Turns ratio 1:2500 Accuracy class  0.2

We are acknowledged as one of the prominent Current Transformer Manufacturers in the country. Our range of High Voltage Current Transformer includes both HT Current Transformer and LT Current Distribution Transformer. A Current Transformer is a type of Instrument Transformer that is designed to provide a current in its secondary form which is accurately proportional to the current flowing in its primary. Steps of current flowing : Primary Current : Primary current is the load of the current transformer, is the measured current. Secondary Current : Is the range of current outputs Insulation Voltage : Insulation that current transformer provides when connected to a power source Accuracy Class : Is the degree of certainty with which the measured current agrees with the ideal value VA Burden : Is expressed in Volt-Ampere (VA) the product of the voltage applied to a circuit and the current. Type of Encapsulation : Tape Wound Enclosure (ABS/PC) Resin Cast Features : Highly durable Fabricated of optimum quality raw materials Abrasion resistant High performance based

We are offering current transformers manufacturer, exporter and supplier of opening style current transformers. Our range of opening style current transformers is available with the following features and specifications: specifications of asc-0750, asc-1250 & asc-2000 output of 0.333 volt at rated current accuracy: ± 1% from 10% to 130% of full scale range phase angle < 2 º maximum at 50% rated current[for asc-1250 & asc-2000, phase angle

Our Epoxy CT / Epoxy Current Transformers are the best grab when it comes to protection against corrosive atmosphere hazardous gases, dust and moisture. The Epoxy CT CBCT, also known as a zero sequence CT, is used for earth leakage and earth fault protection Specifications Various ratings are available . C.T ratio 2500/5 , 2000/5 , 1400/5 , 1000/1250/5 , 1100/5 Designed to withstand the harshest indoor and outdoor applications Compact in design Highly automated manufacturing process Inbuilt mounting feet   Applications Earth Fault Protection Units Earth Leakage Detection Device

We make available Current Transformers at market leading prices. From catering to seasonal demand to a continuous one, we can do it, as we have an ultramodern storage facility, which is equipped with the latest inventory control and management system. Supported by an advanced transit system, we have become capable of delivering the orders within promised time.

• Features: Longer working life, Quality tested, Rugged design.
• Window Shape: Square / Rectangular Window
• Use: Majorly used for economical transmission and supplying of electric power.

• Material: Mild Steel
• Cooling Type: Oil Cooled
• Core Type: Round
• Frequency: 50-60 Hz
• Phase: Three Phase
• Brand Name: Astron Electrik

• Usage: Current
• Phase: Single
• Port: Bangalore ICD
• Supply Ability: 1000 Piece/Pieces per Month

We are offering TC Series Current Transformer. Specifications : 30x10, 20x10, 25x5 mmnarrow section. BERG series755passing bar

Detuned harmonic reactors for APFC Panels Shunt Current Limiting (series) Neutral earthling Damping (in-rush current limiting) TuningDetuning Smoothing Testing Traction Inter phase Special Magnetic Devices Integrated chokes Step up chokes Decoupling chokes Grid chokes

• Type: Current Transformers
• Usage: Control Panels, Industrial Use, Power Grade
• Color: Green, Grey, Light Green, Sky Blue, White
• Frequency: 0-50Hz, 100-200Hz, 200-400Hz, 50-100Hz
• Operating Type: Automatic, Fully Automatic
• Condition: New, Used
• Feature: Easy To Install, Electrical Porcelain, Four Times Stronger, Proper Working, Sturdy Construction, Superior Finish
• Cooling System: Air Cooling, Oil Cooling
• Current Type: Double Phase, Single Phase, Triple Phase
• Warrenty: 1yr

offering quality L.V. Tape Wound & Cast Resin Transformers of multi range that is manufactured using quality components, which are procured from reliable vendors. These are acknowledged among clients for long functional life, high efficiency, hassle free performance and robust construction. These are widely used in various industries for measuring, protection & for special protections purpose (CLASS: PS) (restricted earth fault & differential protection systems)

Miracle Electronic’s UI Transformer consists of a range of high quality low profile encapsulated isolating transformers with twin 115V AC 50/60 HZ primary windings which are connected in series for 230V or parallel for 115V operation. Miracle Electronic’s UI Transformers / Low Profile Transformers come with Double section glass fibre reinforced polyamide bobbins. Our UI transformers are 100% electrical and Flash tested, have low radiated nose and possess low inter-winding capacitance. Miracle Electronic’s UI Transformers: Making the most of devices. Miracle Electronic’s UI Transformers are extremely durable, come with superior wiring, varnishing, connection terminators. Our UI Transformers are indeed highly efficient and provide excellent regulation with minimal temperature rise. Product Variants available: Range of 2 VA, 4 VA, 6 VA, 10 VA, 14 VA, 18 VA, 24 VA 120 /240 V 1 Phase, 50 Hz General Product Features & Inclusions Low Profile Low Inter winding Capacitance 5 KVA Primary /Secondary Insulation CRGO core UI cores Cold Rolled Grain Oriented steel cores Thermal fuse – Optional Class B / F Insulation Epoxy PCB Mounting arrangements

We are dealing best Current Transformers supplying company.

• System Voltage: Upto 1.1kV
• Usage: Suitable For Metering & Relaying application in AC Power Systems.
• Frequency: 50Hz To 400Hz
• Secondary Current: 1A, 5A, 0.577A
• Primary Current: 1A To 75,000A
• Burden (VA): 1, 1.25, 1.5, 2.5, 3.75, 5, 7.5, 10, 12.5, 15, 20VA
• Accuracy Class: Metering: 0.2, 0.2s, 0.5, 0.5s, 1, 3 & 5
• Protection: 5P10, 5P20, 10P10, 10P20
• Special Protection (PS): Knee Point Voltage(Vk) & Magnetizing Current (Im) as Per Requirement
• Ambient Temperature: - 50 C to + 450 C
• Thermal Short Circuit Current (Ith): 60 x Ip / 1 Sec
• Instrument Security Factor (ISF): 2.5, 5, 10
• Thermal Insulation Class: Class A, Class B &Class F
• Type / Encapsulation: Resin Cast, Moulded Case & Tape Insulated
• Construction: Window type (Ring & Rectangular), Wound Primary Type & Bar Primary Type
• Applicable Standard: IS 2705 Part (1, 2 & 3), IEC 61869 Part (1 & 2)
