Cyclo Electric Devices & Services Company Bommasandra, Bangalore, Karnataka

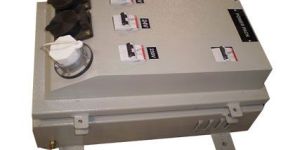

Three or Four similar units of Interlocked switch sockets are provided in one box to facilitate multiple Power Tap off’s.( GANG TYPE)   We also provide an inbuilt step down transformer within the unit in order to derive low voltage outputs of 24 V / 110 V for safety lighting purposes.

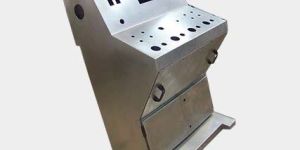

Control desks fabricated from SS 304 / 316 for corrosive site conditions. The desks are aesthetically designed and mounted with components as per customer requirements

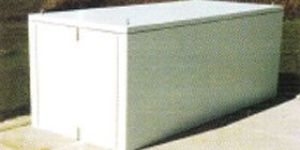

Rugged Heavy Duty industriol acoustical sound enclosures designed to attenuate mechanical noise generated from fans, blowers, motors, Compressors, turbines and pumps.   • Internally lined with sound Absorption materials   • Ready to install with inlet and discharge outlets   • Optional recirculation fans to remove waste heat and control temperature rise within enclosures.   • Optionol Inspection doors and louvres   • Special coatings, Stainless Steel or Aluminium construction also available   • Weather proof enclosures conforming to lP55 / lP56 also mode to suit specific requirements.   Fire Retardant FRP Tilt Trolley These Fire Retardant FRP bins and Trolleys ore consiructed from structurol fibergloss composite ond moulded in a single piece construciion. Resistoni to ocids, olkolis ond most chemicols they serye os on ideol replacemeni to the existing plostic bins which ore subsceptible io fire hozords.   • Rugged Fire Retardant fibergloss composite wont rust corrode or melt   • Sleek Compact design, holds more yet fits most doorwoys ond elevotors   • Two main wheels ore oversized to facilitate easy movement on rough terroins twin rear costors provide greater corrying capacity   • Solid heavy duiy steel axle held by on integerally moulded tube into the body of the cort   • Trolleys wiih Hinged lids optional   • Mounted bins supported on steel structures duly powder cooted

Safety Double Wound shell type safety isolating Transformers . Winding: Continuously rated double wound with an earthed screen between Primary and secondary windings. Output windings on Single phase units are center tapped to earth whilst in three phase units, the star point is earthed for safety.

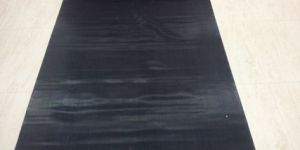

Salient Feature:High Die Electric Strength upto 65KV.Anti-Skid,Fire and Oil Resistance • Insulation Resistance Up to 1494000 Mega Ohm.• Fire Retardant.• Good Mechanical Properties to Withstand Load and Movement of Breaker Trolleys and Associated Electrical   Equipment including heavy foot traffic.• No Adverse Effect of Acids, Alkalis and Transformer Oil.• Manufactured Without Any Metallic Derivatives• Suitable For Both A.C & D.C Electrical Installations• Easy To Install, Can also Be Pasted.• Water And Moisture Proof, Does Not Decay.• High Tensile Strength and Elongation Properties• Mats Type Tested at CPRI Bangalore

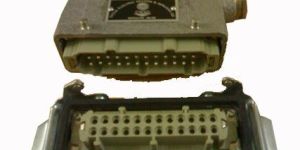

Harting type rectangular Multipin Plug and Socket, in diecast Aluminium enclosure with suitable locking clamp. The inner male and female contact elements will be of unbreakable high grade DMC with non hygroscopic and with excellent electrical properties. Contact Pins are of silvered copper alloy. Cable entry through compression type Cable gripping clamps.size: Voltae : 380V , Current: 15Amps Pin Configuration : From 6 Pins upto 64 Pins.

Portable i.e. Lift & Carry Extension cable reel, heavy gauge tubular frame, Al. / FRPCable reeling drum with 1no. M/C outlet socket 20A 3Pin and the corresponding plugs. Reel suitable for winding 100mtrs. 3core x 2.5mm.sq. PVC/PVC round sheathed flexible cable. (Without cable). Please specify rating and number of outlet sockets as required .

Applications: Designed ior service h arduous conditions in all climates. Find extensive uses in Steelworks-Railways-Cranes-Ships-Power Undertakings - in fact in all industries.CONTACTS: precision machined pin-sockets liberally plus cross sectioned Material-Electrical Brass extrusions. slitself tensioned sockets ensuring cent percent contact when mated. plug earth'di;unfailingly continuous to outer body.silvered Pin-Sockets for reducing contact resistance - on special order.CONSTRUCTION: Usually Al si Alloy casing grey lacquered over hard gripping primer, alternatively Brass if users do not mind higher costs' Installation of extra high electric strength PFM mouldings/Fine Grain mineral fillerd laminated blocks /polypropelyne' guard Ring-is positively advantageous.TheRing prevents Possibility of accidental contact with pins consequent on finger slipping Also offers protection to pins, on plug slipping Unshrouded pins are liable to distortion in such cases'.INTERCHANGEABILITY : Same rating Amps & number sequence contact sockets blindly interchangeable with corresponding plugs th rough type or side entry. Fouling is impossible with our plugs' 5 PIN PLUGS & SOCKETS:3 POLE + N + E: In actual practice of installations for proiect executions, very often, Plugs.& sockets of high ratings and terminal combinations may be required' For such requirements, we are at the disposal of clients - with our substantial experience in this line.   Above we have a 5 pin 300,4 assembly Plug & Socket' Being aheavv duty unit, the inner block of such units are constructedrisidlv with previsualisation of all possible hazards in usage Naturally users can bank on an absolutely trouble-free assembly.   Wire connection arrangements in the plug as well as in,the socket are on rear extension terminals. All phase and neutrai terminals ire shrouded, earth terminal however is left bare' For all high rated units, beginning from 1O0A,2-side wire connection screws, one below the other are Provided.

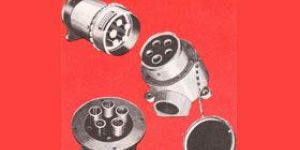

Industrial Metal Clad Al. Si. Alloy body lacquered multipole Plug and Socket assembly comprising of the following: a) Flange Socket with suitable guide pin and cover attached by means of a chain Brass embedded in bakelite dielectric and positioned within casing by means of a threaded lock ring. b) Cable Plug with key way for unidirectional mating suitable threaded ring to enable coupling to socket flange and ensuring fool proof contact. Cable entry through compression type cable gripping gland. Connections : screw type. Rating : 5 / 15A 500V Configurations 6 Pin upto 32 Pins Cat no. MFSCP 12Pin

Lightning discharges are frequently known to be attended with currents of the order of 20,000 Amps though peak currents of even 160,000 Amps maximum have occasionally been recorded. The resulting effects of tremendous magnitude; may be thermal, magnetic, luminous, mechanical and even chemical accounting for peculiar cases of destruction which have been and will no doubt continue to be reported. Atmospheric processes occur on a large scale attended by so many variables. Therefore, the best practicable defense consistent with economy and local conditions should be provided for structures depending upon their importance to encounter these dangerous phenomena. Successful operation of any lightning protective system depends on certain fundamental conditions, application of components made strictly in agreement with the metal specifications and purity and installation of the entire scheme conforming to requirement laid down in the relevant code of practice applicable to the particular type of structure to be protected. The nature of protection to be designed, also depends on the desired zone of protection prevalence of lightning in the locality, surrounding atmospheric pollutions if any, occupancy of the structure, nature and value of its contents, soil conditions etc.,

• Well Secured Core - Coil Assembly.• Class A or B Insulation depending on end uses.• Safety Transformers generally conform to lS 1 41 6.• AII Std step down ratios - even odd ratios S (+) and (-)TAPs.• Single phase, 3 phase & 3 phase to single phase executions.• For open panel Mounting, see - through panel cover plates provided.

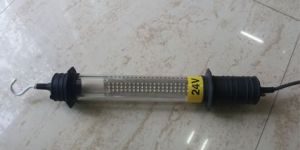

Specifications • Cluster type LED Hand lamp, IP 64 , Robust design shatter proof tough polycarbonate tube fitted with soft rubber moulded hexagon finned handle and top cap and Hanging hook of unbreakable nylon integrated into top cap, generally to the following specifications:• Lamp: 60 nos of 0.1W SMD Cool White LED’s arranged in a 20x 3 matrix formation.• WATTAGE : 6Watts• Illumination : 400 lumens• Electronics: High frequency smart electronics contained within and constantly monitors incoming electricity to deliver optimum performance. • Available with and without Battery Back up..

Die Cast construction duly finned for heat dissipation and with toughened front glass conforming to IP 65.     Specifications and Features :   Operating voltage : 24V ACColor : Metallic GreyIP Degree : IP65Glass finishing : Clear toughenedBody material : Die Casting Aluminum Cable entry : Weather proof cable gripping glandLife of lamp : 50,000 hoursLight output : 3800 LumensEquivalent to : 200 Watts Metal Halide LampLens beam angle : 100-120°LED type : High Power Source chip LEDNo of LEDs : 1Electronics : Smart Driver unit for optimum outputDimension : 282 mm x 234 mm x 183 mm

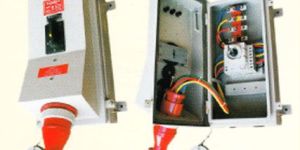

Tired of Safety within your Plant ? Try these next generation of Interlocked Switch Socket units with added safety features : •Overload Trip Protection• Earth Leakage Protection•Short circuit Protection•UV/ Shunttrip options• Interlock Feature with no Metallic linkages and only Rotary Gears for durability• Switch can be turned ON only upon insertion of Plug top. • Manual Override function to keep light on regardless of motion • De Plugging only in the'Switched'OFF mode • Front Covers can be opened only in OFF mode •Polyester Powder Coated CRCA / Die cast Al Enclosure conforming to lP 55 • Loop in and Loop out facility for cables

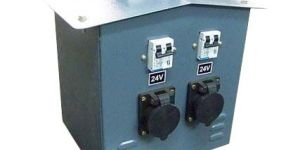

Safety Inspection Lamp set, with TRANSFORMER in portable sheet steel enclosure, generally conforming to the specifications in our leaflet, input flexible cable 2Mtr. 3 x 0.75mm.sq. IS 694/90 connected to Transformer Terminals through compression gland and MCB but without end plug: Cat. No. CYL Primary 230V 1 Phase 50Hz Secondary 24V 1 Phase 50Hz Capacity : 100 VA upto 50KVA (CONT) Outlet Sockets : as required by you Alongwith 1 Inspection Hand Lamp with bulb 24V 60W and 5Mtr. 2 x 0.5mm.sq. PVC/PVC flexible cable 1100V grade IS 694/90 connected, cable end plug American type 2Pin.

Hand Lamps & Primary Test Lamps Disployed front-side is our NORMAL HAND LAMP Lamp body is of single piece moulding, polypropelyne. lt stands lamp generoled heat. Also it is non frogile. Deliberate and forceful flinging alone can break it. Protective guard is oil steel ploted and with close mesh. Reflector is of super polished aluminium which multiplies light intensity. The top hook permits hook-on and provides hands free slote to work wiih both hands when required.   Physicals   Overall Length - 280mmLamp cage dia  - 90mmWeight             - 350gmsLamp Capacity - l00W mox.   TWO SPECIAL KNURLED STUDS FACILITATE EASY REMOVAL OF GUARDS FOR LAMP REPLACEMENTS.   The second lamp is agoin almost a replico of the NORMAL HAND LAMP but with the only difference of carrying a porceloin Jocketted Screw Holder suitable for Screw cop lamps ( Edison Screw ). Physicol parameters are all, the some; however costwise   LONG REACH HAND LAMP As is obvious and can be morked from the illustration, this lamp is ldentical but for its longer handle, size 400mm compared to 2B0mm of the Normal Hand Lamp. In specific spot Lighting requirements, at times, one controls situations where very clear vision of obiects and areas become absotulely necessary. For such locations the Long Reach Hand Lamp is ideal. lf 400mm length is insufficient, Lamps can be supplied in greater length executions. These lamps are available with BC Holders & Screw Type Holders as well.   LT SERIES TESTING LAMP This lamp is basically a primary visual Testing Gadget for 3 phase 440V LT Lines/circuits. The lamp is provided with 2 Meters Flexible Leads with sid poir colour RED & BLACK. The end lead probes are of PVC extra long 200mm to inlrude accurotely and safely into interior remote points in panels, switches and other crowded electrical interiors. Judging from the variations disployed by the 2 inside lamps on probing, all phase to phase & phase to Neutral / Earth combinations the different phases stabilities are first hand determined. Protective guard etc. are the some as for our other lamps. Lamps are BC, 15W pigmy clear; Therefore local replacement is not a problem.

A versatile and safe high intensity portable spotlight for dangerously wet work areas, lnspection of tanks and Pipelines. A designer adjustable steel hand frame with a hookadapts the unit to be used as a hand lamp as well as a Baylight / Tripod light. A polished parabolic reflector ensures a spot beam. tntegrated Cable winding facility optional.   • 24V100 Watt Halogen lamp   • 100 mm dia Polished Parabolic reflectors ensure an ultimate concentrated 'Spot Beam'.   • Light Weight Aluminium Alloy Casings   • Toughened glass dome for higher impact strength and pressure resistance.   • Peak Luminous intensitv at 5M is 900 Lux.

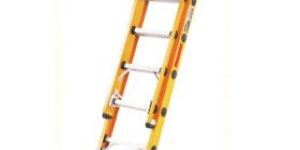

Heavy duty yet light weight non conductive fire retardant fibergloss ladders in single piece fixed, duol / triplepush type extension sections ond self supporting step types to cater to diverse site applications.   •Designed for continuous heavy duiy use at site   • Deep box sections rungs and stiles duly serrated for grip   • Range 2.5Mtrscto l0cMtrs   • Optional Inspection doors and louvres   • Weather resistant and insulated to with stand 25 KV   We also supply FRP Chequered plotes, sections, hollows, rounds assorted profiles and other tailor made components to individual requirements.

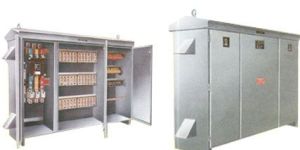

Generally associated with colony / street lighting the mechanical construction of these are designed for lP 55 degree protection, All doors are provided with padlocks. 0ptional rear doors for easy cable termination, The feeder pillars can be mounted on poles or on a solid concrete plinth. Ventilaling louvres with rain protection hood provided as a routine. Space heaters and internal illumination if required ‘Cyclo’ offers a wide  range of specially fabricated feeder pillar for LT & HT applications.. Fabricated to meet the desired configuration and dimension, the feeder pillar delivers the necessary performance and efficiency. These are also known for their safety standards and durability in tough environmental conditions.  Feeder Pillars  for street light control are fitted with highly safe and efficient electrical components that can be resistant to even the most extreme weather conditions. The Feeder pillar are made of  CRCA  steel  and provided with a canopy to weather extreme climatic conditions. Available in a variety of shapes, sizes, colours, and locking arrangements, these are suitable for industrial as well as for commercial use. SS and Aluminium Feeder Pillars  can also be offered against specific requirements.

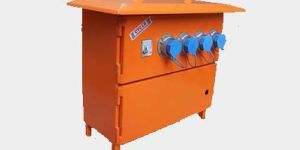

Extension boxes aesthetically designed for ardent sites. RCCB / MCB/ ELCB options for added safety. Power outlets as per individual requirements.

Energy Saver Panel for Lighting loads ( All types of Discharge Lamps) :     PRINCIPLE :  A Series Reactance Device with Secondary Compensation operating on a voltage optimization principle. Equipped with a Step down Transformer which applies a reduced voltage to the Lighting circuit thereby reducing Power consumption by 25 to 30%. Lamps are switched ON automatically at 100% intensity for a predefined period to ensure positive glow and then switch over to pre-programmed energy  saving status occurs without affecting other parametersPRODUCT :  Supplied in a 14 / 16 SWG CRCA Powder coated Panel complete with Control and Operational Switch gear with Manual and Auto Control feature .  Capacity of Panel  ranges from 3 KVA Single Phase  to  300 KVA  three Phase. OPTIONS :  Energy meter with RS 485 communication port enables recording and storage of all electrical parameters like V, I, W. PF.KWH in each phase as well as a summation. Data storage upto 1 year downloadable onto PC with the help of our software.  Twilight Switch for Automatic switching on of the Panel at Dusk and turning it OFF at dawn. Key Benefits :Guaranteed Savings up to 36% in lighting costs ;  Extends the Life Span of Luminaries & Chokes;  Improves Power Factor : Safeguards  circuits from High Voltage :   Efficiency  of Panel is  > 99% ;  Pay Back period  < 12 Months ;  Maintenance free life of 15 years. 100% depreciation in first year as per CBDT Rules.

Cast Iron pipe Earth Electrode conforming to IS 3043 100mm NB with 13mm thick x 2700mm long, drillled with 12mm dia holes through out at 150mm intervals such that adjacent holes are mutually perpendicular. Unit complete with a flange at the top for earth flat connection and with a wire mesh funnel arrangement at the top.

CUSTOM BUILT DRAW OUT TYPE MCC Offered in full draw-out and fixed types, in both compartmentalized and non-compartmentalized versions. Highly dependable Modular type draw out type boards tested at CPRI and made to individual specifications.  Draw out Consoles ensure minimum down time during break down. Salient Features: • Fully compartmentalized design• Drawout trolleys/module incoming and outgoing power and control contacts automatically, isolate without manual   disengagement in three distinct position i.e. Service, Test and Isolate• All similar sizes of  Draw out modules  are fully interchangeable. • Totally enclosed vermin and dustproof. • Safety shutters provide accidental contact from vertical busbars.• Latest design of our Drawout enclosure provide maintenance free vertical busbars without joint.• Self - aligning and disconnecting power and control contact. • Racking screw arrangement with telescopic rails system providefool proof contacts. • Bearing mounted rollers ensure smooth movement of trolley.• Standard module size minimum 225mm and upto 1500mm height.• Bolted design and assembly allow ease of alteration or extension at site.• Hinged auxillary door inside main compartment door permit mounting of control acsessories, such as meters, selector  switch, indicating lamps.push buttons and reset actuator. • Spring loaded scraping earth ensurefirst make and last brake arrangement ensuring safety..• Large cabling space with adequate cable supports are provided. Offered in full draw-out and fixed types, in both compartmentalized and non-compartmentalized versions.

Switchboards are the Lifeline to your Power Distribution system.  ‘Cyclo’ switchboards offer a high degree of flexibility, economy & operational convenience. The Switchboards are fabricated out of cold rolled cold annealed ( CRCA)  sheet steel. The front and rear doors are duly gasketed  for  withstand of the required  Ingress Protection. ( IP) The boards are of modular design with the  frame structure of folded sheet rigidly bolted together.  The Bus Bars  are of high conductivity aluminium alloy (Grade E91E as per IS:5082) of adequate cross section to ensure low temperature rise.Busbars with EC grade Copper sections suitable for operating at higher ambient / lowoperating temperatures can also be offered against specific requirements. Our boards facilitate ease in termination as they are provided with adequate depth for cabling & termination and are also easily extendable for future increased loads. Infrastructure: • A total shop floor space of 10,000 sq.ft. • A full-fledged design department • 7 tank metal treatment facility.• Quality fabrication unit with hydraulic Press brake and shear. • Advanced electro-static powder coating equipment.• Test Facility: Routine tests such as IR, HV, including Current injection up to 3000Amps for Temperature rise test. Credentials: ‘Cyclo’ switchboards are  field proven for over 3 decades in operation within core sectors such as Refineries, Mines, Cements,  Atomic Energy, Ordnance factories, ISRO, NTPC, BHEL, ABB  etc., Type Tests conducted on our Switch Boards at CPRI Bangalore:• Short Circuit Test - 65 KA @ 415 V & 26.3 KA • Temperature Rise Test• Degree of Protection  Test  :  IP42,  IP 54, IP56 etc.,• Seismic Qualification Test  as per IEEE Std 344-1987 Superior Finish: All ‘Cyclo’ switchboards are powder coated with a minimum thickness of 60 microns to ensure a  fantastic finish with smoother surfaces and excellent coverage of corners and crevices. The process involves a 7 tank pre-treatment, electrostatic powder spraying and oven drying for an even, scratch-free, corrosion resistant, aesthetically appealing finish..
