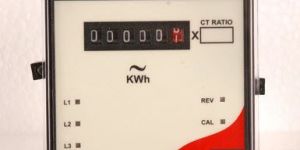

Digital Energy Meter Dealers in Bangalore

Ours is a well-known entity, which is engaged in manufacturing, supplying, exporting and trading digital energy meter. Owing to their features like selectable ct ratio and source energy recording with display of voltage, current, frequency and power factor, these meters are applicable for generator panel and capacitive power plant. Engineered to perfection, these meters are available in different specifications. Features: precise engineering high material strength user-friendly details: true rms measurements accuracy class 1.0 2 –line, 16 char back lit lcd display confirms to is-13779 iec-62052-11& iec-62053-21 ct ratio- selectable from 55 to 30005 rs 485 port – mod bus protocol compact and ideal for industrial environment display parameters: e.b energy ( 6.3 format) line voltages (vr, vy, and vb with respect to neutral) line currents (ir, iy, and ib). Line frequency. Average power factor lag or lead active power- r ph, y ph, b ph & summation eb on hour l.e.d indications: presence of phases (r, y, b) reverse polarity specifications: accuracy class class1.0 frequency 50hz ± 5 % system voltage 415v ac110v ac auxiliary 40-275v acdc operating temperature 0°c to + 55°c ct ratio-field programmable 55 to 30005 in steps of 5 power consumption-sensing voltage current input auxiliary less than 0.2 va, less than 0.2 va, less than 5 va weight 300 grams models pdm9023 – 3ph. 4w dimensions 96x96x70 mm (wxhxd) mounting flush applications: electrical panels- ht & lt panels generator panel and capacitive power plant oem application test benches and laboratory equipment

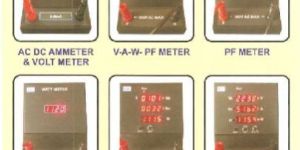

Digital energy meter, Advantage of Digital Meters: a) Accurate, Versatile and Reliable b) less Investment as one digital meter covers complete range of analog meters. c) Less storage space d) Easy Handling

All the phase voltages and currents are stepped down to the acceptable levels of energymeter chip. It process the acquired signal and performs the signal processing such asdigitizing, filtering and averaging to extract active power, RMS values of current andvoltages required computes the consumption of the energy. The measured values arestored as bit streams in the registers. These registers are accessed by serial interface usingthe microcontroller. Micro Controller accesses the data from the chip and displays thevarious electrical parameters and energy consumption for the EB Source with on hours onthe LCD screen. Specification True RMS measurements Accuracy class 1.0 2 –Line, 16 Char back lit LCD display. Confirms to IS-13779/ IEC-62052-11& IEC-62053-21 CT ratio- selectable from 5/5 to 3000/5 RS 485 PORT – Mod bus protocol Compact and ideal for industrial environment
