Dual Source Energy Meter Dealers in Bangalore

dual source energy meter

Get Price Quote

• Model Number: LG+5220
• Accuracy Class: 0.5/1.0

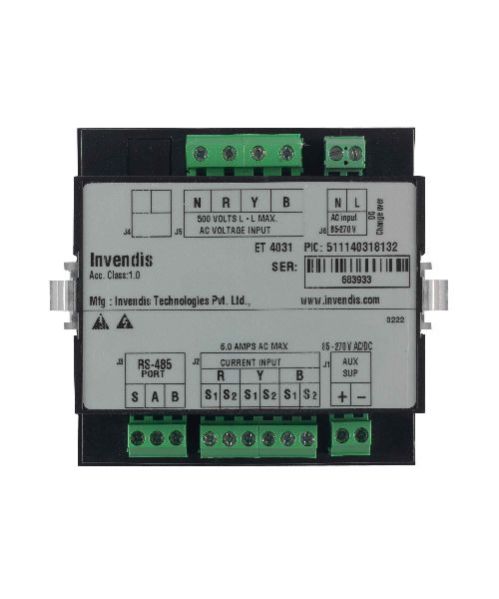

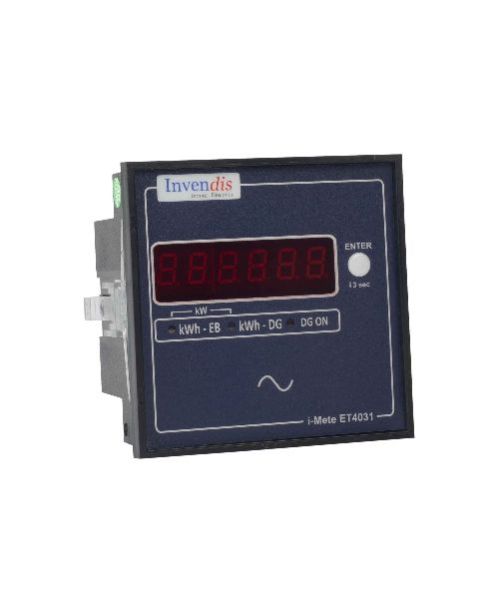

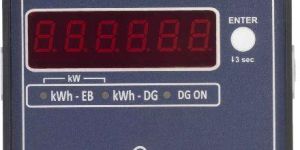

Invendis ET-4031 dual source energy meter

4,343 - 4,344 Per piece

1 Piece (MOQ)

• Display Type: Digital
• Body Material: Plastic
• Power Source: Electric
• Warranty: 1Year
• Brand Name: Invendis

Invendis ET4031 P & E with Serial Communication, Class 0.5, 85 - 270V AC/DC, 415 V, 3 Phase, 5A, 3 R 3 DIGIT 0.56", Dual MeteringkW,kWh Eb, kWh Dg, Protocol Maodbus as per Scnider Register Mapping (obsolete) Configuration : 1/3 Phase, 3 Element; 3 / 4 Wire (Note Order code) Input V Nominal : 415 V LT or 110 V through PT (line to line)                                            Computation : True RMS for all Power & Energy Parameters Accuracy : ± (0.5% of FS + 0.5% of Rdg + 1 digit) ± 0.2% for Frequency ± 1.0% of FS for Current                                                                                                                              Isolation : 2000 V AC for one minute Safety : Measurement Category III, Pollution Degree 2 as per EN61010-1 First Edition                                      Frequency : 0.1 Hz Power : autoscaling depending on input Power Factor : 0.01 Energy : 1 kWH upto 866 kW 10 kWH above 866 kW

dual source energy meter

Get Price Quote

We make sure that the offered lot complies with the stated quality norms, thus check the product quality on several stages. As we promise to offer quality approved products to the clients, we make use of only high-grade raw materials selected from one of the best sources present in the market.

dual source energy meter

Get Price Quote

• Fast Transient: 4kV IEC 61000-4-4

Two Energy Registers (U and G) separately record consumption based on a Control Signal for Dual Source energy billing. G.Sense indication glows when the generator source is detected by G Smart Sensor Auto Scaling kWh, MWh Unique 8 segment 3 line LED display Tenant can pay accurate energy bill as per G usage instead of monthly maintenance, %A Full scale Load bar.

dual source energy meter

Get Price Quote

It replaces 2 energy meters recording data from different sources of energy. Relay output option available for prepaid metering based on set value with individual load hours for both energy sources. Individual load hours for both energy sources.

dual source energy meter

3,500 Per Piece

• Voltage: 90V to 275V AC/DC
• Size: 96mm x 96mm x 45mm.
• Accuracy: 1.0% of FSD
• Panel cutout size: 92mm x 92mm
• Auxiliary: 90V to 275V AC/DC

dual source energy meter

Get Price Quote

• Size: 96mm x 96mm x 45mm
• Auxiliary: 90V to 275V AC/DC.
• Accuracy: 1.0% of FSD

Display: 2*8 digits seven segment LE, display with. Simultaneous display of EB & DG Energy Parameters: EB kWh, DG kWh, DG SENSING: 230V (port isolated). Programmable CT primary from 1A to 9999A with password protection.

dual source energy meter

Get Price Quote

dual source energy meter, basic meter, Dc Energy Meter

dual source energy meter

Get Price Quote

dual source energy meter, control products, High Profile Power Analyser

dual source energy meter

Get Price Quote

dual source energy meter, power monitoring systems, Multifunction Meter
