Durag Group Rajajinagar, Bangalore, Karnataka

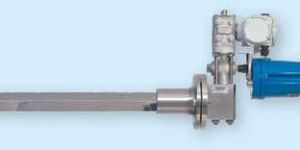

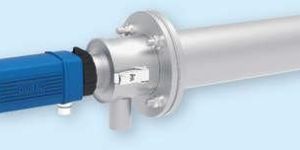

Suitability-tested and certified impact pressure system to measure velocity and volume flow of dry flue gas or process gas in pipes or ducts.

Measuring system for continuous evaluation of flow velocity and flow direction in tunnels. Ultrasonic sensors for tunnel ventilation control system. Reliable measurement across the tunnel profile. Two identical sensors alternately transmit and receive ultrasonic pulses. The system evaluates the transition times dependant on direction and calculates flow speed. D-FL 220T requires extremely low maintenance.

Extractive Automatic Measuring System (AMS) for continuous total mercury monitoring (CMM) in stack gas or process gas.

This pressure switch is a piece of equipment that needs to be integrated into an overriding control system. The pressure switch picks up a pressure and gives out a signal.

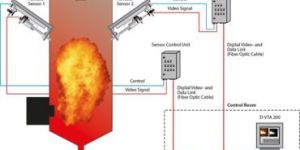

he D-VTA 200 Thermography Analysis System is developed, to work with all DURAG D-FS Furnace Sensors. Up to 8 Furnace Sensors can be connected to one D-VTA 200 System. Together with the Furnace Sensor, the software delivers online temperature distributions directly from the combustion chamber. The temperature range and the resolution are depending on the Furnace Sensor. Depending on the application different analysing software modules are available.

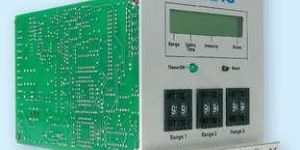

Self-monitoring and fail-safe control unit for the monitoring of gas, oil and coal flames with DURAG UV, UV+IR or IR- flame sensors, primarily in multiple-burner furnaces. Suitable for intermittent operation, continuous operation and 72-hour operation as per TRD 604 Optional parallel operation of two flame sensors in any combination: UVUV, UVIR or IRIR Three different settings supported for various modes (e.g. dependent on fuel or combustion technology), automatic activation by burner management system Plain text display

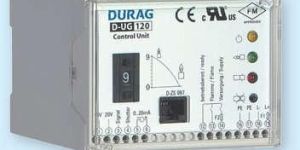

Self-monitoring and fail-safe control unit for the monitoring of gas, oil and coal flames with DURAG UV, UV+IR or IR flame sensors, primarily in single burner furnaces. suitable for intermittent operation, continuous operation and 72-hour operation according to TRD 604 LED display Installation on DIN-rail

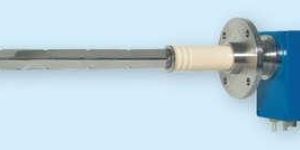

Certified dust monitor, combined with a flow, temperature and absolute pressure measurement for monitoring of small to medium dust concentrations in dry flue gas and process gas.

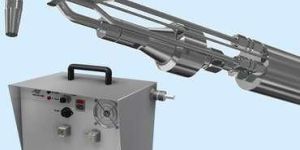

The D-RC 120 is an automatic sampling device for gravimetric dust measurements to adjust or calibrate dust monitors for the measurement of dust in mgm3. The D-RC 120 extracts isokinetically a partial gas stream from the measuring gas duct whereas the extraction is controlled fully automatically. The partial gas stream is sucked through a filter in which the contained dust is deposited. The dust concentration is determined by weighing the filter before and after the extraction.

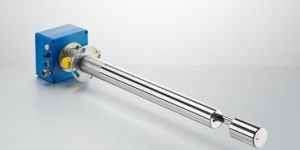

Suitability tested scattered light dust monitor for monitoring small to medium dust concentrations in dry flue or process gases. With its certification range of 0 ... 7.5 mgm3 the D-R 808 is ideally suited for monitoring very low dust concentrations.

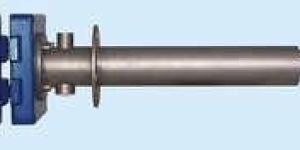

Certified scattered light dust monitor to detect low to medium concentrations of dust in dry flue gas and process gas.

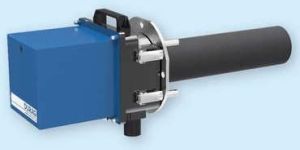

The D-R 320 is based on the back-scattered light principle. Thereby the light of a red laser diode illuminates the dust particles in the measuring volume of the flue gas duct. The light scattered backward by these particles is detected and evaluated. A unique feature of the D-R 320 is the automatic background light compensation with means of a patented optical system with dual detector. This allows for an easy and quick Installation without any adjustment. A light trap is not requir

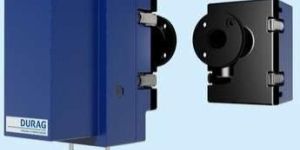

The D-R 290 has been used successfully for more than 15 years in various applications as reliable and low maintenance opacity dust monitor. Now the new generation is available. The D-R 290 is a certified optical transmission monitor to measure the opacity or dust concentration of flue gases with medium to high dust concentrations. The D-R 290 operates using the double-pass method according to the auto-collimation principle. The light beam traverses the measuring path twice. The attenuation of the light beam by the dust content in the measuring section is measured and evaluated.

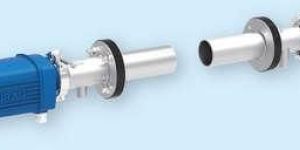

Compact and cost effective transmittance dust and opacity measuring device for monitoring medium to high dust concentrations in dry flue and process gas.

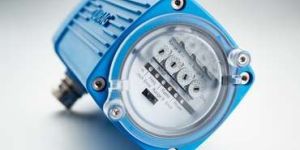

Self-monitoring and fail-safe compact flame monitor for the monitoring of gas, oil and coal flames with integrated UV or IR flame sensor. Wide sensitivity range For ambient temperatures from -40°C up to +85°C Highest safety combined with highest availability Ideal Support for Functional Safety Selective to individual burners and fuels Wide range of certifications and standards covered Low maintenance requirements Local display for status and flame intensity Optional flame stability analysis in real time

Self-monitoring and fail-safe compact flame monitor for the monitoring of gas, oil and coal flames with integrated UV or IR flame sensor. Wide sensitivity range For ambient temperatures from -40°C up to +85°C Dual channel design throughout Measurement of flame flicker frequency Selective to individual burners and fuels Optionally with complete SIL3 certification Available with cable gland, cable plug (version MP3) or as version for hazardous areas

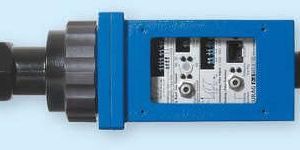

Flame sensor (flame scanner) for the monitoring of gas, oil and coal flames, primarily in multi-burner view applications.

Self-monitoring and fail-safe burner controls for the control of gas and oil burners as well as combined gasoil burners of any capacity.

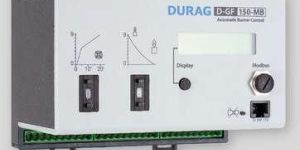

Self-monitoring and fail-safe burner control with integrated Display and Modbus communication for the control of gas and oil burners as well as combined gasoil burners of any capacity. Controling and monitoring of gas and oil burners of any capacity. Suitable for intermittent operation, continuous operation and 72-hour operation according to TRD 604 Integrated gas valve monitoring system Separate outputs for control of gas and oil fuel valves Quick fuel change “on the fly” without burner shut down Adjustable pre-purge timer Integrated flame monitor

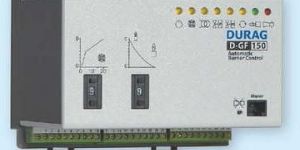

Self-monitoring and fail-safe burner control for the control of gas and oil burners as well as combined gasoil burners of any capacity. Controling and monitoring of gas and oil burners of any capacity. Suitable for intermittent operation, continuous operation and 72-hour operation according to TRD 604 Integrated gas valve monitoring system Separate outputs for control of gas and oil fuel valves Quick fuel change “on the fly” without burner shut down Adjustable pre-purge timer Integrated flame monitor Input for external flame monitor Data interface

Digital Furnace Sensor delivers high definition live video directly out of the combustion chamber. Available as D-FS2 VIS with high resolution colour video and as D-FS2 IR with infrared video, both as water or air cooled versions.Digital (GigE) or analogue video output Water or air cooled for up to 2000°C in the combustion chamber For integration in the D-VTA 200 Thermography Analysis System D-FS2 VIS Designed for the use with retraction unit. All Versions can be extended with the D-VTA 200 Software to a Thermography and Analysis System.

Digital Furnace Camera delivers brilliant live video directly out of the combustion chamber. Available in air or water cooled versions for process temperatures up to 2000°C. The D-FS 50 can be combined with the D-VT 50 Video System or the D-VTA 200 Thermography Analysis System.

Suitability tested and certified ultrasonic measuring system to measure the velocity and the volume flow of flue gas or process gas in pipes or ducts, especially for wet and aggressive smoke emissions.

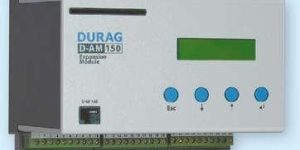

Extension module for the D-GF 150 automatic firing device with functions ranging from first out annunciator to plain text display up to fieldbus communication.
