Dust Collector Parts Dealers in Nagarbhavi, Bangalore

Bag filter system is designed for optimum filtration performance. The range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids. Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal supports ensures bags will not burst as high differential pressures build up during operation. Operation Unfiltered fluid enters the housing and is distributed evenly around the filter bags. Filtration takes place from inside to outside. Solids are collected on the inside of filter bag for easy removal. The filtered fluid then exits through the outlet pipe. FEATURES & BENEFITS: Low down time High flow rates Low pressure drop Custom design services High dirt holding capacity Covers are O-Ring sealed Flow rate up to 2000 m3/hr Large-area, heavy-duty baskets Housings are permanently piped Easy to operate & low maintenance Positive sealing arrangement to avoid bypassing Suitable for PP Collar, Rigid Ring & Snap Band Bags Quick opening Tri Clovers & Fly nut design ASME code stamp available. High temperature & High pressure design are available. All housings made from SS 316 L, SS 316 & SS 304 are mirror polished to resist adhesion of dirt and scale. Carbon steel housings are sand blasted, epoxy coated & finally painted with two coats of synthetic enamel. Multiple bag filter / Duplex bag filter / jacketed bag filter unit designs are available. Special option include filter bag hold-down devices, sanitary, construction different outlet connections, higher pressure ratings, extra- length legs, heat jacketing and adapters for holding filter bags.

We are main supplier of this product.

We manufacture entire range of blowers with an dynamically balanced impeller and with isi motor.

The QUAD unit, thanks to its small dimension is easy to use and extremely efficient, and represents the addressed solution for aspiration, filtration and deodorization of work premises where fumes, solvent, vapours and aerosol are generated by welding processes. QUAD is designed according to up-to-date technologies, suitable in industrial and handicraft field, where portability and small size are requested to the filtering units. Three different versions are available: QUAD, QUAD E and QUAD 2E, where the last two versions are supported by electrostatic filter cells.     Description  QUADQUAD/E 1QUAD/E 2 Cells – 1 2 Power (hp – kW) 1,5 – 1,1 1,5 – 1,1 1,5 – 1,1 Voltage (V – PH – Hz) 230/400 – 3 – 50 230/400 – 3 – 50 230/400 – 3 – 50 RPM 2800 2800 2800 Filtering area (m² – sq ft) 7,8 – 84 – – Air flow with charcoal filter (m³/h – cfm) 1300 – 764 1380 – 812 1420 – 835 Air flow without charcoal filter (m³/h – cfm) 1400 – 823 – – Filtering efficiency (%) 99 >99 >99 Activated charcoal weight (kg – lb) 2,5 – 5,5 3 – 6,6 6 – 13,2 Net weight with evolution 150/3 arm (kg – lb) 101 – 223 136,5 – 300 156, 5 – 344

Recovery of particulate matter from exhaust gas is vital for any industry from three aspect To ensure the operators health and safety by removing the hazardous fumes from the working area To avoid pollution problems Sturdy construction To increase the product quality removing fumes from the process       Dust collection systems is used in many processes to either recover valuable granular solid or powder from process streams, or to remove granular solid pollutants from exhaust gases prior to venting to the atmosphere. Dust collection is an online process for collecting any process-generated dust from the source point on a continuous basis. Dust collectors may be of single unit construction, or a collection of devices used to separate particulate matter from the process air. They are often used as an air pollution control device to maintain or improve air quality.       The dust generation in manufacturing process directly effects the operator’s health, can contaminate the product which is being manufacturing can make highly uncomfortable for the people in & around the dust generating areas. BATS wish to offer a solution by incorporating dust control & extraction system & ensure a safe & pure zone for the occupants. This process involves exhaust blowers, exhaust air duct work and dust collection hoods to pick up dust particles at the point of generation. In several cases, the dust collected by the system from the point of generation is routed through a filter unit which collects the dust & pure air will be exhausted to the ambient to meet pollution control.       Dust collection / Extraction system comprises of following   LEVs / Suction hood Ducting Volume control dampers / Shut off dampers at branch ducting Cyclone / Unit dust collector /  Bag filter Centrifugal Blowers Chimney

We are design and manufacture of air pollution control and material handling equipment, like blower, dust collecting systems, rotory airlock, bucket elivator, belt,screw,chain conveyour.

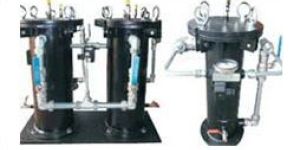

We provide efficient Bag Filter System that is designed for optimum filtration performance. Our Bag Filtration System is extensively used in various process industries and provides filtration solution for a broad variety of fluid. Available in customized ranges Bag Filtration Systems are useful for filtering large volumes of high viscosity liquids. Our In-house design unit along with the CAD/CAM facility aids in the smooth production of Bag Filtration System. Components Filter housingFilter bagsInternal cage to support bagsPositive sealing arrangementChoice of end connections Attributes High efficiencyReliable performanceSturdy constructionDurable

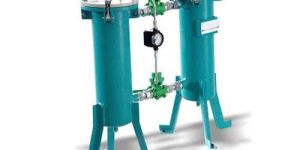

These are used to filter the particles / chips from coolant / oil / water or any other medium, thus making the medium fit for reuse. These are fitted at the delivery side of pumps to supply filtered coolant / oil / water to any machine / equipment. We manufacture different types of bag filters with stainless steel or steel housings. Various filtration levels from 1 TO 300 microns & various flow capacities can be offered. Our bag filters are very user friendly.

• Country of Origin: Made in India
• Material: Mild Steel
• Voltage: 220 V
• Frequency (Hz): 60 Hz
• Dust Removal Efficiency (%): 95% - 99%
• Dust Collector Type: Single Stage
• Filter Surface Area (m2): 25 m2
• Motor Power: 3 kw
• Power Supply: Electric
• Finishing: Powder Coated

• Automatic Grade: Automatic
• Voltage: 220V
• Application: Industrial

industrial dust collectors, hvac systems, clean rooms, spms, HVAC

mechanical dust collector, headers, Flue Gas Dampers

Simplex Filter, hydraulic power pack tank, softener, liquid filter

multi bag filter, commercial exhaust system, Dry Scrubber, Bio Scrubber

Chimneys, Scrubber, Autoclaves, Needle Burners, Ms Chimney

Air Blower
