Electric Control Panels Dealers in Peenya, Bangalore

  Our organization is engaged in manufacturing top quality AMF control panels. These panels are available in various models and sizes as per clients’ specifications. Use of quality raw material makes them cost efficient and ensure long life of the AMF panel. The AMF panels that we manufacture helps to start the generator in case of mains failure. It immediately gets the power back without any attended and loss of work. Load is transferred from mains to the generator. Therefore there is no need to transfer the load by means of changeover switch. AMF resumes the supply in just a few seconds in case of main failure.   Attributes : Efficient working Corrosion resistant Diligently wired Pests free Shock proof Easy operations Have mechanical and or electrical interlocked pole contactors Used for : Automatic changeover from mains to stand-by generator at the time of power failure Where the generators are installed between main AC and load Applications : Foundries Apartments Textile industry Sugar industry Chemical industry Telecommunications

The Electrical Control System offered by us has a worm reduction gear box, motor and frequency converter, control panel and pendent. In plano milling mode there is a table to move from 30mm per minute to 400mm per minute in step less range. Its unit has all require cables, output fittings, chain and sprocket, etc. Our Electrical Control System has systemized controls for Forward /Rewind /Stop / Rapid Stop selectors for table feed and similar start/stop and forward /rewind selector for spindle motor is there. This Electrical Control System comprises of Spindle RPM and table feed rate can be easily changed by using the potentiometer given on the of the machine. There are also the calibrated voltmeters giving the spindle and table feed rate will be provided. The relevant interlocks and sensors / limit switches, etc. will be provided. It has interlocks by operation of planner motor at the time when clutch of Plano-milling is positively disengaged, Table stroke limits, Spindle rotation-table feed interlocks, etc. The necessary cabling material like cables, hoses and connector's for cabling from panel to pendent, motors, limit switches; clutch, etc. had to be provided. AC Motor and Gear box assembly : AC Motor and Gear box assembly has a AC induction motor of high quality, fit with external axial fan for forced conversion. It encourages proper heat dissipation, when the motor is running continuously at all RPMs. The AC Motor and Gear box assembly will drive the input shaft of a reduction gear box. There is a slip frees suitable timer for the belt drive. The Reduction gear box will be there to make like Elecon /Radicon/ Cyclo, etc.Complete control system : for the planomilling operations requires the given table. It includes controls for spindle, table feed and relevant inter locks. All the controls will be putted in a separate electrical cabinet on floor near to reduction drive unit. The elements used are MCBs, contactors, cables, etc. vital for the control system, of standard reputed makes easily available in India like Siemens/ L&T/ Technic/ Indo kopp, etc. Features of Electrical Control System Excellent durabilitySturdy constructionHigh performanceEasy installationEnergy efficient

Our LT Panels have the largest satisfied customer base. Dedicated to providing environment friendly quality solutions and commitment to delight customers with unique value propositions.

Located in Bangalore, the company is engaged in manufacturing and supplying Drive Control Panel. The Drive Control Panel, supplied by us, is extensively used to control sensitive motor operation and machinery by several industries due to its advanced make and optimum performance. The clients can avail the Drive Control Panel in various models and amps & KVA ratings as per the requirement. Demanded By : Electrical companiesContractorsBuildersFlat promoters

• Phase: Single Phase
• Usage: Motor Control, PLC Automation
• Frequency Range: 50/60 Hz
• IP Rating: IP44
• Voltage: 220/440 V
• Body Material: Mild Steel sheet

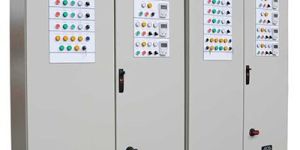

Electric Panel Board are wide range of control panel boards which includes machine control as well as large power panel with core control of power transfer as well as protection. We can manufacture these Electrical Panel Boards in both Standard and Customized form.

• Material: Plastic
• Voltage: 200 - 250 V
• Pin Type: 2 Pin Socket
• Brand: Detender
• Socket With Shutter: Yes
• Ampere: 16A - 6h
• Frequency: 50 - 60 Hz 2P+E
• IP Rating: IP44

We manufacture and supply superior quality LT main control panel with incoming ACB or MCCB and outgoing MCCB.

Designed and manufactured in conformity to various stringent Indian and International specifications, our power products are equipped with fully compartmentalized design, electrolytic copper/aluminium bus bars of optimum capacity with SMC/DMC supports. They are capable of withstanding high vault levels, to the extend of 50 KA (for 1 sec.) Adequate ventilation has been ensured in the design keeping the temperature rise well within 35 degree Celsius at an ambient of 40 degree Celsius. Today we are capable of designing, manufacturing, installing and commissioning of a wide range of electrical control panels as per the requirements of the clients. The panels have successfully undergone the short time withstand test (50KA) temperature rise test and degree of protection. They are in full conformity with IS specifications for general arrangements of bus, bars, switches and degree of protection. Service Power Protection and Distribution Panels. Transmission Line Power Protection. Conveyor Panels - Zinc, Iron ore etc. Radial Distribution Panels LT and HT. Auto Transformer Starters - 415 11kV 1000hp. Draw Out Type MCCB. Power Factor Correction Panels. Transformer Protection Control Panels. Alternator Control and Synchronizing Panel up to 1Mega Watt. Sound Protection Substations and Emergency Power up to 250 kVA Type Tests: Short Time Withstand Test for LT Panels 60kA for 1 second. Temperature Resistance Test 800 Amps Capacity.Dgree of Protection Test IP 43 to IP 51. Some of our Clients : BSNL, India MES, India Port Trust Southern Railways, India Tata Institute CPRI, India

Remote tap changer control (rtcc) is a conventional equipment to control the output of the transformer from the oltc unit fitted in the transformer. The desired voltage will be achieved accordingly by controlling the oltc with respect to the tap position through rtcc system.

Harsha Kitchen Equipments are noted as specialized control panel boards manufacturers in Bangalore, India. We have been manufacturing high quality control panel boards with low, medium and high voltage for various commercial and industrial sectors in order to meet varied electrical needs and specifications.These boards are manufactured as per the industry quality standards under the supervision of skilled professionals using latest manufacturing technology and optimum grade components and hence they are precisely designed and technologically advanced. Its main features are: sturdy construction, longer functional life, easy to install, highly reliable, low maintenance.

We are offering rtcc panel.

We have marked a distinct position in the market by providing Danfoss VFD Panel, which is widely used in different industrial and domestic purposes. The offered panel is assemble by our skilled professionals as per the defined industry norms. It is offered in varied specifications and can be customized as per the specifications laid down by the clients within stipulated time frame. Known for easy installation, corrosion & chemical resistance and longer service life, thisDanfoss VFD Panel is extensively demanded in the market.

• Phase: Single Phase
• Application: Industrial
• Material: Mild Steel
• Voltage: 440 V
• Power: 50kW
• Automation Grade: Automatic
• IP Rating: IP66
• Type of Control Panel: Electric Control Panel
• Dimension: 4X3.7X2 Feet
• Frequency.: 50Hz
• Rated Current.: 3000 Amp

We are offering starter panel.ahu unit ac cooling fans.

We are engaged in manufacturing a wide range of Automatic Power Factor Capacitor (APFC) panels. These electrical control panels maintain the power factor of the system automatically by switching the capacitor banks as per the needs of the system. Moreover, our range of electrical control panels also maintains the desired power factor through the APFCR (Automatic Power Factor Control Relay).

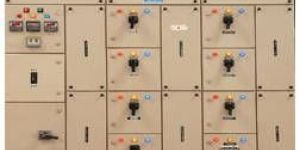

We have gained expertise in Manufacturing and Supplying high end Electrical LT Panels from Bangalore, Karnataka. The Electrical LT Panels offered by us are designed to meet the client’s requirement of operating different industrial applications. We check the panels on stringent quality parameters to ensure that only reliable ones are delivered to the customer. Customers can obtain Electrical LT Panels from us at highly reasonable prices.
