Electronics Training Kit Dealers in Bangalore

• LINE CODING TECHNIQUES: RS.15,000

 line coding techniques trainer system form united electronics. .

• Material: Aluminium Alloy
• Brand Name: Tangent
• Automation Type: Automatic
• Color: Grey
• Handle Material: PVC
• Phase: Single Phase

• MODEL NO: 8051

Micro-8051 is an 8 bit Microcontroller Trainer kit based on Intel's 8051 Microcontroller from Minmax Electronics. It is the same as 803180C31875189C51 (MCS - 52 Series). It is an universal type kit with 8052 CPU Module plugged onto it. With Micro -8051 one can enter machine -coded programs, check their correctness, execute it and verify the results. It has onboard RS232 interface to download Intel - hex files from PC. The on-board peripherals of Micro - 8051 include 8255) Programmable Peripheral Interface), 8279 (Keyboarddisplay Controller), 8253(Programmable Interval Timer), 8259(Programmable Interrupt Controller), 8251(Programmable Serial Communication Interface) with RS232 drivers 14881489. Micro - 8051 operates from 230 V AC through an external Power Supply Unit.

We are one of the Digital IC Trainers Manufacturers, based in India. We strictly use up-to-date equipments in the entire manufacturing process assuring optimum quality production. And the whole manufacturing process is backed under the proper guidance of trained technocrats. We supply different types of Integrated Circuits Trainers. We are also one of the noted Digital IC Trainers Suppliers. We have a team of target oriented professionals having voluminous experience in the manufacturing as well as supplying of wide gamut of digital IC trainers, integrated circuits trainers etc. We present Advanced Digital IC Trainer at the most competitive price. User friendly design and features with Powder coated cabinetsInbuilt variable power supply 1.5v to 32V/1AFixed power supply +/-5v, +/- 12v/1A.Crystal Based clock pulses 1Hz to 1M HzMono pulse with high and low pulseLogic Input with soft switch with bi color indicationLogic output with high/low with bi color indicationcommon Anode/Cathode display with selector switchZip sockets with 16 pin/20pin option – 40 pin on requestvSolder less bread board.All terminal on 2mm Banana sockets2mm Banana Terminals probes (Patch cords – 10 sets)

Time Response and Frequency Response of Second Order System Closed loop system response for PID Simulation Speed control of DC Motor using closed loop feedback system Speed control of SC Motor using closed loop feedback system Study of compensating Network (Lead-Lag Network) DC Servo motor Speed Torque characteristics unit AC Servo motor Speed Torque characteristics unit Synchro Transmitter-Receiver unit PID Controller (AnalogMicroprocessor Based) DC Position Control System

• RAM: 32 KB Data RAM
• Operating Frequency: 10MHz crystal
• LCD Display: 2x16 Char LCD display
• Current: 1.5 Amps
• Frequency: 50 / 60 Hz
• Timer: Three 16 bit counter /timer using 8253

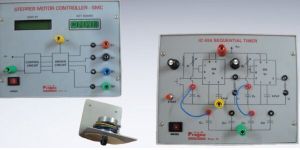

This unit is Microcontroller based controller circuit to accurately generate pulses to energize the stepper motor winding in the desired sequence. Power Transistor based driver circuit to drive the stepper motor. 5 Seven segment display to set and display the parameters. From this controller we can set the speed of the stepper motor in RPM, set the number of steps the motor can move. We can set the direction of rotation – forward and reverse direction. We can also set half step and full step mode.

• Material: Aluminium
• Application: Transmitters
• Color: Green,Golden
• Voltage: 24 Volt DC

• RAM: 88 K bytes
• Automation Grade: Semi-Automatic
• Brand Name: GSAS Micro Systems
• Power Supply: +5 V
• On Board Memory: 128 K bytes
• Port Lines: 9

• Weight (GM): 187
• Communication Protocol    : I2C0x38
• Length (mm): 120
• Width (mm): 75
• Height (mm): 58
•  :

• Output voltages: One fixed DC regulated power supply of+5V/500mA
• Load regulation: + 0.2%
• Line regulation: + 0.05%
• Ripple: Less than 3m VRMS
• Protections: Short circuit & over load protected

• Packing: 50 Kg Or 25 Kg New HDPE Bag: Load ability: 27.5 MT per 20 FT Container.

Mode of Payment: 100% Irrevocable Confirmed L/C at Sight from PrimeBank Or 50% Advance at the time of Confirming the Order through T/T and Balance 50% at the time of Fax Copy of B/L.

• kit includes: screwdrivers, pliers, hex keys, a drill, and a soldering iron

• Inbuilt variable power supply: 1.5v to 32V/1A
• Fixed power supply: +/-5v, +/- 12v/1A.
• Crystal Based clock pulses: 1Hz to 1M Hz

We offer Digital IC Trainers using up-to-date equipments in the entire manufacturing process assuring optimum quality production. And the whole manufacturing process is backed under the proper guidance of trained technocrats. We supply different types of Integrated Circuits Trainers. We have a team of target oriented professionals having voluminous experience in manufacturing as well as supplying of wide gamut of digital IC trainers, integrated circuits trainers etc. User friendly design and features with Powder coated cabinets

We provide our clients a wide range of Electronic Training Boards that are fabricated as per the client’s requirements and are available with varied specifications.

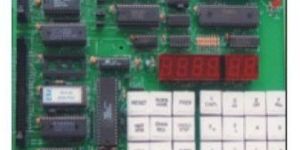

Based on Intel 8085 processors. Operates at 3.072 MHz, Operates on 5V. Requires ±12V, 30V for EEPROM programmer, Stand alone user interface is 7-segment display and on board key pad. RS232 for serial mode,Built-in one line AssemblerDisassembler in serial mode.

• Thickness: 2 to 5 mm
• Material: Copper, Fiber Glass
• Packaging Type: Box
• Brand Name: SWA
• Board Type: Single Sided
• Type Of Tension: AC
• Frequency: 50 Hz

• demension: 8. 25" x 4. 5" ( 210 x 115 mm) , 0. 062" t hi ck,6 layers

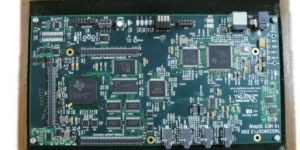

Texas Instrument’s TMS320C6713 DSP operating at 225 Mhz,Embedded USBJTAG controller with plug and play drivers, USB cable included,TLV320AIC codec,2M x 32 on board SDRAM,3 Expansion connectors (Memory Interface, Peripheral Interface and Host Port Interface),On board IEEE 1149.1 JTAG connection for optional emulator debug,Four 3.5 mm audio jacks (microphone, line-in, speaker and line out)
