EL360 Single-door Access Control System The EL360 Single-door Access Controller is the most basic level of security systems which provides the basic function of controlling the entry and exit through that particular door. The EL360 combines access controller and card reader, offers convenient, programmable access control at a low cost. It can function in a stand-alone mode or up to 16 units of EL360 can be networked together with the controller using ELID Access Management Software (EsofWIN). Large User & Transaction Database Up to 1,750 users' IDs can be stored in EL360, and the most recent 1,000 transactions are logged. The information is stored in non-volatile memory, ensuring the database stays intact even when power is removed. User Friendly Operation EL360 is equipped with 7-segment display. The display gives clear status indication of controller condition during operation. For example, when a card is denied entry, the display shows the reason for the denial. E-ic means Invalid Card, E-ca means Time Zone violation, E-rd means Wrong Card Format etc. Programming of the EL360 is intuitive and friendly. All commands are entered by function buttons clearly marked on the keypad. Data to be keyed in and feedback of value which have been keyed in are clearly shown on the 7-segment display. Time Zone EL360 caters for timers and time zones, limiting access and users to different times of the day. Built-in Reader EL360 has a built-in EM Reader. High Security A major user concern for stand alone controller is that once the controller is forcibly opened, the door that the controller is protecting can then be released open. For the EL360, the inputs and outputs are located on a separate remote relay module (EZ6) which is located in a secure zone. Advanced Design EL360 uses an 8-bit microcontroller, with firmware stored in Flash Memory. The firmware can be updated in-circuit, through serial download from PC. This makes firmware upgrade hassle free. Reliable Operation EL360 is equipped with a real time clock backed up by a lithium battery. Time will continue to run even during power failure. Essential equipment settings, card database and transaction database are stored in EEPROM.

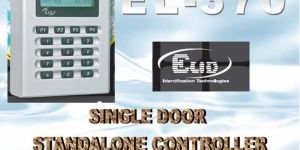

The EL373 Single-Door Access Controller combines access controller, card reader and keypad. The features of the EL363 and EL373 are identical. The only difference is that the EL 373 has a LCD display whereby the EL363 has a 7-segment display Storage capacity: Stores up to 2,000 user-IDs and 1,000 offline transactions Display and keypad: 122 X 32 pixels backlit Graphical LCD display and 16-key keypad Built-in EM proximity reading module Caters for timers and time zones, limiting access and users to different times of the day High security level while door is forced to open. The inputs and outputs are embedded on a separate module at the EZ6 which is placed in a secure area Simple programming set-up with scroll-down menu within the controller Firmware can be updated in-circuit, through the serial download from the PC Battery back-up for internal data storage and time clock Communication Interface: RS485 Dimensions: 115(H)x90(W)x30(D) mm Weight: 400g

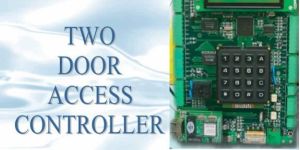

The EL2200 has established a solid reputation as an extremely reliable and versatile controller, easy-to-learn, easy-to-use and problem free. Various options and accessories allow the EL220X to be used to control doors (1 or 2 doors), elevators (up to 64 floors), car-park barriers (with Anti-passback) and time attendance. EL2200 The EL2200 is packaged in a plastic casing, with display and keypad on the cover, allowing the unit to be wall-mounted at eye level, to facilitate programming and report viewing. EL2205 The EL2205 is designed for mounting inside a metal panel together with power supply and back-up battery. The EL2205 can be expanded to become a 2-door, 2-reader controller by adding an EA2207 extension board. Storage capacity: Stores up to 12,800 user-IDs and 4,000 offline transactions Card Database Transaction Database Standard EL220X 1,600 2,000 Standard EL220X 3,200 1,000 EL220X with extended memory 6,400 4,000 EL220X with extended memory 12,800 2,000 Display and keypad: 2x20-character backlit LCD display and 16-key keypad Reader type: Supports various types of reader such as Magnetic, Bar Code, Proximity, Touch Memory, Mifare Contactless Smart Card reader Provision for dual card entry, output activation mapped to input status changes, fast reading speed and tail tag alarm operation Caters for timers and time zones, limiting access and users to different times of the day Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time Zone Simple programming set-up with scroll-down menu within the controller Equipped with a calendar clock chip to give an accurate date and time Battery back-up for internal data storage and time clock Communication interface: Multi-drop Dimensions: 212(H)x155(W)x55(D) mm Weight: 800g – 1kg

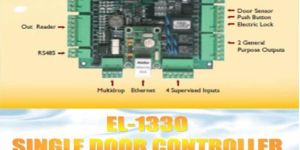

EL1330 is a single-door controller designed to work independently. The EL1330 replaces the popular EL1300 and offers a number of new features over EL1300. In addition to RS485 and ELID proprietary Multi-drop, the EL1330 offers option of using TCPIP by plugging a LAN module on board. The numbers of inputs and outputs have been increased and a new MCU is used which operates 4 times faster than the EL1300 Storage capacity: Stores up to 2,000 user-IDs and 1,000 offline transactions Reader type: Supports various types of reader such as Proximity and Mifare Contactless Smart Card reader Able to communicate with the PC through the Ethernet (EL1330 with LAN module) Caters for timers and time zones, limiting access and users to different times of the day Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time Zone Operation Mode: Card, Card + PIN, PIN (20-set, 4-6 digits) Firmware can be updated in-circuit, through the serial download from the PC Equipped with a calendar clock chip to give an accurate date and time Battery back-up for internal data storage and time clock Communication interface: Multi-drop or RS485 or Ethernet Dimensions: 133(H)x150(W)x27(D) mm Weight: 400g

EM Proximity Cards, Compatible with EM Readers

Matrix Hardware [ Overview ] EL5000 Controller The EL5000 series controllers create a new dimension in Access Control Application hardware. There are 4 variants of the EL5000 Series controllers to choose from to fit, mix and match site requirement for flexibility and cost effectiveness. There are 2 (EL5002), 4 (EL5004), 8 (EL5000) and 16 (EL5500) Access Portal variations of the EL5000 Series controller. These are multi-purpose Controllers, offering a complete solution to meet security requirements for your premises. Each can be configured to work as a Door Access Controller, a Lift Access Controller, a Time-Recording Terminal or a Car Park Controller. All these controllers are designed to operate collectively to communicate to single software for a multifaceted integrated solution. EL5000 Series Controller runs on a 32-bit Super-fast Intel 386EX CPU (CISC) with high-speed processing power. It has a built-in 10Mbps 10-base-T Ethernet Native TCPIP LAN Interface Adapter, which handles peer-to-peer communication between controllers and hosts a computer by using the TCPIP Internet Protocol. The controller directly connects to an Ethernet bus without the need for a physical LAN Interface (for example, a Terminal Server) which degrades the transmission speed required for high security requirements. Data transmission speed between a controller and a host computer is one hundred times faster than that of conventional RS232 or RS485 serial communication. Data from a host computer can be downloaded to the EL5000 in a split second. This greatly reduces the time required in operating and maintaining your Access Control Systems, without having to degrade the system performance when your system expands many times in size. The controller also maximizes methods of configuring an Integrated Security System. Even in a standalone mode (not connected to the Matrix V software), it can become a node of a LAN. This is made possible just by assigning it with an IP address and connecting it to a nearby UTP hub and configuring it via Telnet. This accessibility is made especially to provide engineers with a low-level troubleshooting and diagnostic facility. The EL5000 Series Controllers is designed for a WAN configuration for global deployment across countries. The EL5000 Series controllers are designed to be scalable to work with Matrix V by ELID for centralized control and monitoring of up to 8,000 Access Portals.

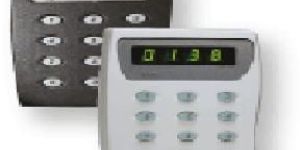

EK9S Keypad This plastic keypad unit features a 12-key membrane keypad and 4x7segment LED display. The Keypad is compatible with all ELID Access Controllers, and is often used in conjunction with various types of readers. Only 8 wires are used for both scanning keypad and displaying status. Product Code Description ER-0009-R01 EK9R Serial Keypad (Rubber) with 4x7 Segment Display, Beige, built-in with EM reader, 110(H)x90(W)x35(D) mm ER-0009-RB1 EK9R/B Serial Keypad (Rubber) with 4x7 Segment Display, Dark Grey, built-in with EM reader, 110(H)x90(W)x35(D) mm Keypad 12-key membrane keypad Reader Type EM Display 4x7segment LED display Power 5V Reader Type Swipe-type Magnetic reader, track 2 (Other tracks also available) Current Consumption 50 mA Transmit Frequency 125 Khz Reading Range Between 3cm and 8cm Output Format Wiegand Status indication By LED and beeper Protection Surge protection Operating Temperature (°C ) 0-40

ERM23 EM Proximity Reader This is a Short-range Proximity reader which will reads all EM cards. Product Code Description ER-0023-006 ERM23 Short Range Proximity Reader, Black (EM compatible) Reader Type EM Colour Black Power 5V Current Consumption 50 mA RF Frequency 125 Khz Reading Range Between 3cm to 5cm Output Format Wiegand Status indication By LED and beeper Dimension 120(H)x44(W)x20(D) mm Weight 200g

E.Time Time Attendance Management Software E.Time is a Windows based Time Attendance Management software, designed to monitor staff attendance effectively. It is suitable for use in a factory environment to track shift functions accurately. E.Time works with all ELID Time Clocks and allow clock data from each time clock to be uploaded into the PC, where they can be processed and generated into various reports of employees’ attendance status. These reports can also be exported for use by third party payroll software to generate overtime pay : Comprehensive Reports E.Time provides comprehensive reports of employees’ attendance status. This becomes handy for monitoring and tracking purposes. Reports can be generated by selection - eg by Department, Date or Employee ID. (i) Summarized Reports Attendance Summary (by Employee) Daily Attendance Analysis (by Day) Monthly Attendance Analysis (by Month (ii) Detailed Reports Daily Attendance Details Attendance Details by Employee Overtime Report Lateness Report Early-Out Report Incomplete Report Absenteeism Report Edited Attendance Report Attendance Sheet (iii) Others Leave Report Duty Calendar Department List Section List Employee List Holiday List Multiple-shift Scheduling E.Time has the ability to provide multiple-shift scheduling that helps divide employees into different working schedules. Users can configure up to 26 working schedules with a different working inout time, meal inout time and OT startend time at the E.Time. Same group of employees who works on the same schedule (shift) can be grouped together. User Friendliness E.Time is a user-friendly time attendance management software in both settings and operations. Ease of Setup A startup wizard emerges when E.Time is installed. It will lead the user to complete basic configurations like clock terminal setup, department setting, user ID enrolment, holiday setting and work schedule. User-friendly Interface E.Time displays an organizational tree with a clear view of the attendance of employees. User-friendly interface saves time in navigating through the functions of E.Time. Compatible Time Clock E.Time software works with all ELID time clocks such as the ET1200 series, ET630, ET3100 and ET3000. ET1200 is designed to be able to work with all card technologies of common similarities like Bar-code, Magnetic and Proximity. It is housed in a sturdy metal casing and is highly suitable for factory environment. ET630 is an elegant and compact time clock whose design blends in well in an office environment. It comes with a built-in proximity reader. ET3100 is a user-friendly and cost-effective optical-based fingerprint time clock for registration and verification of employees. ET3000 is a state-of-the-art silicon-based fingerprint time clock with built-in EMHIDMifare reader. Flexible Configuration E.Time is able to monitor the transactions from the total of 16 ELID time clocks. The PC is connected to the time clocks via a communicator (EL70D) or terminal server (EL78). Flexible Data Migration E.Time provides flexible data migration tools for data processing. Data Export Users can export the attendance record, employee information and clocking data into textExcel format which can be used for integration with third party payroll software to generate salary. Data Import Users can import employee information and clock data in text file (.txt) or Excel file (.xls) to E.Time database. Migration Tool Migration Tool is designed for the existing users of EasyTime who wish to upgrade the time attendance software from EasyTime to E.Time. Flexible Data Migration E.Time provides flexible data migration tools for data processing. Product Code Description E.Time EW-TIME-U01 E.Time Time Management Software, 100 users, single workstation, support IP Time Clock & 16 clocks (with Softkey, DB9) EW-TIME-U02 E.Time Time Management Software, 500 users, single workstation, support IP Time Clock & 16 clocks (with Softkey, DB9) EW-TIME-U03 E.Time Time Management Software, 1000 users, single workstation, support IP Time Clock & 16 clocks (with Softkey, DB9) EW-TIME-U04 E.Time Time Management Software, unlimited users, single workstation, support IP Time Clock & 16 clocks (with Softkey, DB9) Computer Pentium IV or higher Operating System Microsoft Windows 2000XP or higher RAM Minimum 128MB Hard Disk Space 30MB (Installation), 100MB (Operation) Display Super VGA Monitor with 1 M SVGA interface board Communication Interface One RS232 serial port (com 1 or com 2) Resolution 800 x 600 or better

Chronos Time Attendance Management Software Your user friendly time attendance management system simply designed for ease of use. Say Goodbye to the conventional punch card system and Hello to Chronos Time Attendance Management System. Ease to Setup Software installation is easy as Chronos provides a startup wizard which leads the user to complete the basic settings. User-friendly Interface Chronos displays an organizational tree with a clear view of the attendance of employee. User-friendly interface definitely saves a lot of time in navigation through the functions of Chronos. On-line Monitoring On-line monitoring highlights the immediate display of transactions received from the time clock, for example, when an employee badges on the time clock, the informationwill automatically be displayed in the system. Various Types of Reports Chronos provides numerous reports of employees’ attendance status for the purpose of tracking attendance. (i) Summarized Reports Attendance Summary (by Employee) Daily Attendance Analysis (by Day) Monthly Attendance Analysis (by Month) (ii) Detailed Reports Daily Attendance Details Attendance Details by Employee Lateness Report Early-Out Report Incomplete Report Absenteeism Report Edited Attendance Report Attendance Sheet Overtime Report (iii) Others Leave Report Department List Section List Employee List Holiday List Editable Attendance Attendance of employees which includes InOut time and OT startend time can be edited by the administrator. The record of the original and edited data as well as the edited date can be found in the Edited Attendance Report for audit purposes. Data Import Data Import allows users to import employee’s information and clocks data in text file (.txt) or excel file (.xls) to Chronos’s database for attendance reprocessing. Data Export Data Export allows attendance record, employee information and clocking data to be exported to the text file or excel file. The data exported out can be filtered by the department, employee and date. User-definable Company name and logo can be personalized. Each staff record includes a field for inserting his picture.

ET3100 Bioflex Fingerprint Time Recording Terminal ET3100 is a user-friendly, reliable and cost-effective Optical Fingerprint Recognition Time Recording Terminal. It captures and stores fingerprint image as template and verifies each specific finger's unique ridge pattern for highly personalized identification. Therefore, abuse of time attendance through 'buddy punching' will never happen. For your peace of mind, the ET3100 also doubles up as a basic door access control system which secures your company's premises from unauthorized access. ET3100 is complemented by E.Time, a Windows-based time attendance management software which allows real time viewing, monitoring as well as providing various reports on employee's attendance status. Thus, doing away with tedious manual reporting, human errors, lowering administrative costs whilst providing all necessary information at your fingertips. What's more, with DataCenter FP Bioflex, an interface software, you can also export ET3100's transactions to any third party payroll and administration software for effortless consolidation of human resource management in your company. Able to store up to 9,000 fingerprint templates Able to store up to 30,000 transactions records Enables enrolment of up to 10 fingerprints for each user Fast verification time; suitable and effective for office or factory environment Multiple verification mode Large backlight graphical LCD display - provides key information such astime, date, current session, verification and buffer full status, etc. Transactions can be downloaded either via RS485 or TCPIP LAN Battery back-up for internal data storage and time clock Can function as a basic door access control system Simple set-up and enrolment programming with scroll-down menu within the controller Windows-based Time Attendance software (Chronos, E.Time, TimePro) and Interface Software (E.SDK) Product Code Description Bioflex Fingerprint Time Recording Terminal ET-3100-001 ET3100 Fingerprint Time Recording Terminal, cw DataCenterFP BioFlex Interface Software & Template Backup Manager Software for ET3100 ET-3100-L01 ET3100L Fingerprint Time Recording Terminal, built-in with TCPIP module, cw DataCenterFP BioFlex Interface Software & Template Backup Manager Software for ET3100 ET-3100-LE1 ET3100LE Fingerprint Time Recording Terminal, built-in with TCPIP module & EM Reader ET3100 Standard Configuration ET3100 LAN Configuration LCD Display 128x64 pixels with backlight Keypad 16 keys Fingerprint Scanner Optical, 500 dpi False Rejection Rate 1.4% False Acceptance Rate 0.00001% Fingerprint Template Storage 9,000 templates Transaction storage 30,000 transaction records Verification Mode Fingerprint only (1:N), ID only, ID + Fingerprint (1:1), ID + PIN Verification Time Average 1 second for 1000 fingerprint templates Enrollment Maximum 10 fingerprints enrollment per user Indicator Sound, LED Output 2 (EM-Lock, Sounder) Input 2 (Door Sensor, Push Button) Reader interface In & Out reader with Wiegand interface Reader format Standard 26-bit Wiegand, Free Wiegand (40-bit max), Elid HID Prox. Reader Emulation Mode Wiegand output to 3rd party controller Input Voltage 12V DC Communication Interface RS485, TCPIP LAN(optional) Baud Rate 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps Input Voltage 12V DC Operating Temperature 0°C - 55°C Operating Humidity

EL2800 series Access Control System EL2800 is an advanced multi-door IP controller. EL2800 uses native LAN (not a terminal server which converts RS232 to LAN). Consequently, it is like a PC and can take full advantage of web access. EL2800 provides access control functions for 4 doors. Entry and Exit readers are RS485 based and are connected by 4 wires in daisy-chain mode. Door sense signals and exit push button signals are directly wired to EL2800 main board. Storage capacity: Stores up to 3,000 user-IDs and 2,000 offline transactions per door Display and keypad: 122x32 GLCD display and 16-key keypad Reader type: Supports Weigand format (FreeWiegand, 26-bit, HID) Caters for timers and time zones, limiting access and users to different times of the day Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time Zone Firmware can be updated in-circuit, through the serial download from the PC Simple programming set-up with scroll-down menu within the controller Equipped with a calendar clock chip to give an accurate date and time Battery back-up for internal data storage and time clock Communication interface: Multi-drop or RS485 or Ethernet Uses standard Internet Browser for configuration & set-up Dimensions: 208(H)x154(W)x30(D) mm Weight: 800g

EL2300 series of card access controller is developed as a third generation successor to the popular EL2000EL2200 series. In EL2300, ELID has made key hardware upgrades on MCU, memory, and communication, using latest technology advancement, while retaining the familiar user interface and programming steps of EL2200, so as to reduce learning-time for existing users to a minimum. The EL2300 series consist of a number of controllers sharing similar features: EL2301 (1-door 2-reader Controller) has a plastic casing with keypad and LCD display and is suitable for wall mounting. EL2302 (2-door 4-reader Controller) has a plastic casing with keypad and LCD display and is suitable for wall mounting. EL2307 (2-door 4-reader Controller) is designed as a module with keypad and LCD display, for mounting inside a metal casing. Storage capacity: Stores up to 25,000 user-IDs and 10,000 offline transactions (depending on the model and set-up selections) Display and keypad: 2x20-character backlit LCD display and 16-key keypad Reader type: Supports various types of reader such as Magnetic, Bar Code, Proximity, Mifare Contactless Smart Card reader Provision for dual card entry, output activation mapped to input status changes, fast reading speed and tail tag alarm operation Caters for timers and time zones, limiting access and users to different times of the day Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time Zone Firmware can be updated in-circuit, through the serial download from the PC Simple programming set-up with scroll-down menu within the controller Equipped with a calendar clock chip to give an accurate date and time Battery back-up for internal data storage and time clock Communication interface: Multi-drop or RS485 or Ethernet Dimensions: EL2301EL2302: 150(H)x130(W)x70(D) mm EL2307: 212(H)x155(W)x55(D) mm Weight: 800g – 1kg

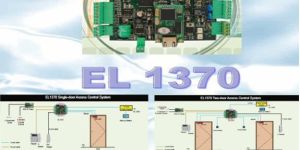

EL1370 is a 2-door 2-reader controller. It has the same footprint as EL1330 and provides enhanced features as follows:- 1-door controller with entry and exit reader, or 2-door controller with entry readers and push-button exit Features a 16-bit dual core MCU whose reliability is such that it is widely used in the automotive industry Features a 512KB SRAM memory to offer larger card user database and larger transaction log storage Provides advanced features such as dual card entry, and programmable event-triggered outputs Features Flash as program storage. This allows in-circuit firmware upgrade via PC on-site, without the need for physical replacement of any memory chips Storage capacity: Stores up to 20,000 user-IDs and 20,000 offline transactions Reader type: Supports various types of reader such as EMHIDProximity, Mifare Contactless Smart Card reader Caters for timers and time zones, limiting access and users to different times of the day Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time Zone Similar to EL2200 programming steps. Initial setupprogramming can be done through EK13 hand-held programming keypad Equipped with a calendar clock chip to give an accurate date and time Battery back-up for internal data storage and time clock Communication interface: Multi-drop or RS485 or Ethernet Dimensions: 120(H)x140(W)X50(D) mm Weight: 200g
