Fatigue Testing Machine Dealers in Bangalore

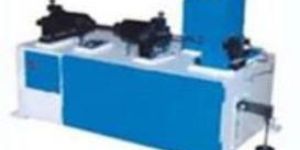

Well-known as one of the leading Fatigue Testing Machine suppliers from Karnataka, we provide this highly reliable product at a price of Rs 90,000/unit. Our products functioning is extremely easy and hassle-free and the performance is commendable. Our well-equipped product has an enhanced operational life. Our item has a capacity of 300-inch lbs. and 3 Phase A.C Speed of 2850rpm.   Detail : Our company is considered as a leading company that offers a wide range of Fatigue Testing Machine to meet the needs of our customers. This machine is well equipped and ensures long lasting service life. Moreover our range is highly appreciated for its reliability, easy operations and optimum performance.   Specifications : Length : 55 Width : 25

• Country of Origin: India
• Color: Blue
• Voltage: 220V
• Warranty: 1 Year
• Type: Automatic
• Certification: CE Certified
• Application: Fatigue Testing

• Weight: 10-50kg
• Color: Grey, Light White, White
• Voltage: 110V, 220V, 380V
• Driven Type: Electric
• Warranty: 1year
• Automation Grade: Automatic
• Type: Fatigue Testing Machine
• Certification: ISO 9001:2008
• Application: Metal Testing
• Power: 3-6kw, 6-9kw

• Automation Grade: Semi-Automatic
• Power required: 0.5 H.P
• Power Source: Electric
• Rotating speed: 4200 rpm
• Phase: Single Phase
• Testing dia of specimen: 8 mm

Digital fatigue testing machine is compact, light and simple design used to test the fatigue strength of materials. The accuracy of applied bending moment of this machine is +- 1% and has a digital counter of 8 digits.Maximum bending moment() ranges from1- 2.5Nm.The testing diameter of the specimen() ranges from 6-10mm.The weight of the machine is approximately 100 or 120KG.

• Phase: 3
• Power: 440
• Display Type: Computer
• Frequency: 0-10Hz
• Speed: 100 Rpm

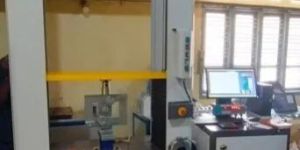

• Product Type: Dynamic Fatigue Testing Machine
• Capacity: 10kN to 100kN
• Accuracy: +/- 1%

• Specimen Dimensions: 20 mm dia; held by collet
• Bending Moment: up to 20 Nm; in steps of 2 Nm
• Speed: 300 to 4200 rpm
• Timer: 99:59:59 (Hr:Min:Sec); pre-settable
• Counter: 999,999 (Max)

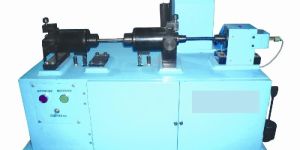

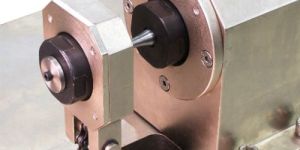

The purpose is to carry out rotating bar bending fatigue tests without deliberately introducing stress concentration in accordance with DIN 50113. A test piece mounted as a cantilever with single point loading is made to rotate and thus subjected to a bending moment. The force giving rise to the bending moment do not rotate.   Features     Auto shutoff on test completion. Rugged floor standing design.
