Fuel Sensor Dealers in Bangalore

Filpro Fuel level sensor is a low cost capacitance type level sensor. It is designed for monitoring levels in fuel tanks of vehicles, Bulk storage tanks fitted on vehicles, diesel storage tanks. The Design is simple & light weight. It measures the level accurately and reliably. The sensor output is connected to vehicle monitoring and tracking system or level indicators. The sensor consists of measuring probe which is encircled with a reference probe. This given more linear output and is not affected by turbulence inside the tank. Fuel Level Sensor As the fuel level increases, the capacitance value also increases. The fuel acts as the dielectric between electrodes. The increase in capacitance directly proportional to increase in fuel level. This change in capacitance is measured and converted into 4-20mA, 0-5V, 0-10V, RS485 OP. Description : Principle Details required while ordering 1. Flange Size and Material 2. Probe Length 3. OP required

• Operating Temperature: -20 ° C to +70° C
• Operating Voltage: 9V to 36VDC
• Probe Length: up to 450 mm
• Fuel Measurement Resolution: 0.3mm
• Probe Diameter: 22 mm
• Probe Material: Aluminium
• Dead Band: 10mm from the probe tip
• Housing: Aluminium
• Termination: 4 core extendable cable from the electronics
• Communication Interface: MODBUS RS485
• Mounting: 6-Bolt flange mount

• Features: Optimum performance, Quality-tested, Easily operate

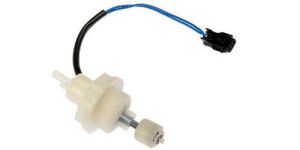

Water in fuel sensor (WIF) are used to indicate the presence of water separated in the diesel filtration systems for commercial vehicles, passenger cars, Off highway equipments, Generators and industrial applications Available in 2 pin Passive and 3 pin Active configurations Available with integrated standard / customized connectors Operating Voltage 12V & 24V Temperature range : â��40°C to 140°C Available as Direct Lamp drive Module and ECU input module No Electrolysis in electrodes in Active type for long life & higher reliability Sensing Electrode length available in 20 mm, 40 mm & 50 mm Available in M8, M10, M12, M14 & 3/8” thread sizes Available for pressure ranges from 31 bar to 10 bar Designed for Engine underâ��hood and chassis operating conditions

Our prestigious clients can avail from us a wide range of Capacitance Level Transmitter from us. The offered range of capacitance level transmitters is sourced from the authorized vendors of the market, who manufacture it using high grade raw material.

We are well known for supplying of wide variety of Engine Fuel Temperature Sensor .

fuel level sensors, Aircraft Windscreen Sensors

The ropeFuel sensor detects the presence of liquid hydrocarbon fuels at any point along its length. Installed with the AKCess Pro sensor module, the sensor detects the liquid, triggers an alarm, and pinpoints the location of a leak within a meter, or a foot. Typically this sensor can detect:

Fuel Gas Sensor, Manufacturing Execution System

Fuel tank level sensor, Wind Monitor, Serial To Ethernet Module

Flex Fuel Sensor, Washer Nozzles

Fuel Sensor, RS485 To GPRS Gateway, Modbus GPRS Gateway

fuel temp sensors, GPS Tracking Device, customized software solution

Fuel Sensor, gps device, fleet management solutions, gps devices

Fuel Level Sensor, Proximity Cable, Ultrasonic Level Transmitter

fuel gauge sensors, Automotive, Refrigerators, Washing Machines

fuel gauge sensors, Auto Parts, Engine Speed Sensor, Pressure Transducers
