Futura Automation Pvt. Ltd. Banashankari, Bangalore, Karnataka

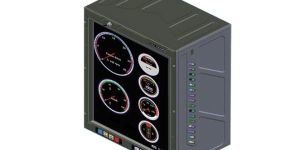

SPECIFICATIONS : »  15.0” XGA (1024 x 768) LCD Display»  Based on Single Board with Intel ULV Celeron Processor»  Built in Single Conditioning and A/D Converters to display parameters like»  COOLANT TEMPRETURE»  ENGINE RPM»  FUEL GAUGE»  VEHICLE SPEED»  PRESURE GAUGE»  GUN POSSITION»  OTHER ENGINE PARAMETERS»  Customized keypad with built in battery backup for continuous operation»  Embedded windows XP Operating System»  Designed to meet MIL-STD-810 Environmental and MIL-461E Emi/EMC StandardsAPPLICATIONS»  As Digital Instrument Panel Display for Main Battle Tank

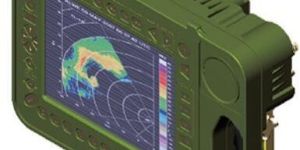

SPECIFICATIONS : »  Based on Intel Celeron M 1.0 Ghz Processor»  2 Serial Port with MIL-C-38999 Connectors»  2 USB & Ethernet port behind the hatch»  6.3” VGA LCD Display»  Option for Touch Screen»  Small Form Factor Back lit Keyboard & Rugged Track Stick»  Built in Smart Battery Charger»  Li-on Rechargeable Battery»  Option for GPS»  Embedded Windows Operating System»  Designed to meet MIL-STD-810 Environmental and MIL-461E EMI/EMC Standard   APPLICATIONS»  Target Acquisition and dissemination»  Data Controller & Terminal»  Remote Radio Control»  Field Computing Device

SPECIFICATIONS :  »  Resolution : 1200 x 1200»  Pixel Pitch : 0.294 mm x 0.294mm»  Aspect Ratio : 1:1»  Viewing Angle : 170° ( Left , Right) 170° (Up, Down)»  Wide Viewing Angle Technology : MVA»  Contrast Ratio : 500:1»  Brightness : 250 Cd/m2»  Panel response»  Time (average) : 15msec (@ 25 deg C)»  Input : Analog RGB VGA compatible»  ( Separate H sync , V sync or Composite»  Sync ( H + V) or Sync on Green (SOG)) »  Operational»  Humidity : 5 – 90% RH Non Condensing »  Input voltage : AC 110 Volts or 230 Volts auto ranging, 47 – 440 Hz

Temperature Range : -20º - +50º C

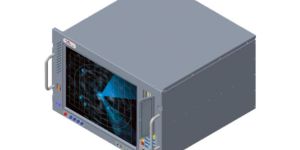

SPECIFICATIONS : »  Smallest Full Function 15” LCD Workstation in the WORLD – Only 7U in Height (7U=310mm).»  Desktop/Rack Mountable (Provision for 19” Rack Mounting with special mounting arrangements).»  Based on the latest version of Single Board Computer.»  Built-in CDROM Drive. Optional DVD Drive Lieu.»  Built-in Floppy Drive and Hard Disk, fully shock isolated.»  Built-in 14 Slot ISA/PCI Back plane in various combinations of ISA & PCI Slots    to give ample space for full size user Add-on Cards.»  Built-in Wide Viewing Angle 15” TFT Color LCD, supports 1024 x 768 x 16 million colors.»  Space for custom user interface like Data Acquisition Unit/Telex/Tele-Printer Interface unit in separate removable tray.»   Built-in Touch Pad on the front panel.»   Meets MIL-STD 810 Environmental Test standards.»   Built-in 16Key custom membrane keypad on front panel.»   Protective Poly - Carbonate front sheet-GE-Margard or equivalent with conductive Coating for reduced EMI emission.»   All Add-on cards have an Anti-Vibration Card Clamp for high Vibration environments. APPLICATIONS»  Wide Range of Harsh Environment Applications in Military/Industrial Environments.

SPECIFICATIONS :  »  Single board computer with 5th Generation Intel Core i7-5650U CPU»  4 GB DDR-3L RAM expandable to 8 GB»  4 x RS 232, 1 x RS232/RS422/RS485»  4 x USB 2.0, 2 x USB 3.0»  2 x SATA 3.0 with RAID 0,1 support»  Built-in RTC»  Programmable 8 bit GPIO»  On-board dual Giga LAN port via i210-AT and i218-LM»  Built-in watch dog timer»  User expansion capability via 2 x MiniPCIe slots»  On-board HD Audio via ALC 888»  10.4" LCD Display with 1024 x 768 LCD resolution»  16.7 Mio Colors»  Pixel pitch: 0.2055mm(H) x 0.2055mm (V)»  Brightness: 700 Cd/m2»  Viewing Angle: L/R ± 850, U/D ± 850»  1 x 64 GB solid state drive»  Power Input: 19~36V DC input (Nominal 28V)»  Windows embedded standard WES-7 OS»  Built-in Li-ION smart battery with level-3 charger»  18 Keys on the front panel arranged as 5 keys on left and right and 8 keys at the bottom»  Programmable protocol for the keys with RS 422/RS 232 output»  MIL-C-38999 connector for Power, Ethernet & USB »  Weight: Approx. 3.5 Kgs (Not exceeding 4.0 Kgs)»  Size: 285mm x 228 x 75mm (not considering corner bumpers)

SPECIFICATIONS :  »  10.4" High Brightness (1024 x 768) LCD Display»  Based on Single Board Computer with Intel Core duo Processor »  Built in 25 keys Moulded Elastomer Backlit Keys»  MIL-C-38999 Connectors for all I/O's

SPECIFICATIONS :  »  6.4” Multifunction Display»  LCD Screen Size : 6.4”»  Aspect Ratio : 4:3»  Resolution : 1024x768»  Brightness : 250 cd/m2»  Inputs : CCIR , PAL/NTSC Video Signal, STANAG 3350 B&C»  Hardware : Based on AVR µcontroller»  Graphic symbology and alpha- numeric overlay hardware as defined by customer (works with & without input video)»  I/O Ports for Communication : 4 nos of RS 232/RS422 (configurable)»  Optional : CAN 2.0 B ( J1939 Heavy Vehicle Interface) , Touch Screen Contoller and USB Interface on board.»  No of Keys :12 nos programmable»  Power Input : 9~36V DC Input

SPECIFICATIONS :  »  6.3” Diagonal Active Matrix TFT Color Display»  Resolution of 1024 x 768 (Total 806 Vertical, Scan lines)    [equivalent to a Horizontal Visual Resolution (TV Lines) of 538 lines]»  Provision for 2 Channel Video Input from a CCD Camera»  Built-in OSD for display parameters control»  Luminance : 250Cd/m2»  XGA Computer Input facility»  Power Supply : 12V DC»  Rugged Frame construction for wheeled/tracked vehicle mounting application»  Operating Temperature : -20°C to +55°C»  Operating Humidity : 95% RH Non-Condensing, @ 40°C Vibration : 1.5G peak acceleration, 10-500Hz

SPECIFICATIONS :  »  Built in 2 x 21.3" UXGA ( 1600 x 1200) Rugged LCD Displays»  1 x 10.4" Touch Enabled Programmable Entry Panel(PEP)»  Meets MIL 1472F Human Ergonomic Standards»  Ample Space for providing quick function push button switch cum indicators , joystick ,Trackball etc.»  Provision for using user defined computing platform, Can be customized for different applications

SPECIFICATIONS :  »  Single board computer with 5th Generation Intel Core i7-5650U CPU»  8GB DDR-3L RAM »  4 x RS 232, 1 x RS232/RS422/RS485»  4 x USB 2.0, 2 x USB 3.0»  2 x SATA 3.0 with RAID 0,1 support»  Built-in RTC»  Programmable 8 bit GPIO»  On-board dual Giga LAN port via i210-AT and i218-LM»  Built-in watch dog timer»  User expansion capability via 2 x MiniPCIe slots»  On-board HD Audio via ALC 888»  10.4" LCD Display with 1024 x 768 LCD resolution »  16.7 Mio Colors»  Pixel pitch: 0.2055mm(H) x 0.2055mm (V) »  Brightness: 600 Cd/m2 or above ( Sun Readable) »  Viewing Angle: L/R ± 850, U/D ± 850»  1 x 256GB Solid State MLC Drive»  1 x Fingertip joystick M11L6C1M on Right Side»  1 x Fingertip joystick M21L0C1M on Left Side»  Power 19 V DC input (Max 24 V DC)»  External power adapter ( AC input to 19 V DC)»  Built-in Li-ION smart battery with level-3 charger»  User defined keyswitches on both sides »  Water sealed Fisher connector for Power, Ethernet & USB

»  Slim 16X DVD Writer»  I/O Interfaces : 2 x UBS 2.0 ports»  Ethernet : 1 x 10/100 Mbps»  Audio : Intel High Defination Audio Sub-system»  Microphone/headphone»  LCD : 15.0” LCD Display with resolution of 1400 x1050»  LCD Brightness : 200 cd/m2»  Contrast Ratio : 400:1»  LED Indicators : Power On , Battery Status , HDD activity , KBD Num Lock »  Power Input : 90~264 VAC , 50 Hz through External AC-DC Adapter»  Battery : Li-ion , 14.4V 6600 AH with a provision for a secondary battery»  Battery Life : 2~3 hours with min/max LCD brightness»  Charging Time : 3~4 hours»  Preloaded with licensed Windows XP Operating»  Dimension : 355 (W)x75mm(H)x312mm(D)»  Environmental Specifications :Operating Temperature : -20? ~+55? C»  Storage Temperature : -40° ~ +70°C»  Relative Humidity : 95% RH non condensing @ 40 ? C (Operational)»  Vibration (Non Operational) : 10~500 Hz , 2G Constant Acceleration on X , Y & Z axis»  Shock (Non –Operating) : 15g ,11msec»  EMI/EMC : As per MIL 461 E»  Drop Test : 1.2 meters height in packed condition

SPECIFICATIONS : »  Operator input : SAW or Resistive Touch Screen (Optionally Keys around the front panel)»  Host input : RS232 Serial Port»  Built-in controller interface with stored menu pages as per Customer’s applications (Customizable)»  Menus and Status information can be modified from the HOST through the serial port»  Environmental : As per MIL-STD-810APPLICATIONS»  Wide Range of Applications for Larger Screen LCD Display in Military/Industrial Environments

Resolution : QVGA, VGA, SVGA

Processor : Intel Core 2 Duo @ 1.5 Ghz or above with 2K of L2 Cache , FSB 800 Mhz or better, RAM : 2GB DDR2 RAM expandable upto 4GB, HDD : 80 GB Shock Isolated Hard Disk Drive, Slim 16X DVD Writer, IO Interfaces : 2 x UBS 2.0 ports, Ethernet : 1 x 10100 Mbps, Audio : Intel High Defination Audio Sub-system, Microphoneheadphone, LCD : 15.0” LCD Display with resolution of 1400 x1050, LCD Brightness : 200 cdm2, Contrast Ratio : 400:1, LED Indicators : Power On , Battery Status , HDD activity , KBD Num Lock, Power Input : 90~264 VAC , 50 Hz through External AC-DC Adapter.

SPECIFICATIONS : »  Compact Portable Computer with Built in 10.4” SVGA (800x600) LCD for Command ,    Control & Communication Applications»  10.4” LCD with resolution of 800 x 600»  Luminance : 230 Nits»  Contrast Ratio : 500 : 1»  Response Time : 10 ms»  Viewing Angle : 120 (H) , 100 (V)»  40 Piezo Electric Backlit Keys for low ambient light applications around the display»  Intel ULV Celeron Processor @ 1 Ghz or above»  2nd Cache Memory : 512 KB»  System Chipset : Intel 852GM +ICH4»  BIOS : AMI BIOS»  System Memory : 256 MB expandable upto 1 GB»  Ethernet : Dual Realtek RTL8110SC Gbe chipsets»  I/O Interface : 4 x USB 2.0»  1 x EIDE»  1 x CF»  1 x KN/MS»  5 x RS 232»  1 x RS-232/422/485»  Audio : Realtek ALC655 with AC’97 codec»  Display Graphics Controller : VGA integrated in Intel 852GM , 18 bit dual channel LVDS»  Watch Dog Timer»  Built in 2.5” Note Book Hard Disk Drive of 40 GB Capacity»  MIL-C38999 Connectors for all other I/Os»  All-internal sub-assemblies mounted on shock isolators»  Built in Touch Pad»  24V DC Power Input»  Standard D-Sub Connectors behind a concealed hatch for Lab applications»  Light Weight Aluminium Alloy Chassis»  Operating temperature : -20º~ + 50º C»  Operating Humidity : 95% RH Non-Condensing @ 40ºC»  Vibration : 6~8 Hz ?6mm Constant Displacement»  1.5G Peak Acceleration m 9~500 Hz»  EMI/EMC : As per MIL 461E

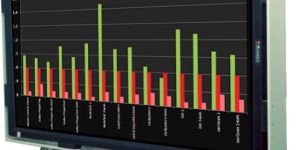

SPECIFICATIONS :  »  Color Flat Panel Display»  Active Screen : 65.0” Diagonal»  Active Display Area : 1428.48 mm (H) x 803.52 mm (V)»  Resolution : 1920 x1080 /16:9 »  Viewing Angle : +/-890 (V&H)»  Pixel Pitch : 0.744mm (H) x 0.744mm (V) (Panel meets pixel defect guidelines as per ISO 13406-2) »  Number of Colors: 1073.7M ( 10 bit/color) »  Pixel Arrangement : R, G, B Vertical Stripe»  Brightness (cd/m2): 500»  Contrast Ratio: 5000:1»  Inputs Signal :    • Analog RGB ( separate H/V sync or Composite Sync)    • DVI-D    ENVIRONMENTAL SPECIFICATIONS : »  Vibration : As per MIL-STD-167-1A (or) MIL-STD-810F     • Shock: 15G, 6m/sec half sine, six shocks in X/-X, Y/-Y & Z/-Z direction»  Power Supply Input : 115V/ 230 V , 50 Hz »  Power Consumption : 230~240W »  EMI : Meets EMI/EMC as per MIL 461F »  Protection : IP 24 »  Weight : 130 Kgs ±5% Approx for »  Display with mounting frames and shock isolators »  Input Resolution : Horizontal : 31Khz~80khz    • Vertical : 55Hz~75Hz    • Active : VGA~WUXGA»  On screen Display (OSD) menu for controlling the display parameters.»  Wire rope shock isolators to mount the monitor for wall mounting applications

Compact Portable Computer with Built in 10.4” SVGA (800x600) LCD for Command, Control & Communication Applications, 10.4” LCD with resolution of 800 x 600, Luminance : 230 Nits, Contrast Ratio : 500 : 1, Response Time : 10 ms, Viewing Angle : 120 (H) , 100 (V), 40 Piezo Electric Backlit Keys for low ambient light applications around the display, Intel ULV Celeron Processor @ 1 Ghz or above, 2nd Cache Memory : 512 KB,Ethernet : Dual Realtek RTL8110SC Gbe chipsets System Chipset : Intel 852GM +ICH4, Display Graphics Controller : VGA integrated in Intel 852GM , 18 bit dual channel LVDS, Built in 2.5” Note Book Hard Disk Drive of 40 GB Capacity.
