Gun Drilling Machine Dealers in Bangalore

• Machine Type: Automatic
• Usage/Application: Shafts
• Capacity: 5mm x 500
• Number Of Shaft: 4

• After-Sales Service Provided: No overseas service provided
• Condition: New
• Certification: -
• Voltage: -
• Supply Ability: 5 Piece/Pieces per Quarter
• Place of Origin: Karnataka, India
• CNC or Not: CNC
• Model Number: -
• Power: -
• Drilling Speed: 15000 rpm
• Packaging Details: as per custom need

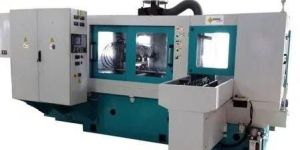

Gun drilling Machines - Universal gun drilling machine from 1.2 to 25 mm for moulds, heat exchangers and other general applications,Custom built gun drilling machine for defense, auto components (crankshaft ,camshaft, connecting rod, cylinder block, fuel injection component, gun barrel etc)Vertical and Horizontal fine boring machines for auto components( Cylinder Block ,connecting rod , crankshaft pin hole boring etc)& many other such applications. Machine with auto tool settings up to 1micrometer diameter with auto gauging can also be given

High precision deep holes with critical tolerances on dia, roundness, hole location, taper, concentricity and finish usually need secondary operations like reaming, honing, boring, grinding etc. Gun drilling can produce an accurate deep hole economically in a single operation at unbelievable speed. Since a gun drill has a carbide cutter at its cutting edge, it can effortlessly drill through hard material like forging, alloy steel components etc which cannot be economically machined with other types of drilling. The length of a gun drilled hole can be several times its diameter and holes will be bur-free. A rotating gun drill is slowly fed into the work piece at a high RPM. High pressure cutting oil is delivered to the cutting zone from a specially designed coolant pumping system through a rotary joint and an in-built coolant passage in the gun drill. The coolant not only cools the heat at the cutting zone, but also it removes and carries back the chips through the flutes provided in the gun drill to the chip box. Before the coolant reaches back the coolant tank for re-cycling, chips are filtered.
