Heatcon Sensors Pvt. Limited Hessarghatta, Bangalore, Karnataka

The Heatcon Split round tubular furnace are capable of operating up to 1250 C . The furnace features high temperature furnace rod for long lasting element life. The furnace is supplied from the factory in the horizontal orientation, but can be used vertically. An optional Vertical Stand Bench is available.

The Heatcon Split round tubular furnace are capable of operating up to 1250 C . The furnace features high temperature furnace rod for long lasting element life. The furnace is supplied from the factory in the horizontal orientation, but can be used vertically. An optional Vertical Stand Bench is available. Wire & Cable Industry.

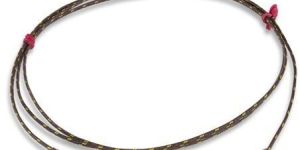

Fine Gauge Thermocouple Wire is a flexible, high temperature primary or secondary insulation made from closely braided, continuous filament fiberglass, which has been heat-cleaned to remove impurities in the yarn. Acrylic resin binders are applied for color coding and to further retard fraying and to hold sleeving round for cutting. This fiberglass insulation is unaffected indefinitely through a temperature range from -60 to 400°C. Fine Gauge Thermocouple Wire fiberglass sleeving is used for thermal and mechanical protection in consumer, commercial and industrial applications where flexibility, abrasion resistance or insulation is required and particularly when temperature extremes prohibit the use of other materials.

Heating elements for element temperatures up to 1450°C heating elements are available as straight or bent elements in a wide rangeall characterized by long life and consistent performance.Metallic heating elements of cartridge element type designed for long life and trouble-free service. Radiant heating elements are available in standard dimensions or as per drawing and can be supplied in almost any length. Radiant heaters can be used inside all types of radiant tubes or as stand-alone elements.

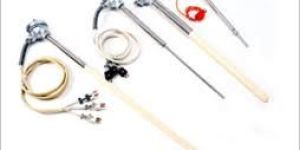

These Thermocouples have been designed for use in oxidizing, neutral and reducing environments. The materials used are of the highest quality, manufacturing standards. Applications in all type of furnaces can be measured with these types of sensors. Temperature ranges to +2700 degree centigrade (R, S, B AND C).

Magnesium Oxide insulated thermocouples, commonly referred to as MgO thermocouples, are used in many process and laboratory applications. They are available in all thermocouple element types, a wide variety of sheath diameters and materials, they are rugged in nature and bendable, and their fairly high temperature ratings make MgO thermocouples a popular choice for a multitude of temperature measuring applications. The many desirable characteristics make them a good choice for general and special purpose applications.

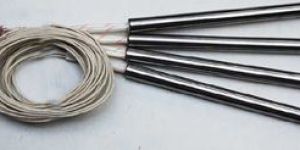

Cartridge heater compacted by magnesium oxide offers high performance. With a maximum rating Wattage upto 70 WattsSquare inch & Temperature up to 750° degree centigrade on the sheath of the heater. Power distribution & Inbuilt Thermocouple options are available.

Length : 30mm-1500mm.

Display Type : Digital

Brand Name : Heatcon

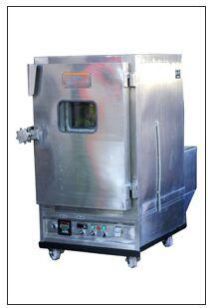

All chambers have a stainless steel interior of either Series 304. Humidity models are welded for vapor tight enclosure. Door is sealed with silicon Gasket to avoid leakage. Door interlocking facility is available so that the chamber would not start unless the door is closed. Adjustable shelf with slide-out rails One Fully adjustable shelf positions available every 12" height throughout working volume Self-contained steam generator All chambers incorporate forced air circulation. Digital input and display of temperature in Degree Centigrade Temperature alarm and shutdown circuit for additional protection against chamber and product overunder temperature All power connectors, protection devices and power control logics were placed in one control panel Over load trip & Earth Leakage trip for complete chamber.
