Industrial Disc Brake Dealers in Bangalore

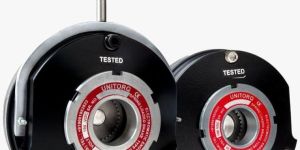

• Application: industrial

• Brand Name: Unitorq
• Voltage: DC 24/96/105/190/205
• Usage/Application: Brake Motors
• Feature: Easy Mounting
• Minimum Order Quantity: 1 Number

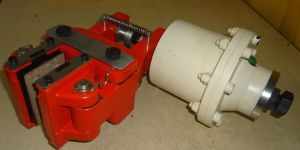

The brake assembly contains of a brake arm, brake shoe, base frame, actuating lever, brake spring and an electro hydraulic thruster. The brake shoe is mounted on the brake arm and the gap between the brake drum and brake pad is adjusted by spring mechanism. A heavy spring suitable to give required braking force, is mounted in a square tube and a graduation scale is provided outside to note the spring force .The spring force can be adjusted suitably by tightening the nut at the bottom of the spring, All the components are mounted on the base frame This brake is normally in closed condition due to the spring force. The hydraulic thruster is actuated by an electric motor. When the power supply is on, the thruster motor is switched on and hydraulic pressure is developed in the hydraulic thruster. The piston is actuated instantaneously and the brake is released. When the power is cut off, the thruster motor stops thus releasing the hydraulic pressure. The thruster piston is pushed back and the brake pads clamp on to the brake drum. Due to the spring force, brake is applied.   Application Area     Cranes Conveyors Material Handling Equipment.

• Material: Mild steel
• Speed: As per user requirement
• Country of Origin: Made in India

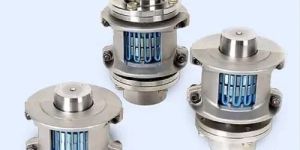

• Features: Dry running application, Asbestos free facing, No backlash, Different mounting options
• Torque Range: 7Nm to 220Nm
• Outer diameter range: 80mm to 230mm
• Operating Voltage: 24v
• Packaging Type: Box
• Usage/Application: All packing machines,winding machine, SPM's
• Surface Finishing: Coating

• Torque Range: 6Nm to 200Nm
• Outer diameter range: 6Nm to 200Nm

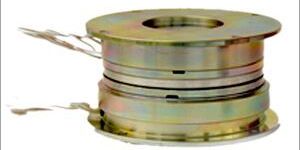

A Combination of a Clutch-Brake unit with mounting methods as per IEC Standards, the Narsipur & Son’s Manufacturing Division’s Electromagnetic Clutch Brake Combinations are suitable for application that requires both clutch and a brake to function in one simple install unit. When the clutch portion of the unit is engaged, power is transmitted from a source such as a continuously rotating motor to a machine component such as a shaft. When the brake is engaged, the component is held stationary. They find application in machine tool, food processing, chemical, pharmaceutical industries etc.
These are available with Electrically or mechanically actuated brakes where o

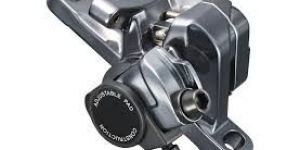

Light to medium duty braking applications are best served by these Fast acting Calipers, using air pressure upto 7 bar, Sensitive and rapid response to air pressure also makes them ideal for tension control applications.CMR2 Series :Identical in specification to CMR Series except that the brake shoes are each Fitted with two pads to provide higher power ratings andor longer pad life. The minimum Disc Dia is 450mm. Torque ratings same as CMR Series Brake.

• Application: Manual
• Weight: 10-20kg
• Power: 1-3kw
• Driven Type: Electric
• Current Type: AC, DC
• Speed: 1000-2000rpm

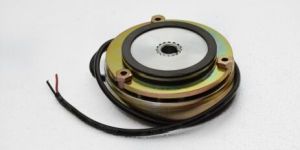

Single/ Dual-disc electromagnetic DC brakes featuring automatic braking on power failure. Environmentally sound brake linings designed for approx. I million braking operations allow long maintenance intervals.

Electromagnetic Clutches

Electronic Equipments, Electromagnetic Clutches

custom designed gearboxes, eht disc brakes, eht drum brakes

industrial brake linings, facings, brakes linings, Cover Assembly

power brakes, brake fittings, Rotor discs, spring brake chamber

Drum Brake, battery clamp, Front Spring Bracket, FR Control Arm

DC Electromagnetic Brakes, Foot Mounted Motor

ogura clutch brake, gtr nissei gear motor, tsubaki gear motor, Reducer
