Industrial Tools Centre Chickpet, Bangalore, Karnataka

In-line horizontal piping connections simplify installation and maintenance. All internal parts can easily be renewed without disturbing the pipe connections. Steam loss is eliminated because during operation, the main valve is always seated by condensate.

It is one of the most versatile and widely used devices in industrial temprature measurements.The entire assembly of bulb , capillary and gauge is calibrated directly changes. Technical Specifications Dial Size 4,6,8 and 10. Case and bezel SS 304 Die- cast aluminium weather proof. Window sheet glass or Safety glass. Pointer micto zero or center zero adjustable. Model , Vertical, Horizontal, Capillary Type. Sensor Stem Material SS 316 (Dia 6mm, 8mm, 10mm, 12mm, 14mm and 16mm). Connection 14, 38, 12, 34 and 1. BSP, NPT, Matrix Thread, Male Female, adjustablefixed. Range-30 to 550 C. Accuracy +- 1% of FSD. Over Range Protection 125% of FSD.

In-line horizontal piping connections simplify installation and maintenance. All internal parts can easily be renewed without disturbing the pipe connections.Steam loss is eliminated because during operation, the main valve is always seated by condensate.

A Wafer type Butterfly valve, with an integrally molded elastomer body liner. Designed to outperform loose liners , SLIM Seal's elastomer liner is molded directly in the body bore and vulcanized in-situ, making it last the entire life of the valve.

This 3-piece Ball Valve is the most easily on-line maintainable in its class. By removing three body connector bolts and loosening the fourth, the body can be swung away using the fourth bolt as the fulcrum, to carry out any installation or maintenance operation on the valve, thus reducing down time.

Normex ball foot valves has received a special status in negative suction pumping applications. Normex ball foot valve is regarded as the most reliable, 100% leakproof foot valves. & is an only solution for typical priming problem. In the application where footvalve is involved, the main concern of the user is letting away of media by the foot valve. This calls for the ã¢ï¿½ï¿½priming.ã¢ï¿½ï¿½ of the the pump which is time consuming & tedious job. If the ã¢ï¿½ï¿½on-off frequencyã¢ï¿½ï¿½ is more, the trouble rises multifolds. A heavily leaking footvalve can also give rise to start up trouble to pump as suction line never gets filled completely. A leaking footvalve can cause not only time wastage but also delay in process industry where water is required at particular instant. In typical case of fire fighting application, if foot valve leaks, pump is not started can cause damage to property as well as life. Even in application in irrigation agriculture sector, where electricity is available for limited time & intermittent (in rural india) priming pump every timeany time of day & night is a loss to pumping time.

These gauges works best for measuring low pressure of non-corrosive gases, commercial heating, gas distribution and filtration. The measuring system of Brass or S3 304 Capsules and Case Material cast aluminum is available. These low pressure capsule type gaugesare available in pressure range 0.50 mm WC up to 1000 mm WC in pressure, vacuum and compound ranges. These are available in all standard process connections NPT, BSP etc; id dial sizes 100 mm and 150 mm with an accuracy of ±2%.

Accuracy : ±2%.

These gauges work best for Chemical and Fertilizer Plants, Refineries, Power Stations, as the gauges are installed outdoors. We offer Measuring System of Phosphor bronze, Brass, SS 316 or Monel. The Case of die cast aluminum with screwed bezel black finish or epoxy coated is also available. These are Weatherproof and dust proof Ip55 and have Accuracy ± 1 %. The Dial Size is 100,150 and 250 mm which are available in all standard process connections, Ranges from - 760 mmHg to 0 to 1000 kgcm2 and Receiver Gauge Input Pressure is 3 to.15 psi OR 0.2 to 1 kgcm2.

horizontal float valve One Piece full part, blow-out proof stem, floating bass, soft seated, Non fire safe design, lever operated ball valve

One Piece full part, blow-out proof stem, floating bass, soft seated, Non fire safe design, lever operated ball valve, Screwed Ends : BSP BSPT NPT Female Threads.

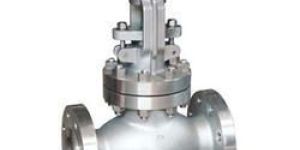

Bolted Bonnet outside screw & yoke type Renewable Seat Rising stem with Back Seat Arrangement, Full Flow Area, Hand Wheel Operated.

Brand Name : UTAM

Material : Cast Iron

Color : Grey

Pressure : Medium

Certification : IBR

Country of Origin : India

Number Of Way : 2way

These gauges are ideal for measuring Air, Oil Gases and Liquids that are not corrosive to copper, oil and steel. These are best for used in general Industrial Applications such as Boilers, Pumps, Compressors, Machinery's, Process S Chemical Plants. Case and Bezel is drawn steel with black finish and is available in Bottom, Back Connection, Direct Mounting, Surface Mounting and Flush Panel Mounting. These are available in all standard process connections NPT, BSP etc. It possesses Accuracy of ± 2% and is available in Dial Sizes of 40, 50, 63, 80,100,150 and 250 mm.

These gauges works best for measuring low pressure of non-corrosive gases, commercial heating, gas distribution and filtration. The measuring system of Brass or S3 304 Capsules and Case Material cast aluminum is available.

These gauges can be used for corrosive gases and liquids. Diaphragm Material is made with Stainless steel and Teflon protection. The Case Material is of pressure die cast aluminum, steel or stainless steel in addition to the Wetted parts of Stainless Steel, Mild Steel which is available in all standard process connections NPT, BSP etc. It has accuracy of ± 1 % and has the dial Size of 100 mm and 150 mm. Pressure Ranges from 40 millibar to 600 Millibar and 0-1 kgcm2 up to 0.21 kgcm2.

Excellent flow control in quarter turn.compact saving design. Bidirectional 100% tight shut off.stream lined valve disc for lower pressure drop. Both shafts mounted in bearing supports for easy operating torques. Replaceablebonded seat option. Suitable for mounting between all standard flanges. Gasket packing not required to install between flanges.

This is a unique design foot valve which works excellently in muddy . Clear water, sewage, waste water, viscous liquid, paper stock, slurries, etc. The commonly used flap type foot valve gives permanent problems like priming of the pump, clogging, breaking of the flap, etc. The ball type foot valve is especially designed to eliminate all these troubles. The problematic hinged flap is replaced by a free ball. A thick nitrile seal gives perfect sealing.

Type : Ball Type Foot Valve

Material : cast iron

Certification : ISO 9001:2008 Certified

Application : Water Fitting

Color : Blue

Pressure : Medium

Country of Origin : India

Brand Name : NORMEX

High thermal efficiency at both light and heavy loads. Continuous modulating discharge does not create pressure disturbances, which may affect control in air heating coils, shell-and-tube exchangers, etc.

audco valves Wafer type Butterfly valve, with an integrally molded elastomer body liner. Designed to outperform loose liners , SLIM Seal's elastomer liner is molded directly in the body bore and vulcanized in-situ, making it last the entire life of the valve.

AIL-AQUASEAL wafer type butterfly valve, with an integrally molded elastomer body liner, is designed to outperform valves with loose liners. The elastomer liner, molded directly in the body and vulcanized in-situ, ensures that the liner lasts the entire life of the valve.

Brand Name : NORMEX

Material : Cast Iron

Color : Sky Blue

Usage : Water Fitting

Certification : ISI Certified

Valve Size : 2inch

Weight : 5Kg

Country of Origin : India
