Instrumentation Equipment Dealers in Jp Nagar, Bangalore

• Material: Aluminum, Steel
• Certification: ISI Certified
• Application: Factories, Industries
• Frequency: 60Hz
• Connection Type: 4 Way
• Phase: Double Phase, Single Phase
• Warranty: 1 Year

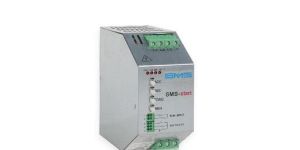

Over 50% reduction of the starting current, SMS range of Soft starters allows a considerable reduction of the starting current; it helps saving money and energy. Benefits of the installation include:40% reduction of the starting current; size up to 160 A; easy installation. Reduces starting current more than 50%. � No noise and no vibration compared to direct starting. � Chooses automatically if connection is direct in line or delta start.� Compact size and equipped with DIN bar fitting. SMS-start reduces the starting current and limits the mechanical torque transferred to the load, constantly monitoring the current consumption: it works both direct starting and delta starting.

• Conductor: IS:8130-1984 / Solid / stranded / (Flexible conductor – optional)
• Insulation: Is:5831-1984 Type a / Type C / Type St1 / Type St2
• Rated Voltage: Upto and including 1100 Volts AC . 1500 V DC systems
• Flexibility: Desired Flexibility Required for Fixed Installation
• Temperature Rating: –15ºc , + 70ºc / 85ºc
• Bending Radius: 15 X Cable Diameter for Armoured Cables and 12 X Cable Diameter for Unarmoured Cables
• Fire Property: Meets Is:10810-part 53, Iec 60332-1
• Chemical Reaction: Impervious to Oil, Grease, Petrol, Diesel Etc.,

Applications : Ravicab Control cables are installed either ground or on trenches, in industrial establishments for giving signals to control the operation. For example control of flood lights in big stadiums where test matches are conducted. The cables are used to control the equipments and suitable for earthed and unearthed systems. To improve the flexibility of cable in total, flexible conductors are also used for control panel wiring, eg., cement factories. The cables are impervious to moisture, grease, oils etc, and hence can be installed for both indoor and out door use.   Product Range : Ravicab Manufactures Multi core Unarmoured and Armoured Control cable with annealed plain Solid / stranded copper conductor of >100% conductivity and >99.97% purity, and insulated with General Purpose (GP) PVC insulation or Heat Resistant (HR) PVC insulation , suitable for working voltages upto and including 1100 Volts, and conforming to IS:1554 (Part 1)-1988 – Range of sizes 2 core to 37 cores x 1.5 sq. mm Ravicab Manufactures Multi core Unarmoured Control cable with annealed plain Solid / stranded copper conductor of >100% conductivity and >99.97% purity, and insulated with General Purpose (GP) PVC insulation or Heat Resistant (HR) PVC insulation , suitable for working voltages upto and including 1100 Volts, and conforming to IS:1554 (Part 1)-1988 – Range of sizes 2 core to 37 core x 2.5 sq. mm

• Certification: IP67
• Condition: New
• Automatic Grade: Automatic
• Warrenty: 1yrs

PRIM is a Print Color Registration & Cut-off Control System developed for four color web-offset printing machines. It uses a high speed imager with integrated high intensity LED strobe light to acquire images of printed register marks. Inbuilt high performance CPU analyzes the images to determine alignment offsets and sends real time signal to the motor for fast and accurate lateral and circumferential alignment correction.

We are well-known manufacturers of Automatic Mains Failure Panel including Protection for DG sets. It uses an advance technology to make an easy and trouble-free Genset control. Our panel comes with various functions and timers which help in the efficient running of the AMF panels. It also consists of the metering facilities for monitoring of the frequency/current/voltage. We can also customize it according to the client specifications and details. We offer automatic mains failure panels or automatic AMF panels, that are installed for automatic changeover from mains to stand-by generator at the time of power failure. Our this range of AMF panel includes automatic mains failure detectcion and starting the D.G. set and putting it online with current limit, battery charger, power inverters, automatic changeover and sine wave inverters.

• Brand Name: DELTA
• Motor Power: 0.5 HP to 10 HP
• Output Type: PULSE OUTPUT
• Output Current: 8 AMPS
• Usage/Application: Industrial
• Output Phase: Three Phase
• Model Series: C200 SERIES

Home automation includes centralized control of lighting, air conditioning, appliances and other systems, to provide improved convenience, comfort, energy efficiency and security. Home automation can also assist elderly and disabled persons as this system integrates electrical devices in a house with each other. The techniques employed in home automation includes the control of domestic activities, such as home entertainment systems, houseplant and yard watering, pet feeding, changing the ambiance for different events like dinners or parties.

• Place of Origin: India
• Lead Time: one week
• Operating Temperature: 10-50
• Brand Name: Digilux
• Max. Current: 16A
• Packaging Details: as per custom need of the client , seaworthy package.
• Max. Voltage: 110-270V

• Country of Origin: India
• Size: H 2200 X W 2400 X D 600MM
• Type: Plc Panel
• Application: Industries
• Color: Gray
• Phase: Tripple Phase

automatic transfer switch panel 2 x incomers of 1600a 4p acb and common outgoing connectors ats controller, busbar rating 3200a complete assembled as per iec 61439 standards in ip 54 metal enclosure, form-4 type-2 construction.

• Frequency: 50Hz/60Hz
• Voltage: 12 Volt
• Material: Stainless Steel
• Packaging Type: Box
• Power Source: Electric
• Phase: Single Phase

meter boards, Bus Ducts, Control Panels, Distribution Boards, Lt Panels

• Features: Low maintenance, Safe in use , Easy installation.

We are a prominent Manufacturer and Supplier of Temperature and Humidity Transmitter that converts the humidity and temperature measured by two sensors into a 4÷20 mA signal. We offer this Temperature and Humidity Transmitter whose accurate design and choice of components make the instruments precise and reliable for a long working life. The design of the Temperature and Humidity Transmitter has two sensors, a capacitive sensor for measuring relative humidity and a Platinum resistive sensor for measuring temperature. We provide a Temperature and Humidity Transmitter that is made of the best quality material. Features : Fast, stable and accurateWater-tight enclosureCompact size: easy mountingLoop-powered transmitterOn-site two point calibration. (Zero and Span)

3S is a pioneering installer and solution provider in building and energy management systems. We provide total solution for commercial, institutional and other various portfolios. Our professional design and implementation team integrates HVAC, Lighting, CCTV, Fire, Access Control and energy Management Solution with BMS. Security and access systems can instruct HVAC and lighting systems when the building is occupied; fire systems can control lifts; CCTV systems can be used to check fire alarms; heating systems can interact with cooling systems - the list goes on. Users and occupants feel better, because the system is responding to them more. At the end of the day, the system automatically responds by changing operation as the staff leaves - late workers don't get colder. Real intelligent control is possible. Better control not only brings happier occupants; energy-savings increase, because energy is used only when needed. The state-of-the-art solutions are highly efficient, easy to use and provide at most comfort level for users and occupants. Though solutions are cost efficient, the same generates low maintenance and operational costs. Benchmarking the best level of quality standards, 3S team assure you cost-effective and scalable integration of all your control, monitoring, and operational needs.

LT HT Electrical,Bus bar Assemblies,AMF Manual Panels for DG,Power Control Centers (PCC),Motor Control Centers (MCC),5000 Sq ft of module Assembly Wire harnessing,20,000 Sq ft of Panel Assembly,2 Tonne Crane facility to load and unload.Aeon can assemble around 150 panels (avg) a month, of various types and sizes:MCC PANELS,Single front (fixed and draw out - module type),Double front (fixed and draw out - module type).

We offer fc series - variable frequency drives features : high performance drive with field oriented control. featuring new 175o c miniskiip igbts for high reliability. stator flux oriented control reduces parameter dependence. 8 digital inputs , 3 analog inputs,3 digital outputs, 1 relay output high resolution oled display usb for data transfer and logging current sensors in soic package enhance reliability. ip55ip66 options option boards: 8 digital inputs+8 digital outputs, incremental encoder interface

Lt Distribution Panel, Synchronizing Panel, Amf Panel

The advanced cell processing technology and automated production facilities produce a highly efficient photovoltaic module. The conversion efficiency of the solar cells reaches up to 15%. These cells are encapsulated between a tempered glass cover and an EVA (Ethylene Vinyl Acetate) with back sheet to provide maximum protection for all environmental conditions. The laminated parts, equipped with plug in connectors are installed in an anodized aluminium frame to provide structural strength and ease of installation.

Our range of products also includes control panels to be installed for varied industrial purposes. These are of a well and suitably fabricated body for an easy wiring. The wires are also easily replaceable. Pid power back is used for low power consumption. It is mainly made to control furnaces electrically and is made as per customer specifications. The control panel is made for easy operation and efficient use.

The advanced cell processing technology and automated production facilities produce a highly efficient photovoltaic module. The conversion efficiency of the solar cells reaches up to 15%. These cells are encapsulated between a tempered glass cover and an EVA (Ethylene Vinyl Acetate) with back sheet to provide maximum protection for all environmental conditions. The laminated parts, equipped with plug in connectors are installed in an anodized aluminium frame to provide structural strength and ease of installation. Applications: Residential Solar Power Systems Public and Industrial Solar Power Systems Solar for villages in remote areas Solar for homes & cottages Solar for Microwave / Radio repeater stations Solar for Medical facilities Small-scale irrigation pumping Road & Railway signals Solar Street lighting Limited Performance Warranty 1 year limited warranty on material and workmanship 20 years limited warranty on power output. (Long term output warranty shall guarantee that loss of output is not more than 10% of the minimum warranty value of the product specifications within 10 years and is not more than 25% within 20 years after the purchase of the product by customer)

Aimtech is a standout manufacturer ans supplier of Electrical Control Center to our clients. We are the renowned manufacturers for power control centers and motor control centers. Power Control Centers are quite reliable and are mostly used with integrated temperature controls and over temperature controls with effectiveness. The Motor Control Centers effectively use motor control, associated control, distributed panel and system communications. These are widely used in industries and are available in latest range.

Essl security is the reckoned entity engaged in manufacturing and supplying varied collections of access control system in india.

SWA Order No: SWA-1022-A1-R0   Technical Data:     Based on SIEMENS PLC S7 214 Provision for 2 analog input and 2 analog output modules 10 digital output 24V DC 14 digital input 24V DC Power Supply 230V. Works on SIEMENS MICROWIN software. Digital outputs are displayed by indication lamp on the panel Inputs can be given through push buttons selector switch, emergency stock push buttons. Analog inputs can be given through potentiometer

AC Drive Panel which is manufactured using high-grade raw material and are used to monitor machines and provides on site operating control of machines. It is available with different sizes and voltage ratings. Used as speed controllers of alternate current induction motor.

In order to meet the rising demands of the clients, we are offering PLC Controlled Systems to the clients. There is huge demand for these PLC controlled systems among the clientele. These are reputed due to the fact that these are able to deliver excellent performance for long period of time and are technically effective. Our range of these PLC controlled systems is at par with the set industry standards.   Features: Inbuilt mechanism Excellent performance for long period of time Technically effective range

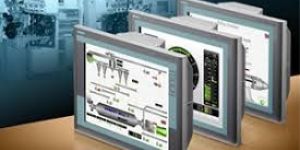

We take up Process Automation Turnkey Projects, based on PLC’s with HMI Touch panels and Scada Softwares. We,at Pentagon Systems and Automation have highly advanced manufacturing setup for both MS Powder Coated and Stainless Steel Control Panels as per customers specification and needs. Our company is one of the distinguished names in the sphere of instrumentation and Automation for Biotechnology and Pharmaceutical Industries. We are pioneer in the field of Instrumentation and Automation for Biotechnology and rmaceutical Industries. We offer complete Integration of Field Instruments, Pneumatics with the PLC and SCADA systems with customized reports as per requirements. We provide PLC andI based Automation Control Systems for various Machine Tools (SPMs) andtomobile Industries. We provide Panels with Control Systems for various Batch Weighing, Weigh Feeders, Hopper Weighing, Belt weigher etc.

Auto mains failure panel board used for diesel generators.

servo motors drives, servo actuators, Proportional Valves

meter boards, Bus Ducts, Control Panels, Distribution Boards, Lt Panels

We are a reliable Manufacturer, Exporter and Supplier of Electrical Control Panel from Karnataka, India. We also make available superb quality control panels that are to be installed for varied industrial purposes. Well constructed and superbly designed body, our Control Panel allows easy wiring. Easy to replace, easy to operate and reasonably priced, our Electrical Control Panel is used for low power consumption. Owing to our logistic network, timely delivery of the paced order is always executed!
