Inverted Microscope Dealers in Bangalore

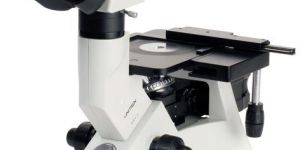

We offer Inverted Metallurgical Microscope having revolving nosepiece that can be moved vertically. Along with that, our Inverted Metallurgical Microscope has quintuple revolving nosepiece. Not just this, trinocular viewing head in our Inverted Metallurgical Microscope can be inclined to an angle of 30o. In addition to this, our Inverted Metallurgical Microscope has 48-75mm interpupillary adjustment that is taken as best in the industry. Brief Description Of Our Inverted Metallurgical Microscope Plan achromat 5x, 10x, 20x, and 50x objectives (80X & 100X Dry Optional)Vertical action movement revolving nosepiece (fixed stage)Coaxial coarse and fine adjustment; coarse stroke 37.7 mm per rotation with fine stroke 0.2mm rotationQuintuple revolving nosepiecePlain stage, 160 x 250mm, includes �10mm, �15mm, �20mm aperture teardrop stage insert platesMechanical stage, attachable type, dimensions 128 x 86mm; Stroke: 120mm (X) 78mm (Y)Coaxial handle, attachable to the right or left side; stage extender plates dimensions 70 x 180mm6 volt 30 watt halogen illuminator with lamp centering mechanism, built-in lever type condenser with aperture diaphragm, field diaphragm and filter slotsWF 10x/20mm focusing eyepieces with rubber eyeguards; eyepieces accept 26mm reticles30� inclined trinocular viewing head with 48-75mm interpupillary adjustmentFilters(24mm in mount), daylight blue, green, yellow and ground glass

Pair EWF 10x22 mm eyepieces Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions Interpupillary distance 54-75 mm Diopter adjustment on left eyepiece Reversed quintuple revolving nosepiece on ball-bearings Plan phase PLPH 10x, 20x, S40x IOS objectives. All optical parts are anti-fungus treated 250 x 230 mm stage with 120 x 78 mm mechanical stage

Optional Accessories :Reticles : Ocular Micrometer0.10mm/div.Objectives Brightfield :  5x/0.12, 20x/0.40, 40x/0.60  & 80x/0.80Objectives Brightfield/Darkfield : 5x/0.12, 40x/0.60 & 60x/0.70The instrument can be provided with a range of High resolution colour photo/video attachments.

We are deal in all types of Inverted Microscope that are available at market leading prices.
