Ipa Pvt Ltd Peenya, Bangalore, Karnataka

Movement of bulk material is an essential feature in modern industrial processes. The simplest and fastest mode of transportation of such material is to convey them over a moving belt. In this operation the precise weighing of material, as it moves, has assumed a key role in process industries. Hence weigh feeder is a closed loop control system in which a precise control can be had over the flow of materials, which has indicating, totalizing and controlling instruments and circuits. The Weigh Feeder is a custom engineered equipment that finds application in continuous bulk proportioning of solids. This gravimetric feeder is operated by a closed loop control system enabling feeding at a controlled rate and exercises precise control over rate of flow based on a micro controller. The system is capable of accepting external signals from other controllers or from the process computer, depending on the extent of plant instrumentation. These gravimetric feeders are in operation in steel, cement, fertilizer and chemical industries. Each system consists of control and local panels, load cells to measure the instantaneous load, a digital tacho to sense the speed of the belt and a belt feeder conveyor shaft is driven by an AC motor coupled through the gear box.

During the operating life, rotating machines suffers gradual deterioration in their condition and performance due to wear and tear caused by friction between moving parts on the machines. Increase in machine wear is always accompanied by increase in vibration level, which therefore can be used as index of machine condition. If the machine is allowed to run on without corrective measures being taken, vibration levels will increase with time at increasing rate until a stage is reached where the machine fails completely. Monitoring vibration levels on machines such as Fans, Blowers, Pumps, Cooling Towers and Turbines which has to be operated continuously will help to detect increase in vibration levels that are likely to result in machine failure, so that a programmed shut down may be carried out for maintenance. PG701 series of Vibration Transmitters are designed to monitor the vibration levels of the above mentioned rotating machines. The 4-20Ma signal being proportional to the “G” level can be connected directly to the monitoring device such as a PLC, else customized display devices & data logging system, can be provided by us.

Pg701 series of vibration transmitters are designed to monitor the vibration levels of the above mentioned rotating machines. The 4-20ma signal being proportional to the “g” level can be connected directly to the monitoring device such as a plc, else customized display devices & data logging system, can be provided by us.

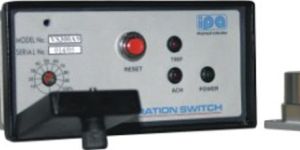

Vibration switch does the function of a “watch dog”. Certain amount of vibration is allowed in all the systems / Products. Vibration beyond a limit is catastrophic. This device monitors the vibration level of a machine, system and switches off / alarm, if its vibration goes out of the set limit. This can prevent unscheduled break downs for various heavy machinery such as large motors, gear boxes, cooling tower fans, etc. IPA make Vibration Switch consist of • Accelerometer with a frequency range of 10 Hz to 10 KHz giving an output proportional to acceleration.• A level setting circuit, to set the allowable level of acceleration.• A relay output, when the vibration exceeds the set level. This relay output can give warning or can shut the equipment under consideration.

Color : White

Tyre inflators, also known as tyre pressure controller are the latest product that we have launched into the market. The systems are very rugged and can handle very hostile environments. The intelligent software ensures that the type of tyre is sensed and the filling happens in the shortest possible time. We have two models to suit your budget and operation which are the wall mounted model and the floor mounted model. these can be customized for special areas like cargo companies, military, police etc where the type of trucks are limited and so the tyre pressure need not be entered into the machine but the type of truck can be selected very easily. Our tyre inflators are ideally suited for fuel filling stations, automobile workshops, tyre shops, bus stations, freighting companies etc.

The system finds extensive use in process industries where monitoring the quantity of materials coming out after completion of a process, especially where materials like powder, granules etc. are used, which comes out at a very low rate, say in the order of under 5T per day or lesser. It is extensively used in the tea industry. The system consists of a buffer hopper and a weigh hopper both provided with gates. The weigh hopper is mounted on loadcells. These loadcells are connected to an indicator where the set value can be entered. As soon as the weight in the weigh hopper achieves the set value, the buffer hopper gate closes and the weigh hopper gate opens to discharge the weighed quantity of material on to a down stream process line. The electronic indicator registers the exact quantity of material. As soon as the weigh hopper becomes empty, the gate closes and the buffer hopper gate opens and the process continues.

IPA make Hopper / Tank / Silo / Bin Weighing Systems offer simple, rugged, accurate and reliable weighing. It ranges from 5 KGs to any Tonne capacity depending upon single loadcell arrangement or multiple loadcells. Single load cell conversion is best suited for Liquid Weighing and in the case where only level indication is required. For Hopper and Silo Weighing System, generally, three loadcell mounting arrangement is ideal. But, for horizontal tank, four loadcell based systems are recommended and for outdoor application, hermetically sealed loadcells are preferred. The Indication for Hopper / Tank and Silo Weighing System can be Level / Weight, which is available either as Wall Mounting Type or Panel Mounting Type. Today we have digital load cells that can make the whole process of installation and trouble shooting easier.

Strain Gauge manufactured by IPA are of foil type  and comes in two different impedances which are 120 Ohms and 350 Ohms. These are used in the manufacture of loadcells and various strain measurement applications. We also manufacture nickel gauges for : Span compensation Temperature compensation You can have all the accessories like adhesives, cleaning agents, elements for bonding of strain gauges etc. from us.

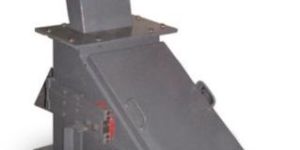

These metering devices are used to measure the flow rate of very fine particles like fly ash, cement etc. The material flows by gravity through an air slide and flows over a plate which measures the impact which is proportional to the density of the material and the flow rate. The impact on the plate is measured by two high precision loadcells that give a very linear output proportional to the flow rate. The output of the loadcells are fed into the micro controller based flow rate indicator which gives the rate and totalized quantity of material. The solid flow meters can be used in series with a rotary air valve or dozing valve to have a controlled feed of material. These metering devices are extensively used for truck loading and fly ash handling systems. Call us for quality solid flow meters in India.

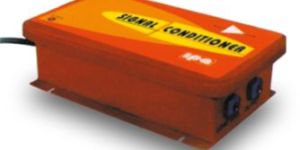

Signal Conditioners is a wall-mounting instrument compatible with strain gauge based transducers. It can support a maximum of 4 transducers when they are connected in parallel. Signal conditioners are used to accept for further processing of output signals. After which they are converted into voltages and currents. Voltage signals are used for processing with in the system and current signals are used for transmitting over long distances and then for further processing. The features of the signal conditioner are: • Output proportional to load• Simple to operate• Reliable• Easy to install• Rugged designed for industrial environment

In the case of conveying of bulk materials which has material characteristics like free flowing by nature, which packs under pressure, which are very light and fluffy i.e., may be windswept and materials with very high temperature, in such cases  belt feeders are not suitable ; only Screw Feeder are recommended. The Gravimetric Screw Feeder is custom engineered compact, enclosed and eco-friendly equipment that finds applications in continuous bulk proportioning of solids. This gravimetric feeder operated by a closed loop control system enables feeding at a controlled rate and exercises precise control over rate of flow. The system is capable of accepting external signals from other controllers or from the process computer, depending on the extent of plant instrumentation. These gravimetric feeders are in operation in cement, fertilizers and chemical industries. Each system consists of control panel, local panel, loadcell to measure the instantaneous load, tacho to sense the speed of the screw which is mounted inside closed trough. The screw shaft is driven by a constant speed AC motor coupled through a gear box.

Application : Hydraulic & Pneumatic Plants, Steel&Cement Industries, Marine & Refineries, Chemical Industries, Food Processing Industries

Color : Silver

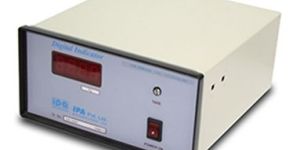

A135A1 is a 3-½ digit, panel-mounting indicator capable of reading upto a maximum of 1999 for an input of 15mV DC with a sensitivity of 10 mV/division. It is compatible with strain gauge based transducer like loadcells, Pressure Transducers, Torque Transducers etc., which have 350 ohms bridge resistance. It can support a maximum of four transducers when connected in parallel. The system provides a very stable power supply of 10V DC for excitation of the transducers. It consists of a differential amplifier to amplify the signal from the transducers. The circuitry is based around an Analog to Digital converter (ADC). The ADC drives a 7-segment, 13mm height LED display. The system provides an output of 0-10V corresponding to the applied load. OR The system provides a current output of 4-20mA corresponding to load applied.

Warranty : 1 Yr,2 Yrs

Material : Metal,Stainless Steel,Mild Steel

Voltage : 220 V,240 V,380 V,440 V

Finishing : Color Coated,Polished

Power Source : Electric

Frequency : 50 Hz,60 Hz

Application : Industrial

Condition : New,Old

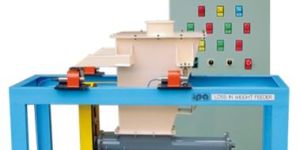

Loss in-Weigh Feeders operate on the principle of controlled loss-in-weight. The proposed system comprises of a Weigh Hopper, Loadcells, Screw Conveyor with motor and associated control electronics. The Weigh Hopper and Screw Conveyor are mounted on 3 Nos. of Loadcells. The Loadcells are connected to a controller through a junction box.The material from the storage hopper is fed to the weigh hopper, which is controlled by a gate. A small screw feeder is mounted below this weigh hopper. The weigh hopper and screw feeder are mounted on high precision Loadcells and the output of the Loadcells are summed in a junction box and fed as an analog input to the controller. The controller calculates the rate, compares with the set rate and feeds the corresponding 4-20mA signal to the VVVF drive so as to control the speed of the motor of the screw, thereby controlling the rate of discharge

Color : Red

Condition : New

Power Supply : 230V,50HzAc

A load cell is  a transducer that converts force or load into usable electrical signal. The primary mechanical element develops a strain as the load cells is loaded and this strain is transferred through the  strain guages that are bonded on to this mechanical element  The output electric signal is in Milli volts. There are normally four strain guages that are bonded in the Wheatstone bridge configuration. Strain Guage based load cells are passive transducer i.e. it does not generate its own signals and have to be excited with an external voltage commonly referred as the excitation voltage. The output of the load cell is proportional to the load and the excitation voltage.  IPA has pioneered the development of loadcells in India. Today we are a leading manufacturer of loadcells. We have our own in-house machining center and have total quality control on the process. We manufacture loadcells from under 1 kg to a 1000Tonnes.. Based on various applications, below you find a few of our standard loadcells. Our loadcells are made of Aluminium, EN-24 and 17-4pH steel. If you are looking for a loadcell which is not in the list below, do contact us and we would be more than happy to develop the same for you or provide you with an equivalent design. We can supply special loadcells in low volumes at competitive prices

The prefect partner for your weighbridge. The winter-III is the indicator / controller. That gives versatility & optimum performance of the lorry weighbridge or any static weighing scale. The high-resolution ADC accepts electrical signal from the load cell give very accurate linear reading. the electronics has a provision for a multi-point calibration that can improve the non-linearity of the existing loadcells. The controller has the capability of analog outputs, digital outputs and digital inputs .it can be programmed to perform function such as Unmanned weighbridge Filling system Batching system & customized weighing application

Hand-held Vibration meter(VM516A0) is a portable and easy to use instrument which is used in conjunction with Integrated Electronics Piezoelectric (IEPE) accelerometers to measure mechanical vibrations in terms of acceleration, velocity and displacement. It is suitable for both laboratory and field conditions.This instrument can be used to monitor vibration levels in production machines on a periodic basis, so that action can be taken before a complete machine failure. It’s operation is simple and quite suitable for use by nonscientific personnel not conversant with electronic instrumentation. In combination with IPA piezoelectric accelerometers the unit provides direct read out of vibration parameters on a LCD screen in both Metric and Imperial units. The device uses a 2200mah rechargeable battery which gives a battery life upto 70hrs continuously following a full charge. It features a dedicated power save button for extended battery life. An output of 2V DC (F.S) is available for recording purpose.   Applications • Industrial Blowers.• Cooling Towers.• Electric Motors.• Diesel Engines.• Small Turbines.• Industrial Gearboxes.• Centrifuges and Decanters.• Centrifugal Pumps.• Test Benches.• Conveyers.

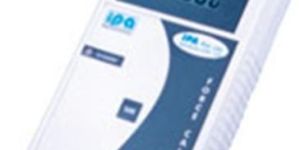

Force Calibrator is designed to revalidate a loading system (UTM) or a hydraulic press from time to time. The system consists of a precision load cell / pressure transducer connected to the Force Calibrator, , which works on a single 9V battery with a 7 segment 10mm height, LCD display. To increase battery life a sleep mode has been incorporated. The indicator goes into a sleep mode if there is no change in reading beyond 5 counts within a span of 15 mins, thereby increasing battery life. The sleep mode can be revoked without any change in reading subject to load being held constant. The unit is factory calibrated using standards that has been calibrated in a national standards lab.

This is a field-programmable indicator designed to be used with strain gauge based transducers. The salient features are:Simple installation. Accurate operation under varied condition. Unambiguous digital display, distant visibility. Micro-controller based operation. RRS232/Modbus/Profibus communication options. The indicator can be programmed through keypad for range, resolution, filter time constant, decimal point and set points. Tare, calibration and system reset are also performed through keypad. The front panel has got digital display and keypad.Hopper /tank/silo weighing application• Peak load indicator• Bagging machine• Lorry weigh bridge application• Wagon tippler application• Dynamic weighing such as Belt weighers• Loss in weight application• A host of other custom built applications can be built over this little wonder.

These are size fit all controller. packed with speed, memory & flexibility this controller is ultimate interface between your load cell and your dream application In built with most of the required inputs and outputs this controller is now available for the following application Tank weighing system Flow meter indicator / controller Bagging system Batching system Belt weighing scale Being young it is being groomed for application like Weigh feeder Loss in weigh feeder Doering system And various customized application
