Isolation Transformers Dealers in Bangalore

• Insulation Class: Class A
• Tap Changer: OCTC, OLTC, as per customer requirement
• Ratings: 1 Phase, upto 33 kV 167 kVA 3 Phase upto 33 kV 3000 kVA
• Frequency: 50/60 Hz
• Applicable Standards: IS 2026, IEC 76, ANSI.C.57
• Core: Wound or Stack ;  CRGO Steel or Amorphous Metal
• Winding: Copper / Aluminum
• Insulating Fluid: Mineral Oil, both inhibited &  uninhibited, as per IS/IEC

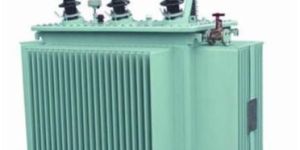

Acton manufactures oil filled Distribution Transformers in Wound or Stack core using CRGO Steel or Amorphous metal.   Features: Able to withstand Short Circuit & Impulse Voltage tests as per IS/IEC Powder Coating for excellent finish Available as CSP (Completely Self Protected) Type Designed to meet customized specifications Available as Corrugated Hermetically Sealed Type whichis compact in size Various ratings type tested from NABL accredited labs

• Packaging Type: Wooden Box
• Size (mm): 800 L x 500W X 800H mm
• Brand Name: OPTEK
• Material: Copper
• Shape: Rectangle
• Certification: ISO9001-2015 CERTIFIED
• Color: SIMENS GREY
• Voltage: 440 V
• Finishing: Coated
• Power: 10 KW
• Driven Type: Electric
• Standard: IS 2030
• Phase: Three Phase
• Warranty: 1 Year
• Cooling Type: Air Cooled
• Country of Origin: India
• Mounting Type: MOVING WHEEL
• Corrosion Resistance: Yes
• Operating Type: Manual
• Operating Temperature: 50 TO 65 c
• Enclosure: METAL
• Humidity: 80
• Insulation: 2kv
• Coil Type: SHELL TYPE
•  Frequency: 50 TO 60Hz
• Capacitance Coupling: c
• Effective Range: +_ 10%
• Drip Shield Required: NA
• Switch: Yes

Known for our light-weight and compact designs, we Manufacture and Supply premium Isolation Transformers. Using only high quality and authenticated components we fabricate efficient and high performance Isolation Transformer. We have a quality assurance team to make sure that Isolation Transformer is functioning properly, durable and energy efficient. Our clients trust us for providing both Off-the-shelf and customized Isolation Transformer at reasonable prices. We make sure that all orders are delivered within the set time frame.

Our Ultra Isolation Transformers have the largest satisfied customer base. Dedicated to providing environment friendly quality solutions and commitment to delight customers with unique value propositions.

• Usage: Power
• Material: Stainless Steel
• Phase: Three
• Application: Equipments Controlling
• Frequency: 50Hz
• Power Source: Electric
• Output Voltage: 240 to 380V

We are the main supplier of this product.

A transformer intended to supply to measuring instrument, meters, relays, and other similar apparatus. These provide isolation and a measurable (standardize) signal at safe voltage levels. Various Types : Oil cooled for out door type Resin cast for indoor application Combined CTPT metering set Features : Feasible desing for low tension and high tension appliation Any customized ratio can also be done Higher accuracy class and high protection class Less maintenance

• CAPACITY: 1KVA – 25KVA 1PH
• PRIMARY VOLTAGE: 200/220V 1PH AC
• SECONDARY VOLTAGE: : 110/230V 1PH
• SYSTEM: : Delta / Star
• RATIO: : 1:1 ‘OR’ 2:1

Used in areas or industries where very large spikes, noise or transients or harmonics have to be suppressed & to give a clean basically 1:1 transformer with galvanic isolation. It can also be used where extensive lightening occurs. A 100% solid state equipment with no moving parts and a life of over 25 years , Capacities vary from 1 KVA – 45 KVA in Single Phase.

Key Features . High efficiency, high reliability and accuracy. Compact, rugged in construction, free standing, floor mounting model and housed in sturdy metal casing with sufficient ventilations . Double wound with copper conductor with low coupling capacitance to isolate the voltage spikes and noise from the mains . High insulation values . Suitable for use with modern sophisticated micro processor based equipment, CNC machines, computers and other Industrial processing . To withstand the ambient temperature up to 55 centigrade and 95% humidity

• Frequency: 100-200Hz
• Phase: Three Phase
• Relative Humidity: Less Than 90%
• Efficiency: Greater Than 90%
• Voltage rating: 440 V
• Ambient Temperature: -15 Degree C to + 45 Degree C

We are the main supplier of this product.

• Brand Name: Monarch Controls
• Frequency: 50 - 60 Hz
• Phase: Three Phase
• Cooling Type: Oil Cooled
• Usage: Electricity Distribution
• Capacity: 120 Kv

• Primary voltage: 110 Vrms
• Secondary voltage: 4.3 volts
• turns ratio: 1;1
• Dielectric strength: 4 KV

Voltage transformers (VT), also called potential transformers (PT), are used for metering and are designed to present negligible load to the supply being measured . They have an accurate voltage ratio to enable accurate metering.

• Nominal AC Output Voltage Ratings: 480 VAC or 208 VAC, wye derived, 60 hertz.
• Output Impedance: 3-4 % typical.
• Harmonic K-Rating: K-4, K-7, K-13, or K-20 rated in accordance with: K = Σ Ih(pu)2 h2 2.3 Performance Specifications
• Load Regulation: Maintained within +2.5% or less of nominal, from no load to full load.
• Overload: 500% for 10 seconds, and 1,000% for one cycle.
• THD: ≤ 1% added to the output voltage waveform under a linear load.
• Harmonic Attenuation: Load generated triplen harmonics are attenuated at the primary.

We are a reputed firm engaged in offering precision-engineered Three Phase Isolation Transformer. It is a continuous duty rated, 600 volt class, convection cooled, dry type, isolation transformer to support harmonic rich non-linear loads while maintaining safe operating temperatures. This transformer includes superior transverse and common mode noise attenuation. Designed as per NEMA TP 1-2002 dry type transformer efficiency standards, our transformer is acknowledged for high performance and reliability. We provide Three Phase Isolation Transformer in variegated specifications to meet diverse applications.   Standards : The power conditioning system is designed in accordance with applicable portions of the following standards NEMA TP 1-2002 Dry Type Distribution Transformer Efficiency Standards American National Standards Institute (ANSI C57.110 & C62.41-1991) Institute of Electrical and Electronic Engineers (IEEE 519-1992) National Fire Protection Association (NFPA) 70, National Electrical Code (NEC) Federal Information Processing Standards Publication 94 (FIPS Pub 94) UL Listed to Standard 1561 C-UL listed to CSA Standard C22.2, No. 47-M90  Input Specifications : Nominal AC input voltage ratings: 600 VAC, 480 VAC, 240 VAC or 208 VAC, 3 phase for transformers below 225kVA,and 600 VAC or 480 VAC, 3 phase for transformers 225kVA and above. All are designed with sufficient margin tosustain a constant input of +10% without saturation. The nominal operating frequency: 60 hertz + 3 hertz. The power conditioning system’s primary is configured in a three phase delta. Transformers below 500kVA include full capacity taps at 2½ % increments, two (2) above and four (4) below the nominal voltage tap. 500kVA transformers include full capacity taps at 2½ % increments, one (1) above and two (2) below the nominal voltage tap. Energizing inrush current will not exceed 10 times the full load input current for ½ cycle.  Output Specifications : Output Voltage : Sinusoidal with no flat topping when high crest factor (3.0 : 1), non-linear loads are present at the output. Audible Noise Measured at 1 Meter from the Unit : ≤ 50dBA for 15 KVA to 112 KVA ≤ 55dBA for 150 KVA to 225 KVA ≤ 60dBA for 300 KVA to 500 KVA Electrostatic Shielding : Incorporates two, or an optional three, solid copper foil electrostatic shields which minimize inner winding capacitance, transients, and noise coupling between primary and secondary windings. Common Mode Noise Attenuation : 126 dB with two shields, or 146dB with optional three shields. Transverse Mode Noise Attenuation : 3 dB down at 10kHz, decaying 20 dB per decade. Efficiency : 98% typical and meets NEMA TP 1-2002 dry type transformer efficiency standards on models 15kVA and above. The power conditioning transformer is designed to achieve NEMA TP 1-2002 Table 4-2 efficiencies listed below under a K-4, K-7, or K-13 non-linear load at or between 35% to 50% load and at an operating temperature of 75 degrees C. KVA Efficiency : 15* 30 97.00% 97.50% 50 97.70% 75 98.00% 112 98.20% 150 98.30% 225 98.50% 300 98.60% 500 98.70%   *15kVA model efficiency applicable to K4 and K7 loading only.  Optional TVSS : Incorporates a fused (with front panel mounted, blown fuse lamp indicator) 3 phase, secondary connected, 6 mode spike suppression network. The TVSS is comprised of high energy metal oxide varistors with less than a 5 nanosecond response time and a maximum peak current handling capability of 40,000 amps (8x20μsec) per mode. The suppression network system will remain functional when subjected to ANSI/IEEE C62.41 Category B-3 waveforms. The spike suppression network increases the transverse mode noise attenuation to 3 dB down at 10kHz, decaying 40 dB per decade.  Main Transformer : Transformer Windings : All copper conductor construction, with separate primary and secondary, isolated windings. The transformer conforms to NEC article 250, that specifies a separately derived power source. The neutral conductor is sized for 200% of the ampacity of the phase conductor. Terminals are provided for isolated three phase output conductors, neutral conductor and ground. All leads, wires and terminals are labeled to correspond with the circuit wiring diagram. Basic Impulse level : No less than 10,000 Volts. MTBF : ≥ 200,000 hours. Transformer Steel : Grain oriented, M6 grade, silicon steel. Flux Density : ≤ 15k gauss. Core Losses :  ≤ 0.6% of the KVA rating. Insulation : Class N, 200OC with a maximum temperature rise of 115OC above ambient, not exceeding 130OC under nonlinear loading per UL 1561. Cooling : Natural convection.  Cabinet : Enclosure : NEMA type 2 general purpose, floor mounted, and indoor enclosure. Construction : Cabinets are manufactured from 14 gauge steel with base sub-structure suitable for fork lifting.

• Material: Metal
• Usage: Industrial
• Durability: Long Life
• Surface Finishing: Polished
• Resistivity: Rust Resistant
• Drive Type: Electric

Catering to the requirements of several industrial segments, we bring forth precision-engineered Isolation Transformer. We use superior grade parts and components to manufacture Isolation Transformer range. Furthermore, designed using the latest production techniques, our Isolation Transformers conform to international quality standards. The Isolation Transformers can be obtained in different specifications from us. We are a well-known Isolation Transformer Manufacturer, Exporter and Supplier in Karnataka, India.

We manufacture a wide range of 3 KVA 3 Phase Transformers that is preferred by clients across the country. The use of latest technology in these transformers makes them ideal for application in the Engineering as well as the Electrical Industries. Further, we use high grade components in manufacturing these transformers to ensure durable finish standards, maintenance free working, and high utility to the clients. The technical specifications of our products   range are as follows: Range: 1VA to 300 KVA Single Phase, 3 Phase Regulations: Within 5% Insulation Resistance: 500 MΩ Breakdown Voltage: 3 KVA

An Isolation Transformer is 1:1 ratio transformer. It has a copper foil shielding in between primary and secondary winding.FEATURES:It protects the output load from spikessurges or any other noise which occurs in the main supply.The spikes being high voltage transient should not be allowed to enter the load as it may damage the precious equipments.

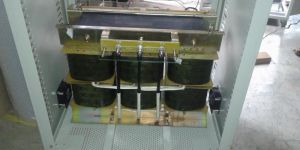

Shielded super isolationtransformer . Switching of Electrical Equipments in industrial and commercial Generates spikes up to 10000 Volts and high frequency Noises thus disturbing the sine wave output. The spikes can cause the failure of Thyristor, Microprocessor or other sensitive devices.The High frequency noise can interface with digital – Electronic Equipments Causing data corruption erratic behaviors, loss of memories etc… Isolation Transformer eliminate such noises and attenuates the spikes to minimal values, providing complete protection against such electrical disturbances. It consists of double wound Transformers with Extremely low coupling capacitance to isolate the voltage spikes and reduce noise from mains with extremely high insulation resistance. The turn ratio of Isolation transformer is 1:1. It is generally installed with the separate machines   Double Isolation: A preferred method for noisy environments Power Lines and Transformers Power lines should be assumed to have transient voltages on them. In wiring an AC line to your electronics, employ devices which will isolate those electronics from the AC power line. Generally this will be a transformer. A transformer should be provided in the AC power connection to your electronics, even if no reduction in voltage is needed. It will be best if the transformer selected is an isolation transformer, designed especially to provide maximum isolation. If your installation is subject to severe voltage transients from the AC power line, (from variable speed motor drives, for example, or servo/spindle motor drive amplifiers), the double isolation technique illustrated here is strongly recommended.     Business and industry is more dependent than ever on sophisticated electronics. Modern electronic control devices are frequently the most cost effective way to achieve real improvement in the performance of production machines and processes. Devices such as Computer Numerical Controls (CNC), Programmable Logic Controllers (PLC), as well as the various programmable motion controllers currently available for robotics applications offer unprecedented functionality and power, and are available at attractive prices. Damage, Resets and Lost Data Unfortunately, many owners who make the decision to retrofit these control devices do not achieve the full benefit of the upgrade. If your electronics are not properly installed and protected from electrical transients, one or more of the following may occur:  ·         Physical damage to the electronics. ·         Processor resets, leading to program interruption and/or (in the case of CNC devices) loss of machine position register information.Loss or corruption of program or data L

• Unique:: Sturdy Design Widely available in power ratings ranging from 2VA – Any KVA Control transformers incorporate high-quality insulating materials. Tested for total steady-state (sealed) VA, total inrush VA, and inrush load power factor.
• Specifications:: 1.Winding Turns: No preference 2.All Types of Step-UP and Step-Down 3.Variable and One-to-One 4.Moun
• Applications:: 1.Power supplies 2.Battery chargers 3.Control panels 4.Motor control centers 5.ATS Panels

A Control Transformer is generally used in an electrical circuit where Step up step down Voltages are required. Widely Step down transformers are used in power supplies and as a isolation transformers in control circuits. Designed for industrial applications where electromagnetic devices such as relays and solenoids are used, the control transformer maximizes inrush capability and output voltage regulation when electromagnetic devices are initially energized.

• Features: It can be used where incoming supply is 3phase 3wire and lighting load is 220 V, 380V, 4415V & 433V

The lighting Transformers are designed to supply power to lighting equipment’s in residential, public services, commercial and industrial undertakings. The primary supply in lighting Transformers is connected to higher voltage source and secondary supply is connected to load.
