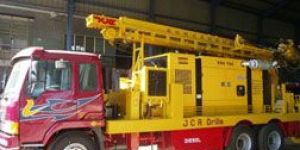

Water Well Drilling Rig
We are engaged in making available feature packed Water Well Drilling Rig. Water Well Drilling Rig, offered by us, is highly acclaimed for its cutting edge performance in Water Well Drilling. We make use of premium grade components in fabrication of Water Well Drilling Rig, that we provide. This Water Well Drilling Rig is known for its high performance. Product Description Description : JCR – 600 DTH Rotary combination Drill Rig mounted on 6 X 4 carrier truck with top head drive, Hydraulics driven by Deck Engine, capable of drilling 500 Mtrs.Capacity : The rig is capable of drilling 300mm dia hole in overburden by Air RotaryDTH drilling to a depth of 120 mtrs in softunconsolidated formation and 150mm–165mm dia hole to a depth of 600 mtrs by DTH method in hard rock and abrasive formation.Direct Rotary Drilling : 311mm (12 ¼”) dia hole by mud rotary (Direct Rotary) method by reaming in alluvial sandy, soft medium and collapsible formation upto depth of 500 mtrs. Note : Above drilling capacities are possible under favourable drilling conditions only. Mast : The mast is of Box type structure and made of heavy duty welded construction, reinforced with suitable cross members, capable of withstanding all types of drilling loads. The Mast is capable of handling 6 mtrs (20’) long drill pipe and 6mtrs long casing pipe. The rig is provided with the level indicators for proper leveling. The mast is raised and lowered by means of suitable capacity hydraulic cylinders. The Mast is equipped with sufficient lighting arrangements to help night drilling.Top Drive Rotary Head : Hydraulically operated top drive rotary head powered by two Hydraulic motors and having variable speed range of 0-150 rpm and capable of giving a torque of about 60,000 in-lbs. Suitable arrangement is made on the rotary head to absorb shocks while drilling and also to avoid damage to drilling pipespindle tool joints (threads).Mud Swivel : A separate airmud swivel is provided to prevent the accidental entry of airmud in rotary head. Feed System : Heavy duty, high strength, hydraulic cylinders are provided to accommodate 6 mtrs (20feet) long drill pipes and to handle 6Mtrs casing pipes. The pull back is of about 17438 kg and the pull down capacity to be 10232 kg. The feed system is actuated using hydraulic cylinder and wire rope system. The feed system incorporate arrangement to control and limit weight on the drilling Bit. Rapid and slow feed speed arrangement is provided to measure the down feed and hold back pressure of the system.The pull backHigh speed up-about : 7 MtrsMinHigh speed down about : 12 MtrsMin
...moreTruck-mounted drilling rig
After-Sales Service Provided : Engineers available to service machinery overseas
Power Type : Diesel
Application : Oil Well, Water Well
Brand Name : JCR
...moreRotary Circulation Drilling Rig
We are the most preferred name in market for availing fully-loaded Rotary Circulation Drilling Rig. Rotary Circulation Drilling Rig, offered by us, is fabricated with the highest level of perfection, using accurately dimensioned components. This Rotary Circulation Drilling Rig is a robust constructed machine that is suitable for efficient Rotary Circulation Drilling.
...moreRig refurbishment
Place of Origin : Karnataka, India
Certification : ISO
Weight : custom need
Condition : New
Brand Name : JCR
...moreReverse Circulation Hammer
Reverse Circulation Hammer, that we offer, are of, 4 ½’’- 5” bore. We make available JCR Hammer that is designed to use independent rotation and drill in rock with 4 ½’’ to 8” for several formations. This Reverse Circulation Hammer is suitable high pressure air also. Reverse Circulation Hammer performs efficiently at high pressures like 350 PSI and above, and is suitable where back pressure or high water yields is encountered. Our Reverse Circulation Hammer Is Used For Drilling Exploratory Wells In Open Pit MinesCoal Pit MinesCoalQuarries
...moreReverse Circulation Drilling Rig
High performance and robust constructed Reverse Circulation Drilling Rig can be availed from us. We are engaged in offering feature packed Reverse Circulation Drilling Rig that is made with top grade components. Reverse Circulation Drilling Rig, offered by us, is in extensive demand owing to its cutting edge performance. Specification of Truck Mounted Rc Drill Rig Jcr Rc 450 Description : JCR RC 450 Hydraulic powered Top Head Drive capable of drilling 5” & 5 ½” diameter Holes up to a depth of 450 meters for exploration purposes by RC Drilling Method and & 6” -6 ½” diameter holes upto a depth of 450 meters by AIR-DTH Drilling Method. The Drill Pack consists of the following in the Main Truck Reverse circulation drill rig capable of drilling 450 mtrs, for exploration drilling MODEL JCR RC-450 consists of Ashok Leyland Taurus Truck Model 2516AMW 2518 Equivalent, Top head drive unit, with Diesel powered Deck Engine driven hydraulics, 1 Ton auxiliary winch, water foam injection system, drill rod break out system, Hydraulic oil cooler assembly, sample collection cyclone, provision to carry the drill rods on platform etc. Capacity : The rig is capable of drilling upto 5”-5 ½” dia holes for exploration purposes, by RC Drilling method to a depth of 450 meters. Mast : The Mast Tower is of C cross section type and made of heavy duty rectangular section, reinforced with suitable cross members, capable of handling 6.1 meters drill rods.Top Drive Rotary Head : Hydraulically operated Top Drive Rotary head powered by two Hydraulic Motors and having variable speed range of 0-150 rpm and capable of giving a torque of approx. 62,000 in-lbs.Air Swivel : A separate air swivel is provided on the in rotary head. Sample Swivel : A Sample swivel along with blow-down arrangement is provided.Feed System : Heavy duty, high strength, hydraulic cylinder is provided to accommodate 6 mtrs (20feet) long drill pipes and to handle 6Mtrs casing pipes. The pull back is of about 24,200 lbs and the pull down capacity to be 43,000 LBS. The feed system is actuated using hydraulic cylinder and wire rope system. The feed system incorporate arrangement to control and limit weight on the Drill Bit. Rapid and slow feed speed arrangement is provided to measure the down feed and hold back pressure of the systemThe pull backHigh speed up-about : 45MtrsMinHigh speed down abou t : 65MtrsMinSlow feed Rate up : 9MtrsMinSlow feed Rate down : 14 MtrsMin Hydraulic System : An efficiently designed hydraulic system is provided to operate rotation, feed, jacks, mast raising cylinders, Break out wrenches, and WaterFoam injection pump. The system is operated with Deck Engine through the transfer gear box. The hydraulic system includes fin type Hydraulic oil cooler with a capacity of 95GPM suitable for 50 deg. Centigrade ambient, high pressure hydraulic hoses, control valves, gauges etc. for efficient operations. Hydraulic reservoir of capacity 650ltrs located conveniently, suction strainer is provided to avoid any foreign particle entering the suction line and the pump return line is provided, filtration with 40micron element. Hydraulic tandem gearpiston pumps are used for the purpose of rotation, feed, micro feed and auxiliary systems Stabilizers (jacks)) : Hydraulically operated leveling jacks of 125 x 70 x 700 (stroke) protected with covers 4 numbers is provided with suitable leveling arrangement and double lock check valves (locking device) and is located at convenient place for fast and accurate leveling.Break Out System : Break out Wrench: Hydraulic break out wrench cylinder is provided with provision of opening drill pipe, hammer, button bits etc on the centralizer drill table using appropriate wrenchestools. Stroke of 350mm, torque 200kgm (approximately) is provided with rope attached. Swingout Centraliser Table : The working table centralizer will have a minimum table opening of 420mm. The centralizer table is set above the truck chassis to prevent the drill cuttings falling back into the hole.Dust Curtain : A rubberized curtain (dust curtain) is provided to protect the operators from falling of stone cuttings or splashing of water during drilling or flushing.Aux Winch : The mast is equipped with the hydraulically operated winch having jib boom for handling of drill pipes, hammers, casing pipes and heavy tools. The rated capacity of the hydraulic hoist shall be of 1000Kg with built in brakes and is operated simultaneously while drilling is carried out for handling drill pipes etc.Rod Changing Device : Manual operated single rod changer will be provided for changing the drill pipes, how ever a rod changing mechanism for fast makeup and brake out of drill string can be provided as optional.Water and Foam Injection : Triplex reciprocating Hydraulically operated pump of capacity of 100 LPM at 1500PSI complete with necessary piping including a flow metering valve. The pump is capable of pumping water and foam mixture complete with necessary hoses and fittings. Minimum 300liters. Capacity of water tank is provided. A washing hose having connection from water injection pump with nozzles etc. is provided for washing Rig.Air Line Lubricator : An inline oiler of 15 liters capacity and suitable for working pressure up to 700 PSI is provided for injecting oil in all compressed air stream complete with volume control provided.Control Panel : Centralized control panel is located at convenient place on the drill to enable the driller for efficient control of the operation. All levers, valves and gauges are conveniently grouped. The control for setting up of rig is grouped in such a way to prevent accidental operation while drilling. A lockable steel cover (control panel cover) is provided for the control panel to protect gauges and controls during transportation. Gauges to include rotation control feed control, hold back control, air pressure control and includes emergency shut down switch for the engine.Bloader : A Hydro-pneumatic combination Bloader assembly is provided on the Rotary head to facilitate the blowout the blockages in the sample tube.Cyclone : A 250 letters capacity cyclone type collector for sample recovery is provided. Splitter : A well designed splitter for 50 Letters capacity is provided for sampling recovery for analysis.Lighting System : The electrical system of the rig is 1224 V ACDC system connected to the batteries of the rig engine. The system is provided on panel and instrument illuminating light and minimum three spot is directed at the mast and rotation.Drillers and Operators Platform : A suitable folding working platform (full length) is provided for the operator and the helper. Drill Pipe Rack : Suitable arrangement is made to carry the drill rods on both sides of the platform on the truck. Hammer Box : Suitable lockable boxes are provided for keeping hammers, bits, tools etc. separately. Tools Box : Suitable tools box with necessary tools generally required for drilling is provided.
...moreReverse Circulation Bits
We are a prominent Reverse Circulation Bits Manufacturer, Exporter and Supplier. We make available JCR Bits that are designed to work in high pressure air also. Reverse Circulation Bits perform very efficiently at high pressures like 350 PSI and above, and are apt to perform in back pressure or high water yields.

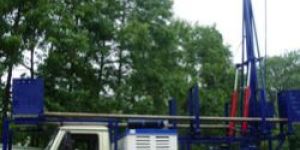

...morePump Testing Unit
Clients can avail high capacity Pump Testing Unit from us. Made with the best quality components, Pump Testing Unit, offered by us, is known for its cutting edge performance. This heavy duty Pump Testing Unit is fully loaded with the latest features and is bound to perform exceptionally.

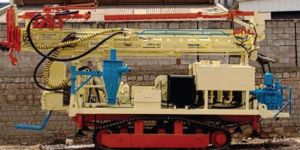

...moreMulti Purpose Drilling Rigs
Multi Purpose Drilling Rigs are offered by us that are highly acclaimed for their high performance in accomplishing various drilling applications. Multi Purpose Drilling Rigs, offered by us, are precision engineered and robustly constructed, in order to give cutting edge performance. Avail top grade Multi Purpose Drilling Rigs from us. Specifications CapacityReverse Circulating DrillingCore DrillingDTH DrillingMud Rotary Drilling Hole Dia4 ½" – 5"HQ. NQ. BQ6 ½" – 8 ½"8 ½" – 978" Depth Rating (Mtrs)200650500800300-350100-120 Mast Tubular mast of steel, heavy duty welded construction, reinforced with suitable cross members, capable of withstanding all drilling loads & 3 meters (10) drill pipes and casing pipes. With the level indicators. Two hydraulic cylinders. Engine Capacity Of suitable CapacityRotation (RMP)TorqueSpeed : 1 : Rotary Speed Rotation Torque : 240 rpm@3920 Nm. (400 kg-m)Speed : 2 : Rotary Speed Rotation Torque : 1100 rpm@863 Nm. (88 kg-m)Speed : 3 : Rotary Speed Rotation Torque : 0-150 rpm@4500 Nm. 206Nm. (400 kg-m) Pull up capacity6 Tons Pull Down Capacity4 Tons Feed Strije3500 mm Main Winch Load CapacityDeck Mounted 5.5 ton Capacity Wire Line winch Load CapacityDeck mounted 1.5 Ton Capacity with 120 mmin. Speed Wire Line Winch Cable Dia. And Length5 mm Cable Dia Foot clampHydraulically operated foot clamp Anlge Drilling Upto0-45 degree CycloneA Cyclone of 250 liters capacity Bloader A Hydro-Pneumatic combination MountingCrawler Truck Trailer Skid Mounted
...moreJCR Super Jet Hammer
We are the main supplier of this product.
Brand Name : JCR
Model Number : JCR Super Jet Hammer
JCR Reverse Circulation Drilling Rig
Brand Name : JCR
Application : Water and Mineral Exploration
Type : Core Drilling Rig
...moreJCR Refurbished Rigs
Warranty : 1 yr
Type : bore well rigs
Place of Origin : Karnataka, India
Supply Ability : 6 Unit/Units per Month
Lead Time : 4-6 weeks
Weight : custom
Condition : New
Voltage : custom
...moreJCR Pumping Testing Unit
Application : Water Well
Type : water
Condition : New
Warranty : 1 year
Certification : ISO
...morejcr multi purpose drilling rig
Condition : New
Type : Other
JCR Mini Drill Rigs
Type : DTH
Warranty : 1 year
After-Sales Service Provided : Engineers available to service machinery overseas
Condition : New
Brand Name : JCR
...moreJCR Hydro Fractering Unit
Type : -
Brand Name : JCR
Place of Origin : India
Condition : New
Lead Time : 4-6 weeks
...moreJCR DTH Water Well Rigs
Voltage : 24 v
Model Number : JCR 500
Brand Name : JCR
Condition : New
Application : Water Well
Weight : -
Supply Ability : 4 Piece/Pieces per Month
...moreJCR Drill Pipes
Brand Name : JCR
JCR Direct Circulation Rotary Drilling Rigs
Power Type : Diesel
Type : Rotary Drilling Rig
Certification : ISO
Voltage : custom
Application : Water Well
Brand Name : JCR
Condition : New
...moreJCR Diamond Core Drilling Rigs
Warranty : 1 year
Condition : New
Voltage : -
Certification : ISO
Application : Mineral Exploration
Brand Name : JCR

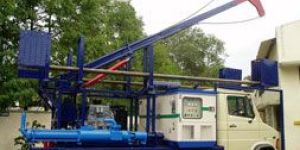

...moreHydro Fracturing Unit
For efficient performance, Hydro Fracturing Unit, offered by us, is highly acclaimed in the market. Hydro Fracturing Unit, that we make available, is robustly constructed and in accordance with the highest quality standards. this precision engineered Hydro Fracturing Unit is in extensive demand, owing to its cutting edge performance. Technical Description JCR DRILLSOL Hydro-Fracturing Unit JCR DRILLSOL model JCR HFU is a truck mounted Well Rehabilitation Unit designed for Hydro-fracturing of low yield bore-wells of 6 and 6½-inch diameter in hard rock formations. It also consists of yield test pumping unit with necessary instruments and tools. Features available only in Frac-Tech model MAXFT-1 JCR HFU is Hydraulically driven Hydro-Fracturing Unit operated through a transfer gearbox assembly thus eliminating an additional prime mover, space, weight and cost. Availability of Down Hole TV Camera to identify visually the fracture zones of best result and to prevent blind entry into the unknown bore-well and dangerous setting of packer. Also, exact depth & distortion of casing pipe, static water level and bore-well depth are visualized thus eliminating any erroneous drillers log and geo-physical logging. A separate Flow control valve is provided to engagedisengage the high pressure Hydro-frac pump ‘alone’ from the hydraulic circuit during any wrong dangerous setting of packer.Our basic Hydro-fracturing Unit Model JCR HFU includes A Base Frame with built-in lockable storage facility for Frac pipes, Packers, submersible pumps and tools etc.. High-pressure hydro-frac pump driven hydraulically. 2HP Engine driven super charge (Booster) pump or Hydraulic hand pump. Hydraulic Power Pack. Hydraulically operated Winch. Hydraulically operated Crane. Hydraulic leveling jacks. 4 NOS Hose and Cable reels. Well head Assembly. Centralized Hydraulic controls with gauges. Diesel Generator 7.5 KVA. Submersible pump (3 H.P., 28stage). Truck for mounting.ALCargo 100.12 Night Lights Essential tools and Accessories Down Hole Camera with BW TV monitor. Hydraulic packers 6 inch dia – Single. Frac- Pipes of required quantity. Hydraulic inflate hose of required length. Electrical cable reel of required length. Required adapters, couplings, handling tools, protective gear and manuals et Description of Main Components High Pressure Hydro-Frac Pump Type : Two speeds hydraulically driven with dual functions break and develop. In break function the pump operates in low speed producing over 2500 PSI at 40 GPM, which is the pressure for fracturing. In well developing function the pump operates at high speed producing 500 PSI at 80 GPM, which develops the well allowing for optimal water flow Hydraulic system Working Pressure: 3000 PSI Crane : 8 ton capacity, Hydraulically operated with manual Extension Winch 1 Ton capacity, Hydraulically operated Spooling capacity30mts Wire rope : 13mmHydraulic Power Pack : Truck driven consisting Transfer gear box, Hydraulic Pump, relief valves, suctionreturn line filters and reservoir. Hydraulic Hand PumpTypeApplication: Dual Displacement Packer inflationWorking pressure : 700 bar Super Charge (Booster) Pump : 2 HP capacity Self-priming, engine driven with positive displacement. CarrierRequired Engine Capacity : 110 BHPRecommended: Ashok Leyland `Cargo’ Model : 100.12 PackerType : Single - Hydraulic Diameter: 6 inchesAccessories : Rubber seals, Adapters, couplings etc.. of required sizes. Frac Pipes Type: Seamless of standard 15 feet length Diameter: 1 ½ inch nominal Working pressure: Tested & certified for 3000 PSI Inflate Hose : Diameter: ¼ inch Working Pressure: 700 bar Down Hole TV CameraType : Video camera, water proof up to 500 feet.Accessories : BW TV monitor, Stand, Connectors and winch. Generator Type : Air cooled, Three phase, 415 VAC Capacity : 7.5 KVA Submersible pump : 3 HP, 3-phase with electrical cable, control panel and dry run preventer.
...moreHydraulic Core Drilling Rig
Voltage : -
Brand Name : JCR
Warranty : 1 year
Weight : custom need
Condition : New
Type : Core Drilling Rig
...moreHydraulic Borehole Wagon Drill Machine
Warranty : 1 yr
Condition : New
Certification : ISO
Type : WELL DRILLING RIG
Brand Name : JCR DRILLSOL
Application : Oil Well
Voltage : CUSTOM NEED
...moreHydraulic Borehole Wagon Drill
We are the main supplier of this product.
Condition : New
Type : WELL DRILLING RIG
Application : Oil Well
Application : bore well drilling rigs
Weight : CUSTOM DESIGN
Warranty : 1 yr
