Load Indicators Dealers in Bangalore

We are offering safe load indicator for critical material handling systems. World class products approved and used by various multinational OEMs.

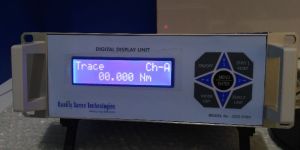

Digital Display Unit serves as Brain of this Calibration system and it is responsible for all necessary calculations and conversions, also it is capable of displaying the output in three different units (i.e. Nm, kgfm & lbfft). Digital Display Unit is a solid state portable table top device; It is designed to operate in conjunction with low level milli volt signals from strain gauge bridges of Torque sensor & gives digital output. The Display Unit comprises of input bridge balancing networks, highly stable D.C. power supplies for torque sensor excitation, amplifiers and Auto calibration facility. It operates on 230V50Hz A.C. Mains. The output of strain gauge bridge network from torque sensor is fed as input to Analog to digital converter which amplifies the mV signals internally and converts amplified analog signals into Digital signals and these digitized signals are fed to microcontroller which performs all. necessary conversions & calculations and sends processed output signals to display unit, hence digital output.

• Application: Industrial
• Voltage: 220 - 280 V
• Frequency: 50 - 60 Hz
• Display Type: Digital
• Power Source: Electric
• Material: Stainless Steel

• Power Supply: 230V AC, 50 Hz
• Display Type: LCD
• Material: Stainless steel
• Brand Name: Load Master
• Bridge Excitation: 10 V DC
• Input Impedance: >10M Ohms
• Operating Temp.: 5 to 50 °C
• Capacity: Defined
• Power: Defined
• Product: Load Indicator

Wide range of models are available for varied applications which include loss in weight Batch weighing, up to three ingredient batching ; Hopper & Tank weighing; level control by load cell or Pressure sensor; web or Fabric Tension control by utilizing 4-20 mA or 0-10V Proportional out put connected to PLC; as front end Indicator for weighbridge with Rs 232 or Rs 485 output which can be Hooked to Large display and computer; load monitoring for Hydraulic andor pneumatic presses for over load safety or Component assembly; Broaching Machine over load controller etc, Having varieties of load cells developed over the years for different applications, Customer can look for a single source solution for most of their requirements.

• Display Type: Digital
• Material: SM-13-F
• Brand Name: EPOCH
• Voltage: battery operated
• Usage/Application: Industrial
• Model Name/Number: Hand held indicator
• Capacity: 100 t
• Power: battery operated
• SET Point: editable
• Resolution: editable

• Material: Stainless Steel
• Voltage: 220 - 280 V
• Display Type: Digital
• Application: Industrial
• Power Source: Electric
• Frequency: 50 - 60 Hz

Digital Load Indicator, machine tool dynamometer, wind tunnel

The IEICOS Load cell measures the load applied on it. The Software plots the real time signal using IEICOS serial data acquisition system. There is provision to save data into a file for further probing and analysis. The software has provision to retrieve and plot the saved data also.

Digital Load Indicator, spring testing machines, carbide balls

load indicators, Cardan Shaft, Pressure Sensors, Pump Testing system

Peak Load Indicators, Industrial Load Cell, strategic planning services

railway transformer load indicators, railway transformers

Crane Load Indicator, Laser Shaft Alignment System

Digital Load Indicator, Wind Monitor, Serial To Ethernet Module

Digital Load Indicator, electronic belt weigher, hopper weighing system

Crane Load Indicator, Batch Indicator, Powder Batching systems
