XLPE Insulated Heavy Duty Cables
400 - 420 Per Kilogram
XLPE insulated heavy duty cables were introduced worldwide in mid sixties. These cables have overcome the limitations of PVC Insulated Cables such as thermal degradation, poor moisture resistance and thermoplastic nature.Technical Advantages: Higher current rating, higher short circuit rating approx. 1.2 times that of PVC. Thermosetting in nature. Higher insulated resistance 1000 times more than PVC cables. Higher resistance to moisture. Better resistance to surge currents. Low dielectric losses. Better resistance to chemicals. Longer service life. Comparatively higher cable operation temperature 90 C and short circuit temperature 250 C Commercial Advantages: Lower laying cost because of comparatively smaller diameter of cable and higher weight*. Lower installation charges as the diameter of cable is comparatively lesser with smaller bending radius, requiring less space requirement for laying cables. One size lower cable can be used as compared to PVC insulated cable.
Type : Xlpe Cables
Application : Heavy Duty Sealing, Locking Purpose
Grade : Domestic Grade, Industrial Grade
Color : Black, Brown, Grey, Light Red
Voltage : 220V
Specification : High Voltage
...more

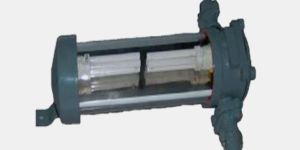

tube light fixture
2,500 - 3,000 Per Piece
Color : Grey
Feature : Stable Performance, Suitable For Indoor Or Outdoor
Voltage : 220V
Country of Origin : India
...more
Tube Light Fitting
2,000 - 2,500 Per Piece
Thickness : 5-10mm
Feature : Fine Finishing
Surface Treatment : Coated
Country of Origin : India
...more
Telephone and Switch Board Cables
300 - 320 Per Kilogram
POWER-FLEX® Telephone and Switch Board Cables are widely used for high clarity communication in offices, factories, IT/ITES companies, hotels, hospitals, group housing projects, educational institutions, high rise commercial and residential buildings etc.POWER-FLEX® Telephone and Switch Board Cables are made of high conductivity electrolytic grade annealed bare copper conductor with nominal diameter of 0.4 mm and 0.5 mm. Special grade PVC as per IS:13176 (1991) type 2 is used for insulating with proper colour codes.The insulated cores are twisted together with suitable lay to form a pair. The pairs are bunched together to form pairs in such a way to avoid any cross talk.The bunched pairs are then overall wrapped with polyester tape and sheathed with gray colour FRPVC compound with high oxygen index and is also provided with nylon rip cord. POWER-FLEX® Telephone and Switch Board Cables are manufactured as per ITD-S/WS 113C & 114C specifications.Online spark testers ensure fail proof high voltage test by employing non destructive form of testing at twice the rated voltage.
Thickness : 0.5-1mm
Length : 90-120mtr
Color : Available in Different Colors
Feature : High Ductility
Country of Origin : India
...more
Stainless Steel Junction Box
1,500 - 2,000 Per Piece
Type : Junction Box
Material : Stainless Steel
Shape : Rectangular
Application : Electronics
Color : Grey
Feature : Flameproof
...more
single core cables
450 - 480 Per Kilogram
CONDUCTOR:POWER-FLEX® Single core and Multicore cables are manufactured using Electrolytic Grade 99.97% purity copper with more than 100% conductivity. The high purity & conductivity ensures superior working of the wires throughout their life. The conductor is drawn from bright electrolytic grade copper and annealed copper are bunched tightly together in heavy duty high speed bunchers in circular construction to get perfect concentric shape without any loose strands.INSULATION:The bunched conductors are insulated with specially formulated PVC compounds with additional FR properties whose values exceed the specifications laid down by the Bureau of Indian standards. The compound is resistant to moisture, oil, alkali and grease and has high insulation and dielectric values. The FR properties with high Oxygen and temperature index help in restricting propagation of fire at high temperatures. The insulation is carried out on state-of-the-art high speed double extrusion lines with self centering cross head. Automatic diameter controllers ensures precision centering and perfect concentric insulation. The skin insulation determines the colour identification while the inner layer is pure insulation free from any impurities. The high quality tooling ensures smooth insulation.Online spark testers ensure fail proof high voltage test by employing non destructive form of testing at six times the rated voltage ensuring consistent application of voltage throughout the length of the cable.
Type : Single Core
Color : Black, Green, Red, White, Yellow
Feature : High Ductility
Voltage : 220V
Thcikness : 0.5-1mm
Country of Origin : India
Application : Industrial, Home
...more
Shielded Cables
400 - 420 Per Kilogram
CONDUCTOR:POWER-FLEX® Shielded cables are manufactured using Electrolytic Grade 99.97% purity copper with more than 100% conductivity. The conductors drawn and bunched according to class 2 or class5 of IS:8130/1984.INSULATION:The bunched conductors are insulated with specially formulated PVC compound. The compound confirms to IS:5831 Type AOnline spark testers ensure fail proof high voltage test by employing non destructive form of testing at six times the rated voltage.SCREEN:The insulated cores are laid up and shielded with polyester tape, overall screened with aluminium mylar tape, metallic side down in contact with tinned copper drain wire of size 0.5 mm for reinforcement, then overall shielded with polyester tape.SHEATH:The shielded cable is overall sheathed with PVC Type ST1 of IS:5831.OPTIONS: Multi Core shielded together. Multi Pair shielded together. Multi Pair individually and collectively shielded.
Type : Insulated
Thickness : 0.5-1mm
Application : Home, Industrial
Color : Black, Green, Red, White, Yellow
Feature : High Ductility
...more
Screened Cables
500 - 520 Per Kilogram
CONDUCTOR:POWER-FLEX® Screened cables are manufactured using Electrolytic Grade 99.97% purity copper with more than 100% conductivity. The conductors drawn and bunched according to class 2 or class5 of IS:8130/1984.INSULATION:The bunched conductors are insulated with specially formulated PVC compound. The compound confirms to IS:5831 Type AOnline spark testers ensure fail proof high voltage test by employing non destructive form of testing at six times the rated voltage.SCREEN:The insulated cores are laid up and shielded with polyester tape, overall braided with annealed tinned copper with minimum 65% however generally 85% coverage. Overall shielded with polyester tape.SHEATH:The screened cable is overall sheathed with PVC Type ST1 of IS:5831.OPTIONS: Multi Core screened together. Multi Pair screened together. Multi Pair individually and collectively screened.
Type : Screened Cables
Thickness : 1.5-2mm
Application : Home, Residential
Color : Black, Blue, Grey, White
Feature : High Ductility
Country of Origin : India
...more
SC 313260 Multiway Junction Box
500 - 550 Per Piece
Type : Junction Box
Shape : Square
Color : Grey
Feature : Flameproof
Pattern : Plain
Finishing : Coated
...more

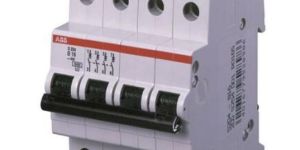

S204-K0.5 K Curve Miniature Circuit Breakers
S204-C0.5 C Curve Miniature Circuit Breakers

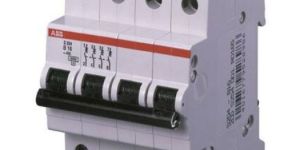

S204-B6 B Curve Miniature Circuit Breakers
S203-K0.5 K Curve Miniature Circuit Breakers
S203-C1 C Curve Miniature Circuit Breakers
S203-B6 B Curve Miniature Circuit Breakers
Miniature Circuit Breaker (MCB) - UL1077 compliant - ABB / Stotz (S200 series) - S203-B6 - 3-poles (3P) - Rated current 6A - B-curve - Short circuit breaking capacity (lcu) 10kA (400Vac) - DIN rail mounting (52.5mm width) - Screw-clamp connections - 3 modules (3M)
...more
S202-K1 K Curve Miniature Circuit Breakers
S202-K0.5 K Curve Miniature Circuit Breakers
S202-C1 C Curve Miniature Circuit Breakers
S202-C0.5 C Curve Miniature Circuit Breakers
S202-B6 B Curve Miniature Circuit Breakers
Miniature Circuit Breaker (MCB) - UL1077 compliant - ABB / Stotz (S200 series) - S202-B6 - 2-poles (2P) - Rated current 6A - B-curve - Short circuit breaking capacity (lcu) 10kA (400Vac) - DIN rail mounting (35mm width) - Screw-clamp connections - 2 modules (2M)
...more
S201-K0.5 K Curve Miniature Circuit Breakers

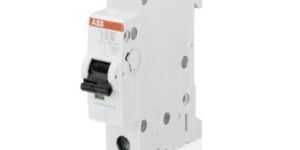

S201-C0.5 C Curve Miniature Circuit Breakers

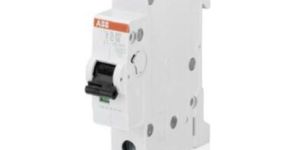

S201-B6 B Curve Miniature Circuit Breakers
Miniature Circuit Breaker (MCB) - UL1077 compliant - ABB / Stotz (S200 series) - S201-B6 - 1-pole (1P) - Rated current 6A - B-curve - Short circuit breaking capacity (lcu) 10kA (230Vac) - DIN rail mounting (17.5mm width) - Screw-clamp connections - 1 module (1M)
...more

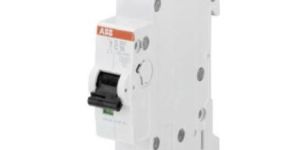

S201-B10 B Curve Miniature Circuit Breakers
Miniature Circuit Breaker (MCB) - UL1077 compliant - ABB / Stotz (S200 series) - S201-B10 - 1-pole (1P) - Rated current 10A - B-curve - Short circuit breaking capacity (lcu) 10kA (230Vac) - DIN rail mounting (17.5mm width) - Screw-clamp connections - 1 module (1M)
...more
Flameproof Junction Box
Flameproof Enclosure
Flameproof Telephone
Flameproof Electrical Equipments
