Mevada Engineering Works RMV 2nd Stage, Bangalore, Karnataka

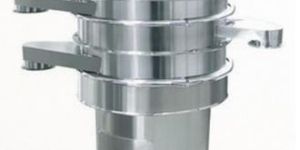

GMP Design Available in inch (20" / 30" / 36" / 48" / ST / 72" ) Hopper design is suitable for use. Compact vibratory design for high speed & dust free sieving Machine operation is Noiseless and Maintenance free. Contact parts and screen material is SS 316. Low power consumption compared to reciprocating vibratory system. Easy dismantling and cleaning of parts. Machine available with flame proof and double deck option design. Castor wheel is fitted for easy movement.

cGMP / GMP & Standard Model Contact Parts : Stainless Steel 316 or 316 L Non-Contact Parts : Stainless steel 304 / Cladded or M.S. Powder Coated R & D Lab Scale models & Pilot scale model available. We manufacture size up to 1000 liter. Easy to use and clean. Low maintenance cost. Safety guards are available. Flame proof electrical also provide as per requirement. AC variable drive is provided for different speed.

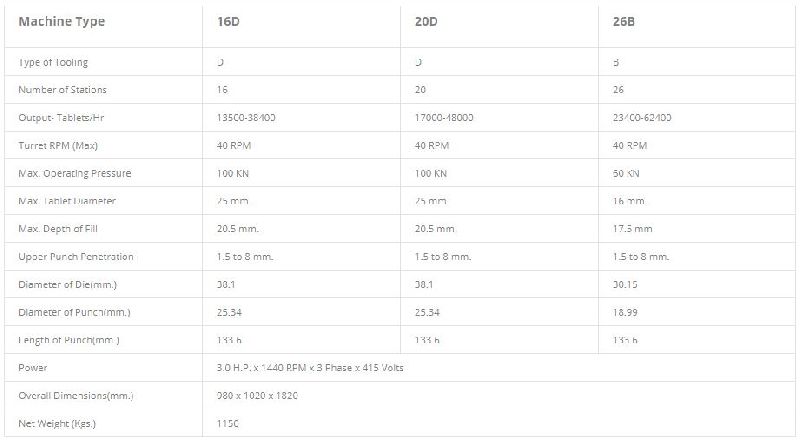

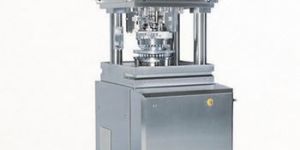

Single Side Rotary Tablet Press Machine is widely used for small and medium scale batch production. Machine design is as per GMP directives. Construction of main body structure material is Cast Iron. Changing and Cleaning of Dies & Punches are easy and quick. Machine operation is very easy, smooth and noiseless Upper Punch penetration is available. Upper Pressure Roller & Lower pressure roller material is OHNS. Double sided lifting cam is provided to guide upper punches safely. Upper guard is provided as a safety features Reverse direction motion control also available. Lubrication System is provided for lubricating Pressure Rollers. Optional Accessories: Pre‐compression pressure roller AC Variable Drive & Electromagnetic Clutch Force Feeder Attachment PLC Touch Screen

Type : Single Rotary Tablet Machine

We are the main supplier of this product.

We are the main supplier of this product.

We are the main supplier of this product.

All Contact parts of the machine is made from SS 304/SS 316 (Optional). Design of the machine compliance with GMP Standards. Ergonomic design & convenient for operation. Beaters & Scraper Blades, Pin and Housing is made from Stainless Steel. Beaters assembly is swing type, dynamically balanced, which reduces vibration and noise level and increases bearing life. 12 nos. Beaters are of knife and impact edges & 2 nos. beaters are of scrapper blades types. Machine can be run in reverse direction also by DOL Starter Cylindrical screen for higher output. Flameproof electrical Motor and Starter is available(Optionally) Castor wheel of PU Material is provided for easy mobility. S.S. perforated screen Dia. 0.5,1, 1.5, 2, 3, 4, 5, 6, 7, 8, 10, 15, 20 available. S. S. Wire Mesh Sieve - 4, 6, 8, 10, 12, 14, 16, 20, 24, 30, 40, 50, 60 Mesh size available.

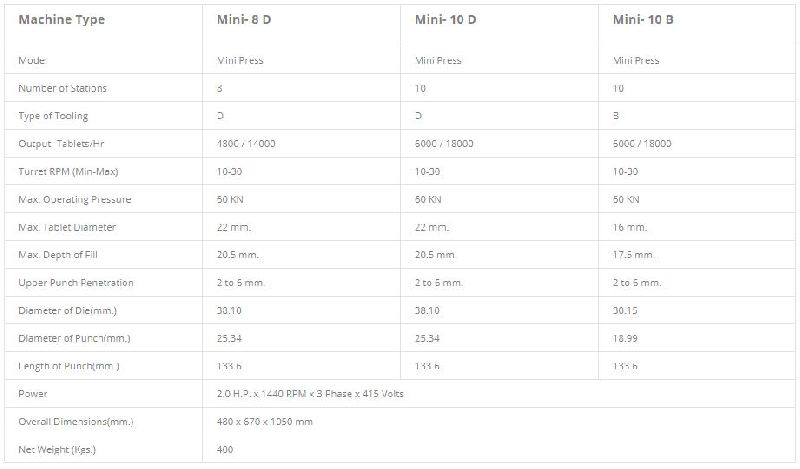

The Tablet Press, Mini in size and Single Rotary is an ideal choice for R&D work as well as small scale productions. It is also used to avoid wastage when high value ingredients are used for tablet formulations, also known as lab tablet press. The mini tablet press is designed with GMP considerations. All Contact parts of the machine is made from SS 316 Material. Electro Less Nickel Plating is provided on Turret to improve life & prevent rusting of turret. Pre compression facility as a standard feature. A.C. variable drive and fixed pulley. It is driven from central pillar by worm reduction gear box. Lower guards of stainless steel &upper guards of transparent acrylic to view tablet compression process of the machine comfortably. Electronic Tablet Counting System Granules are fed through an open feed frame which ensures trouble free settings and minimum wastage of valuable material. Force feeding attachment is optional accessories for difficult, fluffy & fine granule compression For easy operation outside controls are given for Pre Compression adjustment, tablet thickness adjustment and turret speed adjustment. Needle Roller bearing is provided on bottom side of turret which helps free running of the turret Single Phase Preventer is provided to prevent reverse direction running of the machine

Type : Tablet Press

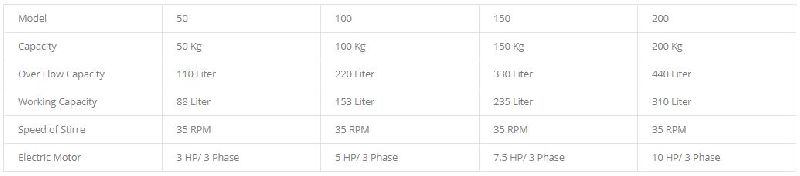

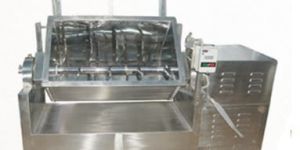

Design as per GMP guidelines. Also available in standard model. Available in size 50, 100, 150 & 200 kgs. Suitable for wet and dry powder mixing for Tablet Granulation, Powder Mixing, Chemical, Food & other. Easy to use and clean. Flame proof electrical is available.(optional) Contact parts material is SS 304/ 316. Non-contact parts material SS 304. To mix powder, Paddle type blades are welded on main shaft. Interlocking system at dust cover is provided to avoid the accident. Tilting Device is provided for easy unloading material. Transparent dust cover provided to watch the mixing process.

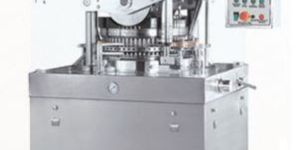

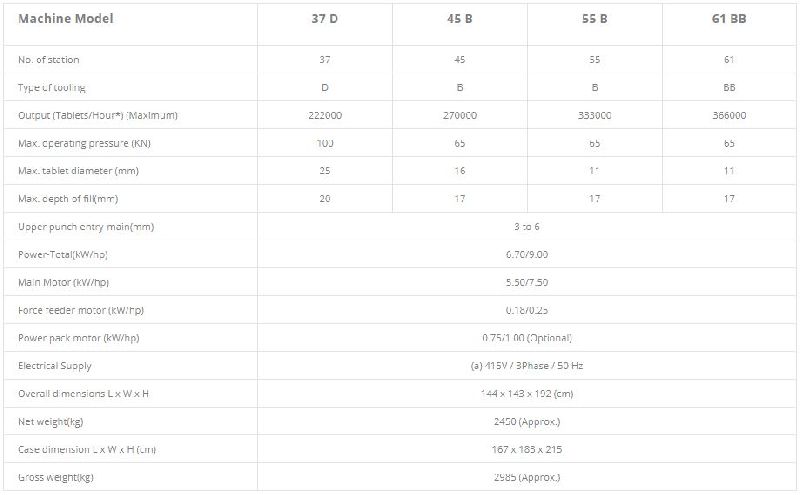

CGMP Machine Most Suitable for large scale production Force feeder attachment is a standard features for higher weight consistency of Tablets For smooth running of machine, internal helical gear ring and pinion drive are provided All parameter of table can be control outside of machine Continuous lubrication system available Front side, Separate Electrical Panel available Lower Punch seals in Turret Upper punch penetration Round Hopper provided with butter fly valve Upper & lower pressure rolls fitted with ball bearings Lower guard has Hydraulic gauge

Type : Rotary Tablet Press Machine

We are the main supplier of this product.

Type : Fluid Bed Dryer

Provided with stainless steel S.S 304 contact parts Blower fan is dynamically balanced Machine in fitted with the castor wheels for easy mobility Overcome dust hazards as well as cross contamination at tablet compression All inlet manifolds and dust collection trays are of SS 304 Four inlet manifolds facilitate to connect any Tablet press machine and two for De-burring units

Type : Dust Extraction System

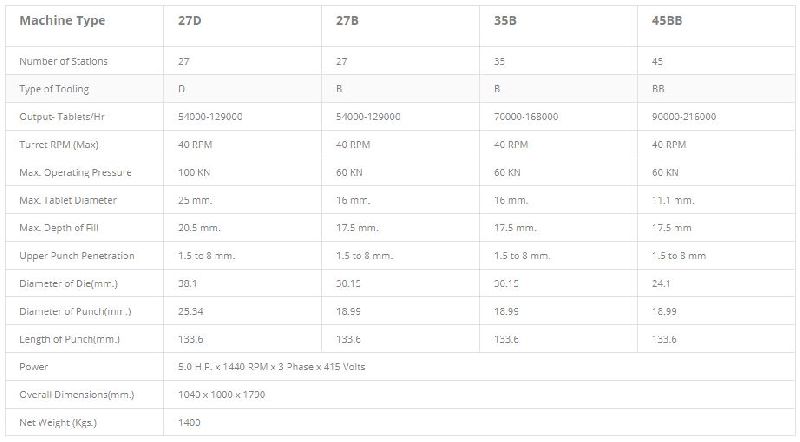

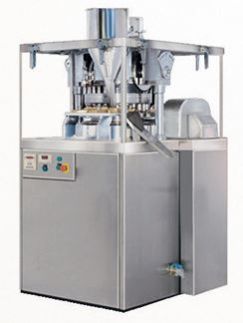

Widely used for large production. Design is as per GMP directives. Turret with SS 316 Middle plate and Electroless Nickel Plating will be provided (Optional). Machine is Having C.I. Body and C.I. Middle plate Phosphorous bronze bush is provided inside the turret hole. Pressure Rollers and Cam Tracks are made from Alloy Steels. Electronic Digital Tablet cum RPM Counter Inter lock Switches to all Guards Imported needle roller bearing provided at the bottom of turret. Variable Speed pulley, one shot Lubrication System also available. Reverse direction motion protection is provided to avoid accident. Optional Accessories: Force Feeding Attachment Two Layer / Bilayer Tablet Attachment Auto Lubrication Pump The machine is available with AC variable Drive & Electromagnetic Clutch.

Type : Rotary Tablet Press Machine

We are the main supplier of this product.

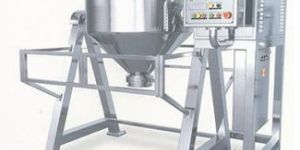

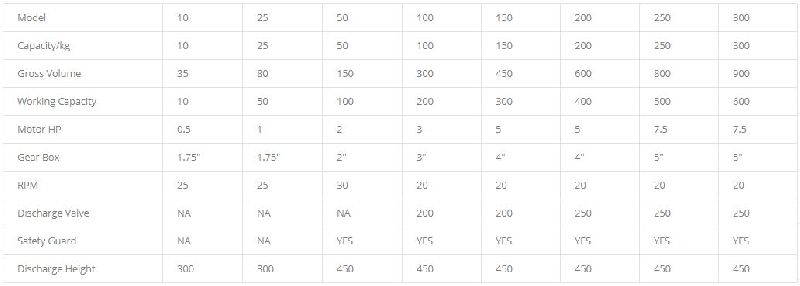

Type : Cone Blender

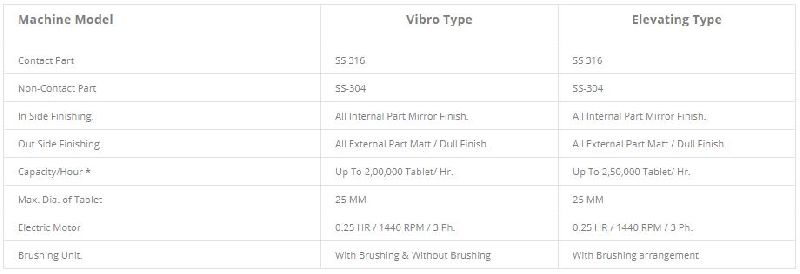

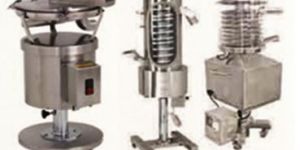

Design as per GMP guidelines. Suitable for All types of Tablet Press Machine. All contact parts are easy to wash and clean. Operation is noiseless. Maintenance and Lubrication is not required. Tablet path is more effective for Desusting and Deburrring. Unit removes edges and dust on fine surface of tablet without damaging it. Height adjustment is available.

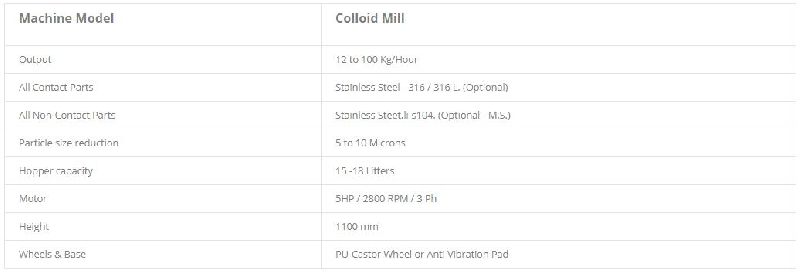

Colloid Mill is widely used to mix liquid homogeneously All contact parts are made out of SS 304 (SS 316 on demand at extra charges) Coupling provided between motor shaft and rotor shaft for ease in maintenance — Vertical Model Three oil seals between the motor and the processing chamber to prevent liquid going in the motor winding, resulting in the burning of the motor Extended Bearing Housing specially designed to facilitate fine adjustment of bearing clearances of back lash to avoid metal contact of Rotor in Vertical Model Special design facilitates adjustment of grinding gap by an exterior screw by means of handle even during operation. Discharge spout provided as a standard for viscous material Contact parts can be easily dismantled for cleaning

Type : Colloid Mill

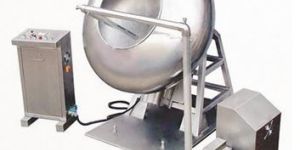

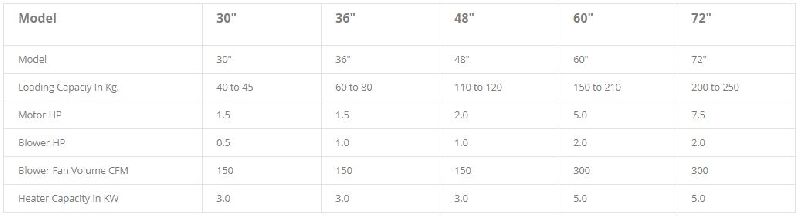

As per GMP Guide lines. Also available with Standard Painted Model & for small scale laboratory purpose. Conventional Coating Pan with very sturdy M.S structure made of angles & channels which are covered from all the sides by covers & doors. The Coating Pan drive is through standard make heavy duty worm reduction gear box & electrical motor by means of belt and pulley drive fitted on a rigid structure. Coating Pan Speed can be changed through variable speed pulley mounted on the shaft of electric motor (AC Variable Frequency Drive – Optional with extra cost). Coating Pan made of SS 304 / SS 316 or SS 316L material and mirror polished from inside & outside. Baffles either welded or detachable (welded are the standard supply if not specified) provided inside the pan considering production requirements. Easy mounting arrangement considering changeover of coating / polishing pan Separate mobile Hot Air Blower System is provided for easy operation. Digital Temperature Controller provided with necessary temperature control device with interlocking for heater function.

Type : Coating Pan
