Micronova Impex Pvt Ltd Basavanagudi, Bangalore, Karnataka

Product Features - Single Set Point 31/2 digit, 7segment LED temperature display Wide voltage range (85-270V AC / DC) Universal input (J / K / PT-100) LED indication for sensor, function & relay status. Sensor and function lock. Dual function (On / Off or Self tuned). Single set point with relay output. Over voltage protection. H3TX-Ua / TX7-Ua / EX9-Ua/H3TX-Ub : Single display for both process and set value. Temperature offset calibration user settable Single set point with relay output H3TX-Ub: 3 Digit, 7segment display for displaying temperature with height 0.4 “ H3TX-2U / TX7-2U / EX9-2U : Dual display for process and set value. Single set point with relay output Dual function (ON-OFF or Self-tune) Source voltage : 85 – 270 V AC / DC Range : 0 – 300˚C , 0 – 600˚C , 0 – 999˚C , 0 – 1200˚C , -100 – 300 ˚C Product Features - Dual Set Point Universal Input (sensor J,K,PT-100) Selectable Wide Voltage Range. ON / OFF or Self-Tuned Function Selectable Single / double set point. Over Voltage Protection. Compensation offset feature available in TX7-Ua User Friendly Programming through increment / decrement button (TX7-ua) Indication for sensor, function and relay status Program enable / disable for sensor, function, hystersis, compensation features in TX7-Ua.Dimension 72x72x128.5 2 set point temperature controller (heater type) : 85 – 270 V AC/DC 2 set point temperature controller (alarm type) : 85 – 270 V AC/DC Temperature range : 0 – 300˚C , 0 – 600˚C , 0 – 1200˚C

Battery operated (2nos x 1.5V DC, AA size) Real Time Clock in 24 hour format. Switches ON and OFF 4 times in a day with respect to real time LED indication for relay status. LCD display for real time clock. User Friendly programming. Manual over ride facility. TS-203 : Suitable for Panel / Flush mounting. TS-203B : Program hour and program minute buttons can be enabled by shorting terminals to program the load’s START time and DURATION for which the load should be ON Suitable for Din rail mounting. Clock hours and Clock minute buttons can be enabled by shorting terminals to program RTC

Compact, light weight and SMPS design Versatile and easy snap-on mounting on Din-rail Very low ripple and noise Regulated and adjusted output Protection against over voltage, short circuit and over load

Guaranteed to exceed the current TIA 568-C.2 Gigabit Specifications for AXT, NEXT, FEXT, Insertion Loss and Return Loss, with tested transmission performance   Guaranteed to meet IEEE 802.3an application requirements” A proprietary technology allows the channel to surpass the proposed "6 around 1" Alien Crosstalk test requirements   Quality & Performance Endorsements from International testing Bodies like UL and ETL – USA.   In Copper, Channel Performances Exceed all the Industry Standards, minimum of 5 times more Margin & Headroom than specified standards.   Uniquely designed jacks with CAS technology provide a cutting edge in performance over competition.

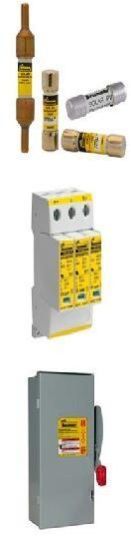

A range 10x38mm, 1000Vdc PV fuses for the protection and isolation of photovoltaic strings. The fuses are specifically designed for use in PV systems with extreme ambient temperature, high cycling and low fault current conditions (reverse current, multi-array fault) string arrays. Available with four mounting styles for application flexibility: Cylindrical Ferrule Bolt Fixing Single and double pin PCB tabs In-line crimp terminal Features: Meets UL and IEC photovoltaic standards for global acceptance Low watts loss performance for energy efficiency Low temperature rise performance for more precise sizing In-line crimp terminal version is easy to apply in wire harness construction

Individual air conditioning units from the targeted cooling Portfolio are an integral part of complex of a data centers, In our product portfolio, you can find all types of air conditioning Units top, wall and side. In addition, we can offer ventilation units And other products designed for airflow distribution, the use of Which is necessary for effective cooling of equipment Sizes Height : 42U Width : 600, 800mm Depth : 600, 800,1000,1200mm Construction Robust frame construction 1.5 & 2.0mm sheet steel Load rating 42 U : up to 1000 kg Types Free standing Open Frame Support Systems Cable Management – High Density Optical pathway system OptiWay Top ducts Standard cable management Intelligent Power Distribution Unit – Managed Intelligent Power Distribution Unit – Monitored Intelligent Power Distribution Unit - Basic Ramos Mini / Optima / Ultra Access control system LES-Rack Solutions Data centre Enterprise Top ducts Server room TELCO Networking Home & office Outdoor network

Micronova offers ABB complete solution for 12/24 kV distribution networks. This consists of SafeRing a Ring Main Unit (RMU) that can be supplied in various configurations and SafePlus, a compact switchgear with unique flexibility.   SafeRing/SafePlus are delivered as a completely sealed system with a stainless steel tank containing all the live parts and the switching equipment. Constant atmospheric conditions in the sealed tank ensures a high level of reliability, safety and a virtually maintenance free system. Key Features Compact and robust design High flexibility Minimal moving parts Multiple configuration options Virtually maintenance free Enhanced safety High degree of functionality with integrated features Complete solutions including applications for remote control and monitoring

Sleek, light weight, ABS enclosure. Super bright, Red color SMD, LED for fault indications. Test / Mute / Acknowledge / Reset (buttons in front and terminals at rear) are available. Multiple units terminals can be connected in parallel to achieve more windows Each window can be programmed for fault inputs as NO or NC and output as alarm or trip. Above program can be locked by removing the short link across specified terminals Over voltage protection Basic Models: M2-2 / M2-4 / M2-6 / M2-8 Advanced Models: M2-12 / M2-16 / M2-24 Available in 12, 16 and 24 windows respectively Available in wide auxiliary voltage range of 85-270V AC/DC Advanced Models with additional features: M2-12R / M2-16R / M2-24R RS485 output signals are available for displaying Fault and healthy status of each window Repeat relay cards having 8 (C-NO) outputs can be supplied on order to connect the main unit to 1, 2 or 3relay cards (as required) in a daisy chain arrangement and achieve one output for each window. Internal Resettable fuse for protection of device against voltage fluctuations. Digital display will blink whenever voltage exceeds specified voltage range. Switch off the unit for sometime & then switch on when voltage returns to normal

Product Features : Din sized enclosure for panel mounting. Wide Voltage range. Front / Rear reset facility provided. Hold / Restart options (selectable) during power failure. Input signal from proximity switch ( NPN / PNP type) or Potential free (zero volt) signal from limit switch, relay o/p etc. Over-voltage protection CT-5: Digital, single window 5 digit 7 segment red LED display with up counting for process value. Preset Counts can be programmed with the help of thumbwheel switch H3CT-5U : Digital, single window 5 digit 7 segment red LED display with up counting for both process value and set value Input sensitivity – programmable (1-100Hz) Internal Resettable fuse for protection of device against voltage fluctuations. Digital display will blink whenever voltage exceeds specified voltage range. Switch off the unit for sometime & then switch on when voltage returns to normal. Source voltage : 85 – 270V AC/DC

Micronova supplies CAT5e, CAT 6, CAT 6A DIGILINK and ACTASSI brands Patch cable is a high quality product delivering excellent network performance when using in conjunction with respective DIGILINK and ACTASSI products. The patch cord is constructed of high grade cable and quality RJ 45 plugs and is designed to operate up to 500 MHz. The assembly ensures excellent strain relief and together with the insert, ensures that performance is stable when using the patch cord. Patch cords are available in BLUE & GREY colours with matching boots to help with circuit identification in cabinet/rack   Customer Benefits Support 10G network transmission Available in various lengths to assist with better cable management Assembly boot not only ensures pair integrity, but also provides an enhance strain relief especially during installations or moves.

TOL and EOL relays Fits to ABB block contactors Standard protection for motors against overload and phase failure Complete TOL range up to 310A, trip class 10 Complete EOL range up to 1250A, trip class 10, 20, 30 selectable high accuracy due to electronic wide temperature range stable trip curve over life time low energy consumption Self supplied Various international approvals

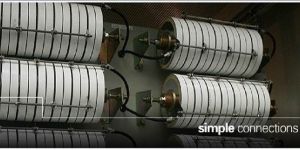

Metrosil non-linear resistors are high performance surge protection devices that provide excellent service in a wide range of applications around the globe. Manufactured from a semi-conducting material with the distinctive property that its electrical resistance depends on the applied voltage enabling it to act as an 'electrical safety valve' to protect equipment and insulation from the effects of over voltages. Millions of Metrosil varistors have been sold throughout the world with current ratings varying from microamps to kiloamps and capable of absorbing energies from 10 to 50,000 joules per disc. Features: Superior Energy Absorption No De-rating Low Maintenance The wide range of energy absorption ratings and options in assembly type mean that they are suitable for many different applications, including exciter discharge, relay protection and current transformer protection and other applications as detailed in our Application Selector. Micronova represents M & I in India supplies non-linear resistors to power plants for the past 25 years.

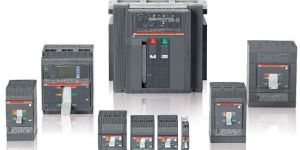

Available Range: MCB with reliable distribution up to 125A For AC distribution For AC distribution up to 1150 V For DC distribution For DC distribution up to 1000 V For motor protection (IEC 60947-4-1) Current limiting circuit breakers (IEC 60947-2) Switch disconnectors (IEC 60947-3) For UL 489 standard up to 1200A Features Circuit breakers with lowest watt loss for best-in panel performance and highest mechanical life Versatile protections : over-load, short-circuit and earth leakage protection Earth-leakage protection for distributed / polluted electrical networks Perfectly coordinated protection solutions for both upstream and downstream devices Residual current protection / insulation monitoring solutions for both industrial and hospital applications Type 1 and type 2 surge protection devices for entry level and internal surge protection Communication capable miniature circuit breakers MCB (on Modbus) Touch proof bus system complying to IEC 60439

Product Features : Micro controller based motor protection relay. (Panel / Flush mounting.) Parameters: Phase- Phase missing (failure), phase reversal (sequence) and phase unbalance,Voltage – under voltage, over voltage based on 415V AC, Current – Under current, Over current based on nominal current set, Under frequency, Over frequency . earth leakage fault. Relay can be programmed for relay to get energized during healthy or unhealthy condition. Instant values of parameter displayed during healthy status. Reason for tripping displayed during unhealthy status. Unhealthy status will be displayed till the user acknowledges in manual mode. Auto / Manual. Program lock facility available. Bypass of unwanted parameter can be programmed CT primary can be programmed up to 2500 in steps of 5. CT secondary will be factory set for 5. MPR-E1– Panel / Flush mounting Trip delay time programmable for each parameter separately. 415 V AC, 3 Phase, 4 wire Out put : 1 c/o relay.

MCBs with breaking capacities up to 4,5 kA (S230/240, S940, etc.) MCBs up to 10 kA breaking capacity for domestic or commercial installations (S190, S200, S250/260/270, S440, S950/970, etc.) MCBs for commercial and industrial applications with high breaking capacities and special features/accessories (S280/290, S500, S610, S220, S700, etc.) Accessories for MCBs: Auxiliary contacts, signal contacts, shunt trip, under voltage release, door lock, rotary handle with door coupling, motor drive

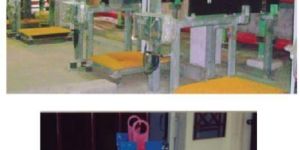

Micronova represents RITTER, Germany supplies DC on load/off load, Short Circuit Switches used by rolling mills in steel plants, electrolysis process plants etc., DC- On Load Switch 60 kA – 12 KV for commutation DC Dis-connector up to 4 kA, 1500 VDC High current on load switch - 30 kA, 750 VDC Features : Motor driven and /or manual control version available Auxiliary contacts for control / monitoring functions

Type : Break Switch

Application : Industrial Use

Feature : Proper Working, Superior Finish

Frequency : 50 Hz

Current Type : Double Phase, Single Phase

Technical Specifications IP66 Protection – Single door IP55 Protection – Double door Mechanical resistance – IK10 PUR non-porous gasket on doors Zinc-plated mounting plate 130˚ angle door opening Simple change of door from right to left Sizes : 6, 9, 12, 15, 18U Load rating : 40 KG for 400 & 500mm depth Load rating : 30 KG for 600mm depth Main Advantages Smooth design thanks to laser welding Stainless steel 304 or 316L, power coated Rear panels with holes for direct wall mounting Wide selection of warning signs High rigidity of rear panel Customized solutions – cutouts and holes Wide range of accessories Top and bottom openings for cable entry

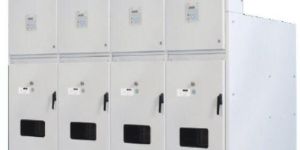

ZN1 is a three phase, metal-clad, air-insulated switchgear and all the units are factory-assembled, type tested and suitable for indoor application upto 12 kV. The units are designed as withdrawable modules and are fitted with a single bus bar system The basic ZN1 panel is an incoming/outgoing feeder panel with Vacuum circuit-breaker using insertion technology. It is divided into circuit-breaker compartment (A) Bus bar compartment (B) Cable compartment (C) Control cabinet (D) for the secondary equipment and integral gas duct ( E ). Apart from this , there are variants for various operating needs. The relevant customer specific documents explain details like technical data, equipment list for individual panels, schematic diagram and list of apparatus of individual switchgear.

Technical Features Thermoplastic material (MIL.BOX ®) in RAL 7012 dark grey colour UL 94V-2 grade self-extinguishing material Glow wire testing successfully passes at 650° C (in compliance with IEC (EN) 60695-2-11) Pegs already built into the enclosures M3 threaded metal inserts for mounting the connectors into the enclosures Locking levers in self-estinguishing thermoplastic material in RAL 7001 grey colour Gasket produced by FIPFG technology (Formed In Place Foam Gasket)

We are the main supplier of this product.

Type : Electrical

Material : Ceramic, Plastic

Certification : CE Certified

Voltage : 220V

Power : 1-3kw

Warranty : 1 Year

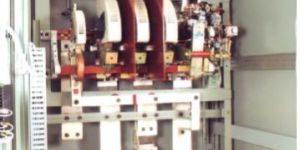

Micronova represents MERSEN, France (formerly known as Lenoir Elec) and supplies their makes of field circuit breakers to power generating plants in India for the past 25 years. We also provide installation services, spare parts support and preventive maintenance.   Features:   Bar Mounted (Modular)   Contactors for field excitation (for use in power generation) - From 8A to 8500A   Bar mounted modular contactor for - DC current upto 6200A, 2000VDC and AC current upto 4000A   Contactors can have closing coils for AC/DC operation for 24V-220V   Latching facilities with one or two tripping coils   Auxiliary contact block D & M types can be provided   Contactors for dynamic braking for DC motors (RUBC type)   Auxiliary relays, Delay blocks options available

Product Features : Microcontroller based multifunction A/C Energy Meter. Accuracy Class1.0 / (Class 0.5 calibration on Request). CT /PT (Pri/Sec) Programmable. Digital Measurement. IEC 62052-11 IEC 62053-21 IEC 62053-22 IEC 62053-23. RS 485 Serial Port with Modbus RTU Output. Flush / Panel Mounting . 96 x 96 mm DIN Mounting. Auto Scroll / Hold Facility. Internal Resettable fuse for protection of device against voltage fluctuations.Digital display will blink whenever voltage exceeds specified voltage range.Switch off the unit for sometime & then switch on when voltage returns to normal. Protection from dust and water as per IP-51.

Product Features : Measurement of basic, power, energy and demand parameters. On-site programmable PT and CT ratios. High brightness LED display (alpha numeric for parameter, numeric for value. Automatic CT reverse correction for energy and demand. Programmable demand techniques : block / sliding window. Programmable demand parameters : Apparent / Active power. Programmable demand range : Kilo / Mega. Programmable Alarm / hysterisis settings. Program RTC time to match EB meter's clock. For EMS-15C : Max. Demand Controller = Max. demand indicator + Relay module (4 relay)(RR-4) 4 control outputs for alarm and trip settings.

Product Features : Micro Controller based 3 Channel DC Energy Meter.. Displays DC parameters V, I, KW, KWh ,MWh & Load on hours of all three channels. Displays one set old Energy readings and Communication status. Display Hold / Scroll Facility available. Programmable Shunt ratios. Alphanumeric display for Parameter & values. RS-485 serial port with Modbus RTU output. Wide Input Voltage and Current Range. Protection from dust and water as per IP-51.
