Miracle Electronics Peenya, Bangalore, Karnataka

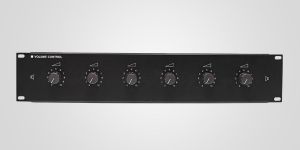

Miracle Electronic’s Audio Attenuators / Volume controllers are designed with one goal in mind. Crystal clear sound, which is clearer than reality. Our Volume controllers are designed for maximum sonic quality, accuracy and reliability. They are specifically designed and are highly suited for audiophile applications and for professional applications. Miracle Electronic’s Volume Control switch comes with 11 volume steps (10 regulator steps and 1-zero position) and besides this, they possess an E/M relay (24VDC), which makes emergency announcements possible even if control is at position “0”. The Switch is based on a compact design, which provides for shorter signal path than conventional attenuators. The design also effectively reduces inductance and stray capacitance to achieve increased sonic quality over an increased bandwidth. And of course, all of this while ensuring reduced distortion. Miracle Electronic’s Volume Control Switch: Enabling crystal clear sound Our Volume control switches / Audio Attenuators are extremely durable, come with superior wiring, varnishing, connection terminators, generate less acoustic noise, have a low EMR with a low profile.   General Product Features & Inclusions CRGO core / CRNGO Round cores Cold Rolled Grain Oriented / Non Grain oriented steel cores Connectors Class B / F Insulation Metal Cabinet with Fixing Holes

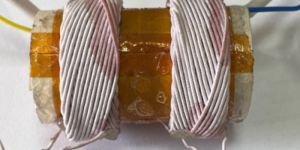

In carrier frequency transmitters, transformers are normally used for coupling between stages and for coupling the output stage to the line. They sometimes transform a large amount of carrier power. Coils are usually wound in single layers, spaced well apart to reduce capacitance, and have but few turns. If the necessary turns cannot be wound in a single layer, a bank winding like that shown in below Fig. may be used. This winding has more capacitance than a single layer but much less than two layers wound in the ordinary way. Since intrawinding layer-to-layer capacitance is zero in these transformers, the resonance frequency fr is usually determined by winding-to-winding capacitance. High, narrow core windows or several pies are desirable to reduce leakage inductance. Transformer loss is mostly core loss. Two-mil grain-oriented steel can be used advantageously in such transformers, because of its low losses and high permeability. In transmitter operation, class AB or class B amplifiers are commonly used, with or without modulation, which may be as high as 100 per cent. In a receiver, input and interstage transformers also are employed, mainly to obtain voltage gain or for isolation purposes. Similar transformers are used for line matching, especially where overhead lines are connected to underground cables. Line impedance changes abruptly, and transformers may be necessary for good power transfer.

Miracle Electronic’s Toroidal transformers are more efficient than other transformers of similar power level. Miracle’s Toroidal Transformers are of smaller size, lower weight, make less mechanical hum, possess a lower exterior magnetic field and generate very low off-load losses. Thanks to the lack of residual gap in the magnetic path, Miracle Electronic’s Toroidal transformers also exhibit higher inrush current. Miracle Electronic’s Toroidal Transformer is certainly the ideal choice for your utility. Our Toroidal Transformers are extremely durable, come with superior wiring, varnishing, connection terminators, Tyco / 3D Terminals and are of low profile, generate less acoustic noise, have a low EMR with a low profile. Our Toroidal Transformers are indeed highly efficient and provide excellent regulation with minimal temperature rise. Our Toroidal Transformers Are RoHS Compliant, Reach Compliant, Also Available with CE and UL Marked with request.   Product Variants available: 1, 10, 20 , 25 , 50 ,100, 500 VA ,1 KVA , 5 KVA ,10 KVA Air cooled 120 /240 V 1 Phase-3 Phase 50 Hz-60 Hz – 400 Hz I UU-2 UU Transformer Low height & Low Profile General Product Features & Inclusions Self-Lead TEX E Wires PVC Cables Sleeves Connectors L Clamp With CRGO Round cores With Cold Rolled Grain Thermal fuse Thermal switch Class B /F insulation Epoxy Mounting arrangements

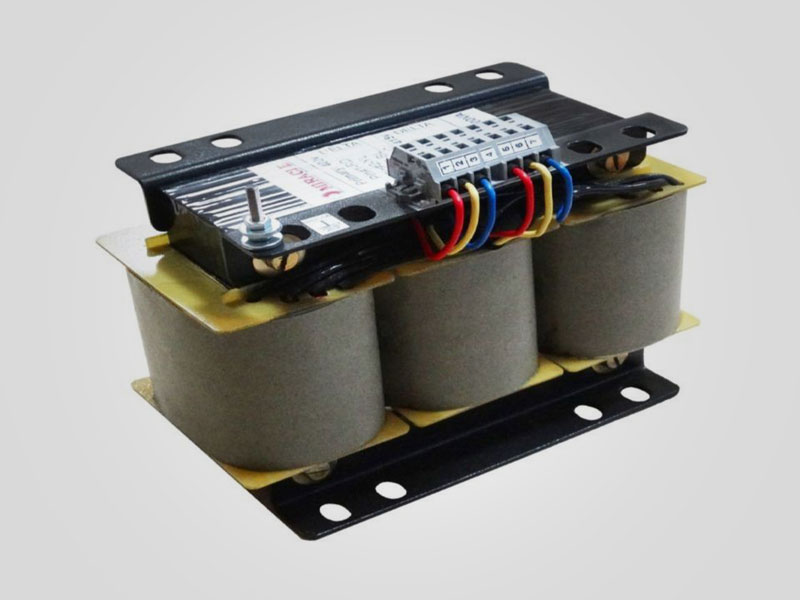

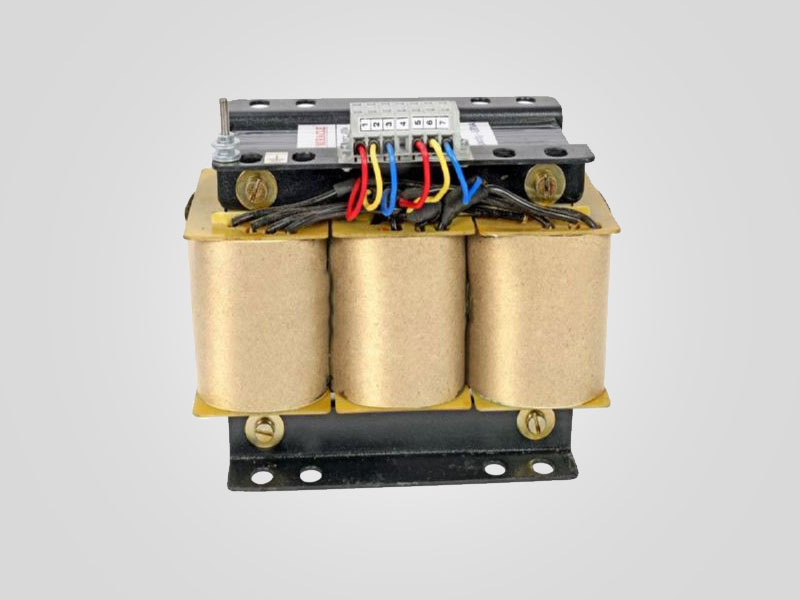

Miracle Electronic’s Three phase transformers are used across numerous industries increasingly as a preferred to product to effectively change values of three phase voltage and current to desired units. Miracle Electronic’s Three-phase (3φ) transformers are used for efficient and fault free electrical power generation, transmission, and distribution, as well as for all industrial uses. A reliable power supply presupposes a sufficiently large supply system with high-performance transformers. The high quality standards set by MIRACLE are appreciated throughout the industry and our products ourselves stand able testimony to this claim. MMiracle Electronic’s Three Phase Transformers: Fault Free Generation, Transmission and Distribution.Miracle Electronics manufactures Power transformers up to 30 KVA in accordance with International standards and supplies to markets across the globe. Product Variants available: 1, 10, 20 , 25 , 50 ,100, 500 VA ,1 KVA , 5 KVA ,10 KVA Air cooled 120 /240 V / 415 V 1 Phase – 3 Phase 50 Hz – 60 Hz Low height & Low Profile General Product Features & Inclusions Self-Lead TEX E Wires PVC Cables Sleeves Connectors L Clamp U Brackets Flange Type Mounting With CRGO core / with CRNGO / with Round cores Class B /F insulation Epoxy Mounting arrangements

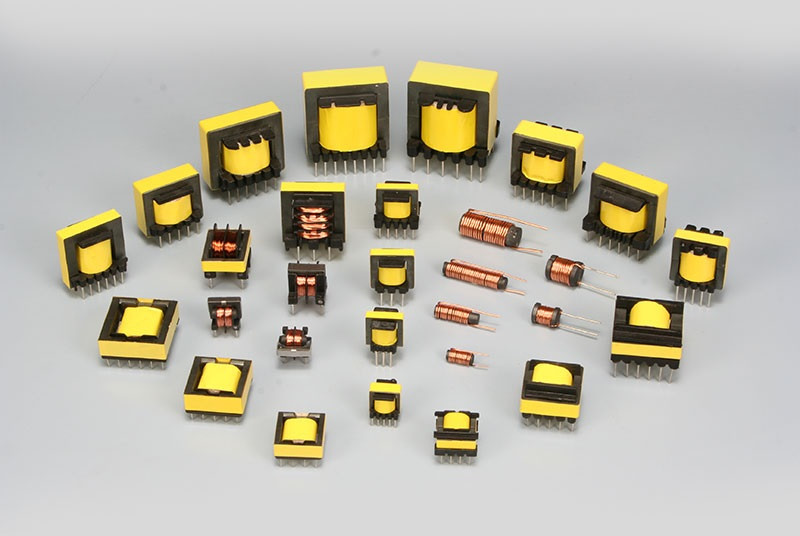

Switched mode power supply transformers (switching-mode power supply, SMPS, or switcher) are essential components in power conversion products. We essentially understand that the quality of the transformer, in terms of its performance to specification and its longevity, is vital to the quality of the end product. Miracle Electronic’s SMPS Transformers are critically designed to achieve this objective. Miracle Electronic’s SMPS Transformers have a very high power-to-size ratio, and each segment transformer topology has a unique Vin to Vout Transfer function leading to absolute efficiency. Miracle Electronic’s Switched Mode Power Supply Transformers: Achieving minimal power wastage. All our SMPS Transformers are RoHS Compliant, High, Reach Compliant, CE and UL Marked. Product Variants available: UU Transformers EE Transformers EI Transformers Toroid Ferrite Core Transformers Pot Core Transformers 10 KHz- 200 KHz General Product Features & Inclusions TEX E Wires Sleeves Connectors L Clamp U Brackets Ferrite Cores Class B / F/ H insulation

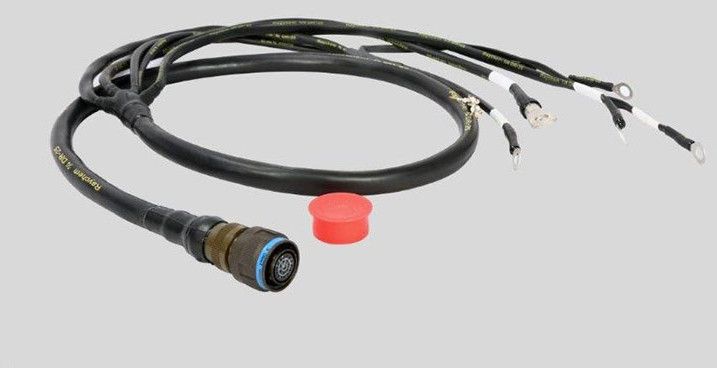

The moulded wire harness from Miracle Electronics is a prime example of electrical wiring assembly innovation, as it provides a sturdy way to bundle and safeguard wires and connectors inside a safe moulding or casing. In addition to providing insulation, this casing – which is frequently made of thermoplastic or thermosetting polymers – shields the components from the elements, guaranteeing their dependability, longevity, and best possible performance. The process of moulding involves encapsulating the wires and connectors within the chosen material, creating a robust and integrated unit. Increasing wire harnesses’ resistance to physical harm, abrasion, moisture, and other environmental difficulties is the main goal of using this moulded design. This becomes especially important in sectors where wire harnesses are frequently used in difficult and demanding environments, such as automotive, aerospace, and industrial applications. In addition to providing protection, a Miracle Electronics’ moulded wire harness greatly enhances the effectiveness of installation and maintenance procedures. Wires and connectors are encapsulated into a single moulded unit, which reduces the possibility of tangling or misalignment during installation and facilitates handling, routing, and connecting. Furthermore, the moulded shape simplifies maintenance procedures by making it easier to identify and arrange the wires inside the harness. Miracle Electronics’ moulded wire harness is extensively used in vital systems like engines and dashboards by industries including the automobile manufacturing sector. Because they can survive the rigours of flight, these harnesses are preferred in aerospace applications too. In industrial environments, where dependable and resilient electrical systems are crucial, they guarantee trustworthy communication in machinery and equipment. Hydrophobic materials and high-performance conductors are used in the manufacture of every Miracle Electronics’ moulded wire harness. Biocompatible materials dyed with FDA-approved pigments serve specialized purposes, while composite cables insulated with PVC, TPU, TPE, FEP, or silicone offer variety. Safety is improved with the Nosofree® antibacterial overmoulding and jacketing, which are available upon request. Circular, rectangular, and tiny connectors are among the termination options, offering versatility for a range of applications. The moulded wire harness from Miracle Electronics provides several benefits. They may be easily cleaned with a variety of sterilization techniques, such as autoclave sterilization at 121°C or 134°C. The connector/cable interface is shielded by the strong, tightly sealed overmoulding, and Nosofree® polymers effectively fight germs, viruses, fungi, and other microorganisms. These harnesses are easy to handle and have a high flex life since they are hydrophobic and non-magnetic, making them resistant to chemical agents. Their superiority is further demonstrated by their ISO 13485-certified facility, EMI shielding, and miniature cabling solutions. Our moulded wire harness is essentially more than just a wire and connection protection shell. It’s a clever solution that combines dependability, longevity, and simplicity of use. Moreover, the moulded casing provides robust protection against environmental factors, making it a preferred choice in industries where dependable and resilient electrical systems are essential. A prominent participant in the industry, Miracle Electronics is a prime example of proficiency in the design and production of moulded wire harnesses. With our dedication to quality, innovation, and customer satisfaction, we have always proven to be a reliable partner for businesses looking for innovative electrical connectivity solutions. All in all, Miracle Electronics’ moulded wire harness exemplifies cutting-edge electrical wiring assembly, ensuring robust protection for wires and connectors. Crafted with hydrophobic materials, high-performance conductors, and antibacterial features, these harnesses find applications in automotive, aerospace, and industrial sectors. The tightly sealed overmoulding enhances durability, while customization options add versatility. Miracle Electronics, with its ISO 13485-certified facility, stands as a beacon of proficiency, providing innovative solutions that blend reliability, longevity, and ease of use. Construction: High performance conductors. Hydrophobic materials. Composite cables insulated with PVC, TPU, TPE, FEP or silicone. Biocompatible materials coloured with FDA approved pigments. Nosofree® antibacterial jacketing and overmoulding on request. Sealed overmoulding or sleeves. Termination with circular, rectangular or miniature connectors.

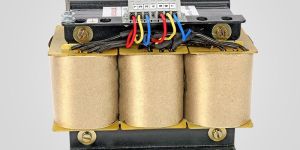

Miracle Electronic’s Power Transformers have been exclusively designed to to provide the highest level of safety to the operator by regulating and stepping down voltages to machine tool control devices. The inherent design of the Miracle Transformer enables control circuits to be isolated from all power and lighting circuits. This allows the flawless use of grounded or ungrounded circuits that are independent of the power or lighting grounds; thus assuring greater safety to the operator. Miracle Electronic’s Power Transformers: Keep it Safe. Our Power Transformers Are RoHS Compliant, Reach Compliant, Also Available with CE and UL Marked with request. Product Variants available: 1, 10, 20 , 25 , 50 ,100, 500 VA ,1 KVA , 5 KVA ,10 KVA Air cooled 120 /240 V 1 Phase-3 Phase 50 Hz-60 Hz I UU-2 UU Transformer Low height & Low Profile   General Product Features & Inclusions Self Lead with Teflon TEX E Wires PVC Cables Sleeves Connectors L Clamp U Brackets With CRGO core / with CRNGO / with Round cores With Cold Rolled Grain / Non Grain Oriented steel cores

Usage : Industrial

Miracle Electronics’ planar transformer, which breaks from the typical coiled coil topology of conventional transformers, represents a novel approach to transformer construction. It makes use of a flat, geometric winding arrangement instead, which is made feasible by Printed Circuit Board (PCB) technology. This creative design has several benefits in terms of thermal performance, EMI characteristics, and overall power density, in addition to making a transformer that is more space-efficient and compact. The winding structure of our planar transformer is placed in a two-dimensional flat pattern, which increases the surface area exposed to the environment, and improves heat dissipation. This increased thermal efficiency not only increases the transformer’s total lifespan, but also adds to its dependability. Planar transformers also have a number of benefits, one of which is their small size, which makes them perfect for space-constrained applications like power supply and electronic devices. The lowered weight and size are especially helpful in sectors where effective system integration depends on space optimization. In the field of magnetics, planar technology is essential for meeting the increasing need for intelligent solutions and small-sized components for a range of applications. Compared to conventional techniques, a planar transformer has the benefits of low-profile design, lightweight design, economical inductance, superior reproducibility, precision in dimensions, several choices for winding, effective cooling, various topologies, low inductance of leakage, customized pin locations, perfect parts for a range of uses, and easy cooling and enhanced thermal solutions. Planar transformers are also known for having better electromagnetic interference (EMI) properties. Lower parasitic capacitance and inductance are the result of the close spacing of conductors within the planar structure and the geometric arrangement of windings. Thus, EMI is decreased and overall electromagnetic compatibility is improved, both of which are critical for electronic applications. These benefits place planar transformers in a leading position for a variety of applications, such as test equipment, welding and lasers, battery management systems, distributed isolated power, grid energy storage, traction systems, renewable energy systems, aerospace and defense, electric and hybrid vehicles, medical and industrial sectors, and switch mode power supplies. Miracle Electronics’ planar transformer delivers all these basic advantages, but because of their intricate design and unique production methods, they are more common in niche industries where their advantages surpass those of conventional transformer designs. Our planar transformers operate between 20 and 500 kHz in frequency, meeting a range of demands from 1 KW MAX to 30 KW MAX output power. All our planar transformers are small and lightweight; however, they do vary in size depending on the application they need to be used in. The physical size of the planar transformer is proportional to the power output that the application seeks to provide. Solutions that are compact, clever, and effective are becoming more and more in demand as technology evolves. With their distinct benefits and wide range of uses, planar transformers are well-positioned to be a key component in addressing these changing demands. Miracle Electronics stands out in this market as a top supplier of planar transformers, providing state-of-the-art products that satisfy the requirements of contemporary power and electronic systems. Businesses looking for cutting-edge and dependable planar transformer solutions rely on us as a trusted partner, thanks to of our dedication to quality, effectiveness, and customization.

How safe your device would be if it were to purely run on the beast surge of Direct Current of electricity? Would you derive maximum utility from an Electrical appliance if it had to rely on the non-sustained charge of a couple of batteries? Miracle’s Medical Isolation Transformers have the ability to do what is precisely required by them – lower the voltage exactly to a value that is required by the appliance and keep them running right and safe. Miracle Electronic’s Medical Isolation Transformers: Making the most of Electrical devices Miracle Electronic’s Medical Isolation Transformers are extremely durable, come with superior wiring, connection terminators. Our Medical Isolation Transformers are indeed highly efficient and provide excellent regulation with minimal temperature rise. General Product Features & Inclusions CRGO core Round cores Cold Rolled Grain Oriented Self Lead with PVC / Teflon Wires Sleeves Connectors Thermal fuse Thermal switch Class B / F Insulation Epoxy Mounting arrangements Powder coated Cabinets Line Filters All our Medical Isolation Transformers are RoHS Compliant, High and Reach Compliant. Miracle Adheres to the following regulations under UL 60601-1 Standards: Minimum Enclosure Leakage current Maximum High Voltage Test between windings  Excellent Creepage distance  Excellent Air distance  Minimum Temperature Rise at Load  Limited Maximum Earth Leakage current

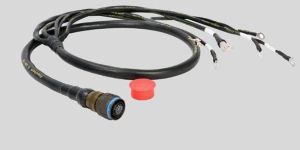

One of the largest cable harness manufacturers in India, Miracle Electronics specializes in offering premium wire harness solutions for a range of industries, such as industrial, automotive, and aerospace. Being the most reputable looms manufacturer in India, we focus on providing our customers with specialized, dependable, and effective wire harnesses that satisfy their exacting requirements. Wire harnesses for aerospace industry Miracle Electronics, a certified manufacturer with the largest wiring harness manufacturing in India, carefully builds aerospace wire harnesses to endure vibration, mechanical stress, and high temperature fluctuations – all typical issues in the aerospace environment. Our wire harnesses are especially designed to satisfy strict industry requirements, including resistance to environmental factors, durability, and weight efficiency. The correct functioning of complex systems, including avionics, communication devices, and different sensors, depends on these harnesses. In addition to ensuring smooth electrical system integration, Miracle Electronics’ wire harnesses help aerospace manufacturers reduce the overall weight of their aircraft – a crucial factor in aeronautical design. The reliability and effectiveness of wire harnesses are crucial in the extremely specialized field of aircraft engineering. Miracle Electronics, with the largest wiring harness manufacturing in India, offers harnesses that reduce electromagnetic interference, ensure proper wire routing, and give defence against environmental elements like moisture, heat, and abrasion. We improve the overall functioning, performance, and safety of spacecraft and aeroplanes with our aerospace wire harnesses. Wire harnesses for various industries High-quality wire harnesses are very beneficial to the aerospace industry, but Miracle Electronics offers wire solutions that go well beyond the aviation industry. We serve a broad range of industries, such as consumer electronics, industrial equipment, and the automotive sector. Compared to unsecured wires and cables, which can be challenging to handle, maintain, and repair, our wire and cable harnesses provide clear advantages. Our wire harnesses offer a more compact, safe, and well-organized way to connect several cables than free wires. Our cable looms save installation time, minimize the possibility of short circuits, and maximize space by combining wires into a single non-flexing unit. This systematic method also greatly increases safety by avoiding problems brought on by abrasions, vibrations, and environmental factors. Being one of the largest cable harness manufacturers in India, we prioritize reducing installation faults by providing chances for process standardization. Our harnesses are made to be easy and quick to assemble, which increases overall electrical system setup efficiency and dependability.

As a reputable wire harness manufacturer in India, Miracle Electronics takes pleasure in providing precisely constructed solutions that simplify electrical wiring systems for a variety of industries, including automotive, aerospace, and military. Our wire harnesses provide a streamlined, secure, and effective substitute for loose wires and cables, guaranteeing peak performance and dependability in even the most taxing settings. Our products bundle cables into small, simple-to-install harnesses, eliminating the hassle of tangled wires. In addition to saving room, this design significantly reduces the possibility of damage from moisture, abrasions, and vibrations. Our wire harnesses guarantee long-term operational efficiency due to their outstanding quality and durability, which has made us one of the best wire harness suppliers in India. Innovative design and performance Our wire harnesses are designed to satisfy the specific requirements of various applications. Our solutions maximize space utilization and reduce the risk of short circuits by assembling wires into a non-flexing, neat construction. These harnesses offer a prudent and standardized way to manage electrical systems by cutting down on installation time and streamlining maintenance procedures. In high-performance settings where dependability, security, and user-friendliness are critical, our sophisticated wire harnesses are especially appreciated; thus making us the most trusted and approved wiring harness suppliers in India. Comprehensive product offerings Miracle Electronics is a flexible wire harness manufacturer that provides a broad range of solutions to meet the various demands of the industry. Among our product offerings are: Single & discrete EMI cables, designed for effective electromagnetic interference shielding EMI shielded cable harnesses, ideal for environments requiring advanced signal integrity Flat cable harness assemblies, with compact and efficient solutions for space-constrained applications RF cable assemblies, precision-engineered for high-frequency signal transmission Airborne looms and military loom assemblies, built to stringent military specifications for durability and reliability Ribbon cable harness assemblies and power cables, suitable for high-performance and energy-efficient systems Advanced features Our wire harnesses are built with features that enhance their performance and reliability. High-grade circular connectors, D-Sub connectors, and MIL-spec connectors ensure seamless integration Durable PVC cables and UL 1015/1007 grade wires provide robust electrical insulation Compliance with MIL-W-16878 and MIL-W-22759 specifications ensures durability in extreme conditions Class B/F insulation materials guarantee thermal resistance and safety High power density and low radiated noise optimize performance and reduce interference Commitment to quality Every wire harness designed at Miracle Electronics is made to the highest standards. Along with additional certifications from DGAQA and MSQAA for platform-specific applications, our production processes are certified to ISO 9001 and AS9100C. Every harness is put through a rigorous testing process to ensure that it meets environmental standards and meets dimensional accuracy, weight, continuity, insulation resistance, and pull strength. This painstaking attention to precision strengthens our standing as the most reliable wire harness manufacturer in India.

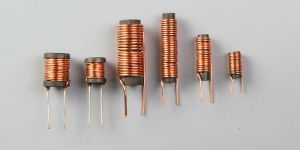

Miracle Electronics is a reputed inductor coil manufacturer in India that provides cutting-edge solutions to satisfy the demands of contemporary electrical applications. Being one of the leading air core inductor manufacturers in India, we are experts at making inductors with excellent performance, dependability, and efficiency. High-frequency circuits, noise filtering applications, and switch-mode power supply all make substantial use of our products. In order to filter supply and return conductors with in-phase signals, our common mode chokes are designed to offer superior common mode impedance over a wide frequency range. Our differential mode inductors provide accurate noise suppression for applications like filtering out-of-phase or uneven amplitude signals. Miracle Electronics is regarded as India’s top inductor manufacturer in India, creating coreless inductors that do away with core losses, ensuring enhanced performance in high-frequency applications. Superior design and functionality At Miracle Electronics, our inductors are designed for efficiency and durability. Our inductors have compact designs with excellent performance since they require fewer turns to obtain the same inductance as conventional solenoids. Our toroid inductors reduce leakage flux, which considerably lowers electromagnetic interference (EMI) and guarantees steady operation in delicate electronic systems. Due to their air gap-free design, our conventional inductors emit very little noise and less electromagnetic radiation. These traits make them perfect for safe and low-profile designs, especially in contemporary high-frequency, low-power electronics; in turn making us the best inductor coil manufacturer in India. Commitment to excellence As a reputed inductor manufacturer in India, we place a high value on quality and innovation. In addition to being effective, our inductors are small, strong, and meet all international safety and environmental regulations. Miracle Electronics is a dependable partner for companies looking for inductor solutions. To discuss your unique needs or to find out more about our product offers, get in touch with us right now.

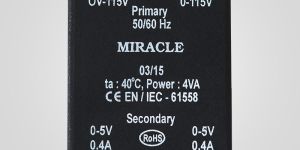

Miracle Electronic’s UI Transformer consists of a range of high quality low profile encapsulated isolating transformers with twin 115V AC 50/60 HZ primary windings which are connected in series for 230V or parallel for 115V operation. Miracle Electronic’s UI Transformers / Low Profile Transformers come with Double section glass fibre reinforced polyamide bobbins. Our UI transformers are 100% electrical and Flash tested, have low radiated nose and possess low inter-winding capacitance. Miracle Electronic’s UI Transformers: Making the most of devices. Miracle Electronic’s UI Transformers are extremely durable, come with superior wiring, varnishing, connection terminators. Our UI Transformers are indeed highly efficient and provide excellent regulation with minimal temperature rise. Product Variants available: Range of 2 VA, 4 VA, 6 VA, 10 VA, 14 VA, 18 VA, 24 VA 120 /240 V 1 Phase, 50 Hz General Product Features & Inclusions Low Profile Low Inter winding Capacitance 5 KVA Primary /Secondary Insulation CRGO core UI cores Cold Rolled Grain Oriented steel cores Thermal fuse – Optional Class B / F Insulation Epoxy PCB Mounting arrangements

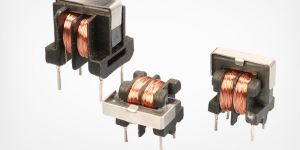

By utilizing the particular qualities of ferrite cores, ferrite transformers constitute a niche and essential class of transformers. Ferrite transformers are distinguished in the world of electronic devices and power supplies by these cores, which are made of a ceramic substance comprising iron oxide (Fe2O3) and other elements. These cores perform especially well in high-frequency applications. India has become a centre for the production of such ferrite transformers in the dynamic field of electronic manufacturing. The combination of superior manufacturing skills and technological know-how puts Indian companies at the forefront of ferrite transformer manufacturing in India that are up to par with international standards. Miracle Electronics, a significant participant in the Indian electronics manufacturing industry, is distinguished for its proficiency in the production of ferrite transformers. We have become a reputable name in the industry of ferrite transformer manufacturing in India, thanks to our dedication to accuracy, innovation, and customer satisfaction. Ferrite cores provide unique benefits due to their high electrical resistance and magnetic permeability. Because of these characteristics, ferrite is a perfect material for reducing electromagnetic interference (EMI) and focusing magnetic flux. Ferrite transformers are particularly useful in situations where minimizing noise and signal distortion is crucial, such as radio frequency (RF) circuits and switch-mode power supplies. When compared to transformers using conventional laminated iron cores, ferrite transformers’ small size and lightweight construction are two of their main selling points. Because of this feature, they are very well suited for uses where weight and space restrictions are important factors. These transformers are used in a variety of industries, including consumer electronics, power adapters, and telecommunications equipment, thanks to the minimal space they require. In high-frequency applications, ferrite transformers exhibit remarkable efficiency. Power converters, inverters, and electrical devices that operate at high frequencies are frequent applications for these transformers. The electrical system’s overall efficiency is increased by the ferrite core’s ability to transport energy efficiently and minimize losses. Miracle Electronics’ ferrite transformers are essential components of contemporary electronics as they offer small, effective solutions for high-frequency uses. They are the go-to option in a variety of electronic devices and power supplies when factors like size, weight, and electromagnetic interference are crucial because of their skillful use of ferrite cores, which guarantees the best magnetic qualities. Miracle Electronics’ ferrite transformer manufacturing in India is a prime example of all of the above benefits. Our ferrite transformers are designed to be compact, efficient in their energy transfer, and low in EMI. They are used in a variety of industries, including telecommunications, medical devices, industrial equipment, and more. Miracle Electronics’ manufacturing process combines state-of-the-art technology with exacting quality control standards. This guarantees that every ferrite transformer satisfies the stringent specifications of customers, enhancing the final electronic product’s performance and dependability. To sum up, ferrite transformers play a vital role in modern electronics by providing efficient and compact solutions for high-frequency applications. Their use of ferrite cores ensures optimal performance in terms of magnetic properties, making them a preferred choice in various electronic devices and power supplies where size, weight, and EMI considerations are crucial. The tale of ferrite transformer manufacturing in India is one of proficiency, ingenuity, and worldwide competitiveness. Ferrite transformers, which power today’s and tomorrow’s technologies, are essential components supplied by Indian manufacturers such as Miracle Electronics, as electronic devices continue to advance and seek more efficient solutions.

Application : Industrial Transformer, Power Supply Transformer

Power : 30 W

Use in : Solar Lighting

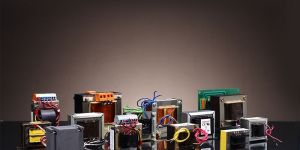

How safe your device would be if it were to purely run on the beast surge of Direct Current of electricity? Would you derive maximum utility from an Electrical appliance if it had to rely on the non-sustained charge of a couple of batteries? Regarded as one of the most influential electrical innovations of all time, E & I transformers have successfully almost reduced the safety concerns associated with alternating current to zero. Miracle’s E & I Transformers have the ability to do what is precisely required by them – lower the voltage exactly to a value that is required by the appliance and keep them running right and safe. Miracle Electronics’ E&I Transformers: Making the most of Electrical devices. Miracle Electronic’s E&I Transformers are extremely durable, come with superior wiring, varnishing, and connection terminators. Our E&I Transformers are indeed highly efficient and provide excellent regulation with minimal temperature rise. Product Variants available: Range of 1 , 10, 20 , 25 , 50 ,100, 500 VA ,1 KVA and 5 KVA 20 KVA Air cooled 120 /240 V 1 Phase, 3 Phase 50 Hz – 60 Hz General Product Features & Inclusions CRGO core / CRNGO Round cores Cold Rolled Grain Oriented / Non Grain oriented steel cores Self Lead with Teflon PVC Cables Sleeves Connectors Thermal fuse Thermal switch Class B / F / H Insulation L Clamp / C Clamp / BOX Type Epoxy PCB Mountab

Automatic Grade : Automatic

Application : Industrial Use

A DC choke, also known as a DC reactor or DC inductor, is an electrical component used to limit or control the flow of direct current (DC) in an electrical circuit. They are primarily used in various applications to achieve specific purposes, including: Filtering and Smoothing: DC chokes are commonly used in power supply circuits to filter out high-frequency noise and ripple voltage. By introducing a DC choke into the circuit, it can help to smooth the DC output, resulting in cleaner and more stable power for sensitive electronic equipment. Voltage Stabilization: In some cases, DC chokes are used to stabilize the voltage levels in a circuit. They can help reduce voltage spikes or surges, ensuring a steady and reliable power supply for sensitive equipment. Current Limitation: DC chokes can be used to limit the amount of current flowing through a circuit. This is useful in applications where you want to protect components from excessive current or control the speed of motors. Harmonic Mitigation: In AC/DC conversion systems, such as variable frequency drives (VFDs), DC chokes are used to reduce harmonics in the current waveform. Harmonics can cause overheating and other issues in electrical systems, so DC chokes are employed to mitigate these effects. Inrush Current Limiting: When electrical equipment is turned on, there can be a surge of current called inrush current. DC chokes can be used to limit this inrush current, protecting the equipment and preventing circuit breakers from tripping. DC Motor Control: DC chokes are used in DC motor control systems to smooth out the current supplied to the motor, reduce electromagnetic interference (EMI), and improve overall performance. Power Factor Correction: DC chokes can be used in power factor correction circuits to improve the power factor of electrical systems. This helps to make electrical systems more efficient and reduces reactive power. Energy Storage Systems: In some energy storage systems like supercapacitors, DC chokes are used to control the charging and discharging processes, preventing rapid current surges and ensuring safe and controlled energy storage. Power Electronics: In power electronic applications, DC chokes can be used in inverters, converters, and other devices to control and stabilize the flow of DC power, reducing electrical noise and improving the efficiency of these systems. Solar and Wind Power Systems: DC chokes are used in renewable energy systems to filter and stabilize the DC power generated by solar panels or wind turbines before it is fed into the grid or used in battery storage systems. In each of these applications, the specific use of a DC choke may vary, but its primary function is to regulate and control the flow of direct current to ensure the safe and efficient operation of electrical equipment and systems.

Automatic Grade : Automatic

Feature : Easy To Install

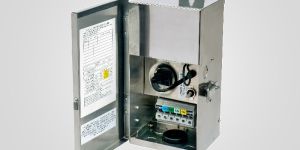

When it comes to outdoor lighting, a dependable and effective low voltage transformer is crucial. A high-quality transformer guarantees that your landscape lighting system runs smoothly, giving your outdoor spaces consistent and safe illumination. At Miracle Electronics, we offer some of the best landscape lighting transformer, tailored to your installation’s specific requirements. Our multi tap landscape lighting transformer options offer flexibility, enabling you to easily adjust the voltage to your specific lighting requirements, whether you’re illuminating garden paths, emphasizing landscape features, or creating a relaxing outdoor ambiance. Product details Every outdoor landscape transformer manufactured at Miracle Electronics is designed to last. Because they are weather-resistant and made of premium stainless steel (SS 304), they are ideal for challenging outdoor environments. This guarantees that year after year, your outdoor landscape transformer will continue to operate dependably. Our low voltage transformers landscape lighting are energy-efficient devices that assist cut down on electricity use without sacrificing seamless functioning. Our transformers’ adjustable multi-tap voltage settings make it simple to adapt them to your setup’s power needs. These transformers give you a variety of alternatives, whether you’re working with tiny garden lights or larger outdoor lighting systems. Additionally, each multi tap landscape lighting transformer has cutting-edge circuit protection to protect your lighting system from power spikes, surges, and electrical malfunctions. Our transformers are also made to be easy to install. Setup is easy and quick, thanks to detachable bottoms and accessible terminal blocks, so you can get your landscape lighting system up and running without any issues. Key features High-quality construction: Built to withstand outdoor conditions, our transformers are made from stainless steel (SS 304), offering robust protection against the elements. Optionally, we provide a powder-coated carbon steel enclosure for added durability. UL 1838 standard compliance: Manufactured in accordance with the UL 1838 standards, ensuring safe and dependable operation for landscape lighting applications. Multi-tap voltage options: With our multi-tap landscape lighting transformers, you can easily adjust the voltage settings to suit different lighting configurations. Our transformers come with multiple voltage options such as 12V, 13V, 14V, and 15V for standard models and up to 22V for more extensive installations. Circuit protection: Each transformer is equipped with a secondary circuit breaker for added safety and to prevent damage to your equipment from power surges. Photocell & timer compatibility: Optimize your lighting system with integrated photocell and timer functionality for automatic control based on ambient light or preset schedules. Technical specifications Our low voltage transformers landscape lighting are built to function dependably and effectively. They are compatible with a range of electrical systems as they operate at a frequency of 50/60 Hz. They are appropriate for both residential and commercial outdoor applications due to their strong thermal stability and insulation grades F and H. With a maximum regulation of 10%, the landscape lighting transformer minimizes power fluctuations that can impact your landscape lighting, and guarantees steady voltage levels. The transformer’s 2000V dielectric strength between the primary and secondary windings adds safety by enabling it to tolerate electrical spikes and surges without sacrificing component integrity. To further improve safety and dependability, the windings also have a 2000V dielectric strength between all of the windings and the lamination for one second. These characteristics guarantee that, even in demanding outdoor settings, our multi tap landscape lighting transformer will deliver enduring performance and protect your lighting investment from electrical damage. Miracle Electronics has everything you need if you’re searching for the best low voltage transformer for landscape lighting to run your outdoor lights. The design of our multi tap landscape lighting transformer prioritizes longevity, efficiency, and safety. Our outdoor landscape transformer is suitable for any landscape lighting project due to its superior protective features, adjustable voltage options, and compatibility with timer and photocell controllers.

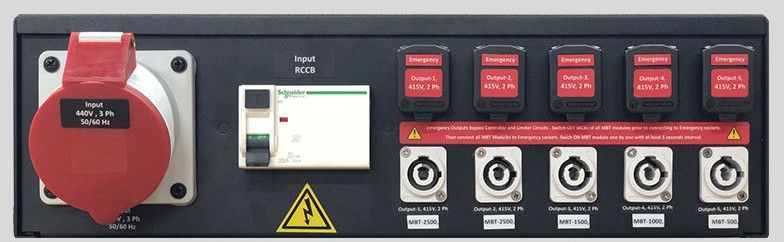

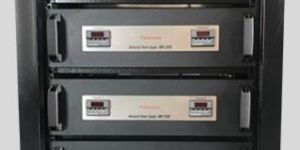

Product Variants available  MBT-500 MBT-1000 MBT-1500 MBT-2500 Advantages of Balanced Power Transformer Attenuated power line noise Earth loop elimination Reduction of radiated fields from power cords Reduced interference between equipments Elimination of reactive current in the earth wire Varnish Inpregnated transformers to ensure incrediably quite operation Case temperture at full constant load less than 350C

India’s automotive sector is expanding at a rate never seen before, thanks to the rising demand of cars, and quickening technical developments. One essential part that sits at the centre of any car’s electrical system is the wiring harness. Numerous specialized manufacturing firms in India are committed to creating these complex systems, which together make up the neural network of automobiles, Miracle Electronics being one of them – one of the most trusted car wiring harness manufacturing companies in India. As one of the most trusted automobile wiring harness manufacturing companies in India, Miracle Electronics is essential to the automotive supply chain. We are in charge of creating the wiring harnesses that serve as the central neurological system that links the several electronic parts, sensors, and systems found in automobiles. The smooth transfer of power and data is made possible by our harnesses, which greatly improve a vehicle’s overall performance and usefulness. Our knowledge extends beyond traditional production; we are the designers of the complex electrical systems that characterize contemporary automobiles, making us the most up-to-date automotive wire harness manufacturer in India today. Utilizing state-of-the-art technologies and upholding strict quality standards, we cater to the varied demands of the automobile industry. We have the ability to provide unique wiring solutions for a variety of vehicles like cars, commercial vehicles, and two-wheelers. We keep up with the latest technology advancements and market trends by closely collaborating with automotive OEMs (Original Equipment Manufacturers). As dedicated automobile wiring harness manufacturing companies in India, we directly contribute to the development of cutting-edge features and functionalities in automobiles by partnering with OEMs. With dedication to prompt delivery, cost-effectiveness, and quality, we prove to offer competitive auto wire harness manufacturing in India, actively supporting the “Make in India” campaign by creating jobs and increasing regional manufacturing capacities. In addition to bolstering the domestic automobile ecosystem, we thus also help create jobs for people with a range of abilities, from support workers to highly qualified technicians and engineers. In conclusion, India’s automotive industry depends heavily on the existence of automobile wiring harness manufacturing companies in India like us. We are vital to the success of the automotive industry as we supply parts that improve the safety, efficiency, and innovation of cars on roads in India and around the world. As one of the most trusted car wiring harness manufacturing companies in India, who has made a significant contribution to the changing automotive ecosystem, we play an increasingly important role as India’s automotive sector undergoes a revolutionary age. The automobile industry is broad, with a wide range of car models meeting distinct consumer demands. With diverse auto wire harness manufacturing in India, we are aware of this variation and focus on creating unique designs. We customize our wire harnesses to fit certain needs, whether it be for a small car, a sturdy commercial vehicle, or a quick two-wheeler. Our dedication to local manufacture, collaboration, engineering quality, and customization fits in perfectly with the industry’s changing requirements. Being a distinctive automotive wire harness manufacturer in India, we play an ever more crucial role, as automobiles become more complex and technologically advanced, driving the automotive revolution in India and elsewhere.

As an audio power conditioner manufacturer in India, Miracle Electronics offers creative ways to protect your priceless audio equipment from noise interference, electrical surges, and spikes. Whether you’re using DJ equipment, setting up a live event, or working in a recording studio, our audio power conditioner makes sure your audio systems stay safe and operate at their best. Regardless of the setting, we are dedicated to providing high-performance devices that support preserving the integrity and calibre of your audio experience. High-performance protection for your equipment Your audio equipment may sustain significant damage from electrical surges and spikes. Performance and longevity may be negatively impacted by an unexpected power spike or fluctuation that causes irreversible damage. With our audio power conditioners, which are made especially to withstand high power loads and shield your gadgets from hazardous electrical surges, Miracle Electronics provides the perfect solution, making us the ideal audio power conditioner manufacturer in India for your requirements. Our audio power conditioner provides a quieter and clearer audio experience by reducing noise interference with EMI/RFI filtration in addition to surge and spike prevention. Our power conditioner is small and strong, providing superior protection without sacrificing functionality. Our audio power conditioner protects your equipment from damaging electrical disturbances and keeps it operating consistently by providing surge/spike protection, noise attenuation, and overload prevention. Key features of Miracle Electronics audio power conditioner High performance: Ensures your equipment is protected from power surges, spikes, and interference, ensuring optimal audio quality Surge/spike protection: Safeguards against unexpected voltage surges that can cause permanent damage to your equipment EMI/RFI filtration: Filters out electromagnetic and radio-frequency interference to prevent noise in your audio output Overload protection: Prevents overloads with a resettable thermal circuit protector to maintain the safety and reliability of your audio systems Compact & cost-effective: Designed to provide robust protection in a small, cost-effective unit that doesn’t take up much space in your setup

Miracle Electronics specializes in building and manufacturing high-quality speaker and audio output transformers India. In order to ensure clear, distortion-free sound in a range of audio systems, our products are designed to deliver exceptional audio performance. Our transformers are made to satisfy the requirements of both small and large-scale audio applications, whether they are for public address systems, home theatres, or professional sound systems. Audio Output Transformers and Speaker Transformers in India Miracle Electronics specializes in building and manufacturing high-quality speaker and audio output transformers India. In order to ensure clear, distortion-free sound in a range of audio systems, our products are designed to deliver exceptional audio performance. Our transformers are made to satisfy the requirements of both small and large-scale audio applications, whether they are for public address systems, home theatres, or professional sound systems. Precision in sound with miracle’s audio line matching transformers Audio output transformer India are essential parts of audio systems as they balance the loudspeakers’ impedance with the amplifier’s or audio source’s output load. By avoiding signal loss or distortion, this impedance matching guarantees the best possible sound transmission. Whether in a residential or business setting, Miracle Electronics’ audio output transformers are made to preserve the integrity of the audio signal and guarantee that your system produces sound that is clear, sharp, and distortion-free. High-performance design and features To accommodate a variety of speakers, our audio output transformer India come with two output options: 4 Ohm and 8 Ohm. Our transformers can handle power ranging from 1W to 300W, making them appropriate for both small audio installations and larger, more demanding systems. Our transformers’ frequency response ranges from 40 Hz to 20,000 Hz (-2dB), guaranteeing accurate and balanced sound reproduction throughout the audio spectrum. Furthermore, our products are made to work reliably in settings with ambient temperatures as high as 40°C, providing durability and steady performance even under trying circumstances. Compliance and durability Our customers may feel secure knowing that all of our audio output transformer India adhere to international safety and quality requirements. They fulfil strict industry requirements for performance, safety, and environmental responsibility as they are CE and UL certified and RoHS compliant. These certifications show our dedication to offering goods that satisfy the highest international standards for reliability and quality in addition to performing exceptionally well. Applications of audio output transformers Commercial audio installations, professional audio equipment, and household audio systems are just a few of the many applications for our speaker transformers in India. No matter the size or setting, our transformers guarantee that sound quality is never sacrificed when creating a new sound system or improving an old one. They are especially good at preserving sound quality and avoiding problems that can impair an audio system’s performance, such as signal deterioration or impedance mismatch. Miracle Electronics provides unique solutions for specific applications in addition to our standard audio output transformers. We can collaborate with you to design and manufacture transformers that are specifically suited to your audio system’s requirements. Our group of engineers is constantly prepared to assist with custom designs that meet unique specifications, ensuring you get the most out of your audio system with our speaker transformers in India. Miracle Electronics: Enhancing your sound experience Miracle Electronics is a well-known manufacturer of audio output transformer and speaker transformers in India, known for our proficiency in manufacturing reliable, high-performance products. As part of our dedication to quality control, every transformer is put through a thorough testing process to guarantee that it satisfies the highest requirements for performance, safety, and dependability. Whether you’re setting up a professional audio system or creating a home theatre, we’re committed to offering items that improve the sound experience. At Miracle Electronics, we take great satisfaction in our customer-focused strategy. Our staff can assist you at all times, whether you need a custom solution or off-the-shelf audio output transformers. We guarantee that each solution satisfies your criteria while providing creativity and flexibility to fulfil your specific requirements. Get in touch with our customer support team to learn more about our audio output transformer India or to ask about custom solutions. Miracle Electronics offers the best speaker transformers in India and is your reliable partner for obtaining outstanding audio performance.
