Paper Band Filtration System Dealers in Bangalore

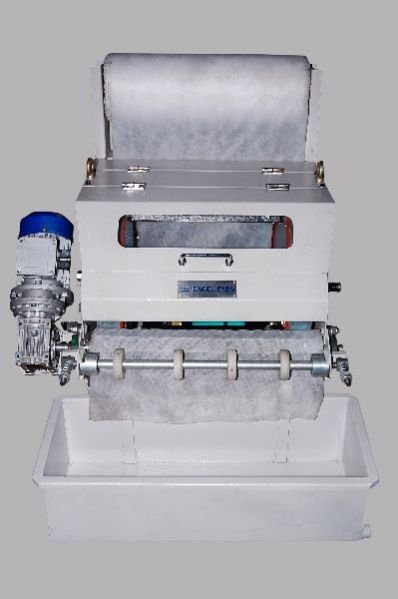

Our paper band filters are universally deployable felt filter units for the separation of hard substances from aqueous mediums. This System consists of two circular disc wheels duly mounted on central pipe connecting to hollow shaft. This keeps rolling on honey comb belt on the disc axis. Filter media is allowed to pass between disc and the honey comb belt with no relative motion. So perfect sealing is achieved for zero leakage and efficient Filtration. The dirty coolant is allowed to enter through the centre hollow shaft having multiple pouring slots inside for uniform distribution over the filtration bed. Good hydrostatic head results in building up of dirt Layer Cake with itself enhance the filtration efficiency. As soon as the dirty coolant increase it touches the sensor level, the level sensor signals geared motor to drive the Honey Comb Belt Allowing the new media to pass gradually inside for fresh filtration and at the same time to remove the used media along with the dirt cake. Filtered coolant comes out at the bottom in to the clean tank for pumping back to the machine.   Applications : Treatment of cleaning agents Recirculation of cooling lubricants Pre-treatment of waste water Separation of ferrite particles   MATERIAL OF CONSTRUCTION : C-steel, varnished RAL5010 or stainless steel 1.4301, unvarnished FLAME FELT : Material according to installation requirements SIZES : Sizes are available from 500mm Paper size to 1300mm Paper size.  Capacity : Up to 1200 LPM FILTRATION RATING : Filtration rating available from 15 microns to 60 microns

We are offering paper band filters. our paper band filters are universally deployable felt filter units for the separation of hard substances from aqueous mediums. This system consists of two circular disc wheels duly mounted on central pipe connecting to hollow shaft. This keeps rolling on honey comb belt on the disc axis. Filter media is allowed to pass between disc and the honey comb belt with no relative motion. So perfect sealing is achieved for zero leakage and efficient filtration. The dirty coolant is allowed to enter through the centre hollow shaft having multiple pouring slots inside for uniform distribution over the filtration bed. Good hydrostatic head results in building up of dirt layer cake with itself enhance the filtration efficiency. As soon as the dirty coolant increase it touches the sensor level, the level sensor signals geared motor to drive the honey comb belt allowing the new media to pass gradually inside for fresh filtration and at the same time to remove the used media along with the dirt cake. Filtered coolant comes out at the bottom in to the clean tank for pumping back to the machine. applications:  treatment of cleaning agents  recirculation of cooling lubricants  pre-treatment of waste water  separation of ferrite particles features : • drop centre paper band filter with automatic paper transport • filter felt laterally cleanly bound and sealed • optionally with magnet-barrel to separate ferrite particles • optionally with recirculation pump for the cleaned liquid • high efficient way of filtration guarantees fine finish, dimensional accuracy, increased tool life • keeps your machine clean & reduces costly machine down time for periodical cleaning • avoids bacterial growth and wastage of expensive coolants • where heavy stock removal increases the temperature of the coolant • this system of filtration due to sufficient exposure to air helps to control the same material of construction: c-steel, varnished ral5010 or stainless steel 1.4301, unvarnished flame felt: material according to installation requirements sizes: sizes are available from 500mm paper size to 1300mm paper size. flow rate: capacity: up to 1200 lpm filtration rating: filtration rating available from 15 microns to 60 microns

• Capacity: 40 LPM to 500 LPM

  Grinding   Lapping   Cold Rolling   Wire Drawing   Components Washing   Deep Hole Drilling   Gun Drilling

Paper Filter (Paper Band Filter) can filter contaminant by filter media. Filter media moves automatically when the contaminants accumulates and clog filter media. Clean filter media is replaced and the soiled filter media is moved to a sludge box. Filter both ferrous and non-ferrous contaminants. Filtration accurancy depends on filter media, choosing from 50, 30, or 15 micron. Paper Filter is not suitable for heavy duty because it will consume to much filter media. In order to reduce consumption of filter media, use magnetic separator as a previous filtration process. MAKE AN ENQUIRY

• RANGE: 5 to 40 microns

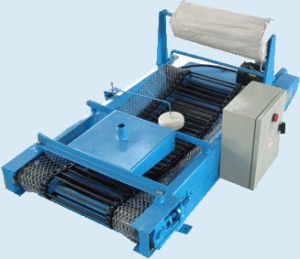

A non woven ( paper ) fabric band is used as the filter media for the separation of the chips from the coolant oil that is made to fall over it. The filter paper is stored as a roll on the unit and is pulled out by an endless chain belt on top of which the paper rests, after use of the front portion. This filter is extensively used on grinding honing machines for filtering cast iron aluminium fine steel particles from coolant, where coolant filtration is critical. Filtration levels of 5 to 40 microns are possible. There is no cleaning of filter needed except change of filter paper roll after a long roll of paper ends. When the paper roll ends, an optional “paper end” signal can be provided to fix a new roll.

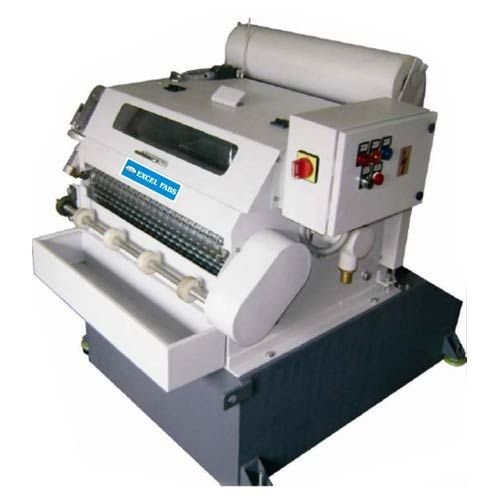

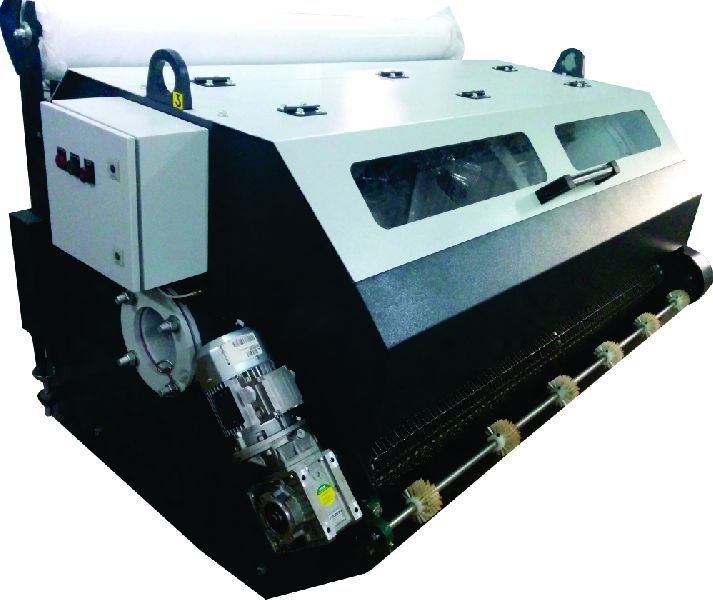

We offer Compact Paper Band Filter that is fabricated for coolant filtration of fluids. These Compact Paper Band Filters are mounted on rollers that provide easy shifting during the cleaning of tank. Compact Paper Band Filters provided by us do not have an electrical panel and the dirty filter paper is wounded on a mandrel that gives the easy disposal, wherein the dirt is collectively stored in a bin. These Compact Paper Band Filter work in a way that, firstly the working fluid with dirt is exposed to finned magnetic separator, and then the fluid is dropped in paper band trough. Furthermore, the float-actuated clutch forms motion from a common drive and indexes dirty filter paper. Features Forms deeper trough compared to a paper band filterThis requires lesser area for same fluid flowTotally automatic operation Ideal For Fine coolant filtration for honing, grinding, lapping and gun drilling of small machines

A treatment process for the separation of solid particles form a fluid solids, under the control of qualified operators, by passage of most of the fluid through a membrane that retains most of the solids on or within itself is called filtration. The membrane is called a filter medium, and the equipment assembly that holds the medium and provides space for the accumulated solids the medium and provides space for the accumulated solids is called a filter. The fluid may by gas or a liquid. The solid particles may be coarse or very fine. and their concentration in the suspension may be extremely low (a few parts per million ) or quit high (>50%).

Our Paper Band Filteris universally deployable felt filter unit for the separation of hard substances from aqueous mediums. The Paper Band Filter consists of two circular disc wheels duly mounted on central pipe connecting to hollow shaft. This keeps rolling on honey comb belt on the disc axis. Filter media is allowed to pass between disc and the honey comb belt with no relative motion. So perfect sealing is achieved for zero leakage and efficient filtration. The dirty coolant is allowed to enter through the centre hollow shaft having multiple pouring slots inside for uniform distribution over the filtration bed. Good hydrostatic head results in building up of dirt layer cake with itself, which enhances the filtration efficiency. As soon as the dirty coolant increase it touches the sensor level, the level sensor signals geared motor to drive the honey comb belt allowing the new media to pass gradually inside for fresh filtration and at the same time to remove the used media along with the dirt cake. Filtered coolant comes out at the bottom in to the clean tank for pumping back to the machine. Features : Drop centre paper band filter with automatic paper transport Filter felt laterally cleanly bound and sealed Optionally with magnet-barrel to separate ferrite particles Optionally with recirculation pump for the cleaned liquid High efficient way of filtration guarantees fine finish, dimensional accuracy, increased tool life Keeps your machine clean & reduces costly machine down time for periodical cleaning Avoids bacterial growth and wastage of expensive coolants Where heavy stock removal increases the temperature of the coolant This system of filtration due to sufficient exposure to air helps to control the same Technical Specifications : Material of construction : C-steel, varnished RAL5010 or stainless steel 1.4301, unvarnished Flame felt : Material according to installation requirements Sizes : Available from 500mm Paper size to 1300mm Paper size. Flow rate : capacity up to 1200 LPM Filtration rating : Filtration rating available from 15 microns to 60 microns

• CAPACITY: 5 to 40 microns

Here a non woven ( paper ) fabric band is used as the filter media for the separation of the chips from the coolant oil that is made to fall over it. The filter paper is stored as a roll on the unit and is pulled out by an endless chain belt on top of which the paper rests, after use of the front portion. This filter is extensively used on grinding honing machines for filtering cast iron aluminium fine steel particles from coolant, where coolant filtration is critical. Filtration levels of 5 to 40 microns are possible. There is no cleaning of filter needed except change of filter paper roll after a long roll of paper ends. When the paper roll ends, an optional “paper end” signal can be provided to fix a new roll.
