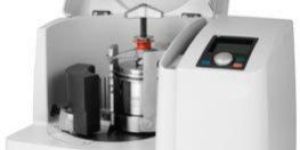

Planetary Ball Mill Dealers in Bangalore

The innovative Planetary Ball Mills meet and exceed all requirements for fast and reproducible grinding down to the nano range. They are used for the most demand- ing tasks, from routine sample processing to colloidal grinding and mechanical alloying. The grinding parameters are easily selected and stored with one single button. All planetary mills feature programmable starting time, power failure backup with storage of remaining grinding time and a built-in fan which cools the grinding jars during operation. The comfort grinding jars are dust-tight and unusually simple and safe to handle. Extreme speed, final fineness down to the nano range Reproducible results due to energy and speed control 1-button operation with graphics display 10 parameter combinations can be stored Smooth and stable operation Automatic grinding chamber ventilation Suitable for long-term trials and continuous use

• Type: Planetary Ball Mill
• Application: GRINDING
• Voltage: 230 V
• Condition: New
• Automatic Grade: Automatic
• Power: 1.5 KW (2 H. P)
• Driven Type: Electric, Mechanical
• Warranty: 1year
• Country of Origin: India
• Brand Name: ELOQUENT TECHNOLOGY
• After-Sales Service Provided: YES
• Motor Type: 2 HP
• Features: Analytical pure grinding, Reproducible Grinding/Homogenizing, Homogenizing is achieved continuous mixing during grinding process
• Brand Name: Eloquent Technology
• Usage/Application: Industrial
• Phase: Single Phase / Three Phase
• I Deal In: New Only
• Available Bowl Size: 100,250,500 ml
• Max Feed Size: 10 mm
• Frequency: 50Hz
• Final Finess: Less Than 1 um
• Sample Quatity: 10 ml- 900 ml
• Number of Working Stations: 4

• Weight: 86 kg
• Drive power: 750 W
• Power connection: 1-phase

• Warranty: 1 year
• Place of Origin: china

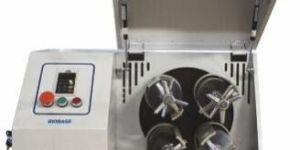

1. horizontal structure of grinding pots. 2. special gear with low noise. model bkwqm-2l capacity 2l volume of each capacity 50-500ml jar quantity 4 pcs motor power(kw) 0.75 running time range ( min) 1-9999 reciprocal running time (min) 1-999 adjustable speed revolution ( rpm) 35-335 rotation ( rpm) 70-670 noise ≤60±5 db transmission mode gear drive working mode 2 or 4 pots can be used each time max volume of load two-thirds of pot's volume feed size soft and crispy material
