Plug Gauges Dealers in Bangalore

1.Carbide Plug Gauges are normally supplied with GO in Carbide & NOGO in Stabilised Steel. 2.Both can be supplied in carbide as per requirement. 3.MGPL gauges have excellent wall thickness to give desired results. Range 0.5 to 8 mm Reversible type design 8 to 40 mm Taper shank design 40 to 60 mm Trilock Design 60 400 mm Plate tyhpe Plug Gauge 4.Extra lenght up to 100 mm can be supplied as per requirement.

• Certificate: ISO 9001

We offers an extensive inventory of standard thread gages, titanium nitride (tin) coated gages, plain cylindrical gages we offer and supply a wide range of threaded plug and ring gauges and caliper gauges. Our range includes metric coarse and fine, unc, unf, bsf, bsw, ba and bsp, together with taper gauges npt, nptf and bspt. Many of these gauges are readily available from our comprehensive stock. We also manufacture and supply plain plug and ring gauges, both parallel and taper to british and international standards.

• Material: Carbide
• Colour: Silver
• Hardness: 75 HRC
• Tensile Strength: 70 HRC
• Thickness: 6 mm
• Length: 24 mm

eliCoil Gauges are available as Go/No Go thread plug gauges for inspection of tapped holes prior to HeliCoil fitment. The gauges are available in 5H & 6H class for Metric sizes and 2B/3B for UNC/UNF sizes. Accuracy of the finished thread when the insert is installed is dependent upon the accuracy of the tapped hole. If the finished tapped hole gages satisfactorily, the installed insert will be within the thread tolerance. It is not necessary to gage the installed insert. After the insert is installed, the GO thread plug gage may not enter freely; however, the insert will always seat itself when the bolt or screw is installed and tightened. (Reference NASM33537).Gage handles and all gage nibs are marked with the extreme product limits for the particular size and class of fit. When gaging tapped holes which have been thoroughly cleaned or which have a protective finish applied, the gage should always be lubricated with light oil. HI nib may enter provided a definite drag results on or before 3rd turn from entry – Ref. FEDSTD-H28, Screw thread Standards for Federal Services.Working gages provide a guaranteed minimum wear allowance on the pitch diameter of the GO members of two ten thousandths of an inch (.0002). These gages are recommended for production in sizes 1/2 inch and smaller.Reference gages have pitch diameters on or close to minimum (basic size). They are essentially laboratory or master gages and should be used in case of conflict between two working gages. Conflict can occur when one of the gages has experienced more use and wear. The complete gage consists of the GO thread plug gage, the HI thread plug gage and the appropriately marked gage handle. Accuracy of the finished thread, when the insert is installed, is dependent upon the accuracy of the tapped hole.

Gauges are available in both 4H or 5H class of fits for metric threads, 2B or 3B for Unfied threads and close medium for Whitworth threads. The class of fit of finished assembly is dependent on the accuracy of the tapped hole. The result shows if the tapped hole for wire thread inserts gauges correctly. It is not possible to gauge the installed inserts because they are flexible. After the BaerCoil insert is installed, the Go Gauge occasionally does not enter freely. How ever the insert will always seat itself when the bolt is installed and tightened

We are offering thread plug gauges. all types of thread plug gauges

Thread Plug Gauges, Thread Plug Gauges, depth gauges, Plain Plug Gauge

• Brand Name: TGP

We manufacture thread gauges , snap gauges, plain plug gauges and precision screw rods we supply gauges with nabl certification.

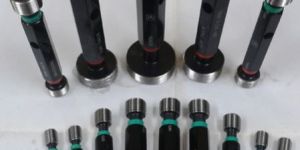

Thread Plug Gauges

pin gauge, Gauge

Thread Plug Gauges, Industrial Gauges, Plug Gauges, Snap Gauges

Thread Plug Gauges, Carbide Cutting Tools, Hss Cutting Tools

Emery Paper, polishing consumables, Drill Bits, Thread Gauges, Cage Nut

Carbide Measuring Pin Gauges, Carbide Width Gauges, Plug Gauge Box

Plug Gauge, thread pitch gauge

Taper Plug Gauge

Plain Plug Gauge, Thread Gauges, Thread Gauge, Setting Ring Gauges

circumference gauges, MAGNETIC and NON-MAGNETIC TOOLS
