Pragati Transmission Pvt.Ltd Peenya Industrial Area, Bangalore, Karnataka

Pragati Transmission designs and engineers an extensive range of worm gears, available in different ratios in accordance to individual requirements. Worm gears are usually compact and serve as efficient means of speed reducers in diverse industries. We produce Precision worms for Automatic Slack Adjusters employed in Commercial Vehicles. We use TANGENTIAL HOBBING method for cutting worms for high accuracy & surface finish. .5 Module to 3.5 Module.   Outer diameter from 10 mm to 150 mm”.   Face widths upto 200 mm”.   In single or multi starts.   In bronze (PB2S), Steel or as specified.   Standard and custom made as per specifications, drawing or sample.   Worm gears available on very tight delivery schedules. .

At Pragati Transmission, superior quality raw materials are procured in our manufacturing unit to manufacture starter motor shafts of premium quality. After coming out of the manufacturing unit, our motor shafts pass through vigorous tests and verifications for metals durability, product reliability, products performance, dimensional accuracy and precision. To withstand operational conditions, the microstructure, hardness and grain-flow patterns are inspected minutely. The manufacturing procedure of the starter motor shafts remove involutes form error, lead error fine surface texture. We employ sophisticated devices intended for checking the surface finish of the motor shafts that ensures noise-free operations and are comprehensively dependable. More Specialty Machine Tool Components

Spur gears are the simplest, and probably most common, type of gear. Their general form is a cylinder or disk. The teeth project radially, and with these "straight-cut gears", the leading edges of the teeth are aligned parallel to the axis of rotation. These gears can only mesh correctly if they are fitted to parallel axlesWe manufacture durable and highly efficient spur gears upto 150 mm OD & 3.5 module in steel. These are used in Gear Boxes used in Machine Tools, material handling equipment, Gear Pumps etc.They connect parallel shafts, have involute teeth that are parallel to the shaft and can have internal or external teeth. They cause no external thrust between gears. They are inexpensive to manufacture and give lower but satisfactory performance. They are used when shaft rotates in the same plane. The main features of spur gears are dedendum, addendum, flank, and fillet. Dedendum cylinder is a root from where teeth extend, it extends to the tip called the addendum circle.Gears for all applications can be produced to customers' design .

Skiving of Gears is a newly developed process for finishing Spur & Helical Gears after heat treatment. ( upto 60 HRC Hardness). Hobbed gear is recut using special Carbide Hob thereby removing heat treatment distortion.Skiving can be considered as superior alternative method of finishing gears by Shaving. As shaving operation is carried out before heat treatment, distortions caused during Heat Treatment can not be corrected. However, it is possible by Skiving.Skiving can also be cosidered as cost effective alternative to Gear Grinding. Also, it has certain advantages over gear grinding. Generally, during gear grinding, there is risk of burning marks on profile as well as miniature surface cracks which are very difficult to detect. Both these defects are eliminated in skiving.Also, lub oil retaining capacity of skived gears is better than ground gears.Greatest advantage of skiving is finishing of integral pinion on Armature shafts & Gears with shoulders where Gear Grinding is impossible. Skiving is the only solution to finish such components.We have demonstrated this new process to some of our customers who have now changed over from gear grinding to Skiving.DIN 6 Quality is achived on skived gears.

CNC GEAR TESTER I MAKE MAHR OKM GMBHMODEL GMX 400CAPACITY MAX WORKPIECE DIA-400MMMAX WORKPIECE LENGTH-700MMOTHER FEATURES -SOFTWARES FOR INSPECTION OF SPUR, HELICAL GEARS (EXTERNAL & INTERNAL)FOR LEAD, PROFILE & PITCH ERRORS.-EVALUATION ACCORDING TO DIN, AGMA & JIS.-INSPECTION OF SPIRAL BEVEL GEARS-INSPECTION OF FACE GEARS.. CNC GEAR TESTER IIMake Gleason M&M, USAModel Microtop CNCMax.Work Piece Dia 150mmMax.Work Piece Length 380mmModule 0.4 – 6.35Other Features#Softwares for inspection of spur, Helical Gears External & Internal) for lead, Profile & Pitch Errors#Inspection of Hobs#Inspection of Worm & Worm WheelAll our manufacturing equipments are the latest, state of the art CNC machines. Thereby, quality is ensured with stringent process control at every stage of manufacturing.To endorse the quality of Gears produced, we have M & M CNC Gear Inspection system. We inspect following parameters on First off , last off & periodically during production of all gears.# Radial Runout# Single flank pitch errors * Individual pitch error on both flanks * Successive pitch error on both flanks * Accumulative pitch error on both flanks.# Lead Error on both flanks# Involute (Profile) Error on both flanksAll these features are checked with respect to DIN, AGMA, EURO, ISO standards. We can also check gears with respect to customer specific requirement.We inspect Heat Treated Gears for Hardness & Case Depth.Hardness can be checked on following scales as per customer's Specifications.# ROCKWELL A, / B /C SCALE# VICKERS 5 -50 KGWe store inspection data for carring out SPC study & Analysis.We also offer contract gear inspection services.OUR COMPANY IS CERTIFIED FOR ISO 9001 STANDARD FROM TUV.

We are offering a huge product basket that the customers can obtain right from Karnataka(India). The offered lot is in complete compliance with the industry standards thus, high in demand.

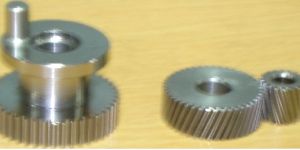

Pragati Transmission manufactures Gears for diferent types of power tools such as Marble Cutter, Drills, Impact Drills, Hammer Drills, Rotary Hammers, Circular Saw, Chop Saw etc.Gears suitable for Hitachi, Black & Decker, Electrex, KPT , Bosch , Dewalt can be manufactured in large quantityAlso, gears as per customer specification can also be manufactured

induction hardening machine AC servomotor driven Suitable for OD, ID & face hardening of bore & shaft Type components with single shot & scanning facility

Our hob sharpener machine is ideal for resharpening of carbide hobs. Make Kitai JapanModel SKAMax.Hob Dia 80mmMax.Hob Length 80mmWheel Speed Variable upto 5000 RPMOther Features Autocycle operation suitable for resharpening of carbide hobs We offer services for resharpening of carbide hobs

We are manufacturers and suppliers of Helical Gear. Helical Gears for industrial applications are manufactured to good quality standard & recommendations. We also manufacture gears as per customers' requirement and specifications and also provide designing facilities for gears.These Include Our Standard Range Helical Gears, Shaft Mounted Gear and Also Customised Gear Assemblies.We manufacture helical gears, which connect parallel shafts, but the involute teeth are cut at an angle to the axis of rotation. Two mating helical gears must have equal helix angle but opposite hand. They run smoother and more quietly. They have higher load capacity, are more expensive to manufacture and create axial thrust. Helical gears can be used to mesh two shafts that are parallel and can also be used in a crossed gear mesh connecting two perpendicular shafts. They have longer and strong teeth. They can carry heavy load because of the greater surface contact with the teeth. Their efficiency is also reduced because of longer surface contact. The gearing is quieter with less vibration.These are highly used in transmission because they are quieter even at higher speed and are durable. Used in power tools, Lubricating Oil Pumps, Engines, Transmissions and Geared Motor Drives.

cnc induction hardening machine is usually used for hardening the surface. make ema india. Ltd.model vhs 750 rf-cncfrequency generator eldec hf-solid statecnc system fanuc oi-tcpower 100 kwfrequency 150 – 350 khzcomponent length max – 750mmcomponent dia max – 250mmwork piece rotation ac servomotor drivenother features ac servomotor driven   suitable for od, id & face hardening of bore & shaft   type components with single shot & scanning facility

Frequency : 150 – 350 KHz

Power : 100 KW

CNC GEAR TESTER I MAKE MAHR OKM GMBH MODEL GMX 400 CAPACITY MAX WORKPIECE DIA-400MM MAX WORKPIECE LENGTH-700MM OTHER FEATURES -SOFTWARES FOR INSPECTION OF SPUR, HELICAL GEARS (EXTERNAL & INTERNAL)FOR LEAD, PROFILE & PITCH ERRORS. -EVALUATION ACCORDING TO DIN, AGMA & JIS. -INSPECTION OF SPIRAL BEVEL GEARS -INSPECTION OF FACE GEARS.. Other Features #Softwares for inspection of spur, Helical Gears External & Internal) for lead, Profile & Pitch Errors #Inspection of Hobs #Inspection of Worm & Worm Wheel

we use advance technology oriented cnc gear hobbing machines in our manufacturing unit. Our cnc hobbing machines are reliable, flexible and provide automatic loading with magazine for shaft and bore type components. make gleason works, usamodel high speed, 125 gh, 6axes-cncwork piece diameter min-08mm, max-150mmwork piece length max-300mmmodule max-3.2 mmhob spindle speed upto3000rpmmax hob dia x length 115 x 225mmmin no. Of teeth 4max hob setting angle +/-45 degreeshob arbor sizes (available) 12.7, 13, 16, 22mmhobs (available) modules -0.75, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5,3.0hob specs carbide, coated, aa classgear quality din 6other features quick change hydraulically actuated work piece & hob arbor system   autoloader with magazine for shaft & bore type components   skiving mechanism for finishing hardened components   tangential hobbing of worm wheels

We have installed # Reishauer CNC Gear Grinder- Capacity -upto 400 Dia Capability- DIN 4 /AGMA 12 CLASSThis machine is suitable for producing gears for Aerospace, compressors, transmission, engine gears .

We use CNC Angular Wheel Head Grinder for Finish grinding of Diameters & shoulders on Shaft type gears. We focus on dimensional & geometrical accuracies such as roundness, squareness, flatness & surface finish. Our machine is ideally suited for grinding of Pump gears where Diameter & gear width is controlled precisely using in process gauges.Make Micromatic GrindingModel eGrind 200 CNCSwing Diameter 200mmAdmit Between Centers 250mmWheel Speed 45M/sWheel Dia x Length 500 x 50mmSpecial Features Angular wheel head to suit shoulder grinding   In process gauging for precise control of outside diameters   Lateral flagging device for precise control of linear dimensions
