Pro Green Digitals Vidyaranyapura, Bangalore, Karnataka

We offer microcontroller based display boards of 4 inch size 7 segment 4 rows with 6 digits in each row. This display boards can be utilized as production controller or monitor and also to display real time data’s from any source with analogue or digital output or from a system from where preset data’s can be sent manually or automatically through rs232 or rs485 communication software. features include : • display : 7 segment led display of 4 inch size. • no. Of digits : 6 in each row. • no. Of rows : 4 • settings : through wired remote or from computer key pad. • presets : counter, tact time, intervals, shift start time, shift stop time etc. • inputs : analogue or digital. ( 0 to 20ma, 0 to 10mv, 24 vdc, sensor, manual entry from the system through pre described soft ware etc.) • output : relay contact ( no-c-nc ) / rs232 / rs485 • interface communication: rs 485/rs 232. • reset : external / auto based on preset time. • supply voltage : 230 vac • display color : red or green optional. other related products we offer are : . • preset production counters. • preset length counters. • real time clocks. • length counters with machine down time indicators with 2 sensor inputs. • rpm indicators. • stop watch. • temperature indicators and controllers. • humidity indicators. • real time clocks with up to 7 on / off time interval settings. double sided units are also available

Type : 4 inch 7 segment 4 rows with 6 digits.

Brand Name : ProgreenZ

Temperature and humidity indicator. supply voltage : 230 vac display : 4 inch size 7 segment led display. no. Of digits : 3 in each row. no. Of rows : 2 display color : red. side : single side / double side. input : temperature & humidity sensor. temperature measuring range is -40 degree to 80 degree. humidity measuring range is 0~100%rh. Accurate to decimal point.

Type : Temperature and humidity displays

Brand Name : Progreen

Color : Red / Green.

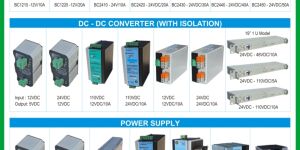

We are offering switched mode power supplies smps. 5w to 5000w single output to multi-output solutions for high quality ac/dc and dc industrial power conversion products with din rail mounting. custom build to any voltage / current available in din rail mounting and in 19 inch rack mounting.

We Offer Regulated Fixed and Variable Dc Power Supplys for Industrial Application. Power Supplies are Available in Various Inputs & Output Configurations. Standard & Custom Power Supplies. Our Highly Reliable Standard Dc Linear Power Supplies Comes with 12vdc & 24vdc Outputs with a Current Rating of Up to 100 Amps.features Include Low Output Ripple, Single & Multiple Outputs, Over Load and Short Circuit Protection. Displays Ammeter and Voltmeter. Customized Power Supplies for Any Rating Available On Your Requirement

Country of Origin : India

Type : Dc Power Supply

Certification : ISI Certified

Application : Computer Use

Color : Green

Feature : Easy To Install, Proper Working

INDUCTIVE PROXIMITY SENSORS Sensors which we offers are : DC ULTRA-MINI INDUCTIVE PROXIMITY SENSORS DC INDUCTIVE PROXIMITY SENSORS AC INDUCTIVE PROXIMITY SENSORS AC/DC INDUCTIVE PROXIMITY SENSORS NAMUR INDUCTIVE PROXIMITY SENSORS DC METAL FACE INDUCTIVE PROXIMITY SENSORS AC OR AC/DC METAL FACE INDUCTIVE PROXIMITY SENSORS DC INDUCTIVE SENSORS WELD FIELD IMMUNE AC OR AC/DC INDUCTIVE SENSORS WELD FIELD IMMUNE ANALOG INDUCTIVE PROXIMITY SENSORS MIN Q SERIES INDUCTIVE PROXIMITY SENSORS DC HIGH TEMPERATURE INDUCTIVE PROXIMITY SENSORS DC HIGH PRESSURE RATED INDUCTIVE PROXIMITY SENSORS INDUCTIVE PROXIMITY RING SENSORS CAPACITIVE PROXIMITY SENSORS DC CAPACITIVE PROXIMITY SENSORS AC OR AC/DC CAPACITIVE PROXIMITY SENSORS PHOTOELECTRIC SENSORS FM8 SERIES PHOTOELECTRIC SENSORS FM12 SERIES PHOTOELECTRIC SENSORS FM18 SERIES PHOTOELECTRIC SENSORS FM30 SERIES PHOTOELECTRIC SENSORS P31 SERIES PHOTOELECTRIC SENSORS FP50 SERIES PHOTOELECTRIC SENSORS FP80 SERIES PHOTOELECTRIC SENSORS FA SERIES AREA SENSORS. Visit our website for full details www.progreenz.in

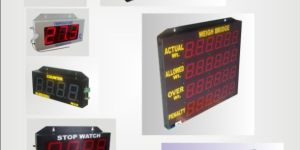

Production display boards : our production display unit comes with 1, 2, 3 and 4 rows of 4 inch size 7 segment led displays with 1 / 2 / 3 / 4 / 5 / 6 digits in each row. these units are unique with its attractive features. The processor used ensures accuracy, consistency, durability, flexibility to modify its features as per specific customer requirements. features include : • display : 7 segment led display of 4 inch size. • no. Of digits : 1 / 2 / 3 / 4 / 5 / 6 in each row. • mounting : wall mount, table type or hang. • settings : through wired remote or from computer key pad. • presets : counter, tact time, intervals, shift start time, shift stop time etc. • inputs : potential free contact / p-type sensors / 24 vdc / 0 to 10mv, 0 to 20ma. • output : relay contact ( no-c-nc ) • communication interface: rs 485/rs 232. • displays : data’s from analogue or digital inputs. • reset : external / auto, based on preset time. • supply voltage : 230 vac • display color : red or green optional. other related products we offer are : . • preset production counters / indicators • preset timers / indicators • preset length counters / mpm meters • real time clocks. • length counters with machine down time indicators with 2 sensor inputs. • rpm indicators. • stop watch. • temperature indicators and controllers. • humidity indicators. • real time clocks with up to 7 on / off time interval settings. double sided units available

We offer process controller, process monitor. Number of inputs : the number of inputs is the total number of signals sent to the controller. This number includes process variable signals such as temperature, pressure, level, speed, etc., and s tatus inputs such as on/off. number of control outputs : the number of control outputs is the total number of outputs used to control, compensate or correct the process. This number relay outputs as well as switches and rs232 serial pot .which activate or deactivate control devices. controller inputs : dc voltage input: controllers accept analog dc voltage inputs such as ±5 v, 0 -10 v. currentloop(transmitter) input: current loop (transmitter) inputs include analog inputs such as 0 - 20 ma and 4 - 20 ma. Or any other current-loop signal from a transmitter. resistive / potentiometer input : controllers accept analog inputs from a resistor or potentiometer which monitors the process variable(s). frequency input: a pulse or frequency input is used to measure and indicate a process variable for feedback to the controller. switch / relay input: controllers accept a discrete, on/off voltage signal from a sensor or switch which monitors the process. control signal output: switch / relay output / rs232: the output is a switch or relay that can be "on" or "off". general applications : control, monitor or record temperature, pressure, flow, production, totalizing and storing based on preset timing or real time clock through rs232 communication pot to save energy, time and man power to always increase the production capacity with lesser wastage in more ways.

We are offering pir motion sensors for lights. the pir sensor switch can detect the infrared rays released by human body. The light or any other electrical appliance can be activated automatically by the active presence of a human body within the detection range / coverage area & when there is no presence the light will be deactivated automatically. pir motion sensor for automatic light control: pir motion sensor is a fully automatic indoor and outdoor security / courtesy light controller capable of controlling up to 2000w incandescent or 30w x 20 fluorescent of lighting in day as well as at night. The built–in passive infrared (pir) motion sensor turns on the connected lighting system when it detects motion in its coverage area. During the day, the built in photocell sensor saves electricity by deactivating the lights. You can reduce your electricity bills by using pir motion sensors & occupancy sensors. an adjustable time knob lets you select how long the light stays on after activation & thus stops the wastage of electricity. In the evening or at night, you can also manage at what time the lights should become on by the lux adjustment knob provided in the sensor.

We are offering pir motion sensor for lights. As the pir sensor switch can detect the infrared rays released by human body. The light or any other electrical appliance can be activated automatically by the active presence of a human body within the detection range coverage area & when there is no presence the light will be deactivated automatically. specifications: wire: bipolar operating voltage: 100v~265vac (50~60hz) power: 800w ( max ) delay shutdown time: 16~350 sec. ± 30% ( adjustable ） induction angle:140°coning angle lux setting: 5lux ~ 500lux ± 20% ( adjustable ） detecting distance: 7~10 m size: 65mm(h) x 55mm(w) x 30mm(d)

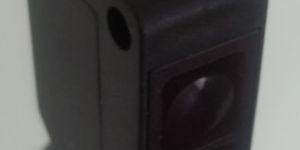

Available as diffused, retro reflective and through beam type. Supply Voltage : 10 to 30 VDC / 24 to 240 VAC Cable and connector type versions. Sensing Distance : Diffused type : 100, 150m, 200, 400 and 500mm. Retro reflective : 3m / 5m max. Through beam : 5m / 15m Output DC : PNP-NPN ( NO+NC ) Output AC : NO/NC Emission : Infra red. Sensitivity Adjustment : Trimmer 1 turn. Housing material : PBC plastic or Nickel plated brass.

Photoelectric sensors: Nominal Voltage : 10-30VDC Residual Ripple :

We are offering passive infrared sensors for lights. Working principle: - • the pir sensor senses the motion of a human body by the change in surrounding ambient temperature when a human body passes across. • then it turns on the lighting load to which it is connected. • the lighting load will remain on until it senses motion. • once the motion is seized it switches off the lighting load. • during the night, the lux adjustment knob allows you to adjust the luminosity based on which the lighting load will either switch on off automatically. Applications: - • common toilets, for lights & exhaust fans • common staircase entrance basements • parking areas garden lights • living room, malls, atms • changing rooms in shops • offices conference room corridors & many more! advantages: - • pir motion sensors will itself recover its cost by reducing your electricity bills and will further save your electricity cost for the future. • very easy installation and can be installed by in – house technician itself. • no separate wiring is required hence no additional installation cost. • no modification is required and complies with current aesthetics. • pay back within ten months according to residential meter and six months according to commercial meter. Specifications: wire: bipolar operating voltage: 100v~265vac (50~60hz) power: 500w ( max ) delay shutdown time: 16~350 sec. ± 30% ( adjustable ） induction angle: 360°coning angle lux setting: 5lux ~ 500lux ± 20% ( adjustable ） detecting distance: 5~7 meters. Size: size: 89*36mm

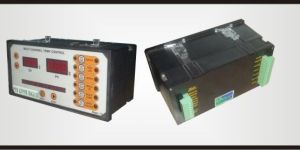

Multi-channel temperature controller. size : 192 x 96mm. Cut out size : 188 x 92mm. supply voltage : 230 vac +/-10% 50hz. No. Of inputs : 6 individual. types : j /k / pt-100. no. Outputs : 6 relay contacts. output rating : spdt relay out put 5amps at 230vac. display : 2 individual . Set value : 0.39 inch display. Process value : 0.56 inch display. Setting : from front panel . Display selection : scroll mode / individual mode. Control : activation / deactivation of individual controller from the on/off switches provided on the front panel.

We offer solar based as well as ac supply led lighting systems of wide range.

Brand Name : Progreen

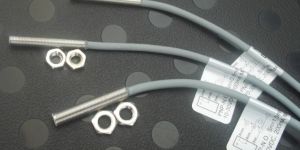

Ultra-mini inductive proximity sensors 1. Cylindrical diameter is from phi3, phi4 and m5. Max and min lengths available; 2. Rectangle size is 5*5mm; 3. Switching distance (sn) is from 0.6mm to 1.5mm; φ3 sn: 0.6mm, 0.8mm, 1mm; φ4 sn: 0.8mm, 1mm, 1.5mm; m4 sn: 0.6mm, 0.8mm, 1mm; m5 sn: 0.8mm, 1mm, 1.5mm; q5 sn: 0.8mm, 1mm, 1.5mm; 4. Operating voltage: 10-30vdc; 5. Short-circuit and reverse polarity protection; 6. Cable and pigtail type optional. 7. Standard: iec60947-5-2; 8. Protection degree: ip67 (iec60529)

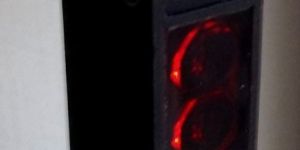

we are offering focused reflection sensor. sensing distance : 3cm / 5cm operating voltage : 12……..24vdc light source : led ( 660nm ) max. load current : 100ma voltage drop :

Brand Name : PROGEEN

GDJ-511, GDJ-411, GDJ-211, GDJ-311 * NPN, PNP output or analot output * Light source: green, green + blue, red or white * According to the principle of photo emission and receiving, color mark sensor sends out modulated ray to the target object, and receives the ray reflected from the object. The color of object can be detected or the object can be identified existed or not by the intensity of the reflected ray. * High capability to reject the radial and the electromagnetic interferes. * Housing: Precision die casting metal housing, well heat elimination, electromagnetic shield and compatness. * With light -on and dark-on function, with output LED indicator. * Sensitivity adjustable by point meter, single loop or multi loops optinal to user. * Against polarity reversal, short circuit and overload protection. * Adopt SMT automatic techinique. * Capable of detecting transparent objects. * Application: Color mark sensor is used in the control systems of the soft packaging hine, the printing machine, food stuff machine, textile and paper-making machine as well as other cuircuits and devices. It can also identify the color mark printed on background color.
