Protective Relays Dealers in Bangalore

• Frequency: 50 to 60 Hz
• Voltage: 440 V
• Power Source: Electric
• Current: 24000 A
• Brand: Siemens

Features Suitable for 1A / 5A relay rating Choice of 6 IDMT curve and definite time History of 6 latest faults along with settings Self supervision facility Breaker status monitoring In-built breaker trip circuit supervision Disturbance records (DR) in IEEE COMTRADE format – Optional Event Records (ER) – Optional Programmable digital inputs and outputs MODBUS open protocol over RS – 485 port MODBUS protocol over RS – 232 port Draw out facility with inbuilt CT shorting Principle of Operation: JNC 268 N / JNC 268 A / JNC 268 L : The relay measures the line current from each of the line CTs and if the current exceeds the set threshold, then relay extends a trip signal after an operating time. The relay's “operating time” is determined by selecting “definite time” or one of the six “inverse time” characteristics. A sensitive earth fault or restricted earth fault (suitable for high impedence REF scheme) is provided in the relay.The input to sensitive earth fault protection can be connected in two ways. First one the residual current derived from three phase current transformers, and second is low output core balance current transformer can be connected. The input to restricted earth fault protection will be derived from neutral CT output with external stabilizing resistor.The relay has facility to monitor circuit breaker operation through 52a or 52b aux contacts of circuit breaker. 4 programmable digital inputs (PDI) and 4 programmable digital outputs are provided and can be used to synthesize logic along with some internal digital inputs i.e.(phase OC pickup, Earth fault pickup, Phase high set trip, Earth fault OC trip, Earth fault high set trip,etc). Together, this feature can be effectively used to reduce the number of aux. tripping relays in a protection scheme. The trip relay (B1-B2) can be operated either when any one / more of the protection scheme provided inside JNC 268 x initiates the relay or any/more of the PDI initiates the same relay. Each PDO has independent timer. Each PDI has programmable mask facility.The relay in-built breaker trip circuit supervision and dedicated alarm contact to indicate trip circuit failure. JNC 268 A : Provides Multi shot auto re-closer facilitates automation of breaker operation. Auto re-closer can be programmed to provide a maximum of five shots. “Dead time” starts when a trip signal is provided due to the occurrence of a fault involving L-L or L-G or L-L-G or L-L-L or L-L-L-G. After an elapse of a time interval equal to “dead time”, closing command will be extended. The “reclaim time” timer starts at the instant when the “dead time” timer expires. If after extending the “breaker close” signal an over current fault was detected before the “reclaim time” timer reached its terminal count, then the relay understands that the fault in the system is still persisting and the over current relay will issue a trip signal. The relay tries to close the breaker for a maximum of the programmed number of shots before it choses to lockout. The relay can be configured for independent trip sequence as IDMT or Def. time JNC 268 L : The relay monitors line current even after the trip condition to ensure breaker operation. Even if small current exist in the line the relay sends trip command to adjacent or backup breaker after definite operating time. The current threshold and definite time required to detect breaker failure are programmable.

• Brand Name: PROK DVS
• Lead Time: 10days
• Model Number: PDMTR
• Application: Protective
• Supply Ability: 1500 Piece/Pieces per Month
• Port: Chennai
• Product name: Master Trip Relay
• Protect Feature: Sealed
• Place of Origin: Karnataka, India

Industrial earth leakage protection, protection relays, test and measuring equipment for substations, filtering reactors, etc.

MJT 314B (Self powered numerical over current protection) & MJT 314C (Self powered with series trip numerical over current protection) relay combines the power and flexibility of microprocessor technology with decades of experience in the field of protection. A wide range of protection elements and characteristics are supplemented by advance features such as metering, fault recorder and communication. MJT 314 (B&C) offers inverse time and definite time over current protection for phase fault and earth fault with communication Application Distribution Feeders Transmission lines AC machines Capacitor banks Transformers Used in Compact MV Switch boards with CB Where Auxiliary Voltage is not available or guaranteed

• Product Family: Application
•  : 670/650 series
• Flexibility, performance and ease of use from ready-to-use solution for generation, transmission and sub-transmission:
• 630 series: Flexibility and performance for demanding utility distribution and industrial applications
•  : 615 series
• Compact and powerful solution for utility distribution and industrial applications:
• 610 series: Dedicated protection for utility distribution and industrial applications
•  : 605 series

The Relion® product family offers widest range of products for protection, control, measurement and supervision for power systems. To ensure interoperable and future-proof solutions, Relion® products have been designed to implement the core values of IEC 61850 stanard.

We offer numerical under over voltage protection relay. Mvt 181 is a numerical true rms single pole relay consists of two elements. Each element can be selected for under voltage function or over voltage function or switched off. The characteristics setting, voltage setting and time multiplier setting are independently settable for each element and the voltage setting is in terms of voltage. Hence this relay can be used as a two stage under voltage or two stage over voltage protection. multiple characteristics: there are four operating characteristics for over voltage function and two operating characteristics for under voltage function

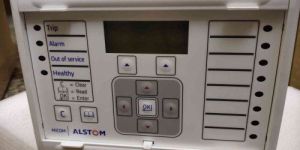

• Relay Type: Transformer protection
• Voltage: 24/110/230
• Number of Poles: 3
• For Overloading: Yes
• Frequency: 50Hz
• Country of Origin: Made in India
• Model Name/Number: MICOM P642
• Brand: Schneider
• Current: 1/5A
• Usage/Application: Transformer protection
• Display: Digital
• Overload: Yes

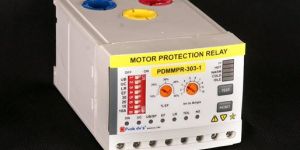

Prok dv’s make Microcontroller Based Motor Protection Relay continuously monitoring Real Time Motor Current of all the Three Phases. When the Motor Current exceeds the set value Im, the relay issues a trip command after the calculated time elapse (Based on selection of trip Class). The relay visually indicating the fault trip status by means of LED’s.Two Set of potential free output changeover contact is provided in the relay C& NC and C& NO for trip circuit .The relay continuously monitors the Currents and using this data it builds Thermal replica of the Motor and monitoring the Thermal status of the Motor. This information is used to protect the Motor against Thermal over Loading. Specification Over Load Current Setting Range 1.0Amps – 96.0Amps in 4 ranges as explained in SL.13 Trip Time Characteristics Class -10A, 10, 20 &30 as per IEC 947-4-1(Default: Trip class 20) if none of the trip class selected by means of Dip switch Thermal overload pick up above 105 % of Im indication through blinking of TOL led Provided the Thermal Replica for Motor over load Thermal overload pick up status I> indicated through visual LED indication

Serving the markets of Bengaluru(India) and nearby area, we offer top-notch quality range. You can make payments through online methods such as net banking, PayPal, or offline methods such as draft depositing, cash on delivery etc. Our policies regarding payment are swift and transparent.

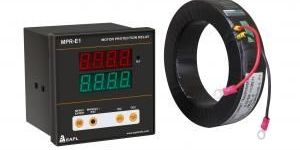

We are offering micro controller based motor protection relay. (panel flush mounting.) parameters: phase- phase missing (failure), phase reversal (sequence) and phase unbalance, voltage – under voltage, over voltage based on 415v ac, current – under current, over current based on nominal current set, under frequency, over frequency . earth leakage fault. relay can be programmed for relay to get energized during healthy or unhealthy condition. instant values of parameter displayed during healthy status. Reason for tripping displayed during unhealthy status. unhealthy status will be displayed till the user acknowledges in manual mode. auto manual program lock facility available. bypass of unwanted parameter can be programmed. ct primary can be programmed up to 2500 in steps of 5. Ct secondary will be factory set for 5. mpr-e1– panel flush mounting trip delay time programmable for each parameter separately.

Features Software based design Block on Start feature provides very accurate overload protection Definite time over load protection Locked rotor current protection Single phasing protection Wide setting ranges Draw -out case

We are offering motor protection relay. Backed by experienced and expert team we are offering range of motor protection relay

• Color: Black or Customized
• Voltage (V): 110, 220, 380,500
• Size (mm): 27.5*21.5*35, 58*45*65

Differential Protection Relay measures the line current of each phase from each of the winding's of the transformer. The relay is used for protection of power transformer against hazardous internal faults. It provides stability against magnetic inrush conditions, Loadthrough fault stability is achieved through bias setting provided in the relay. It operates only for internal faults.

• Voltage: 230V, 415V
• Type: Industrial Relay
• Current: as per your requirement
• Country of Origin: Made in India
• Brand: ABB, CONNECTWELL
• Relay Type: Overload Relay
• Model Name/Number: as per your requirement
• Usage/Application: industrial
• Frequency: 50hz
• Mounting: as per your requirement
