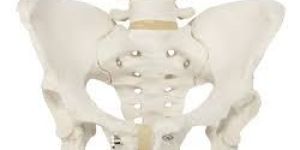

Calculated FE strain patterns were in good agreement with those measured by the DIC technique. Therefore, the FE model was a valid predictor of the experimentally measured strain in the composite pelvis model, confirming its suitability for further computational investigations.

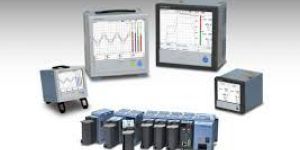

6 Channel System – Four Strain Gage Inputs and Two Amplified Transducers Inputs. Accepts Quarter Bridge, Half Bridge and Full Bridge Strain Gage Configurations. System has built in circuitry for 120 Ohms, 350 Ohms and 1000 Ohms, Quarter and Half Bridge Strain Gage Configurations. Simultaneous Display of all 6 Channels in Microstrain or user defined Engineering Units. On Line Graphical Display of any One Channel. Peak Hold – Max Min for all Channels. Selectable Display of Channels.
