We offer high quality slide clamp to the clients. Our slide clamping device has an arm which slides forward and then swings on to the clamp. The arm of our slide clamp slides by 26mm and swings about 3-4 mm to clamp the relevant material. It generates a clamping force of about 17 kn at 200 bar. During de-clamping the arm gets lifted and it retracts. featurescompact design with high clamping forceideally suited where arm hinders handling of work piecespecificationsmax. Operating pressure : 200 bar specifications model nosc11011holding force (@ 200 bar)17 kncyl. Stroke25 mmcylinder capacity20 cm3arm stroke (s)26 mm (approx)

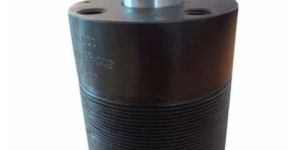

We are offering acting manifold threaded cylinder. Our single acting manifold threaded cylinder can be used in various applications. Ideal for use in fixture positioning, clamping and ejecting the work piece, our cylinder has special gasket for self sealing. We include provide gasket at the time of delivery. features : threaded cylinder with internal threaded piston rod or spherical piston rod endcan be lined up to close dimensionsmin./ max. Operating pressure : 5 / 250 bar specifications model no.a11201 a11202a11203 a11204a11205 a11206force kn @150bar2.94.67.2 @ 250 bar4.97.612piston / rod ø d/d16 / 1020/1225/16piston area sq. Cm23.14.9stroke s1 ± 0.55812stroke s2 ± 0.581016oil volume @ s1 cc1.02.55.9oil volume @ s2 cc1.63.17.8m x pitchm24x1.5m30x1.5m36x1.5t x pitch x deepm5x0.8x12m6x1x14m8x1.25x17l ± 0.5475563l1242833l2151820l3 ± 0.5596170l4363540l5354550l6172123ød1293642a/f1273641a/f27813torque tt nm110120130

We are offering single acting body manifold threaded cylinder. Our single acting body manifold threaded cylinder can be used in various applications. Our cylinders are ideal for use in fixture positioning, clamping and ejecting the work piece. Special gasket of our single acting body manifold threaded cylinder provides self sealing. features : threaded cylinder with internal threaded piston rod or spherical piston rod endcan be lined up to close dimensionsmin./ max. Operating pressure : 5 / 250 bar specifications model no.a12201 a12202a12203 a12204a12205 a12206force kn @150bar@ 250 bar2.94.97.21211.819.6ram ød162532ram area sq.cm2.04.98.0stroke s ± 0.5121620m x pitchm26x1.5m38x1.5m48x1.5t x pitch x deepm6x1x6m8x1.25x8m12x1.75x12l ± 0.5586998l1485582l2101215l381112l4101416l5 ± 0.5505784l6 min/max20/3028/3542/58l7 min345262l8 max6910r3570100a/f1274150a/f2131924torque tt nm2.97.211.8

We offer high quality Pneumatic Air Cylinder. Our unit is an integrated air hydraulic cylinder together within an oil reservoir. The cylinder gives rapid approach of the piston rod towards work. Our hydraulic cylinder acts as an intensifier raising the hydraulic pressure on the piston to generate a large force and the piston rod will have a stroke of 24 mm under hydraulic pressure at any point of stroke of air cylinder. The intensification point is manually selected and pressurized by a solenoid direction control valve.

Threaded body allows exact positioning and easy installation. DESCRIPTION:These Cylinders adds Hydraulic clamping power within the tightest areas or convert manual clamping fixtures to power actuated. Cylinders may be threaded directly into tapped holes of the fixture. Threaded bodies allow easy adjustment within the fixture to accommodate parts of varying sizes. Ring nuts can also be used for mounting threaded cylinders in through holes.FEATURES: Min./ Max. Operating Pressure 10/250 bar. All models have spring return action. Oil port is provided at the bottom to conserve space within the fixture. Cylinders are available with Piston type & Ram type. NOTE : Refer general design notes before selection & use. For ring nuts refer separate accessories sheet page No. X1. Ordering specification for seal kit. Add prefix "SK" to the model Number.

Extremely compact for positioning and fixturing. Fine positioning and convenient installation. DESCRIPTION:These cylinders can be threaded directly into manifold/ fixture body. Suitable for positioning, clamping or ejecting the work piece. These cylinders can be used in fixtures where space is a constraint. Special aluminium washer provides self sealing. Aluminium washer is included in the delivery.FEATURES: Threaded cylinder with internal threaded piston rod. Can be lined up to very close dimensions, as close as hexagonal nut (min 35 mm). Min./ Max. Operating Pressure 5 / 250 bar. NOTE : Do not load in retracted condition. Refer general design notes before selection & use. Ordering specification for seal kit. Add prefix "SK" to the model Number. Keep back pressure to minimum for smooth working of cylinder. (Refer General Recommendations sheet Page No. R1). Tighten manifold cylinder to specified tightening torque Tt mentioned in the specification chart.

Best selection for side clamping for strap free applications. DESCRIPTION:These Low block cylinders are suitable for clamping work pieces from the sides where clamping is not possible from top. Hydraulically operated piston pushes the pivoted lever against the work piece. By positioning the pivot lever it is possible to have a downward force in addition to horizontal push force to clamp the work piece firmly on to workrest. This prevents lifting of component.FEATURES: Min./ Max. Operating Pressure 10/250 bar. The vertical force is approx. 30% of nominal clamping force. Compact cylinder design. Cylinder with Manifold mounting is available as optional. O-ring will be supplied. NOTE : Refer general design notes before selection & use. For Manifold mounting, plug threaded port. Ordering specification for seal kit. Add prefix "SK" to the model Number.

Material : Mild Steel

Brand Name : Quicloc

Color : Black

Material : Aluminium

Corrosion Resistance : Yes

Brand Name : Quicloc

we offer high quality hydraulic rotary valve. Our rotary valves are used on continuous rotary and indexing table for a sequential clamping and declamping operation. It is used on a number of fixtures that are mounted on the rotary table. Our valves work at low rotating speeds up to 3 to 5 rpm. features : max. Operating pressure : 200 barcan be used for single/ double acting applicationsnominal bore : nb5

We are engaged in the manufacturing and supplying of hydraulic rotary distributor. Our rotary distributor supplies the pressure oil to rotating & swiveling installation. Our hydraulic rotary distributor is used when one or more fixtures or elements have to be supplied with hydraulic power on the jigs mounted on rotary tables. features : max. Operating pressure : 200 barcan be used for single/ double acting applicationsnominal bore nb5 specifications model no.connectionsinputsoutputsv3120122x4v3120222x6v3120322x8v3120444x4v3120544x6v3120644x8

Hydraulic Power Pack IS designed as a source of power for the clamping arrangements of jigs & fixtures. We offer four models, which are selected based on the requirement of the clamping circuits. The power unit consists of pump motor arrangements and a relief valve to limit the pressure. It also has a pressure switch to signal the system at the set pressures. Our Hydraulic Power Pack also has a return line filter. Two of our models have radial piston pumps & the other two have gear pumps. With suitable valving, it can be used for single acting clamping system or double acting clamping systems. Special Features : Modular constructionEasily adaptable for Jig / Fixture & clamping system Specifications Model No.Flow rate l/mOperating Pressure barPower kWPumpTank Capacity Ltr.P311011.52501.1Radial Piston30P311022.52501.5Radial Piston30P311034.81401.5Gear30P311046.81001.5Gear30

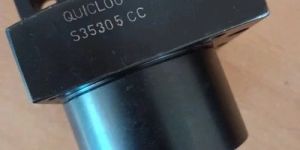

We are offering double acting block swing clamp (type-2). the block type design enables for quick cylinder assembly and disassembly bymeans of horizontal and verticalmounting holes. These double acting swing clamps are having special feature during rotation (swing) it covers an internal stroke and swings horizontally for 90 o stroke and there after travels vertically for 10mmclamping stroke. features : min./ max. Operating pressure 30/100 barlarge clamping rangedouble acting rangesblock type body design with symmetrical mounting hole layout360 adjustable arm locationarm swing will be 90o ±2ozero vertical stroke during 90 horizontal swing specifications model no. : cws12301s12303ccws12302s12304force f kn @ 100 bar69.3piston dia / rod ød32 / 2040 / 32stroke1010oil volume cc2535m x pitchm16x1.5m24x1.5 ød12333 ød25563l ± 0.5183230l1155195l2144183l3100128l42630l53550l61215l778100l825.533l91414l1078b7585b15563b23542b35565b42442maximum flow rate lpm11.6std. Clamp armxs2501xs4001

We are offering double acting block swing clamp (type-1). the block type design enables quick cylinder assembly and disassembly through horizontal and vertical mounting holes. Special threads are provided for vertical mounting operation. These double acting swing clamps are having special feature during rotation (swing) it covers 20mmstroke and there after it travels vertically for 10mm clamping stroke. features : forces given are axial forces. To obtain force at ‘f’ refer graph sheet pageno.g1min. /max.operating pressure 10/250 barlarge clamping rangeblock type body designwith symmetricalmounting hole layouttotal stroke 30mm. Swing stroke 20mm.vertical stroke 10mmarmswingwill be 90o ø 2o360 adjustable armlocation specifications model no. : cws11301s11303s11305ccws11302s11304s11306force f kn @ 100 bar12.66.3@ 200 bar1.95.312.6piston dia / rod ø d25 / 2040 / 3263 / 50oil volume cc5.313.534.6m1 x pitchm16x1.5m24x2m33x2t x pitch x deepm10x1.5x10m16x2x16m20x2.5x20ø d1223352l ± 0.5174200225l1112132145l2506075l3116136149l4294150l5333939l6162026l7121420l87810l9101218b6585125b1456395b2284265b3446295b422.531.547.5b532.542.562.5b6446295g1/8"1/4"1/4"a/f264260øm x deep14.5x1019x1426x18øn91418max. Flow rate lpm0.150.61.6std. Clamp armxs2502xs4002xs6302

Versatile, all purpose mounting cylinder. DESCRIPTION:Block Cylinders are designed to use for applications like Clamping, Pushing, Lifting, Pulling, Positioning. It can be mounted vertically or horizontally through vertical or horizontal mounting holes. Vertical threaded mounting holes are also available. Each cylinder is available in short or long stroke.FEATURES: Male / Female threaded piston rod. Min./ Max. Operating Pressure 10/250 bar. NOTE : Refer general design notes before selection &use. Standard strokes are given. By adding spacers in long stroke cylinders, short strokes can be obtained. Female threaded rod end, Horizontal mounting & Vertical threaded mounting holes are optional. Ordering specification for seal kit. Add prefix "SK" to the model Number.
