R. S. A. Automation Pvt Ltd Rajajinagar, Bangalore, Karnataka

We are offering watson smith I to p converter. The 100x series is an open-loop, highly accurate proportional control valve. A rugged and reliable unit which has been proven in application installations globally. The uncomplicated design of the 100x101x enhances the reliability and reduces maintenance requirements, offering a cost effective accurate solution.

The general purpose buoyancy level switch is a perfect choice for relatively clean water and chemical solutions with non-coating and/or scaling characteristics. Media examples include acetic acid and process water. The baffle body eliminates switch chatter caused by turbulence. The dry contact closure provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. The sensor mounts vertically inside the tank on our Smart-Trak or Switch-Pak fittings.

The vent-captor type 3205.30 is an air flow meter for industrial applications. The small, self-contained vent-captor is completely epoxy resin encapsulated and operates with high accuracy and repeatability even under changing working conditions. The vent-captor can be integrated into measurement and control systems without additional components. The newly developed operating principle for the measurement of air flow, based on the calorimetric principle, provides a wide measurement range over a large quantity. The measurement range is continuously adjustable from 1 to 30 m/s. To achieve the best signal resolution 4 different units are available.

Flowline introduces the DL10 EchoPod, an innovative level sensor that replaces floats, conductance and pressure sensors that fail due to dirty, sticking and scaling media in small tanks 49.2” (1.25 m) or less. EchoPod, a general purpose sensor, provides non-contact level measurement transmitter. Maintenance free, EchoPodis unaffected by the media it measures. Additionally, EchoPod is well suited for corrosive and dirty applications with its non-metallic housing and transducer. EchoPod provides a total solution for fluid handling and automation. The time to “Think Small and Win Big” is now, and it’s with EchoPod.

The general purpose, ultrasonic sensor provides non-contact level detection up to 98.4” (2.5m) with 4 SPST 60 VA 1A relays and a two-wire 4-20 mA level measurement output. Each relay can be configured on a single set point alarm or latched on two sets for automatic fill or empty in simplex or duplex control modes with fail-safe logic. The embedded controller can replace external control hardware. The sensor is well suited for a wide range of corrosive, sticky or dirty type media. EchoPod is broadly selected for day tanks, sumps, IBC totes, lift stations and mini-bulk storage applications. To configure EchoPod, download our free WebCal software and purchase one USB interfacetool.

Flowline introduces the DS14 EchoPod, an innovative level sensor that replaces floats, conductance and pressure sensors that fail due to dirty, sticking and scaling media in small tanks 49.2” (1.25 m) or less. EchoPod, a general purpose sensor, provides non-contact switch and control capabilities in one package. Maintenance free, EchoPod reduces tank system hardware through simplicity and consolidation. Additionally, EchoPod is well suited for corrosive and dirty applications with its non-metallic housing and transducer. EchoPod provides a total solution for fluid handling and automation. The time to “Think Small and Win Big” is now, and it’s with EchoPod.

CSA and Cenelec approved intrinsically safe use in general purpose or hazardous applications, the ultrasonic level switch is broadly applied in chemical, waste, hydrocarbon and petroleum based liquids. Media examples include sulfuric acid, diesel fuel and wastewater. The sensor is universally mounted through the wall or inside the tank, and is com patible with the MicroPoint indicator..

• Less pressure drop than the globe valves• Short open-close time• High flow rate• All body metal, 316 AISI stainless steel• Available on request flanged and welding connection

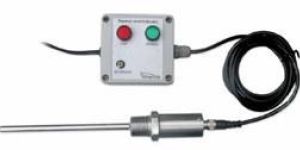

We are offering thermal level alarm. The sl-100 series utilizes the thermal dispersion principle of the dissipation of heat by liquid to detect the presence or absence of liquid as compared with air. A typical configuration uses two temperature detectors set within the tip of the sensor. One temperature detector is heated a few degrees above the other one. As the level of process liquid drop below the tip, the delta temperature rises and the output will change state.

The Thermal Flow Switch Monitor SP-150 is based on the principle of thermal dispersion. A typical configuration uses two Temperature Detectors set within the tip of the sensor. One Temperature Detector is heated a few degrees above the other one. As the process medium flows over the tip of the sensor it disperses some of the heat from the heated Temperature Detector. The delta temperature is a function of flow velocity and converted into electronic signal. The open collector changes state once the set point has been reached.

Designed to detect a specific impurity in a binary gas mixture, the 212R is also well suited for monitoring one component in more complex mixtures where the other gases have the same ratio to each other or have similar thermal conductivity coefficients.

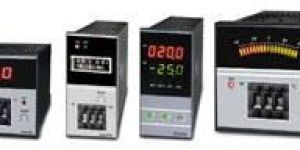

The microprocessor based Temperature Controller is a high quality and user friendly product that can satisfy the user. The temperature controller has complete functions and utilizes a microprocessor that enables it to deliver fast results. The temperature has enhanced features that is critical to the user and is expected to raise quality levels and to expand production performances.

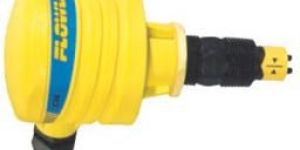

This general purpose liquid or gas switch package provides a complete solution for low flow pump or process protection with a 10A compact relay controller for actuation. The optional flash alarm brings immediate attention to low flow conditions. The short sensor is intended for use in pipe or ducting from 1/2” to 1-1/2”; the long sensor is applied in 2” and up. The product is broadly selected for low or no-flow applications. Specify the appropriate sensor technology, length and material.

This general purpose switch package provides a complete solution for high level spill prevention with a fixed level switch point and 10A compact relay controller for pump or valve actuation. The optional flash alarm brings immediate attention to high level conditions. The product is typically selected for pressurized and/or highly corrosive bulk storage, day tank and waste sump applications. Specify the appropriate sensor technology, material and assembly dimension.

This general purpose switch package provides a complete solution for automatic filling or emptying of a tank between two adjustable level switch points with a 10A latching compact relay controller for pump or valve actuation. The product is typically selected for atmospheric day tank, process vessel and waste sump applications. Specify the appropriate sensor technology and assembly dimensions. The AC powered relay controller has a latching 10A relay, adjustable time delay, LED indicators and NO or NC invert switch.

We are offering side mounted level indicator. Side mounted heavy duty tank level indicator are suitable for storage tanks, batch tank, day tank, receiver tank. It is simple & reliable devices for direct reading in atmospheric or pressurised tank application.

Pressure regulators for set points from 5 mbar to 28 bar · Valves in nominal sizes DN 15 to 100 · Nominal pressures PN 16 to 40 · Suitable for water, non-flammable gases and vapors up to 350 °C.

The sample cooler is a compact unit, specially designed as per ASME SEC-VIII, Div-1 & ASME PTC-19.11 to handle high pressure & High temperature applications.

The RP series operating principle is simple. A unit is usually located through a bin wall at the top, middle or low level of a bin. During normal operation (no material present) a synchronous motor rotates the paddle at 1 RPM. When this paddle rotation is impeded by material, surroanding the paddle, motor will stall and cause the Micro switch to change state. (indicating an alarm or control)

It is designed for most critical requirements of liquid level in vessels under high pressure & temperature condition in petrochemicals, fertilizer and pharmaceuticals & chemical industries involving inflammable toxic liquid, high temp Liquids.

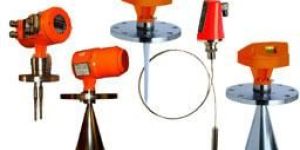

we are offering radar level. the reflex vf series range of tdr products is ideal for the measurement of liquids, powders and granules to a range of 60m. unaffected by pressure, temperature, viscosity, vacuum, foam, dust, changes in dielectric constant or coating of the probe, the vf series can measure virtually any product in either direct or tbf mode utilising any one of its seven probe types.

Electronet's Series DPC-012 are Process Indicator / Controllers specially designed for various industrial applications. These can be used for monitoring and controlling parameters like Temperature, Pressure, Flow, Speed, Level etc. with the help of proper Sensors / Transmitters. The control points are settable through the potentiometers on front fascia and control output is available at the rare end.

Pressure Transmitters are precision engineered to fit most industrial pressure measurement applications. The compact, rugged design make these instruments suitable for applications including hydraulics and pneumatics, vacuum, test equipment, liquid level measurement, press control, compressor control, pump protection and numerous other processing and control operations. A wide range of electrical connection and process connection options are available to meet almost any requirement.

Stainless steel, resistive, Metal film Stainless steel, hermetically welded 0…4 bar to 0…600 bar (-1 bar initial value is available Relative pressure 12. . . 30 VDC 0…10 VDC, non-ratiometric *1) -40…125°C Reverse polarity, short circuit Meeting industrial standards
