Sarayu Infotech Solutions Pvt Ltd Mahalakshmipuram, Bangalore, Karnataka

VM-8000 is a continuous online monitoring system suitable for condition monitoring and machinery protection applications. The system measures 10-channel Non-Contact /Casing vibration. The system has dedicated 5 digit 7 segment displays for displaying vibration values. Also measured parameters will be communicated to remote terminal via MODBUS RTU on RS485. The system provides industry standard 4~20mA DC signal output for interfacing with Distributed Control System (DCS). The system has 8 programmable relays for alarm and trip. Read relay contacts provide for Alarm and trip. Each channel has tricolor LED indication for indicating OK, DANGER and ALERT status. Features: • Industry Standard 6U/24T Rack Size.• Digital Display Options. • Ten Channel Measurements.• Four Relay Output (Alarm Contact Output).• Built in power supplies necessary for sensors operation.• LEDs per channel for indicating OK/ALERT/DANGER status.• RS485 serial port with MODBUS RTU protocol..• 32 units can be connected in RS485 multi drop network.• All Settings stored in Non-Volatile memory to prevent any data loss.• Industry standard DC Power Supply +24 VDC.• Set Points for Alert Alarm Limits.• Set Points for Danger Alarm Limits.• Set Points for Alarm Time Delay.• Latching for Alert Alarm.• Latching for Danger Alarm.• Digital Communication.• Multi-function Key switch.• Highly reliable. • Easy to retrofit. • Highly economical.

  The Vibration Analyzer is a digital signal controller based system which is used to analyze the vibration signals arising out of a rotating machine and records the required parameters. The vibration analyzer computes the amplitude and phase of each input signal simultaneously with reference to the tracking input. The instrument has the features like DC level, overall vibration and tracking filtered measurements. The instrument shall measure the frequency, acceleration/deceleration rate of this tracking signal and communicate the same to PC and also operate as a relay whenever the signal level exceeds certain limit which is set through PC. All the parameters are available on RS-485 network with MODBUS format.

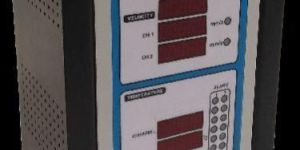

Vibration Temperature Monitoring System is a continuous online monitoring system suitable for condition monitoring and machinery protection applications .The system measures 12 channel temperatures, 2 channel contact type vibration, and 1 channel non-contact type vibration parameters. The system has dedicated 5 digit 7 segment display for displaying vibration values, one 5 digit 7 segment display for displaying 12 channel temperatures in scan mode and one 3 digit 7 segment display for channel indication. Also measured parameters will be communicated to remote terminal via Modbus RTU on RS485. The system has 8 programmable relays for alarm and trip. Each channel has tricolor LED indication for indicating OK, DANGER and ALERT status.

The VS-800 is eddy current type non-contact displacement/vibration transducer, used for measuring Shaft Vibration, Axial Position, Rotating Speed and Phase Mark (Phase Reference) from small rotating machinery to large critical machinery such as turbines and compressors in plants. The system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements. In addition, it is designed to meet the API (American Petroleum Institute) standard 670 requirements, often referred as machinery protection system for petroleum refineries and petrochemical plants around the world

The 3-Phase Power Monitoring system is a digital signal controller based system that can be used to analyze and record the power line signal going out of a power source. The system is capable of measuring non-sinusoidal voltage and current wave forms containing high harmonics. The instrument is used to measure and compute the Power, RMS Value of current, Power Factor as low as ±0.1 and communicates these parameters to the remote PC through MODBUS on RS-485 network.

The Portable Vibration Meter is a battery powered portable instrument designed to operate with a constant current type accelerometer to make vibration measurement simple and convenient. Peak RMS, peak to peak are the various parameters that can be measured for acceleration, velocity and displacement. The instrument has a built in RS-232 PC serial interfaces for data capture and analysis. The system can store the machine signature for later analysis.or later analysis.

Vibration analyzer is a high performance, full-featured FFT data collector, signal analyzer and balancer which allow easy condition monitoring of equipment found in many industries such as power generation, petrochemical, pulp and paper. Vibration analyzer collects field data in-cluding vibration information, bearing condition, inspection and process data. Extensive analysis functions facilitate data analysis and condition diagnostics on site

VMS-3000 series is a continuous online monitoring system suitable for condition monitoring and machinery protection applications and is designed to fully meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. VMS-3000 has been designed and developed by highly experienced team with the latest state of the art technology. The System is modular in design with a full flexibility provided to the user to configure his functional requirements by selecting the appropriate functional modules to suit his requirements. The VMS-3000 System consists of main 19" Rack frame has rugged construction ms extruded channels, panel mounting type. The user is provided with industry standard euro PCB modules of different functional modules like Non-Contact 4-channel Vibration Measurement Module (VMM), Standard Relay Module (RLY), Rack Configuration module (CNFG), Generic DI module, DO module, Contact Vibration Measurement Module, to mention a few. It houses a maximum of eleven modules. It can measure vibration without display up to 40 channels or with display 20-channels. Barrier-type terminal strips for external wiring are located at the rear. Input signals are continuously monitored to ensure that the sensors, interconnecting cables and modules are functioning. The powerful configuration user software is provided in addition to the local displaying of data. The data measured are made available on the communication Gateway via Ethernet or RS485/RS232 in MODBUS RTU protocol. VMS3000 provides industry standard 4~20mA DC signal output for interfacing with Distributed Control System (DCS). Sealed electromagnetic relays are fitted in the Main Rack Frame for independent alarm, trip and circuit Fault functions. Read relay contacts provide individual Alarm and trip per module. Higher relay contact ratings of 5A resistive at 250 VAC are available. An integral Switch Mode Power Supply (SMPS), located at the rear provides DC power for the modules and associated sensors.

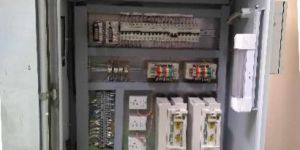

The Spindle test and analysis system is utilized to pre-condition of the spindles before they are installed in a machine. This process is accomplished over several hours at various increased running speeds which can be selected by the end user. Motor controls allow the user to choose specific speeds to soak the spindle for specific periods of time. The temperature, Noise and vibration level of the spindle are measured and compared with the set values to generate alarms for limit crossing. PC with control and analysis software• VMS3000 System.• PT100 sensor with signal conditioning.• ICP based Accelerometers• Motor drive• Tacho Meter for RPM measurement.• Microphone.
