SCB Solar Koramangala, Bangalore, Karnataka

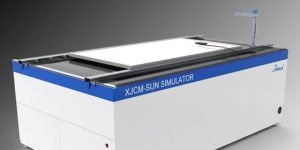

Owing to our operational efficiency, we are able to meet the demand of Sun Simulator anywhere across India in time. We have proved to be the eminent Supplier of Sun Simulator from either China or Europe. Our efficiency can be tracked down to our deep-rooted network spread all over the length and breadth of the country. Our Sun Simulator, crucial test equipment, is offered at cost-effective rates   Features : Two flashes 2x10ms equal to 100ms Infrared sensor test temperature of module with auto temp. correction Guide rail for production line Fast test : <1 sec; interval time< 5 sec   Technical Specifications : Total system size (length × width ×height) : 2,500 × 1500 × 900 mm Max. Illuminated area : 2,000 × 1000 mm Type of lamp : Xenon Type of measurement : single/two flash Spectrum : AM 1.5 Lamp lifetime : 300,000 Range of light intensity : 200 - 1,200W/m2 Load time : 5 S Light pulse duration : 2x10ms(equal to 100ms) Non-uniformity of irradiance (IEC 60904-9)  : 2%A class Module faces : down Electronic load Voltage ranges : 1/10/50/100V Current ranges : 0.25/1/2.5/10A Current / voltage resolution : 0.025% Reference cell range : 50 mV Accuracy : < 0.5% Max. module output power under flash : 1,000 W Duration of IV measurement : 100m2x10ms2 D/A and A/D resolution : 12 bit Max. no of measuring points Per curve : 400 Max. Data acquis. speed

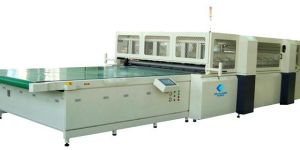

To cater to the market that requires a laminator for laminating glass, EVA, solar cells, etc. efficiently, we are working energetically in making the availability of high-grade Solar Module Laminator. We are one of the reliable Suppliers of Solar Module Laminator from either China or Europe. We only offer those Laminators that qualify all the parameters of quality tests. Besides ensuring quality, we also make sure that the market remains sufficiently supplied with Solar Module Laminator. Types : Semi & Fully Laminator from China – for low capacity production starting say from 5 Mw to 20 MW/annum of solar modules Multi-level Laminator from Tekni Solar UK – best suited for high capacity production starting from 25 Mw to 200/300MW per annum of solar modules Base on specific requirements, most suitable model from China or UK can be offered

We are dealing in AAA-class Solar Cell Tester across India. We have made a notable stature in the industry as the trusted Supplier of Solar Cell Tester in China or Europe. We are catering to the local and national market that is looking for high-grade test machines, particularly for the purpose of incoming cell inspection. Our Solar Cell Tester stands high on quality and is made readily available wherever its demand sets in, and that too be at reasonable prices.   Features : Tests Dark/Reverse Current Meets IEC60904-9 : A A A class High Stability : <1% Testing time : <1 sec Interval time : <3 sec Technical Specifications : Maximum cell dimension : 160 × 160 mm Cell thickness range : 0.18 - 0.50 mm Cell geometry : sq., ps.-sq. Cell loading : Manual Throughput : 720cells/h Sun simulator - light generator Max. illuminated area : 256 cm2 Type of lamp :  Xenon Type of measurement : Single flash Range of light intensity : 20 - 120 mW/cm2 Illumination Uniformity : <2% A class Spectrum : AM 1.5 spectral irradiance Distribution (IEC60904-9) : A temporal stability STI : 0.5% LTI : 2%·     Lamp lifetime : 500,000. flashes

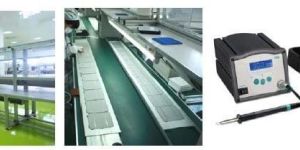

We have an easy mechanism to make Solar Cell Tabbing & Stringing System available across the country. Our company is recognized as the chief Supplier of Solar Cell Tabbing & Stringing System from either China or Europe. The System, offered by us, is appreciated for being user friendly. In addition, we offer the System, loaded with benefits, at cost-effective rates to our local and national buyers.

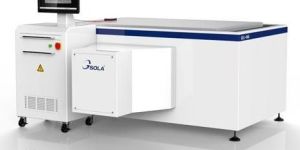

Having backed by extensive network across the country, we are engaged in catering to the local and national market with our top-of-the-line Solar Cell & Module EL Testers. We are counted amongst the premier Suppliers of Solar Cell & Module EL Tester from either China or Europe. Our Solar Cell & Module EL Testers are passed through various stringent quality tests and are sourced from reputed manufacturers. Besides ensuring availability, we are also making sure to entice the market with our product’s price, which is moderate, and delivering product as per client’s specifications.   Various inspection technologies are currently being used within the photovoltaic production process like inspection systems for wafer integrity, print quality, color inspection. The overall performance of the cells or modules is measured with sun simulators. However, none of these systems can actually provide valuable information about the overall quality of the production process and the predicted performance of the particular cell or module under test. This is exactly where electroluminescence comes into play. With EL Imaging, hard to spot defects like micro cracks become obvious and at the same time, valuable process information is provided.In every production step from incoming cells, after stringing process, before and after lamination and as final inspection step. Quality control of PV modules at all times before reselling and installation or whenever a problem has occurred.We offer EL testers from mbj Germany and G Solar China based on customer specifications, need and budget.G Solar China (No dark room)-effective & accurate measurement at low cost.We offers EL tester for very accurate and for detecting micro cracks down to 100 µ or even less with  semiautomatic or fully automatic modes . The mbj range covers El testing from Cells, Cell strings right up to Modules (before and after lamination).

In order to meet urgent and voluminous requirements of the customers, we have installed all the in-house facility at our premises. Laced with modern facilities, it helps us in securing the product line from factors like, moisture, dust, sunlight, etc. We are backed by a reliable team of packaging professionals and modern facility that aid us completely for furnishing standard as well as tailored packaging requirements of the patrons.

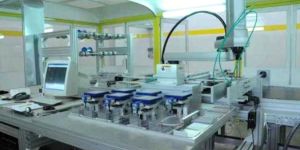

We are offering highly acclaimed Photovoltaic Turnkey Solutions for manufacturing of high-grade solar modules. Our Photovoltaic Turnkey Solutions are availed specifically for high-volume module production, from 25 MW onwards. In addition, we are bracketed with the chief Photovoltaic Turnkey Solution providers in China, UK & Italy. We are indulging our clients into the most innovative and comprehensive Solutions, charged economically. Our services are appreciated for bringing the most suitable photovoltaic panels. Our technical support that is a team of professionals, including marketers, sales & post-sales technical/application support on process, contribute in providing the effective Photovoltaic Turnkey Solutions across India.

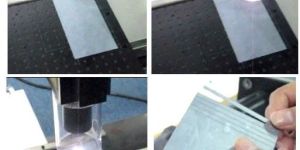

No matter how much precision cutting and scribing tasks require at solar industry, Laser Scribing Machine that we offer conquers all aspects, leaving no room for mistakes. Our company is counted amongst the reliable Suppliers of Laser Scribing Machine from either China or Europe. We have a well-spread network all over India that enables us to meet the nationwide demand and that too be timely. In addition, we are offering Laser Scribing Machine at nominal rates.

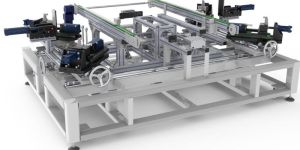

When the need to cover the solar-panel components in frames surfaces, Automatic Framing Machine’s demand sets in. We are offering A-grade Automatic Framing Machine to our nationwide buyers. We give our buyers an option to choose from fully-automatic and/or semi-automatic framing machines. Besides, we take pride in our extensive and well-managed network spread across India, which further enables us to conclude orders for the Machines timely and efficiently.

We have an easy mechanism to make Solar Cell Tabbing & Stringing System available across the country. Our company is recognized as the chief Supplier of Solar Cell Tabbing & Stringing System from either China or Europe. The System, offered by us, is appreciated for being user friendly. In addition, we offer the System, loaded with benefits, at cost-effective rates to our local and national buyers.
