Servo Voltage Stabilizer Dealers in Bangalore

Buyers can rest assured; our products are reliable, as they are sold by us only after subjecting them to stringent tests of quality. For us making delivery of consignments is easy, as we have a productive logistic network that enables to reach buyers within the promised time.   Technical Specification : Capacity 1 Kva  25 Kva 1ph - Air Cooled 3 Kva  100 Kva 3ph  - Air Cooled 100 Kva  1500 Kva 3ph  Oil Cooled Input Voltage    170v  270v 1ph Ac 340v  460v 3ph Output Voltage 200v / 220v / 230v 1ph  380v / 400v / 415v 3ph Output Voltage Regulation  - + 1% At No-load to Full-load. Operating Frequency  -  47 Hz  53 Hz System Operation  -  Un-balanced 4 Wires Speed of Correction  -  35v/sec  Phase to Neutral Wave Form Distortion  -  Nil Output Wave Form  -  True Reproduction of Input Insulation  -  Class  B, F & H Operating Temperature  -  0oC - 45oc Ambient Construction  -  Is-9815 Over Load Capacity  -  120% for 10 Min Short Ckt Period & Percentage  -  300% for 250 M.sec Protection Low Voltage Protection. High Voltage Protection. Short Circuit Protection. Over Load Protection. Single Phase Preventer. Indications Input On. Output On. Input  Low. Input  High. Output Cut-off. Panel Control Input / Output Selector Through Soft Key. Auto / Manual Selector Switch. Voltage Increase / Decrease Through Soft Key.

Energx servo voltage stabilizers consists of three basic components a motorized variable transformer, a buck boost transformer, and a controller. Input power is applied across the motor driven variable transformer Which has a center tap that divides that variable transformer into bucking and boosting voltages areas. The buck-boost transformer is a fixed ratio isolation transformer capable of high amperes at low voltage. The ratio of the transformer is determined by the amount of voltage needed to buck or boost the input line to maintain the specified output level. The buck boost transformer secondary is wired in series with the load and the primary is connected across the variable transformers "Center tap & brush terminals. Depending on which side of the "center tap" (the variable transformer brush is positioned, the variable/buck-boost transformer system will add to (boost) or subtract from (buck) the Input line voltage. The further the variable transformer brush is from the "center tap" the more bucking or boosting of voltage will occur. The key to the proven reliability and long trouble free service life of a Energx Voltage Stabilizer is in the combination of a motor driven variable transformer With buck boost transformer technology.

Features . High response, low inertia rugged A. C. servo motor . Critically damped response on all loadssupply conditionsli> . Energy savings due to high efficiency and superior transformer design . High quality raw materials used − prime grade CRGO lamination and high purity electrolytic copper wiresstrips used . High speeds of correction up to 35Vsec for three phase and 20Vsec for single phase . Machine wound variacs with special carbon brushes for enhanced life . Simple, systematic construction for dependability and ease of maintenance . Solid state control circuitry

• Brand Name: EXCELON
• Application: Voltage stabilization
• Phase: Three Phase
• Efficiency: 98%
• Cooling: AIR/ OIL COOLED
• Model Number: SCVS 3 Phase
• Place of Origin: Bangalore
• Input voltage of 1KVA - 150KVA SINGLE PHASE: 170 V - 270 V
• Input Voltage 3 Phase: 340 V - 470 V
• OUTPUT REGULATION: +/-1%
• RATE OF CORRECTION: 70 V / Sec Ph-Ph
• CONTROL: MICRO PROCESSOR
• DUTY CYCLE: CONTINUOUS
• PROTECTION: HIGH VOLTAGE , LOW VOLTAGE , SINGLE PHASING , MOTOR PROTECTION

• Features: Over load cut-off, Trip time delay adjustments with variable setting ,Less maintenance
• Item Code: Series-MF

• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: TANAC
• Model Number: ACT

• Certification: CE Certified
• Voltage: 110V
• Output Type: AC Single Phase
• Frequency: 50hz
• Automatic Grade: Automatic
• Feature: Auto Cut, Easy Operate, Stable Performance
• Brand Name: Servo

We take an honor to introduce ourselves as the dependable Manufacturer, Supplier and Exporter of Servo Control Voltage Stabilizer from Bengaluru, Karnataka. With assistance to our sound manufacturing unit, we are capable to manufacture Servo Control Voltage Stabilizer. We strictly tested our Servo Control Voltage Stabilizer before dispatching and that is why, we have become the first choice for buyers when it comes to buying it.

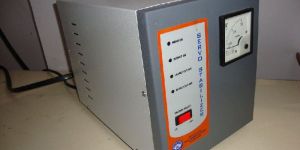

Three phase Stabilizer (Air cooled /Oil cooled)Servo stabilizers are used to protect any critical equipment, which are effected by the fluctuation in the input supply and those equipments do not operate when they are not used at the specified voltage. Our Servo Stabilizers by providing constant output with tolerance of +/-1% makes equipments operate efficiently and hence improve their life. Also protect from being damaged due to high and low voltage.

Powertec systems are offering Servo Controlled Voltage Stabilizers to our customers. To cater to the critical requirements of our clients from all strata of industrial, commercial and residential sectors we offer our own manufactured systems and back up our supply with products from some of the most reliable names in the industry.

• SINGLE PHASE AIR COOLED: 0.5KVA TO 50KVA
• THREE PHASE OIL COOLED: 20KVA TO 1MVA
• THREE PHASE AIR COOLED: 3KVA TO 250KVA

Range of Servo Controlled Voltage stabilizers (SCVS) essentially handy since Voltage variations in supply line have become a common phenomenon causing havoc to all office and industrial equipments. These units are designed to deliver a constant voltage which is monitored by an electronic circuit and fixed ratio Buck-Boost transformer. This method of stabilization is continuous and there is no break during the correction process. The simple, cost effective, durable, stabilizers make the a very economical and reliable solution.

• Description: Three Phase
• Capacity: 3kva1500kva
• Input Voltage: 295-465v
• Wide Range: 245-465v
• Output Voltage: 380/400/415v +/- 1% Settable
• Nature Of Cooling: Air / Oil Cooled
• Regulation: +/- 1%
• Efficiency: >96%
• Input Frequency: 50hz +/-3hz
• Speed Of Correction: 70v/ Sec
• Servo Motor Drive: Ac Synchronous
• Indications: Input On, Output On High/ Low Cutoff
• Metering: Anolog Input/Output Voltmeter
• Protections: Under/Over Voltage Overload & Short Circuits Protection
• Manual By Pass(Optional): Through Change Over Switch
• Operating Temperature: 0-50 Degrees Celsius
• Enclosure: Crca Mild Steel
• Standard For Stabilizer: As Per I.S. 9815

Cosmic servo controlled voltage stabilizer manufacturers in bangalore is an effective solution for the voltage fluctuation. It full fills the need of an interface between an unregulated power supply and sophisticated equipments. These are available in various ranges both in Single phase and Three phases and designed to give a stabilized output within 1% of the present voltage. Capacity : 1Kva to 1000Kva Servo Voltage Stabilizer is ideal for centralized applications in any industry to protect all the machineries Equipments which are under complete voltage control. We manufacture high efficiency servo controlled voltage stabilizers which works effectively under voltage fluctuations and helps in obtaining one output.

• Efficiency: 97%
• Input Voltage: a) 350V - 470Vb) 340V - 470Vc) 320V - 470Vd) 300V - 480Ve) 270V - 480Vf) 240V - 480V
• Phase: Three Phase
• Automation Grade: Automatic
• Surge Protection: With Surge Protection
• Power: 250KVA
• Cooling Type: Air Cooled
• Warranty: 1 Year
• Response Time: 10m s.
• Nominal Output Voltage: 400V
• Output Voltage Accuracy: +- 1%
• Line Frequency Variation: 47Hz-53Hz
• Control: Digital/ Analogue
• Voltage Correction Rate: 40V / Sec25V / Sec.
• LCD Display (20 x 2 matrix): Date & Time, Input Voltage, Output Voltage & Current
• Programmable Features(Through 2-parallel way resettable passwords): HV cut-off set.LV cut-off set.O/L trip set.Time delay setOperating mode (auto/manual)
• Protection: a) Automatic Switch-Off againstUnder / Over-Voltage Over-Load & Short Circuit Single Phasing

  It is observed that In spite of best efforts by various Electricity Boards / Supply undertakings the voltage at consumer’s end is never constant. The reason being diverse loading duties arising in transmissions and distribution network. During the this time when the load requirements is more the voltage remains quite low and during night it goes up than the normal. Never ending voltage fluctuations there is frequent Tripping / Breakdown of the systems/machines and precious equipment’s resulting into low production.     Our Servo Voltage Stabilizer can overcome and control these voltage fluctuations & can provide you with the desired constant output voltages. Our Servo Voltage Stabilizer are available in a vast choice of Input and Output Voltage range suitable for various applications in industries, institutions and residences etc. having indigenous, imported sophisticated machines / instruments.     Rating Available: 1 KVA to 500 KVA(Special ranges also available on request)           Salient Features     Fully Solid State Control Circuit     + - 1. % Regulations     Purity of wave form maintained without Distortion     High Efficiency     Auto - Manual Operation Facility     Over - Under Voltage Protection     M.C.B on Input Circuit     Display to read Input / Output voltages.             Optional Features     Widest Input Range- 140-280/ 110-280/ 90-280 V is also available.     230 to 110 V (output) can be supplied.     Built in spike/surge suppressor.     Special Input/Output ranges available on request.     Over - Under Voltage Cutoff Protection through Contactor’s.     Electronic Overload / Short Circuit protection or through MCCB’s.     Single Phase Prevention.             TRANSFORMERS     For Industrial & domestic applications 1KVA to 500KVA Powertron offers Transformers of different configurations like,     Oil cooled.     Forced air cooled.     Isolation transformers.     Step down Transformers.     Auto transformers.     With good looking custom built cabinet & display parameters.             ISOLATION TRANSFORMER     An isolation transformer is a transformer used to transfer electrical power from a source of alternating current (AC) power to some equipment or device while isolating the powered device from the power source, usually for safety. Isolation transformers provide galvanic isolation and are used to protect against electric shock, to suppress electrical noise in sensitive devices, or to transfer power between two circuits which must not be connected together.

Features Wide Input Voltage Range Under Voltage & Over Voltage Protection Protection against Surge Super Speed Correction Rate Highly Efficient Air cooled up to 125 KVA

We supply Servo Controlled Voltage Stabilizers, which offer optimum performance during operation. Our company provides premier quality AVR Stabilizers to cater customers' distinct requirements. These Stabilizers are available with servo controller principal giving better optional efficiency. The output voltage of our Industrial Servo Voltage Stabilizer are mentioned and sensed continuously by a control circuit, which also controls the movement of low speed, high torque, and bidirectional stepper motor.   Constant Voltage TransformersOur Company provides excellent CVT in which AC main powers the input windings that turn widely separated physically from the isolated output winding. Moderate flux linkage levels are maintained in input winding running. The output winding has an intrinsic energy storage characteristic.Rating: 150 VA TO 5KVAWall Mountable Automatic Voltage Stabilizer: This Stabilizers is precisely engineered voltage stabilizer which are used for air conditioner. Rating: 3KVA, 4KVA, 5KVAApplications Hospital, Textile Mills, Food Processing Units, Engineering Units, Pharmaceutical Units, Cold Storage, Broad Casting & Telecommunication, Information Technology, High Rise Building, Research Instrumentsr. Salient Features of SCVS Faster Rate Of Correction   Isolated Servo Drive Without Relays   No Noise Generation   ± 1.0% Regulation   High Efficiency   No Wave Form Distortion   Advanced IC Technology   Over/Under Voltage Protection   Simple And Robust Construction Salient Features of CVT No Use Of Semiconductor Or Moving Part   Very High Reliability   No Use Of Feed Back Control   Limiting Of Intensive Current   Short Circuit Protection   Energy Storage For Line Up to Minimum 3m/sec   Higher Input Voltage Range For Load

M/s. Tech Mach Machine Tools are leading suppliers of power conditioning equipments like Servo Stabilizers, Isolation Transformers. Servo Stabilizers can be air cooled or Oil cooled.Air cooled Servo Stabilizers are available in the range from 3 KVA~ 100 KVAOil cooled Servo Stabilizers are available in the range from 100 KVA ~ 1500 KVA.

Servo controlled voltage stabilizer micro controlled based. Air cooled : 01kva to 100kva oil cooled : 03 kva to 2000kva
