Single Spindle Machine Dealers in Bangalore

With the aid of our updated transit facilities, we are capable of delivering the orders at requested destinations with ease. Buyers across Bangalore(India) and other markets can contact us for purchasing our product all year round.   Technical Specification : Winding Turns - 0.1 TO 99999.9TURNS Winding Width -  0.1 TO 130.0MM Winding Pitch - 0.02 TO 9.999MM (winding capacity MAX 0.8) Winding Swing Diameter - 80MM (MAX) Winding Speed - 200 TO 9000RPM Spindle Motor - 180W / 1/4HP, 180VDC, 3000RPM, PMDC Wire Feeding Motor - Hybrid Stepper Motor 1.8, 1A, 13kg. Brake  - Electro Magnetic Disc Screw Rod - 10mm Pitch. Power Supply -  220/240V AC, 50HZ, 0.5KVA Processor - MICRO CONTROLLER Memory Type - Eeproms, 100 Programs Display -  4 Line 20 Character Lcd Modules key Board - Normal Keyboard

• Winding width: 100mm
• Coil swing dia: 100 mm
• Wire dia: 0.07 to 0.50 mm(45 TO 25 SWG)
• Total turns: up to – 99,999
• Traverse: hybrid stepper motor
• Taps: 8
• Turns accuracy: 0.1 turn
• Winding Speed: 8000 RPM
• Supply: 230 Volts
• Power: 200W
• Memory: 499 Programs
• Display: 20 X 4 Lines LCD
• Memory back up: in built
• Wire cut indication: Online
• Layer stop: Online
• Brake: Online
• Wire diam. Edit: Online
• Jog (minimum speed): Online
• Production counting: Online
• Password: Programmable
• Foot Switch: Optional

• Brand Name: TANAC
• Model Number: AX 1

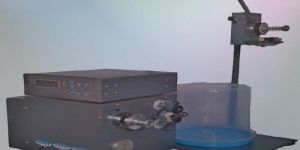

Single Spindle Winding Machine, Power Transformer Mandrel

Single Spindle Automats Machine
