SMD Resistor Dealers in Bangalore

• Mounting Type: SMD
• Color: black
• Current: 2-5 A
• I deal in: New Only
• Capacitance Tolerance: 1% and 5%
• Power: 2w
• Voltage Range: 24-120V
• Voltage Rating: 100v
• Minimum Order Quantity: 10000 Piece

We keep stock wide range of chip Trimmer Potentiometers of sizes 1/4 2MM(2), 3MM(21), 4MM(21)

Chip Variable Resistor (Preset) We keep stock wide range of chip Trimmer Potentiometers of sizes 14 2MM(2), 3MM(21), 4MM(21)

• Material: Silicon
• Conduction voltage: 1V
• Reverse voltage: 100V
• Power: 1/2W
• Forward Current: 150 mA

• Size (mm): 6.30 x 3.10,5.00 x 2.60

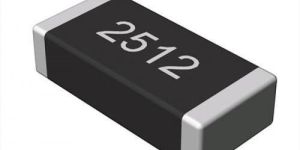

SMD resistors are rectangular in shape. They have metallised areas at either end of the body of the SMD resistor and this enables them to make contact with the printed circuit board through the solder. The resistor itself consists of a ceramic substrate and onto this is deposited a metal oxide film. The thickness, and the length of the actual film determines the resistance. In view of the fact that the SMD resistors are manufactured using metal oxide, means that they are quite stable and usually have a good tolerance.

• Operating Temperature: -55 to 155 Degree C
• Tolerance: +/- 5%
• Temperature Coefficient: +/- 100ppm/ Degree C
• Power: 1w

• Color: Black
• Operating Temperature: -20
• Material: Silicon
• Resistance: 25.1 k ohm +/- 1%
• Resistor Code: 2512
• Packaging Type: Packet

We have with us a rich combination of engineering expertise as well as a dedicated work approach that assists us in successfully offering SMD Resistor Transistor and Capacitor that soldered directly on a PCB.

• Datasheet:  RC1206_YAGEO Series.pdf
• Category: Resistors- SMD/ SMT
• Sub Category: Thick Film Resistors
• Packaging: Tape & Reel (7" inch)
• Mounting Type: SMD
• Package: 1206
• Tolerance: 1%
• Manufacturer: YAGEO
• Product Type: Resistors

• Type: Chip Resistors
• Material: Aluminium, Plastic, Polyester Film, Raw Aluminium
• Weight: 0-50gm, 100-150g, 150-200gm, 200-250gm, 50-100gm
• Power Type: AC, DC
• Frequency: 50Hz, 60Hz
• Driven Type: Battery, Electric
• Feature: Auto Controller, Dipped In Epoxy Resin, Durable, High Performance
• Warranty: 1Year
• Humidity: 60%, 65%, 70%, 80%

• Power Dissipation: 0.063 W to 0.5 W
• Value Range: From 49R9 to 1M5
• Tolerance Options: 0.1%, 0.25%, 0.5%
• TCR Options: 15, 25, 50 PPM
• Maximum Voltage: 150 V

The drive for miniaturizing electronic devices has resulted in today’s extensive use of surface-mount electronic components. An important aspect in electronics design and the choice of materials is a product’s durability and lifetime. For surface-mount resistors and other components producing heat it is a well-known problem that temperature cycling can lead to cracks propagating through the solder joints, resulting in premature failure. electronics in general there is a strong interest in changing the soldering material from lead- or tin-based solder alloys to other mixtures. This multiphysics example models the heat transport and structural stresses and deformations resulting from the temperature distribution using the Heat Transfer in Solids and Solid Mechanics interfaces.

• Shape: Rectangular
• Max. Current Rating: 45 mA
• Tolerance: 5%
• Maximum Operating Temperature: -10 to +85 C
• Wattage: 1 W
• Odpor: 47K Ohm

Wire wound Chip Resistor Automatic Surface mouting design Flamepproof UL V94 V0 molded packaging Power Range - 2W to 5W KSMW series is a range of high stability, high reliability, and flame proof packaged power wire wound chip resistors. The packaging is resistant to heat & humidity. A wide range of resistance values are available in 2W to 5W. These resistors are specially designed for automatic surface mounting.
